Stowasser GmbH&CoKG

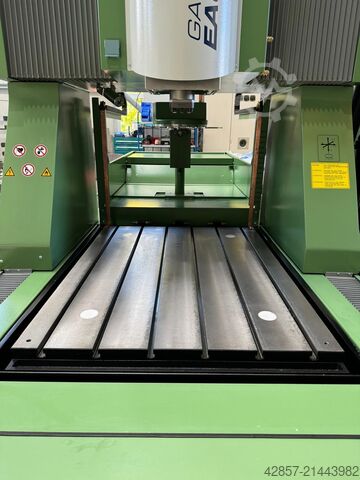

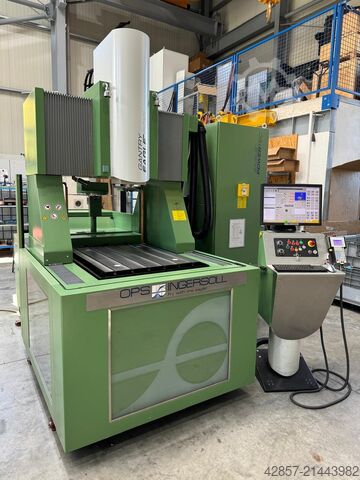

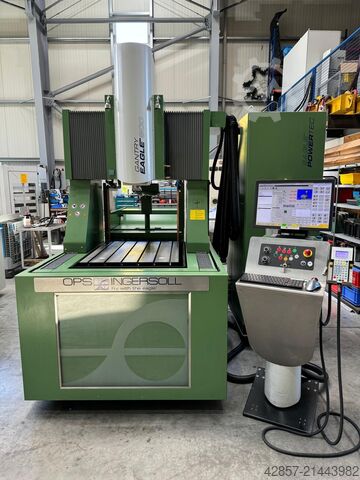

Condition: excellent (used), Year of construction: 2011, operating hours: 1,703 h, functionality: fully functional, travel distance X-axis: 550 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 450 mm, workpiece weight (max.): 2,000 kg, tank capacity: 800 l, OPS INGERSOLL Gantry Eagle 800 year of manufacture: 2011 travel: x, y, z 550 x 850 x 450 mm control: Eagle Power Tec electrode changer: 20 pieces 3D probe 3D probe on the table magnet: 400 x 200 mm Nodjzgt Rmopfx Aa Ijlc C-axis EROWA clamping system fire extinguishing system remote control chiller includes approximately 600/700 liters of dielectric fluid includes drawer cabinet with contents documentation machine is powered on for inspection

Condition: used, functionality: fully functional, machine/vehicle number: ELBOMAT 222S, travel distance X-axis: 300 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 200 mm, AEG-ELOTHERM ELBOMAT/ELOPULS spark erosion machine with a separate control cabinet and ELESTA VISULESTA II control unit. Brand: AEG-ELOTHERM Type/designation: Elbomat 222s Table dimensions: 580x310 mm Nlodpozgf Taefx Aa Ijc Max. table load: approx. 400 kg X-axis travel: 300 mm, Y-axis travel: 200 mm, Z-axis stroke: 200 mm Tank dimensions: 750x530x400 mm Generator: Elopuls Control system: Eroplan Control unit: ELESTA VISULESTA II Design: machine with work tank and separate control cabinet Included accessories: documentation (AEG-ELOTHERM/ELBOMAT) 380 Volts Dimensions: approx. 150x150x225 cm Condition: used

Condition: refurbished (used), Year of construction: 2006, travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 650 mm, table width: 1,140 mm, table length: 1,640 mm, workpiece length (max.): 1,770 mm, workpiece width (max.): 1,270 mm, workpiece height (max.): 680 mm, feed rate Z-axis: 12 m/min, table load: 7,500 kg, Status: completely overhauled Control system: Mitsubishi - 64-bit CNC Generator power: 70 Amps - multipulse Travel ranges (X, Y, Z): 1000 x 1500 x 650 mm Electrode changer: 30-position pick-up disc changer Working tank (W x D x H): 1770 x 1270 x 680 mm Workpiece clamping table (W x D): 1640 x 1140 mm Load capacity: 7,500 kg Accessories: - CO2 fire extinguishing system - Cartridge filter system - HSJ technology (High Speed Jump) The OPS INGERSOLL wire erosion machine GANTRY 1200 HSJ / 64-bit, manufactured in 2006, has undergone a comprehensive and professional overhaul in our facility and is in very good technical and visual condition. During the overhaul, the machine was disassembled to over 70%. All relevant wear parts were carefully inspected. The following overhaul work was carried out on the machine mentioned above: Replacement of the ball screw drive and ball bearings of the X, Y and Z axes. Replacement of all (4) ball screw drives of the tank drive. Inspection and testing of the C-axis for tightness and accuracy. Geometric inspection of all axes according to the OPS INGERSOLL protocol. Thorough cleaning of the entire machine base. Cleaning of the entire working tank including replacement of the felt wipers. Complete repainting of the machine. Overhaul of the dielectric pumps. Replacement of all hydraulic and dielectric lines. Replacement of all pneumatic lines. Cleaning of the control cabinet, generator and the control system. Replacement of all fans and batteries. Nlsdpfxszgckvs Aa Isc Overhaul or replacement of all power supplies, units and servo amplifiers. Laser measurement after the machine overhaul. Finally, the machine was subjected to an extensive erosion test in accordance with the quality and testing specifications of OPS INGERSOLL. The machine is immediately ready for use and is ideally suited for reliable production operation.

Condition: excellent (used), Year of construction: 2011, Control PC-NC Dialog Travel paths X/Y/Z: 1000/1510/700 mm C-axis 30-way electrode changer Hirschmann clamping system Support surface WxD 1140/1640 mm Load capacity 7500 kg Filter system Nlsdszfx S Hepfx Aa Isc Fire extinguishing system

Condition: good (used), Year of construction: 1994, functionality: fully functional, Technical details table length 840 mm table width 600 mm ampere 60-120 A total power requirement 15-23 kVA weight of the machine ca. 2,75 t dimensions of the machine ca. 2760 x 1110 x 1840 m Additional information With controlled C-axis and 16-position tool changer. WORKTABLE Table size: 840 x 600 mm Dielectric above table: 360 mm Maximum workpiece weight: 1000 kg T-slots: 4 x 10 mm Distance table to quill without chuck (max / min): 595 / 180 mm WORKHEAD X - Y travel: 565 x 400 mm Z travel: 415 mm X - Y - Z resolution: 0.001 mm C-axis resolution: 0.001 deg. Rapid traverse speed: 800 mm/min Max. electrode weight without rotation: 100 kg Max. electrode weight with rotation: 15 kg DIELECTRIC SUPPLY Tank volume: 400 liters Nljdpfezdq Udjx Aa Iec Paper candle filters: 4 pieces GENERATOR Dimensions (height x width x depth): 1800 x 600 x 920 mm Weight: 300 kg Rated current: 60 – 120 A Power rating: 15 – 23 kVA Dimensions (height x width x depth): 2760 x 1110 x 1840 mm Weight: 2750 kg

Condition: excellent (used), Year of construction: 2016, X-axis: 1,000 mm Y-axis: 1,510 mm Z-axis: 700 mm Max. workpiece dimensions: 1,770 x 1,270 x 650 mm Max. workpiece weight: 7,500 kg Connected load: 22 kVA Machine weight: 12,500 kg Nljdpfx Aaezcplte Ioc Includes multi-change electrode changer, 142 positions. Includes documentation. Machine is available immediately and can be inspected while powered on!

Condition: excellent (used), Year of construction: 2022, operating hours: 1,536 h, functionality: fully functional, OPS INGERSOLL GANTRY EAGLE 800 Year of manufacture: 2022 Excellent condition, low operating hours 1536 erosion hours 997 operating days Cleaned, measured, tested, and various wear parts replaced. EAGLE Powertec PC/NC control system 3060 22" screen with touchscreen operation MultiProg Powertec technology programming on PC/NC Powertec Easy Burn quick programming Powertec handheld multifunctional operating device Manual erosion with Powertec handheld EAGLE Powertec - Fine finishing generator PT 60, 60 Amperes (60 Amperes peak current) High Speed Jump max. 18,000 mm/min Travel ranges (X, Y, Z) 550 x 850 x 450 mm Linear measuring system in all axes Distance table / electrode chuck min. 135 mm / max. 585 mm Electrode changer, 20-position pick-up disc magazine Working tank (W x D x H) 800 x 1,100 x 480 mm Work table (W x D) 760 x 1,000 mm Load capacity 2,000 kg Overhang load 200 kg Machine dimensions W x D x H 1,436 x 2,940 x 2,730 mm Integrated cartridge filter system Nljdpfoy Ti Htjx Aa Ijc Accessories: CO2 fire extinguishing system Cooling unit

Condition: used, Year of construction: 2008, functionality: fully functional, 1 OPS INGERSOLL Gantry Eagle 800 sinker EDM machine with IMC5 handling system, year of manufacture 2008. In very good condition and operated until December 2025. Now dismantled. Includes 1 cooling unit M.T.A TAE EVO M10 (year 2012) and 1 fire extinguishing system Kraft & Bauer FB703. Weight approx. 6,700 kg. Available at a favorable price. Nlsdpfjy Ifu Njx Aa Ioc

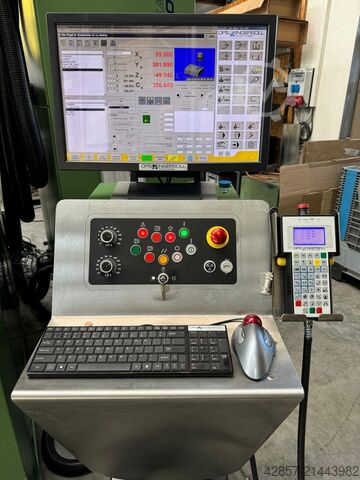

Condition: excellent (used), Year of construction: 2022, functionality: fully functional, OPS INGERSOLL GANTRY EAGLE 800 Year of manufacture: 2022 Nledpfoyzxd Dsx Aa Ijc Excellent condition, low hours EAGLE Powertec PC/NC Control 3060 22" touchscreen display MultiProg Powertec technology programming on PC/NC Powertec Easy Burn quick programming Powertec Handheld multifunctional remote control Manual EDM operations with Powertec Handheld EAGLE Powertec - Fine finishing generator PT 60, 60 amps (60 amps peak current) High Speed Jump: max. 18,000 mm / min. Travel (X, Y, Z): 550 x 850 x 450 mm Linear measuring system on all axes Distance table / electrode chuck: min. 135 mm / max. 585 mm 20-position electrode changer with pick-up rotary magazine Work tank (W x D x H): 800 x 1,100 x 480 mm Worktable (W x D): 760 x 1,000 mm Load capacity: 2,000 kg Headload: 200 kg Machine dimensions (W x D x H): 1,436 x 2,940 x 2,730 mm Integrated cartridge filtration system Accessories: Erowa, type UPC Production Chuck CO2 fire extinguishing system Recooling unit

Condition: used, Year of construction: 2012, operating hours: 5,150 h, functionality: fully functional, travel distance X-axis: 905 mm, travel distance Y-axis: 705 mm, travel distance Z-axis: 450 mm, workpiece weight (max.): 3,000 kg, total height: 3,400 mm, total width: 2,100 mm, total length: 3,425 mm, table width: 850 mm, quill stroke: 710 mm, type of input current: three-phase, distance table to quill: 250 mm, table length: 1,150 mm, warranty duration: 6 months, feed rate X-axis: 5 m/min, feed rate Y-axis: 5 m/min, feed rate Z-axis: 15 m/min, input voltage: 400 V, overall weight: 7,500 kg, year of last overhaul: 2026, table load: 3,000 kg, input frequency: 50 Hz, rapid traverse X-axis: 5 m/min, rapid traverse Y-axis: 5 m/min, rapid traverse Z-axis: 15 m/min, Equipment: documentation/manual, EDM314MF30 Operating Interface MF30 Year of Manufacture: 2012 Operating Hours: 5,150h General Overhaul Travel Paths XxYxZ: 905/1020 x 705 x 455 mm Working Table: 1150 x 850 mm (steel table with T-slots) Work Tank: 1200 x 900 mm Fill Height of Work Tank: 500 mm Maximum Electrode Weight: 50/500 kg Workpiece Weight: 3,000 kg Machine Weight: 7,500 kg Machine Dimensions (W x D x H): 2,100 x 3,425 x 3,450 mm Equipment: Color: Silver metallic 30-position Tool Changer Cartridge Filter System Quick-Change Chuck EROWA ITS C-Axis 100 rpm, direct measurement 0.0001° Holding Brake on C-Axis CO² Fire Extinguishing System K&B Fire Protection Flap Fume Extraction with Activated Carbon Filter Integrated Cooling Unit Handheld Control Panel Automatic Tank Level Adjustment External Programming Station EDM Generator 60A Nledeyt Ewgspfx Aa Isc Option: With Booster Stage 120A Erosion Power Transport On-site Commissioning Training

Condition: used, Year of construction: 1998, machine/vehicle number: 22406695, travel distance X-axis: 992 mm, travel distance Y-axis: 807 mm, travel distance Z-axis: 561 mm, workpiece length (max.): 1,260 mm, workpiece width (max.): 1,060 mm, workpiece height (max.): 550 mm, input voltage: 400 V, input frequency: 50 Hz, We are offering this used AEG Elotherm P1 sinker EDM machine, year of manufacture 1998. Type: P1 Serial number: 22406695 Order number: 704.1177 Voltage: 400 V Current: A Frequency: 50 Hz Switch-off method: Plan: Nljdpfx Aaoypln De Ijc Year of manufacture: 1998 If you have any questions or require further information, please feel free to send us a message or give us a call.

Condition: new, Year of construction: 2026, functionality: fully functional, travel distance X-axis: 400 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 350 mm, workpiece weight (max.): 700 kg, warranty duration: 12 months, Precision & stability through robust construction. The static, dynamic, and rigid mechanical design ensures long-term operational stability with high performance. Linear glass scales in X, Y, and Z axes enable precise position detection and minimize measurement errors. Compact & rigid mechanical concept. The short C-frame design, combined with generously dimensioned cast components, guarantees mechanical stability and precision throughout the machine’s entire service life. Its high level of robustness absorbs all machining forces, ensuring a consistently accurate spark gap between workpiece and electrode. Key features at a glance: - Manual eroding with jog function via hand control and joystick functionality - High vibration damping due to sturdy cast construction - Maximum removal rates and accuracy for all material pairings - Low-wear final dimension tuning - Fully encapsulated, integrated measuring systems - Fully integrated work area lighting - Automatic centralized lubrication Technical data: - Height: approx. 2400 mm Nodpsyh Nf Ujfx Aa Iolc - Width: approx. 2410 mm - Depth: approx. 2270 mm - Weight without fluids: approx. 2800 kg - Table (L x W): 700 x 400 mm - Dielectric above table: 350 mm - Dielectric filters: 3 cartridge filters - Max. workpiece weight: 700 kg - Travel range X-Y: 400 x 300 mm - Travel range Z: 350 mm - Resolution X-Y-Z: 0.001 mm - Max. electrode weight: 50 kg - Dielectric capacity: 450 l - Required cooling capacity: 4.5 kW - Air flow rate: 10 l/min - Required air pressure: min. 6 bar - Electrode changer: 4-position

Condition: used, travel distance X-axis: 800 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 400 mm, workpiece weight (max.): 4,000 kg, table width: 700 mm, table length: 1,100 mm, Capacity: 120 Amp. – 19 kVA X-travel: 800 mm Y-travel: 600 mm Z-travel: 400 mm Table size: 1.100 x 700 mm Distance Head to table: 950 mm (max) Oil tank: 1.700 x 1.000 x 650 mm Weight of workpiece: 4.000 kg (Max) Njdpeyg Hpdsfx Aa Iolc Controller: CNC Datic S120

Condition: like new (used), Year of construction: 2003, TECHNICAL SPECIFICATIONS X axis travel: 1,500 mm Y axis travel: 750 mm Z axis travel: 500 mm Worktable height: 820 mm Open height (clearance): 920 mm Maximum workpiece weight: 100,000 N Maximum load on head: 4,000 N Tank type: Fixed Tank dimensions: 2,300 x 1,300 x 700 mm Worktable size: 1,700 x 1,000 mm Usable dielectric height: 620 mm GENERATOR Standard minimum surface finish: VDI = 0 Power: 60 A MACHINE EQUIPPED WITH Generator with 120 A Expert System Fixed worktable 1,700 x 1,000 mm CNC for simultaneous axis control Integrated ONA C-axis with automatic System 3R Macro Standard chuck Eco-friendly filter with automatic cleaning cycle Dielectric temperature control system Year of manufacture: 2003 MACHINE FEATURES Fixed-table structure ensuring stable operating conditions, equipped with leveling supports Stabilized grey cast iron structure (base, column, tables) X-Y-Z movements via high-precision class A ball screws, driven by three DC motors Motion on prismatic roller guideways Position detection via linear glass scales Improved front accessibility with retractable front door system Fixed working tank Integrated C-Axis (mounted on the head) Maximum speed: 40 rpm Resolution: 0.001° Maximum load (static C-axis): 500 N Maximum load (dynamic C-axis): 120 N Heidenhain encoder Toothed belt transmission Maximum current without rotation: 120 A Maximum current with high-speed rotation: 60 A Maximum current with slow rotation (0–1 rpm): 12 A Moment of inertia: 2,000 kg/cm³ GENERATOR FEATURES Modular design Programmable parameters Maximum power: 60 A EXPERT SYSTEM Controls the entire erosion cycle, from roughing to final surface finish, automatically adjusting spark parameters to ensure maximum generator efficiency and highest machining speed. Dedicated software for deep ribs Dedicated software for finishing large homogeneous surfaces Fully unattended machining capability with maximum productivity and excellent final quality Process parameter monitoring via screen and control panel display Njdpfxjxwma Ae Aa Ielc Automatic anti-collision system preventing electrode damage in case of accidental contact with the workpiece TECHNICAL DATA Pulse duration (Ton): continuously adjustable from 1 to 6,500 microseconds Pulse interval (Toff): continuously adjustable from 1 to 6,500 microseconds Copper electrode volumetric wear: 0.2% Graphite electrode volumetric wear: 0.1% Surface finish Ra (CLA): 0.1 micron – VDI = 0 Maximum material removal rate: 600 mm³/min Power consumption: 10.7 kVA Current intensity: adjustable from 1 to 12 (manually or via program) Highly sensitive servo control system High erosion stability

Condition: refurbished (used), Year of construction: 2006, travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 650 mm, table width: 1,140 mm, table length: 1,640 mm, workpiece length (max.): 1,770 mm, workpiece width (max.): 1,270 mm, workpiece height (max.): 680 mm, feed rate Z-axis: 12 m/min, table load: 7,500 kg, Status: completely overhauled Control: Mitsubishi - 64 bit CNC Generator power: 70 amps - multipulse Travel paths (X, Y, Z): 1000 x 1500 x 650 mm Electrode changer: 30-way pick-up plate changer Work container (W x D x H): 1770 x 1270 x 680 mm Workpiece clamping table (W x D): 1640 x 1140 mm Load capacity: 7,500 kg Accessories: - CO2 fire extinguishing system Nledoxpvhaspfx Aa Ioc - Cartridge filter system - HSJ technology (High Speed Jump)

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, machine/vehicle number: 575650, travel distance X-axis: 550 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 450 mm, TECHNICAL DETAILS Design: Lift tank Internal dimensions (W x D x H): 800 x 1100 x 480 mm Dielectric height programmable/automatic: max. 450 mm WORKING HEAD On ram clamping system UPC/H8000/Dynafix: 150 kg Min. distance electrode clamping system to worktable: 135 mm Max. distance electrode clamping system to worktable: 585 mm Nlsdpfew T Thmsx Aa Ijc INTEGRATED C-AXIS Adjustable rotation speed: 1 - 20 rpm Measuring resolution: 0.001 degrees Load capacity with manual electrode change: 50 kg Load capacity with automatic electrode change: 15 kg Holding torque/clamping force: 120 Nm Max. moment of inertia of electrode: 0.4 kgm² WORKTABLE Support surface (W x D): 760 x 1000 mm Load capacity: 2,000 kg TRAVEL PATHS X / Y / Z (inside work tank): 550 x 850 x 450 mm Y (for electrode change and loading position): 1180 mm CONTROL PC-NC dialog: 2 x 32 bit Drive type: digital AC servo motors Max. travel speed X, Y, Z: 5,000 mm/min High speed jump max.: 18,000 mm/min MACHINE DETAILS Main voltage: 400 V / 50 Hz Control voltage: 24 VDC Maximum fuse: 32 A Power consumption: 19 kVA Machine weight: 6,400 kg Main dimensions (W x H x D) including generator: 2760 x 2730 x 2940 mm Footprint with generator: 9 m² Generator weight: 640 kg Operating hours: 3,221 h

Condition: used, Year of construction: 2004, machine/vehicle number: 575259, travel distance X-axis: 550 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 450 mm, For sale is a high-quality sinker EDM machine from the renowned manufacturer OPS Ingersoll. This machine is ideal for precise EDM operations in tool and mold making, and comes equipped with an extensive range of features. 🔍 General Information: Njdpfxsw Ig A He Aa Islc Manufacturer: OPS Ingersoll Model: Gantry 800 Machine No.: 575259 Year of manufacture: 2004 Origin: Made in Germany Condition: Used, well-maintained, and fully operational ⚙️ Technical Specifications: Travel distances (X/Y/Z): 550 x 850 x 450 mm Worktable size: approx. 800 x 1000 mm Max. head load: 200 kg Max. clearance: 585 mm Max. traversing speed: 12,000 mm/min 💡 Equipment & Features: 30-position tool changer, EROWA Mitsubishi 64-bit CNC control (separate control panel) Programming software: MultiProg Control technology: Multipulse PRO Chuck: ER-016841 Integrated CO₂ fire extinguishing system Cartridge filter unit Dielectric cooling system by Weinreich Industriekühlung Extensive accessories and connection cables available ⚡ Electrical Data (as per type plate): Supply: 400 V / 3~ / 50 Hz Control voltage: 24 V AC / DC Power consumption: 17 A Fusing: 25 A Wiring diagram no.: 107258 Errors, typos and prior sale excepted.

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 1,010 mm, travel distance Y-axis: 1,510 mm, travel distance Z-axis: 700 mm, workpiece weight (max.): 2,000 kg, OPS Ingersoll Gantry 800 Eagle Year of manufacture: 2014, overhauled in 2024 Control: Eagle powertec 3036 Generator: Eagle Powertec PT 60 Travel paths: 1010x1510x700mm Clamping table: 760x1000mm Load capacity: 2000kg Max. dielectric height: 450mm 30-position EROWA tool changer Integrated C-axis 0.001° Max. head load: 200kg High Speed Jump max. 18m/min interval on Z axis Nodpew Hdbfofx Aa Ijlc Multi Prog Powertes - technology programming Powertec handheld unit Manual eroding with Powertec Dielectric cooler

Condition: used, Year of construction: 2011, Sinks (see attached images) Gantry Eagle 500 Year of manufacture: 2011 Travel paths: x/y/z = 525x400x450 Tool changer: 24 positions Weight: 5000 kg Nlsdpfxsxuq Nio Aa Isc

Condition: used, Year of construction: 1988, functionality: fully functional, travel distance X-axis: 7,500 mm, travel distance Y-axis: 3,100 mm, travel distance Z-axis: 1,000 mm, table width: 2,000 mm, table length: 7,000 mm, overall weight: 180,000 kg, year of last overhaul: 2016, Table 7020x1810 mm Note portal width 2250 mm Nodpfx Ajwx Nltsa Islc Travel paths: X=7387 mm Y=3070 mm Z=Support up to max without tool 920 mm + W 1000 Control: Heidenhain ITNC 530 Simultaneous: In X,Y,Z yes. In A,B,C with 1° Hirth gearing Spindle type: SK50 / Gearbox spindle Four attachment heads Internal spindle cooling: Yes Operating hours: 95475 h Spindle hours: 37984 h Modernization carried out: 2003 / Control and drives renewed

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,510 mm, travel distance Z-axis: 650 mm, workpiece weight (max.): 7,500 kg, total height: 3,900 mm, total width: 2,950 mm, total length: 3,430 mm, Equipment: documentation/manual, For sale: OPS Ingersoll Gantry 1200 EDM machine, built in 2004, with a general overhaul in 2016. Nlsdpfx Aovwa Nboa Ioc The machine was running flawlessly until recently and is in very good condition. An on-site inspection is possible, but please note that the machine is currently not powered. For sale: OPS Ingersoll Gantry 1200 EDM machine, built in 2004, with a general overhaul in 2016. The machine was running flawlessly until recently and is in very good condition. An on-site inspection is possible, but please note that the machine is currently not powered.

Condition: used, Year of construction: 2000, Diesinking / EDM Nledpfevtfn Usx Aa Iec Travel distance X: 825 mm Travel distance Y :680 mm Travel distance Z: 405 mm table size X: 1200 mm table size Y: 850 mm max. workpiece weight: 3000 kg electrode changer: 50 - time Generator POCON 60 Quill holder: EROWA heavy duty adapter O module halogen light

Condition: good (used), Year of construction: 1998, CNC die sinking machine INGERSOLL HANSEN Type: GRANTRY 1000 Year 1998 Control MITSIBISHI 64 Bit CNC multipuse Generator 70 Amp Travels : X 700 mm Y1350 mm Z500 mm Nodpfx Ajt Dbakja Iolc work bowl : 1000 mm X1600 mm X 550 mm Table load max : 3000 Kg Cooling system , Documentation available Data backup available Accessories Tool holder Hirschmann .

Condition: refurbished (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 700 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 400 mm, workpiece weight (max.): 2,000 kg, quill stroke: 400 mm, distance table to quill: 215 mm, workpiece length (max.): 920 mm, workpiece width (max.): 550 mm, workpiece height (max.): 550 mm, overall weight: 4,000 kg, Die-sinking EDM machine GF AgieCharmilles Spirit 4 Year of construction 2008 Travel (X/Y/Z): 700 x 500 x 400 mm Max. Workpiece dimensions: 920 x 550 x 370 mm Max. Workpiece weight: 2000 kg Distance table - quill: 215 -615 mm Bath level up to 415 mm Incl. pneumatic chuck 3R-Systems or Erowa ITS 50 of your choice Incl. 28-fold electrode changer Max. Electrode weight: 80 kg Incl. C-axis with U=0-40 rpm Total weight (without dielectric): 4000 kg Nsdpfx Aeq N Ap Sea Ijlc Dimensions: 3000 x 3000 x 2865 mm The machine is cleaned, serviced and tested by us after receipt of order. We are happy to offer you the following additional services and products: - Commissioning - transportation - training - Clamping devices - Dielectric - Cooling unit

Condition: as good as new (ex-display), Year of construction: 2006, operating hours: 985 h, travel distance X-axis: 905 mm, travel distance Y-axis: 705 mm, travel distance Z-axis: 455 mm, workpiece weight (max.): 3,000 kg, EDM314MF30 - SLM (second-live-machine) Complete retrofit in 2026 Travel ranges X x Y x Z 900x705x455mm Machine table 1150x850mm Tank size 1200x900mm Distance table/chuck 260/710mm Electrode weight 50/500kg Workpiece weight max. 3000kg Overall machine dimensions 2210x3450x3250mm Power connection 400V/DS/50/60Hz Tank height 750mm Equipment: Completely new electrical system Control cabinet new Generator new Control system new MF30 control interface Adjustable control panel Touch screen display Lifting speed 15000mm/min (Highjump) Erosion generator 60A Cooling unit integrated Cartridge filter system Tool changer 8-position/20-position/30-position C-axis with direct measurement, resolution 0.0001 degrees C-axis as positioning, rotation and erosion axis C-axis 100 RPM Automatic tank level control Filling, filter and flushing pump new Transportation Documentation Training Nledpfx Aohfaizoa Isc 12 months warranty
