Condition: used, Year of construction: 2011, turning length 1500 mm control SINUMERIK 828D centre height 270 mm Ndsdpsxyaf Refx Ah Dod greates pass round over bed 540 mm swing diameter over slide rest 310 mm bed width 350 mm max. workpiece weight 1500 kg spindle bore 85 mm turning speeds 27 - 2250 U/min main drive DC 11 kW MACHINE EQUIPMENT: - AME chip conveyor - Lynette - Heavy grey cast iron bed for optimum damping and reduced tool wear - Inductively hardened and parallel synchronised bed guides - Counter guides completely Turcite-coated and hand-scraped - Hardened and ground ball screws - Thermosymmetrical headstock - Main drive 11 kW - Infinitely variable speed range 27-2250 rpm with 3-stage gearbox

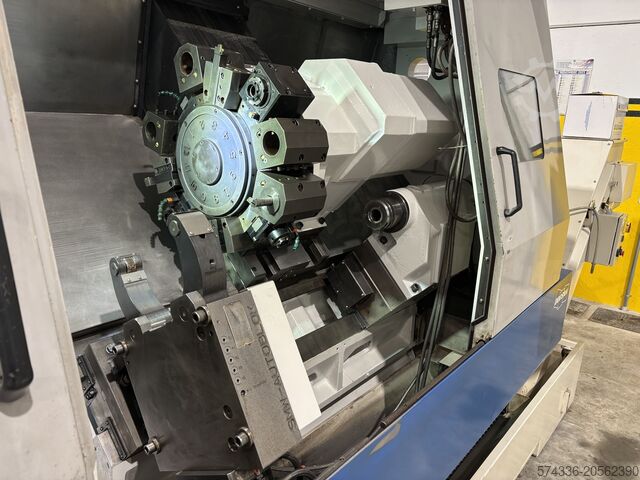

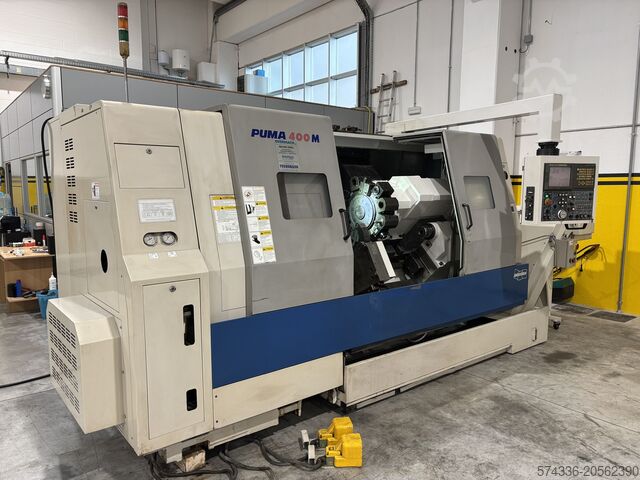

Condition: used, Year of construction: 2008, DAEWOO DOOSAN PUMA 400 M LATHE YEAR OF INITIAL INSTALLATION 2008 AUTOBLOK SELF-CENTERING STEADY REST CNC Model: Fanuc CNC Version: 21i-TB Main spindle power: 30 / 37 kW Main spindle chuck diameter: 315 mm Main spindle bar capacity: 95 mm Swing over bed: 770 mm Swing over carriage: 590 mm Turning diameter over bed: 560 mm Turning length: 1105 mm Main spindle speed: 20 – 2,500 RPM Number of tool turrets: 1 Number of tool stations on first turret: 12 Number of driven tool positions on first turret: 12 Ndsdexxur Aspfx Ah Ded X-axis travel (first turret): 362 mm Z-axis travel (first turret): 1105 mm Tailstock: Yes Chip conveyor: Belt type Tool presetter: Yes Number of driven toolholders supplied: 5 (3 axial + 2 radial) Machine in excellent condition.

Condition: used, Year of construction: 2011, turning diameter 460 mm turning length 795 mm control MORI SEIKI M730 BM Swing diameter face slide 590/360 mm spindle passage 80 mm Traverse X/Z: 260/795 mm Number of working hours 19.552 h Cutting time 10.704 h spindle drive 18,5 kW total power requirement 40 kVA weight of the machine ca. 6,4 t dimensions of the machine ca. 3.994 x 3.056 x 2.187 m Chip chuck Ø250 mm. Chuck sub-spindle Ø170 mm. Holder HAINBUCH chip conveyor suction Ndsdpfexwzfyox Ah Ded Bar feeder Hydrafeed Multiservo mod MSV max. bar length 1,600 mm

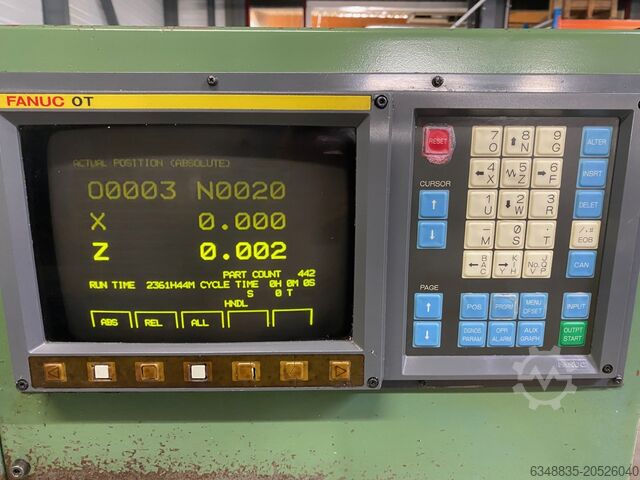

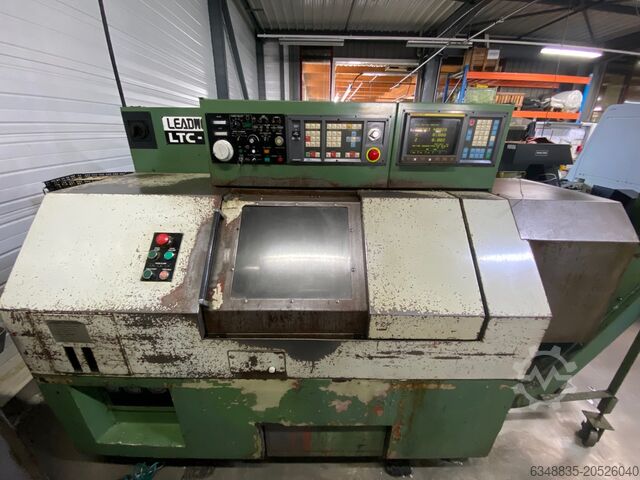

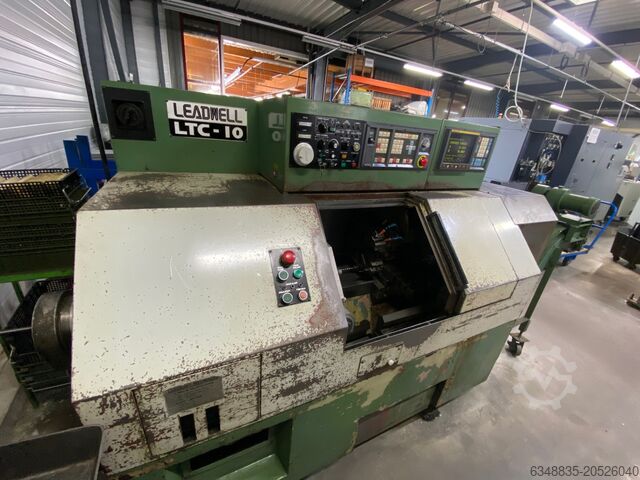

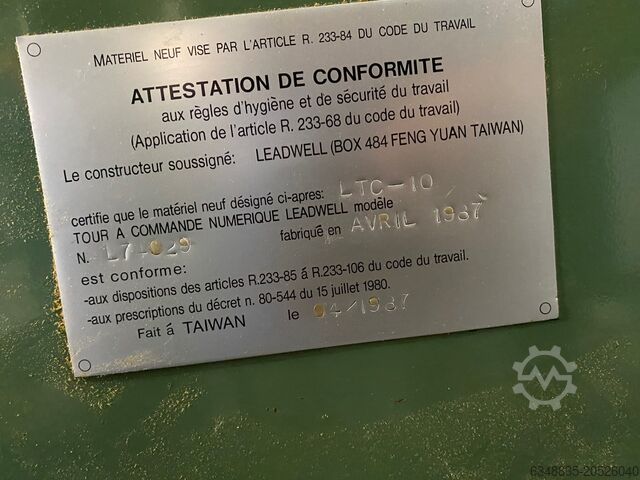

Condition: used, Year of construction: 1987, operating hours: 2,362 h, functionality: limited functionality, machine/vehicle number: L7+029, turning diameter over cross slide: 42 mm, spindle bore: 42 mm, spindle motor power: 7,500 W, rotational speed (max.): 4,500 rpm, Equipment: documentation/manual, LEADWELL LTC10 Year of manufacture: 1987 Operating hours: 2362h Turning diameter: 42mm CNC type: Fanuc OT Model A Number of tool turrets: 1 Axes: X, Z, and C Tailstock Number of turret positions: 8 Main and sub spindle speed: 4500 rpm Main spindle motor power: 7.5 kW Dimensions (L x W x H): 235 cm x 122 x 160 Weight: ? kg Chip conveyor Documentation: electrical diagrams, Fanuc manual, spare parts list, programming assistance, hard copy of parameters. Numerous fixed tool holders included in the sale. The machine is operational. It is somewhat aged, so it is not perfect. Machine is to be collected on site (Marignier - France). Loading and transport costs are the responsibility of the buyer. Nedpfx Ajxwp T Esh Dodd

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: R6A N3602, turning length: 520 mm, turning diameter: 360 mm, overall weight: 3,800 kg, TECHNICAL DETAILS Ndsdpfx Ajxvrrueh Dod Turning diameter: 360 mm Turning length: 520 mm MACHINE DETAILS Total power requirement: 20 kW Dimensions & Weight Required space: 3 x 2 x 2 m Machine weight: 3.8 t

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: R2AP3901, turning length: 700 mm, turning diameter: 220 mm, travel distance X-axis: 160 mm, turning diameter over bed slide: 430 mm, workpiece length (max.): 510 mm, TECHNICAL DETAILS Turning diameter: 220 mm Turning length: 700 mm / 665 mm Swing diameter over bed: 430 mm Max. part length: 510 mm X-axis travel: 160 mm Spindle bore diameter: 45 mm MACHINE DETAILS Total power requirement: 17 kW Nodpfxsxvrn Nj Ah Dodd Dimensions & Weight Required space approx.: 2.63 x 1.98 x 1.94 m Machine weight approx.: 2.6 t

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, turning length: 1,000 mm, spindle speed (max.): 3,000 rpm, turning diameter over bed slide: 480 mm, controller model: Siemens Sinumerik 840C, TECHNICAL DETAILS Nedpfx Aextmvcjh Dodd Turning length: 1,000 mm Swing diameter over bed: 550 mm Swing diameter over cross slide: 480 mm Turret: 12 positions Number of driven stations: 6 Tool holder: VDI50 Speed range: 30 - 3,000 rpm Spindle bore: 90 mm MACHINE DETAILS Control: Siemens Sinumerik 840C Dimensions & weight Dimensions (LxWxH): 580 x 270 x 270 cm Weight: approx. 11 t EQUIPMENT SMW Autoblok 315 power chuck (without soft top jaws) Approx. 10 driven tools Approx. 10 live centers for tailstock

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, turning diameter: 450 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 215 mm, travel distance Z-axis: 400 mm, bar diameter (max.): 51 mm, workpiece length (max.): 380 mm, TECHNICAL DETAILS Capacity Turning diameter: 450 mm Maximum machining diameter: 340 mm Maximum machining length: 380 mm Bar capacity: 51 mm Travel Range X-axis travel: 215 mm Z-axis travel: 400 mm Spindle Spindle speed: 30 – 5,000 rpm Spindle nose (Type No.): A2-6 Spindle bore: 59 mm Spindle bearing inner diameter: 100 mm Turret Tool positions: 12 Gripper: 25 mm Drill holder diameter: 32 mm Feed Rapid traverse X-axis: 30 m/min Rapid traverse Z-axis: 30 m/min Cutting feed (per revolution): 0.001 – 500 mm/rev Feed rate: 0 – 2,000 mm/min Nsdpfoxrc Dgex Ah Dodd MACHINE DETAILS Control: Seicos Machine weight: 4,600 kg Motor Spindle motor (50% duty cycle / continuous): 11 / 7.5 kW Feed motor X-axis: 4 kW Feed motor Z-axis: 4 kW Turret indexing motor: 2.2 kW Guideway lubrication pump: 18 W Spindle coolant pump: 370 W

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 09095, spindle speed (max.): 5,000 rpm, travel distance X-axis: 190 mm, travel distance Z-axis: 550 mm, turning diameter over bed slide: 470 mm, center width: 305 mm, TECHNICAL DETAILS Turning diameter over bed: 470 mm Turning diameter over carriage: 310 mm Ndedoxrbriepfx Ah Dsd Distance between centers: 305 mm X-axis travel: 190 mm Z-axis travel: 550 mm Spindle bore: 70 mm Max. spindle speed: 5,000 rpm Tool magazine: 12 positions MACHINE DETAILS Control model: Fanuc 18i-T Power: 15.0 kW Dimensions & Weight Dimensions (L x W x H): 3,700 x 1,600 x 2,200 mm Weight: 5,000 kg EQUIPMENT Driven tools Chip conveyor Turret head Documentation CE marking

Condition: like new (used), Year of construction: 2023, functionality: fully functional, turning diameter over cross slide: 230 mm, turning length: 1,000 mm, SPECIAL OFFER MACHINE – INVENTORY SALE Chevalier FCL-1840H with Siemens 828D control system incl. ShopTurn Used machine, year of manufacture 2023 Nodoxqw D Sopfx Ah Dedd Machine equipment: • 3-stage automatic gearbox • Movable control arm / swiveling operating panel with 10.4'' screen • Automatic central lubrication • Coolant system with reinforced coolant pump • Thread repair cycle (thread recutting function) • Tool system: Parat RD2 with internal coolant supply • Clamping device: SMW 3-jaw wedge bar chuck, diameter 210mm Features: • Siemens 828D control incl. "ShopTurn" conversational programming system and 3D simulation • Fixed steady rest 20 - 160mm / travelling steady rest 10 - 90mm • Movable control arm (along the entire centre distance) • Manual tailstock with MK5 quill • Stable, double prism guideways • Max. torque 2,750 Nm PRICE NON-NEGOTIABLE! SALE EX WORKS BOCHUM! SALE WITHOUT WARRANTY! PRICE INCL. TRANSPORT TO CURBSIDE AND COMMISSIONING (within Germany): €49,000 NET

Condition: like new (used), Year of construction: 2022, functionality: fully functional, turning diameter over cross slide: 230 mm, turning length: 1,000 mm, PROMOTIONAL MACHINE - INVENTORY SALE Chevalier FCL-1840H with Siemens 828D CNC including ShopTurn Used machine, year of manufacture: 2022 Machine Specifications: • 3-stage automatic gearbox • Movable control arm / Swiveling control panel with 10.4'' screen • Automatic central lubrication • Coolant system with reinforced coolant pump • Thread repair cycle (thread re-cutting function) Ndsdpfxexqw Aue Ah Dsd • Tool system: Parat RD2 with internal coolant supply • Workholding equipment: 3-jaw wedge bar chuck SMW, diameter 210 mm Performance Features: • Siemens 828D control system incl. dialog programming system "ShopTurn" and 3D simulation • Fixed steady rest 20 - 160 mm / follow rest 10 - 90 mm • Movable control arm (across the entire center distance) • Manual tailstock with MT5 quill • Robust, double prismatic guideways • Max. torque 2,750 Nm PRICE NOT NEGOTIABLE! EX WORKS BOCHUM! SALE WITHOUT WARRANTY! PRICE INCLUDING TRANSPORT (CURBSIDE DELIVERY) AND COMMISSIONING (within Germany): €49,000 NET

Condition: good (used), Year of construction: 2012, DMG CTX 510eco CNC lathe with C-axis and driven tools Year: 2012 CNC controller: SINUMERIK 810D with ShopTurn X-axis travel mm: 300 Z-axis travel mm: 1.050 Turning length mm: 1.050 Max. turning diameter mm: ø 465 Swing over bed mm: ø 680 Swing over cross-slide mm: 465 Bar work capacity mm: ø90 Turret head capacity .: 12 positions (6x driven) Speed ​​driven tools rpm: 4000 Main spindle Nedpfoxqq Nbex Ah Dedd Max Speed ​​spindle rpm: 3.250 Drive power spindle kW: 33/22 (40%/100% DC) Spindle bore mm: 102,5 Spindle nose: Flat flange (220h5) Maximun torque Nm: 420 (100% DC) Tailstock Tailstock travel mm: 850 Tailstock cone: MK5 Length x width x height, mm: 5300x2230x2010 Weight kg: 8100 Accessories/options: Foot switch for chuck open/close Driven tool holders Static tool holders Swarf conveyor Documentations Under power in our warehouse.

Condition: like new (used), Year of construction: 2022, functionality: fully functional, turning diameter over cross slide: 230 mm, turning length: 1,000 mm, PROMOTIONAL MACHINE - STOCK CLEARANCE SALE Chevalier FCL-1840H with Siemens 828D control incl. ShopTurn Used machine, year of manufacture 2022 Machine Equipment: • 3-stage automatic gearbox • Traversable control arm / Swiveling control panel with 10.4'' screen • Automatic central lubrication • Coolant system with reinforced coolant pump • Thread repair cycle (rethreading function) • Tool system: 12-station Baruffaldi TB160 VDI 30 turret • Workholding: SMW 3-jaw wedge bar chuck, diameter 260mm Features: • Siemens 828D control incl. conversational programming system 'ShopTurn' and 3D simulation • Fixed steady rest 20 - 160mm / travelling steady rest 10 - 90mm • Sliding control arm (movable along the full length of the turning distance) • Manual tailstock with MK5 quill Nedsxp A Hcspfx Ah Dodd • Stable, double prism guideways • Max. torque 2,750 Nm PRICE IS NOT NEGOTIABLE! SALE EX WORKS BOCHUM! SOLD WITHOUT WARRANTY! PRICE INCL. TRANSPORT DELIVERY TO CURBSIDE AND COMMISSIONING (within Germany): €60,000 NET

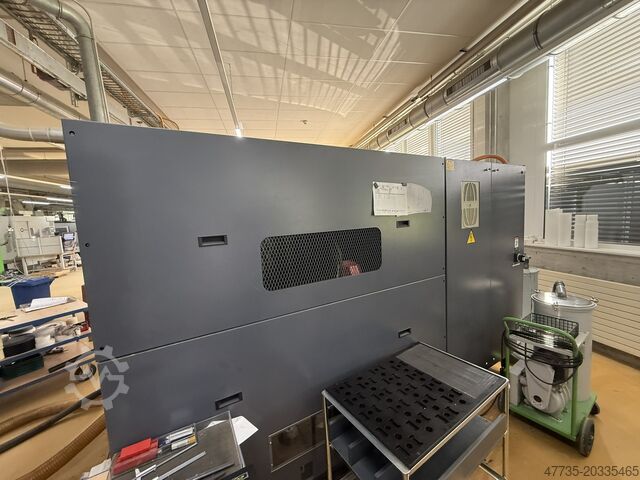

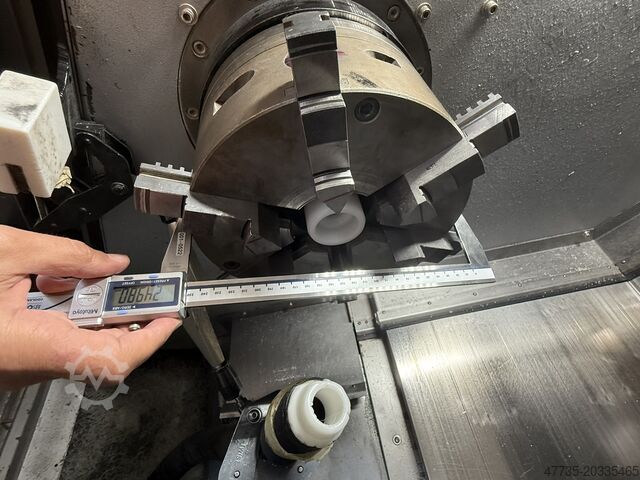

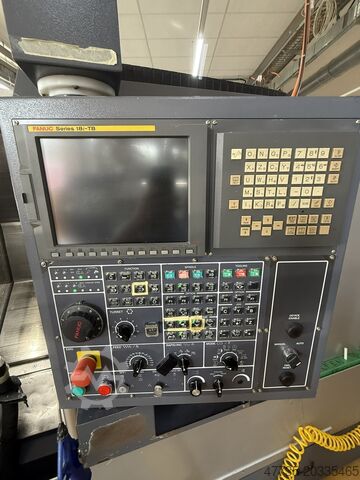

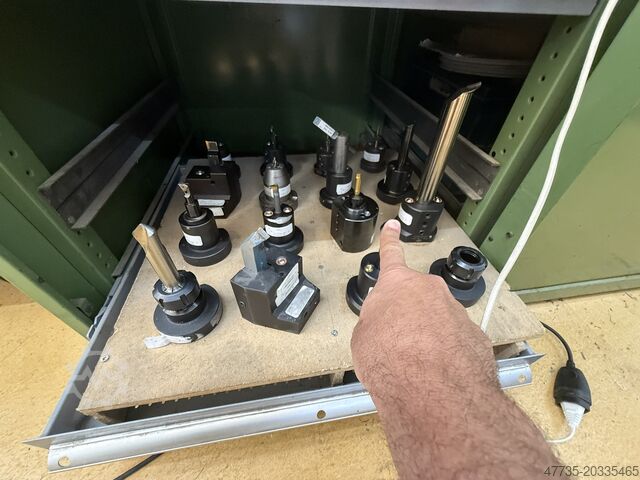

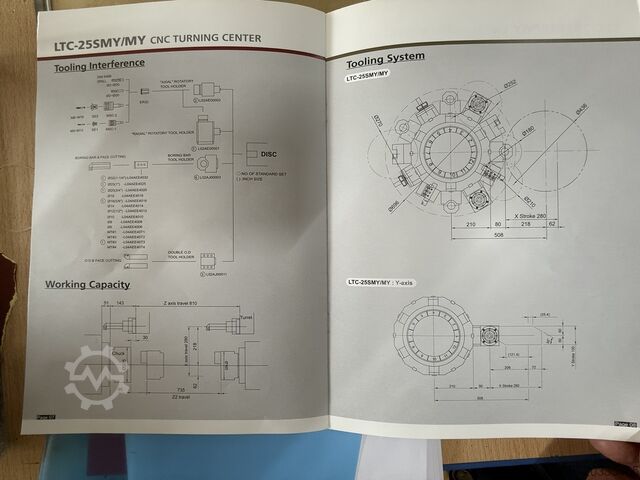

Condition: good (used), Year of construction: 2010, Machine have live tools option and Y axis. Nedpsxpw Nlofx Ah Dodd Cutting tools not come. Parts shown by hand not come. Technical details shown on pictures.

Condition: used, Year of construction: 2012, Machine Designation: Vertical Machining Center LCV-760 (Moving Column Type) Manufacturer: LEADWELL CNC Machines Mfg. Corp., Taichung, Taiwan Type / Model: LCV-760 Control System: FANUC Oi-MD Technical Specifications • Working Area / Travels: - X-axis travel: 760 mm - Y-axis travel: 610 mm - Z-axis travel: 610 mm - Distance from table (pallet) top to spindle nose: 150 – 760 mm - Distance from column front to spindle center: 718 mm - Table dimensions: 850 × 600 mm - Maximum workpiece weight: 400 kg - Table configuration: M16 × P2.0 mm T-slots - Table height (floor to table top): 1,033 mm • Spindle / Drive: - Spindle speed: 10,000 rpm (optional: 12,000 rpm) - Spindle drive motor: 18.5 / 24 kW (30 min / continuous duty) - Maximum spindle torque: 95 Nm (67.5 ft-lb) - Spindle taper: 7/24 TAPER No. 40 (BT-40) - Spindle bearing inner diameter: 70 mm - Tool clamping force: 1,200 kgf - Transmission: HT.D belt drive - Spindle oil chiller: included - Rigid tapping: standard • Feedrates: - Rapid traverse (X / Y / Z): 32 / 32 / 32 m/min - Cutting feedrate: 10 m/min - Jog feedrate: 2,500 mm/min • Automatic Tool Changer (ATC): - Type: Arm-type changer - Tool capacity: 30 tools - Tool taper: BT-40 - Retention knob: MAS P40T-1 (JIS B-6339) - Max. tool diameter (adjacent): 80 mm - Max. tool diameter (free): 100 mm - Max. tool length: 250 mm - Max. tool weight: 7 kg - Tool change time (tool-to-tool): 2 s - Chip-to-chip: 6 s • Automatic Pallet Changer (APC): - Number of pallets: 2 - Change method: hydraulic swapper - Pallet change time: 12 s • Motors: - Spindle motor: 18.5 kW (24 HP) - X-axis feed motor: 4.5 kW (6.4 HP), 30 Nm torque - Y-axis feed motor: 4.5 kW (6.4 HP), 30 Nm torque - Z-axis feed motor: 3.88 kW (5.4 HP), 22 Nm torque - Hydraulic pump motor: 3 kW - Lubrication pump motor: 0.01 kW - Coolant pump motor: 0.76 kW • Guideways: - X-axis: SNS45C2SSCOEx3 (600 mm width, 1,000 mm distance) - Y-axis: SNS45LC2X151SLHx2 (600 mm width, 600 mm distance) - Z-axis: SHS45R2SSCOEx1305×2 (500 mm distance) Ndodpfxexnlhgo Ah Dsd • Utilities / Connections: - Power supply: 45 kVA - Compressed air: 0.6 MPa (87 psi), 400 L/min - Hydraulic oil tank: 400 L - Lubrication tank: 2 L - Coolant tank: 300 L • Dimensions / Weight: - Machine height: 2,885 mm - Machine footprint: 3,510 × 2,410 mm - Machine weight: 9,200 – 9,500 kg (approx. 10 t) lifting requirement • Cutting Capacities: - Milling: 230 cm³/min - Drilling: Ø 40 mm - Tapping: M30

Condition: used, Year of construction: 2009, Machine Designation: Vertical Machining Center LCV-760 (Moving Column Type) Manufacturer: LEADWELL CNC Machines Mfg. Corp., Taichung, Taiwan Type / Model: LCV-760 Control System: FANUC Oi-MD Technical Specifications • Working Area / Travels: - X-axis travel: 760 mm - Y-axis travel: 610 mm - Z-axis travel: 610 mm - Distance from table (pallet) top to spindle nose: 150 – 760 mm - Distance from column front to spindle center: 718 mm - Table dimensions: 850 × 600 mm - Maximum workpiece weight: 400 kg - Table configuration: M16 × P2.0 mm T-slots - Table height (floor to table top): 1,033 mm • Spindle / Drive: - Spindle speed: 10,000 rpm (optional: 12,000 rpm) - Spindle drive motor: 18.5 / 24 kW (30 min / continuous duty) - Maximum spindle torque: 95 Nm (67.5 ft-lb) - Spindle taper: 7/24 TAPER No. 40 (BT-40) - Spindle bearing inner diameter: 70 mm - Tool clamping force: 1,200 kgf - Transmission: HT.D belt drive - Spindle oil chiller: included - Rigid tapping: standard • Feedrates: - Rapid traverse (X / Y / Z): 32 / 32 / 32 m/min - Cutting feedrate: 10 m/min - Jog feedrate: 2,500 mm/min • Automatic Tool Changer (ATC): - Type: Arm-type changer - Tool capacity: 30 tools - Tool taper: BT-40 - Retention knob: MAS P40T-1 (JIS B-6339) - Max. tool diameter (adjacent): 80 mm - Max. tool diameter (free): 100 mm - Max. tool length: 250 mm - Max. tool weight: 7 kg - Tool change time (tool-to-tool): 2 s - Chip-to-chip: 6 s • Automatic Pallet Changer (APC): - Number of pallets: 2 - Change method: hydraulic swapper - Pallet change time: 12 s • Motors: - Spindle motor: 18.5 kW (24 HP) - X-axis feed motor: 4.5 kW (6.4 HP), 30 Nm torque - Y-axis feed motor: 4.5 kW (6.4 HP), 30 Nm torque - Z-axis feed motor: 3.88 kW (5.4 HP), 22 Nm torque - Hydraulic pump motor: 3 kW - Lubrication pump motor: 0.01 kW - Coolant pump motor: 0.76 kW • Guideways: Njdpfoxnki Aox Ah Dsdd - X-axis: SNS45C2SSCOEx3 (600 mm width, 1,000 mm distance) - Y-axis: SNS45LC2X151SLHx2 (600 mm width, 600 mm distance) - Z-axis: SHS45R2SSCOEx1305×2 (500 mm distance) • Utilities / Connections: - Power supply: 45 kVA - Compressed air: 0.6 MPa (87 psi), 400 L/min - Hydraulic oil tank: 400 L - Lubrication tank: 2 L - Coolant tank: 300 L • Dimensions / Weight: - Machine height: 2,885 mm - Machine footprint: 3,510 × 2,410 mm - Machine weight: 9,200 – 9,500 kg (approx. 10 t) lifting requirement • Cutting Capacities: - Milling: 230 cm³/min - Drilling: Ø 40 mm - Tapping: M30

Condition: used, Year of construction: 2001, operating hours: 4,689 h, Empty weight: 7.000 kg Price: On request - Year: 2001 - Documentation available: Yes - CE marking present: Yes - CE certificate present: No - Operating hours: 4689 - Drive system: CNC - Control system brand: Fanuc - Control system type: 18i-T - Power [kW]: 15.0 - Swing over bed [mm]: 470 - Carriage turning diameter [mm]: 310 Ndjdpsxd Sk Hofx Ah Djd - Distance between centres [mm]: 710 - Spindle bore [mm]: 70 - Max. spindle speed [rpm]: 4000 - Options: Chip conveyor, Live tools, Turret - └ Tool magazine [pcs.]: 12 - X-axis travel [mm]: 190 - Z-axis travel [mm]: 550 - Tool holder: VDI40 - Transport weight [kg]: 7000kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, Year of construction: 2007, Turning length 700 mm Njdpfexdhxtjx Ah Djdd Max. turning dia. 460 mm Spindle speeds 4000 rpm X/Z travel 260/795 mm Turret w/12 stations Control: MSX-850 III Equipped with: Various tool holders

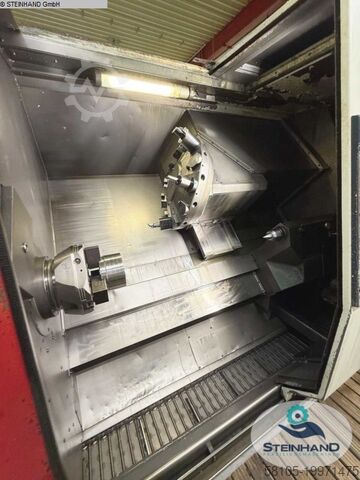

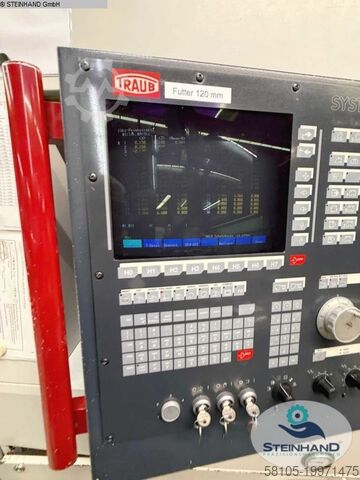

Condition: used, Year of construction: 1997, spindle passage 80 mm max. turning diameter 460 mm Max. Turning length 1.000 mm Ndodexbtpxepfx Ah Dsd control System TX 8F max. Spindle speed 2.800 U/min. CNC lathe | TRAUB - TNA 500 The machine is in a well-maintained condition and can be inspected at any time under power. Technical data of the machine will follow soon. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags:TNA500 | TNA-500

Condition: used, Year of construction: 2018, chucking diameter 250 mm workpiece dia. 200 mm control Siemens 840 D sl c-axis Position genauigkeit arcs 10 tool turret with 12 work positions 12 turning spindle 2 Nodoxap E Topfx Ah Dedd spindle turning speed range 6.000 / (4.500) U/min Spindle power 26 / (28,3) max. torque on the spindle 150 / (300) spindle nose 55026 - A6 tool taper VDI 40 turning speeds 10.000 U/min z-travel 370 mm x-travel 30 mm y-travel +- 40 mm

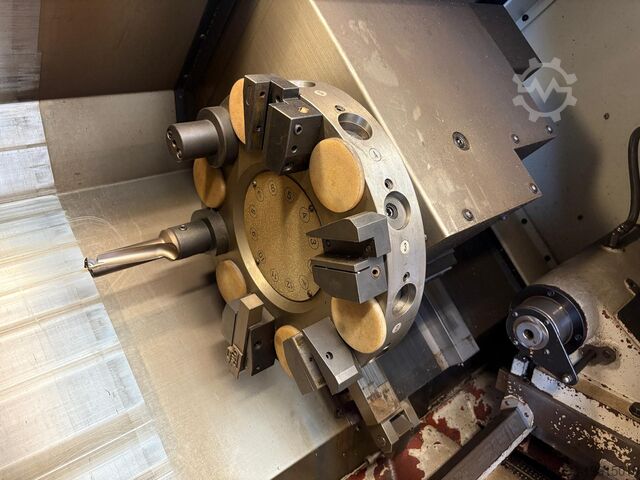

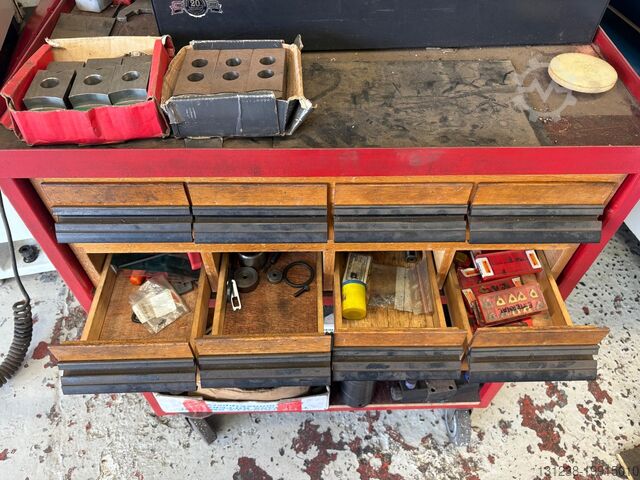

Condition: ready for operation (used), Year of construction: 2002, XYZ TC250 Vulcan Turning Centre Year of manufacture 2002 Ø250mm 3 Jaw Power Chuck. Max. Swing Ø500mm. Max. Swing Over Cross Slide Ø330mm. Max. Turning Length 650mm. Ndsdpfxew U Ekcj Ah Djd Spindle Bore Ø87mm. Max. Bar Capacity Ø77mm. Axis Travel 'X'=220mm, 'Z'=650mm. Maximum Spindle Speed 3,500rpm (22.5kW Motor). Spindle Nose A2-8. 12 Position Turret (VDI 40 Toolholders). *For sale with Jet Machinery Ltd* Stock No: 78992 Serial No: 202068 Price: £9,950.00 + VAT Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.

Condition: excellent (used), Year of construction: 1999, • FANUC 210i - T control (cycles) • Max. distance between centers: 1,250 mm • Max. turning diameter: 400 / 585 mm in offset • Spindle speed: 12 . . . 2,500 rpm • Spindle bore: 54 mm • X-axis: 210 mm • Z-axis: 1,181 mm • Cutting gap adjustment: 0.05 – 0.8 mm • Motor power: 7.5 kW • Weight: approx. 2,700 kg Ndjdpfx Aow S E R Rsh Ded

Condition: used, Year of construction: 2011, Technical details: turning length: 310 mm swing diameter over bed: 500 mm swing diameter over bed slide: 290 mm centre distance: 500 mm x-axis: 190 mm z-axis: z1: 335 / z3: 370 mm y-axis: 80 mm revolution per minute: 6000 U/min Control: Heidenhain CNC Pilot 4290 spindle bore: 73 mm bar material dia.: 50 mm tool turret - number of stations: 12 tool taper: VDI 30 mm rapid traverse x + z axis: 30 m/min operating hours - idle run: 36443 h spindle hours: 8545 h interface: ja total power requirement: 20 kVA kW dimension swarf conveyor LxWxH: 3,2 x 0,45 x 1,5 CNC inclined bed lathe With a 3-jaw chuck Ø 160mm with matching flange (max. speed 4500 rpm) and 2 additional sets of spare jaws. Turret head for 12 tools all with tool drive; Sauter disk turret (C-axis = 300 rpm) Torque main spindle: 95 Nm at 100% and 127 Nm at 40% Ndodpfew S Efzjx Ah Djd Chip conveyor 450 K-1/250; year of manufacture 2000 Electric cabinet with Rittal cooling The machine does not have a hydraulic chuck. A manual chuck has been installed by the previous owner. The machine is not functional and is for sale. The machine has an unknown malfunction in the turret, meaning that reference travel and axis movements are not possible. Machining functionality is therefore currently not possible. The machine is for sale and in need of repair! i.D. *

Condition: used, Year of construction: 1998, Technical details: Ndedsw Rkt Ispfx Ah Dsd turning diameter over bed: 600 mm turning diameter over support: 400 mm turning length: 2000 mm center height over support: 300 mm centre distance: 1600 mm revolution per minute: 3 - 2.500 U/min tailstock taper MT: MK 5 spindle bore of work spindle: 62 mm quill stroke: 190 mm longitudinal feeds:: ca.0,001-10 einstellbar mm/U cross feed: ca. 0,001-5 einstellbar mm/U Rapid feed X axis: bis zu 5000 m/min. total power requirement: 40 KVA weight of the machine ca.: 5,6 t dimension machine xH: 4,0 x 2,0 x 1,9 m

Condition: used, Year of construction: 1997, Distance between centers 2070 mm Swing over bed 700 mm Swing over carriage 430 mm Njdpfxow Rkd Te Ah Dedd Max turning diameter 460 mm diameter (2000 mm) Spindle bore 90 mm Spindle speeds 14-3200 rpm Z-axis movement 2070 mm X-axis movement 330 mm Turret w/12 stations Tailstock taper MT 5 Control: OSP 7000-L Equipped with: Hydraulic steady rest Chip conveyor 10-20 tool holders 10-20 sets of jaws
