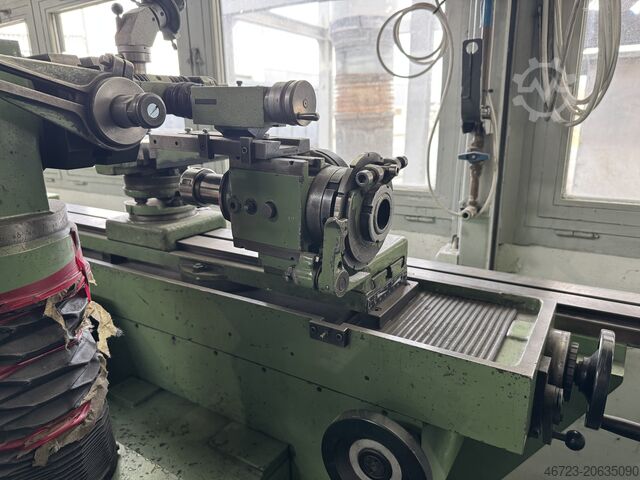

Condition: used, Year of construction: 1981, functionality: fully functional, Type: Tool grinder Manufacturer: SCHÜTTE Model: WU50 Year of manufacture: 1981 Serial number: 49C53151 Condition: Used Nwedjxz Drwopfx Abpjp Quantity: 1

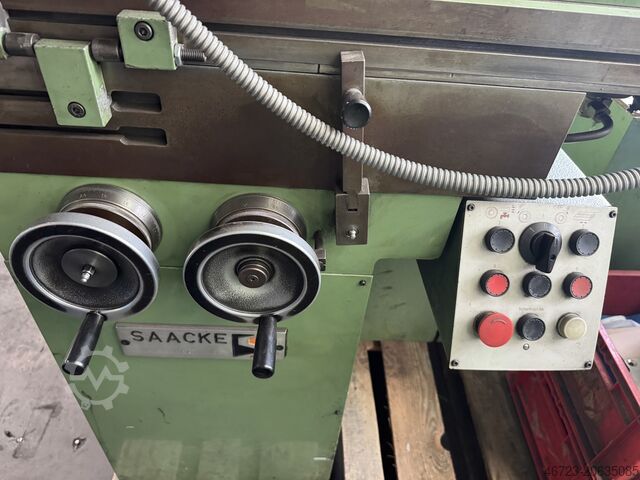

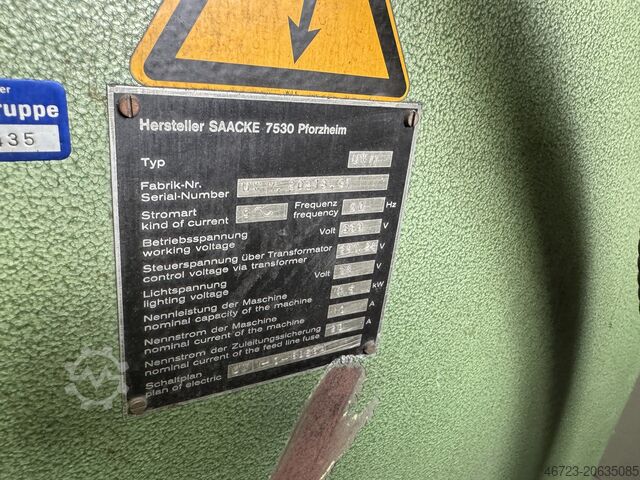

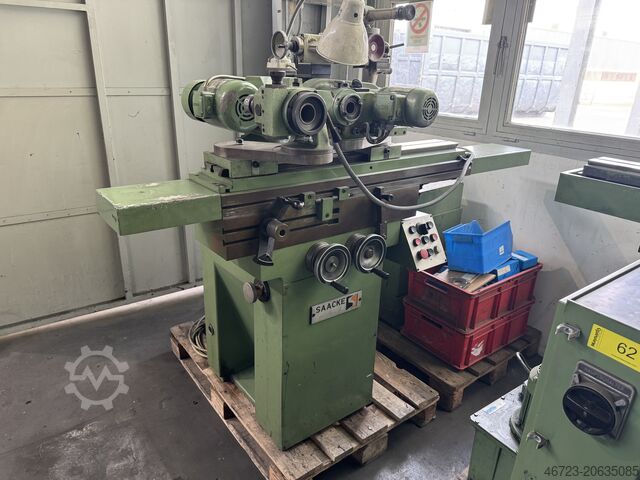

Condition: used, functionality: fully functional, Type: Tool grinder Manufacturer: SAACKE Model: UW11 Nwodpfxoxz Drqe Abpjp Condition: Used Quantity: 1

Condition: ready for operation (used), Year of construction: 2002, functionality: limited functionality, machine/vehicle number: M02 10 780, spindle speed (max.): 9,000 rpm, Tool changer not ready for operation Njdjxzrt Nepfx Abpewp

Condition: good (used), Year of construction: 1990, 1 x tool grinding machine Doebelie Nwodpfexza Nxex Abpjp D 175 combination grinding Year of manufacture: 1990 with coolant system. + machine lamp The machine can be inspected under power.

Condition: used, Year of construction: 1999, Description: Suitable for grinding spiral and straight-fluted tools as well as for surface grinding using fixed pre-programmed standard grinding programs. Accessories: Total enclosure Glass scales on the X and Z linear axes PSM 118 measuring and positioning probe for spiral pitch and breast bevel Stepless speed control Nedpfx Abjxy N A Espjwp Manual central lubrication Wet grinding device 1 grinding wheel guard Machine light 2 grinding wheel flanges. Hub X-axis (NC): 360 mm stroke Workpiece spindle holder A-axis (NC): SK 50 Y-axis stroke (manual): 250 mm Grinding spindle speed infinitely variable: from 2000 - 9000 rpm Z-axis stroke (manual): 300 mm drive power grinding motor: 2.2 kW Grinding wheel diameter: Max. 200 mm mass: about 1600 kg Connected load: 2.2 kW (400 V / 50 Hz) Dimensions W x D x H: approx. 1395 x 1565 x 1990 mm colour: Grey

Condition: like new (used), Year of construction: 2002, machine/vehicle number: 6879, Specifications Manufacturer TACCHELLA Model ELEKTRA 1018 MPC Nedpfoxy Hb Esx Abpswp Year 2002 Condition Used Serial Number 6879 Stock Number RT1762 Distance centers 1000 mm tip height 180 mm Maximum length that can be ground at 0°, left grinding wheel 450 mm 1000 mm Maximum diameter that can be ground at 0°, left grinding wheel 450 mm 350 mm Description Spare gears (as shown in photographs) Originating from bankruptcy machine like new manuals/electrical diagrams Tilting diamond grinding machine for internal grinding •Diamond grinding machine for external grinding wheels •Fixed steady rest •Grinding wheel flanges •Collet holder - with set of collets •Tailstocks •Spindles for internal grinding •Plug

Condition: used, Bäuerle universal tool grinding machine for woodworking and metalworking tools. Nwedpfxsxytmus Abpep

Condition: used, EWAG WS 11 SP is a tool and cutter grinder designed for precision, high accuracy and reliability. Working capacities: X/Y/Z axes 100 mm, grinding-wheel diameter 75 mm, workpiece spindle speed 100-1300 t/min, vertical adjustment of grinding head 100 mm, slewing range horizontal 165°, grinding spindle speeds 2500-7100 t/min, collet attachment 20 W. Technical specifications: voltage 50 Hz 3x380 V, total power required 2 kVA, machine weight about 400 kg, dimensions L850×W850×H1580 mm. Key equipment: flange for wheel, dust extraction, set of grinding wheels, lamp, helical grinding device W20, feed unit (Z-axis) 4 E-M, grinding stroke 3 J. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical Nwsdpfxoxyi I Io Abpsp

Condition: like new (used), SCHNEEBERGER GEMINI DMR is a Tool and cutter grinder CNC designed for precision, high accuracy and reliability. Capacities: centre height 210 mm; table 500×145 mm; travels X380 Y300 Z280 mm; grinding Ø 240 mm; wheel Ø50–250 mm; A 360°; C 210°. Specs: spindle nose HSK 50; spindle 50–10,000 t/min (stepless); feeds 20/5/20 m/min (long./cross/vert.); spindle power 9 kW; supply 3×400 V 50 Hz; total 27 kVA; weight ≈8000 kg; dims L2270×W1700×H2260 mm. Accessories: 3D probe, collets/flanges/wheel arbors, tailstock, coolant system, grinding-oil centrifuge, wheel set, CNC redressing cycle, slewable double grinding spindle, ELBARON oil-mist extractor, loading/unloading robot, fire extinguishing system. Achieves tight tolerances; typical sectors: automotive, aerospace, medical, precision tooling, watchmaking. Nwedpjxyaahsfx Abpep

Condition: reconditioned (used), EWAG WS 11 is a Tool and cutter grinder designed for precision, high accuracy and reliability. X/Y/Z travel 100 mm; grinding-wheel Ø75 mm; A axis -135°/+30°; workspindle 100–1300 rpm; vertical head travel 100 mm; collet nose 20 W. Wheel spindle 2500–7100 rpm; 380 V 60 Hz; 0.4 CV; ~350 kg; 1000×1000×1800 mm. Accessories: set of collets, flanges, wheel arbors, lamp, Z feed unit. Achieves tight tolerances; suited to automotive, aerospace, watchmaking, medical sectors. Nsdpfx Abjxx U Epjpjwp

Condition: used, ROLLOMATIC CNC 600 X is a Tool and cutter grinder CNC engineered for precision, high accuracy and reliability. Capacities: max grinding length 150 mm, diameter 0.1–12.7 mm, max wheel 150 mm; spindle taper W20; W/U axes 600 mm; travel cross 230, longitudinal 180, vertical 150 mm; A -15/+90°, B -130/+45°. Specs: spindle 2,000–7,200 rpm (stepless), spindle motor 14.5 kW, 3x380 V 50 Hz; dimensions 2060×2032×1880 mm; weight ≈3500 kg. Achieves tight tolerances; applications: automotive, watchmaking, tooling, aerospace, medical. Nwedpfx Absxx U Anopsp

Condition: used, Year of construction: 2007, Suitable for regrinding and remaking all types of woodworking and metalworking tools Accessories: Full enclosure, Pickup loader, disc magazine Ø approx. 350 mm, workpiece Ø max. 50 mm 8-position grinding wheel changer Direct measuring system with glass scales on all linear axes A-axis with torque drive for cylindrical grinding NUMROTO 3D simulation NUMROTO 3D collision monitoring NUMROTOplus simple milling cutters NUMROTOplus extension for complex milling cutters NUMROTOplus standard drills, step drills NUMROTOplus extension for complex drills, step drills NUMROTOplus extension for differential helix NUMROTOplus form milling cutters NUMROTOplus extension for cylindrical grinding Fast TCP/IP data interface Electrostatic fume separator LTA, Automatic fire extinguishing system Fixed coolant ring on the grinding head with up to 12 adjustable nozzles Additional Coolant supply at the dividing head Oil drip tray 2 grinding wheel holders X-axis grinding stroke: 400 mm Y-axis grinding stroke: 310 mm Z-axis grinding stroke: 305 mm C-axis swivel range: 224° A-axis speed: max. 850 rpm Maximum workpiece diameter: about 250 mm workpiece length max.: approx. 900 mm Maximum workpiece length during face grinding.: about 400 mm grinding length max.: 400 mm Workpiece holder: ISO 50 Grinding spindle speed infinitely variable: 1000 to 8000 rpm Drive power grinding spindle: 15 kW Nedpfx Abexxquyopjwp Connected load approx.: 400 V / 50 Hz / 22 kVA Dimensions W x D x H approx.: 2350 x 3300 x 2150 mm Weight approx: 4000 kg colour: Gray

Condition: good (used), functionality: fully functional, machine/vehicle number: 542, Equipment: Nwjdpfx Asxxbphjbpjp Precision six-jaw chuck -- Cylindrical grinding device -- Dividing device -- Coolant device -- Grinding wheel holder -- Grinding wheels --- Operating instructions .

Condition: new, Year of construction: 2025, functionality: fully functional, Technical description: see attached images Nedpfjxwyb Hex Abpjwp

Condition: excellent (used), Year of construction: 2005, table length 160 mm table width 130 mm grinding wheel diameter 250 mm total power requirement 1 kW weight of the machine ca. 1 t Njdpfxexvdtdo Abpowp

Condition: excellent (used), Year of construction: 2004, table length 175 mm table width 110 mm grinding wheel diameter 500 mm total power requirement 1 kW weight of the machine ca. 1,5 t Nwjdpfxjxvdr Ts Abpsp

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, Universal Tool Grinding Machine Michael Deckel S11 with Accessories and Tool Cabinet in Excellent Condition! Technical Data: >> Year of manufacture: 1992 >> Serial No.: 1673 Clamping Range: >> Tool slide mounting surface: 500 x 180 mm >> Max. tool diameter between centers: 130 mm >> Max. tool diameter with overhung mounting in universal dividing head: 620 mm >> Max. tool length between centers: 270 mm >> T-slot width on machine base: 12 mm >> T-slot width on grinding head, tool slide and accessories: 8 mm Travel Range: >> Working travels: Grinding stroke: 190 mm Grinding stroke for helical grinding: 190 mm Cross travel of tool slide: 100 mm Vertical feed grinding head: 325 mm Longitudinal adjustment of grinding spindle: 5 mm >> Coarse adjustment travels: Tool carrier: 220 mm Grinding head support: 800 mm Universal dividing head on tool slide: 330 mm >> Swivel angles: Grinding head support: 360 degrees Grinding head: 360 degrees Tool carrier: 360 degrees Grinding Spindle: Three-phase drive motor 1.1 kW at 2800 rpm Spindle speeds, stepless: 2000 to 10,000 rpm Max. grinding wheel diameter: 125 mm Max. cut-off wheel diameter: 200 mm Dimensions: Weight: 520 kg Dimensions (Depth x Width x Height): 800 x 1100 x 1760 mm Required space (including operation): 2.5 x 2.3 m Accessories and Equipment: Njdpfx Absxu E Nqopjwp 1 pc. Tool cabinet with contents: >> See pictures About the machine: Offered is a universal tool grinding machine of the brand Michael Deckel S11. The machine is suitable for grinding high-precision parts. With the S11, single parts and small series can be ground astonishingly quickly, economically and flexibly, all while providing maximum operating comfort. The Deckel S11 is in excellent condition and comes equipped with extensive accessories. Mechanically and electrically tested. Take the opportunity to view and test this machine under power on site.

Condition: used, Year of construction: 2005, functionality: fully functional, machine/vehicle number: 2808, total height: 2,400 mm, total length: 3,300 mm, total width: 2,200 mm, feed length X-axis: 450 mm, feed length Y-axis: 250 mm, feed length Z-axis: 350 mm, overall weight: 7,000 kg, travel distance X-axis: 450 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 350 mm, CNC grinding center for external, internal, and profile grinding with three linear axes and a swiveling grinding head. Modularly configurable for various grinding tasks, featuring automated dressing cycles, modern control system, tool management, and options for measurement systems as well as peripherals such as coolant treatment and extraction. Njdpoxuichofx Abpswp

Condition: excellent (used), Year of construction: 2007, 5 controlled axes: X, Y, Z, A, and B Fully automatic grinding wheel changer NUM Axium Power 1050 control system with PC TOOL DATA Max. diameter: Ø 250 mm Max. diameter for complete machining: Ø 250 mm Max. length for complete machining (from front edge of workpiece support): 430 mm Max. tool length between centers: 480 mm Center height: 195 mm X-axis grinding travel: 625 mm Z-axis cross slide travel: 305 mm Y-axis vertical slide travel: 305 mm All linear axes are driven by high-precision ball screw spindles with 2 preloaded nuts. The axes are guided on extremely robust recirculating roller shoes on hardened rails. GRINDING HEAD, B AXIS Swiveling range in the horizontal plane: 240° Rotational speed: 120°/s Liquid-cooled motor spindle: 150 x 150 mm Nwodoxt N Izspfx Abpsp Grinding wheel mount with automatic quick-clamping system HSK - C/E 50 Spindle speed infinitely variable: 2,000 - 10,000 rpm Max. grinding wheel diameter: 150 mm Grinding wheel changer with 4 magazine slots Second probe arranged on the workpiece holder for automatic grinding wheel measurement, including software CHAIN LOADING MAGAZINE with PICK-UP arm Capacity: 160 tools Maximum workpiece diameter: 32 mm Maximum workpiece length: 200 mm Maximum tool weight: 2.5 kg CNC-controlled steady rest TURBO separator (filter system)

Condition: used, Year of construction: 1979, functionality: fully functional, total height: 1,900 mm, total length: 1,400 mm, total width: 900 mm, workpiece weight (max.): 600 kg, spindle speed (max.): 2,000 rpm, spindle speed (min.): 8,000 rpm, table length: 500 mm, table width: 200 mm, power: 2 kW (2.72 HP), input current: 10 A, input voltage: 400 V, Michael Deckel S11, conventional tool grinding machine. Fully functional. Includes spiral and clearance grinding attachment, radius grinding attachment, diamond dresser, setting gauge / dial indicator, various tool holders, indexing discs, guide bar, tailstock, grinding wheel mount, etc. Can be demonstrated under power. Nodextu Dnspfx Abpswp

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, Technical Data Grinding/Workpiece Diameter: up to approx. 300 mm (partially up to 350 mm) Grinding Length/Stroke: approx. 550 mm (slide travel) Module range (for hobbing cutter resharpening): min. module approx. 0.5 to max. module approx. 25 Number of flutes: typically 1–99 pieces (depending on tool set) Grinding wheel diameter: approx. 150–300 mm Grinding wheel speed: up to about 2,700 rpm Centre distance (workpiece spindle): typical range 400–800 mm Swivel/Pitch range: e.g. grinding wheel head swivel 0–15° Machine weight and space requirement: approx. 4.2–4.9 t weight; space approx. 3 × 2.6 × 2.3 m Nwjdpfxjxtiuns Abpjp Electrical data: operating voltage e.g. 380 V three-phase, control 24 V, auxiliary voltage 220 V

Condition: excellent (used), Year of construction: 2007, 6-axis tool grinding machine, Numroto control Nwjdpfxexq Sgzj Abpop

Condition: not inspected (used), Year of construction: 2005, functionality: unexamined, machine/vehicle number: 57/2005, travel distance X-axis: 400 mm, travel distance Y-axis: 310 mm, travel distance Z-axis: 305 mm, workpiece diameter (max.): 260 mm, tool length: 900 mm, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Nodpfxoxqpits Abpjwp Travel X-axis: 400 mm Travel Y-axis: 310 mm Travel Z-axis: 305 mm Max. workpiece diameter: approx. 260 mm Max. tool length: approx. 900 mm Spindle power: up to 24 kW Tool holder: SK 50 Speed range: up to 12,000 rpm Grinding wheel changer: 8-position Tool changer: 155-position A-axis swivel range: 360° C-axis swivel range: 224° Feed rate: 2,000 mm/min MACHINE DETAILS Control: PMAC Dimensions & Weight Dimensions (L x W x H): 2,900 x 1,800 x 2,015 mm Total weight: 4,000 kg EQUIPMENT 8-position grinding wheel changer for up to 24 grinding wheels 155-position chain loader for automatic operation Workpiece gripper Measuring probe Automatic central lubrication system Direct position measuring system Infinitely variable spindle speed / feed rate control Hydraulic chuck 1 set of hydraulic collets Additional collets of various diameters for chain loader Grinding wheel holders with spacer rings Documentation Note: The LUST board (inverter drive) is defective and must be replaced.

Condition: used, Year of construction: 2017, functionality: unexamined, machine/vehicle number: 3480, total height: 2,789 mm, total length: 2,525 mm, total width: 2,400 mm, overall weight: 8,500 kg, Number of CNC axes (X/Y/Z/A/B/C): 5 to 6 Travel paths (X/Y/Z) [mm]: 630 / 345 / 430 Max. speed (X/Y/Z) [m/min]: 30 / 30 / 30 Swivel angle grinding spindle +/- (C axis): -225° to 70° Drive power grinding spindle [kW]: 11 / 11.5 / 21 Spindle speed range [min-1]: 0 to 8,000 / 18,000 / 30,000 Grinding wheel diameter [mm]: 250 Nsdexqg Igjpfx Abpswp Abrasives: All types of abrasives Grinding length [mm]: 500 Workpiece length [mm]: 550 Workpiece cutting diameter [mm]: 260 Workpiece spindle taper: SK50 / HSK80/63/50 / Form A and E Control: Sinumerik One

Condition: excellent (used), Year of construction: 2009, operating hours: 100 h, functionality: fully functional, machine/vehicle number: SKU 102781, overall weight: 1,300 kg, power: 4 kW (5.44 HP), space requirement width: 1,350 mm, space requirement length: 1,520 mm, space requirement height: 1,400 mm, Equipment: rotational speed infinitely variable, The special design of the Multi Grind makes it possible to combine the functions of cylindrical, surface, and tool grinding in a single machine. During external cylindrical grinding, the workpiece can be clamped on one side or supported between centers in the robust tailstock. An internal grinding attachment can also be mounted on the headstock, and even light surface grinding tasks are possible with this model. In tool grinding operations, the Multi Grind allows for precise sharpening of the cutting edges on a wide variety of tools – making it particularly versatile in its application. - External and internal cylindrical grinding - Surface grinding - Tool grinding - Hydraulic table feed - Extensive accessories Nwodpfx Abjxqgi Depop
