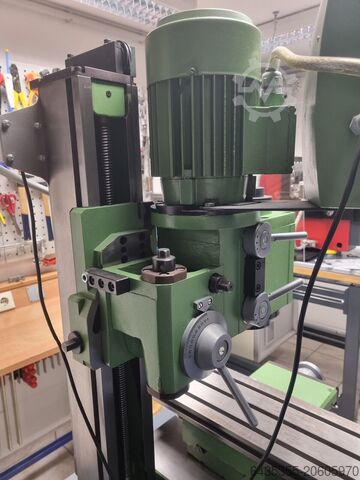

Condition: used, Year of construction: 2016, operating hours: 39,890 h, functionality: fully functional, Lathe and milling machine in one unit. Nedpfx Ahoxy Nawj Dodd The most stable bench milling machine in the world! For sale: very well-maintained GOLmatic MD-23 machining machine. The machine is in excellent technical and visual condition, as it was rarely used by a goldsmith.

Condition: ready for operation (used), Year of construction: 2004, operating hours: 13,812 h, functionality: fully functional, machine/vehicle number: 108877, travel distance X-axis: 900 mm, travel distance Y-axis: 780 mm, travel distance Z-axis: 850 mm, table load: 800 kg, spindle speed (max.): 20,000 rpm, TECHNICAL DETAILS Travel Range X-axis: 900 mm Y-axis: 780 mm Z-axis: 850 mm Distance from spindle center to pallet surface: 50 – 950 mm Distance from spindle nose to pallet center: 70 – 850 mm Pallet Pallet size: 500 × 500 mm Indexing angle: 1° Max. workpiece dimensions: 800 × 1,000 mm Max. workpiece weight: 800 kg Spindle Spindle speed: 50 – 20,000 rpm Ndsdoxyiq Nopfx Ah Dod Spindle taper: HSK Rapid traverse & feed rate Rapid traverse (X/Y/Z): 60 m/min Feed rate (X/Y/Z): 1 – 60,000 mm/min Tool system (ATC) Tool holder: HSK Max. tool diameter (adjacent tool): 100 mm Max. tool diameter (no adjacent tool): 150 mm Max. tool length: 300 mm Max. tool weight: 10 kg MACHINE DETAILS Dimensions & Weight Machine height: 3,280 mm Footprint (W × D): 3,080 × 5,585 mm Weight: 21,000 kg Operating Hours Spindle hours: 13,812 h Operating hours: 15,544 h Power-on hours: 33,469 h EQUIPMENT 2-pallet rotary table (APC) Splash guard Coolant supply system Chip air blow (nozzle system) Internal chip conveyor (floor-based system) Spindle head cooling system Worklight (fluorescent) Signal tower (3-stage) Foundation pads Clamping bolts

Condition: ready for operation (used), functionality: fully functional, travel distance X-axis: 900 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 970 mm, table load: 1,200 kg, spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS Travel X-axis: 900 mm Travel Y-axis: 800 mm Travel Z-axis: 970 mm Spindle speed: 12,000 rpm Distance between spindle center and table top: 100 – 900 mm Distance between spindle head and pallet center: 70 – 1,040 mm Spindle taper: HSK 100 Table size: 630 x 630 mm Table load capacity: 1,200 kg Max. workpiece diameter: 1,000 mm Max. workpiece height: 1,300 mm Tool changer: 90 positions Minimum increment: 0.001 mm Creep feed: 1 – 4,000 mm/min (23 steps) Cutting feed: 1 – 50,000 mm/min Rapid traverse: 50,000 mm/min Pallet change time: 17 s Ndsdjxyiiropfx Ah Djd MACHINE DETAILS Electrical data Operating voltage: 400 V, 3-phase, 50 Hz Total current: 98 A Incoming cable cross-section: 35 mm² Main fuse: 100 A Note: 2 trucks are required for transport.

Condition: used, Year of construction: 2009, functionality: limited functionality, machine/vehicle number: B-8023, Technical characteristics: # Machining Workspace: X 800 mm; Y 400 mm; Height from table surface to floor: 850 mm (max load 450 kg) # Number of T-slots: 3 / Distance between T-slots: 125 mm / Width of T-slots: 18 mm # Axis configuration: 3 LINEAR AXES (X, Y, Z) + 2 twin horizontal spindles + 4th Axis # Rapid traverse speed: X, Y, Z – 30 m/min # Travel: Longitudinal (X-axis) 600 mm, Cross (Y-axis) 400 mm, Vertical (Z-axis) 510 mm Headstock features: # Spindle distance: 200 mm # Maximum distance from spindle to table: 650 mm # Spindle nose: ISO7388 (with internal cooling), Tool Holder (Size 40) # Speed range (standard): 100/8,000 rpm, Max torque: 85 Nm at 330 rpm, 7.5 kW Automatic tool changer: # Number of tools: 20, Selection system: Sequential/random, Max. diameter (adjacent tool): 85 mm, Max. diameter (non-adjacent tool): 135 mm, Max. tool length: 250 mm, Max. tool weight: 6.5 kg, Tool change time: 6 s. Tool change time (fastest): 3 s. Electrical connection: # Voltage: 3x400V/50Hz # Installed power: approx. 30 kVA Dimensions: # Required floor space: approx. L 2.1 x W 3.5 x H 3 m # Weight: approx. 4,200 kg Equipment includes: # CNC control: GE Fanuc Series 31i MODEL A Nodpfxexxi Sko Ah Dedd # 4th axis: Nikken CNC180 FA (2012) # Broken tool detection system: Blum Novotechnik # Chip extractor # Lubrication system # Electrical panel cooling system # Spindle cooling system: HARBOR Model HBO-750PTSB2 # Documentation: Electronic and hard copy available Machine condition: OPERATIONAL — with 1 spindle / 2nd spindle defective — can be repaired.

Condition: used, Year of construction: 2008, operating hours: 61,112 h, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, controller manufacturer: Siemens, controller model: 840D PL, table width: 630 mm, table length: 630 mm, spindle speed (max.): 6,000 rpm, number of spindles: 1, Machine name / type: HELLER / MCH 250 with RSP Operating hours: 61112 Year of construction: 2008 Control unit: Siemens 840D PL Ndsdpfxjxwpi Tj Ah Dsd Spindle: 6.000 rpm Tool clamping system: HSK 100 Tool magazine / places: Rack / 234 Rotary table: 360.000° X 0,001° Coolant unit: KNOLL, VRF 250, IKZ 70 bar, (work area flushing) Positioning range XYZ (mm): 800 / 800 / 800 Pallet size (mm): 630 X 630 Workpiece clamping: mechanical Additonal options: Fast drill fracture sensing (SBBK); interface exhaust system; screen blow-off device for operator door; alternative strategy; Integrated process monitoring (IPM) and collision monitoring; 3 colour status lamp; RSP 4-fach; tool cleaning; MCIS TDI tool planning; Feed force display; MCIS DNC; spline-interpolation; cycle 800;

Condition: excellent (used), Year of construction: 2022, operating hours: 6,740 h, functionality: fully functional, travel distance X-axis: 900 mm, travel distance Y-axis: 950 mm, travel distance Z-axis: 930 mm, torque: 400 Nm, controller manufacturer: Siemens, controller model: 840D SL, table width: 630 mm, table length: 500 mm, spindle speed (max.): 12,000 rpm, spindle motor power: 45,000 W, number of spindles: 1, Machine name / type: HELLER / HF 5500 APC MT Operating hours / usage time: 6740 / 1181 Year of construction: 2022 Control unit: Siemens 840D SL Spindle: HSU DC 100i; 12.000 rpm, 45 kW, 400 Nm Tool clamping system: HSK 100 Tool magazine / places: Chain / 50 Rotary table: 360.000° X 0,001° Coolant unit: KNOLL, VRF 250, IKZ 70 bar (work area flushing) Positioning range XYZ (mm): 900 / 950 / 930 Pallet size (mm): 500 X 630 Workpiece clamping: 80 bar Sonder Additional options / specifics: Ndjdexwng Rjpfx Ah Dod HELLER facing slide unit Receiver for measuring probe (RENISHAW) Coolant temperature control Interface for exhaust system 3 colour status lamp Work area flush Hinge band conveyor for wet machining Fast drill fracture sensing (SBBK) Multi-spindle-head support (MSK) Thermal growth compensation Thermal growth correction in linear axis Working area camera Tool measurement (BLUM) AutoCal, AutoSet Robot interface Tool pickup manual

Condition: good (used), Year of construction: 2011, Ref. -No.: 10598 Manufacturer: HELLER Type: MC 2000 Year of construction: 2011 Type of control: CNC Control: Siemens 840 D sl Storage location: Halberstadt Country of origin: Hermany Machine-No.: 50XXXX X-Travel: 800 mm Y-Travel: 800 mm Z-Travel: 1000 mm Work spindle torque (25% ED): 242 Nm Tool Taper: SK 40 Numbers Of Tools In Magazin: 54 Tool Piece Magazine With: 80 Pcs./pcs. Turning Speeds: 10000 RPM Drive Capacity - Spindle Motor: 17 kW High-Pressure Pump: 50 bar Speed range - main spindle: 10000 RPM Numbers Of Pallets: 2 Size Of Pallet: 630 x 500 mm Weight Of The Machine Ca.: 13000 t spindle running time: 7000 H Operating hours: 14000 H Preparation area: 4 x 90° hydraulic pressure: 200 bar Further information: - The machine has been measured - The geometry is in excellent condition - The spindle runs a little rough - Clamping towers and cutting tool holders are also included - 2 additional clamping towers - 2 replacement pallets - 2-axis servo tool changer - Scraper conveyor for dry machining - Cold light in the work area Nodpsxvw Rpsfx Ah Djdd - Central cooling unit for motor spindle and control cabinet - Control unit at the workpiece setup station - NC-controlled rotary table - Clamping hydraulics The machine can be viewed under power by appointment.

Condition: good (used), Year of construction: 2008, Ref. -No.: 10581 Manufacturer: HEDELIUS Type: RS 80 Magnum Year of construction: 2008 Type of control: CNC Control: HEIDENHAIN iTNC 530 Storage location: Halberstadt Country of origin: Germany X-Travel: 945 mm Y-Travel: 800 mm Z-Travel: 600 mm C-Axis: 360.000 x 0,001 ° Spindle Taper: ISO 40 Table Load: 600 kg Tool changer: 30 fach Spindle Speed: 10 - 8000 RPM Drive Capacity - Spindle Motor: 27 kW Total Power Requirement: 55 kW Weight Of The Machine Ca.: 16 t A-axis (swivel axis): ° Table clamping area: 800 x 630 mm Further information: - Pendulum machining with swivel rotary table and fixed machine table - Coolant system, chip conveyor Njdexvw Nlepfx Ah Dodd - Complete housing The machine can be viewed under power by arrangement.

Condition: ready for operation (used), Year of construction: 2021, operating hours: 1,600 h, functionality: fully functional, machine/vehicle number: MJ1-1139, travel distance X-axis: 900 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 710 mm, controller model: Fanuc 0i-MF PLUS, spindle speed (max.): 6,000 rpm, TECHNICAL DETAILS X-axis travel: 900 mm Y-axis travel: 800 mm Ndjdpfxoxt E Ahs Ah Ded Z-axis travel: 710 mm Max. spindle speed: 6,000 rpm MACHINE DETAILS Control: Fanuc 0i-MF PLUS Coolant supply: 46 bar Total weight: 17,000 kg Spindle operating hours: 1,600 h EQUIPMENT Chip conveyor Table shower system (Grundfos SPK4-8) TSC cooling system with Grundfos MTR3-36/CRK2-260, 46 bar/60 Hz Mahle filter Renishaw NC-4 laser tool measurement system RMP-60 spindle probe

Condition: used, Year of construction: 2020, x-travel 810 mm y-travel 610 mm z-travel 640 mm b-axis 360 ° Control Ultimax spindle tunring speed 8.000 U/min power capacity 56 kW tool taper SK 50 rapid traverse 45/40/45 m/min auto power on hours ca. 13.674 h spindle hours ca. 4.211 h In our assessment, the machine is in good used condition and can be inspected under power by appointment. Technical features & accessories: Ndsdpjxtfz Dsfx Ah Djd - Internal coolant system 40 bar - Dual pallet changer 500mm x 500mm with clamping tower and zero-point clamping system (Quant) Accessories, tools, and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Subject to changes and errors in the technical data and specifications, as well as prior sale!

Condition: ready for operation (used), Year of construction: 2011, General Data Machine weight 17000 kg Control Unit Brand FANUC Model Series 16i-MB Main Drive Number of spindles 26kW Spindle speed range 8000 rpm Tool taper NST No. 50 Number of axis 4 Movement X-Axis Movement 870mm Y-Axis Movement 1020mm Z-Axis Movement 950mm Table Table load 800kg Tools Max weight 25kg Nedpfx Asxrhc Ish Dedd Max tool diameter 125 mm Max tool length 400mm Type of tool holder MAS BT50 / CAT50 Media Chip conveyor Yes This 4-axis Kitamura Mycenter-HX500iTGA was manufactured in 2011. It features a robust 500x500mm table, capable of handling workpieces up to 800x1000mm and 800kg. With X/Y/Z travels of 870mm, 1020mm, and 950mm respectively, and a high-pressure coolant system, it's ideal for demanding machining tasks. The machine includes a 50-tool storage capacity, automatic pallet changer, and is driven by a powerful 26kW spindle motor. Contact us for more information about this machine. Application Types Milling

Condition: ready for operation (used), Year of construction: 1999, Make: DECKEL MAHO Type of machine: DMC 80 H / RS4 Year of manufacture: 1999 Control system: Siemens 840 D Machine's weight: 18,5 t Tool holder: SK 50 x-travel: 800 mm y-travel: 710 mm z-travel: 710 mm Speed range: 10.000 1/min Overall dimensions: 9,0 x 5,0 x 3,0 m Table dimensions: 400 x 500 mm Number of tools in the magazine: 180 (2x 90) pos Internal coolant supply: 40 Bar Ndodpfx Asxni Uqoh Dod : x

Condition: ready for operation (used), Year of construction: 1999, Make: DECKEL MAHO Type of machine: DMC 80 H / RS4 Year of manufacture: 1999 Control system: Siemens 840 D Machine's weight: 18,5 t Nedpfxoxni T Te Ah Dsdd Tool holder: SK 50 x-travel: 800 mm y-travel: 710 mm z-travel: 710 mm Speed range: 10.000 1/min Overall dimensions: 9,0 x 5,0 x 3,0 m Table dimensions: 400 x 500 mm Number of tools in the magazine: 180 (2x 90) pos Internal coolant supply: 40 Bar : x

Condition: not inspected (used), Year of construction: 1990, functionality: unexamined, machine/vehicle number: 61612677, travel distance X-axis: 850 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 500 mm, controller model: Siemens Sinumerik, overall weight: 10,000 kg, No reserve price – sale guaranteed to the highest bidder! The payment deadline is one week after purchase of the machine! Placing a bid obligates you to collect the machine on time between 17/11/2025 and 21/11/2025! TECHNICAL DETAILS Travel range X-axis: 850 mm Travel range Y-axis: 500 mm Travel range Z-axis: 500 mm Control unit: Siemens Sinumerik MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 4,500 x 4,000 x 2,500 mm Total weight: 10,000 kg Nedpfexm Ucdex Ah Dedd EQUIPMENT NC rotary table Documentation Note: The clamping tower on the pallet table is not included in the scope of delivery.

Condition: ready for operation (used), Year of construction: 2011, General Data Measurements width 5584 mm Machine weight 16000 kg Measurements height 3342 mm Measurements depth 3693 mm Control Unit Brand FANUC Main Drive Number of axis 4 Tool taper BT 50 Spindle Speed 10000 RPM Movement X-Axis Movement 900 mm Z-Axis Movement 1020 mm Y-Axis Movement 800 mm Tools Ndodsxl H A Tepfx Ah Djd Number of index 40 or 60 Max tool diameter 115 mm Max tool length 600 mm Max weight 30 kg This 4-axis Makino a81 horizontal machining center was manufactured in 2011. It features a robust 630×630 mm pallet, capable of handling a maximum load of 1200 kg, and a spindle speed range of 20−10000 min−1. The machine offers a rapid traverse rate of 50000 mm/min, enhancing productivity. Ideal for complex machining tasks, consider the opportunity to buy this Makino a81 horizontal machining center. Contact us for more information about this machine. Application Types Milling

Condition: good (used), Year of construction: 2000, travel distance X-axis: 800 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 880 mm, nominal power (apparent): 61 kVA, controller manufacturer: Mazatrol, controller model: 640M, workpiece height (max.): 1,000 mm, workpiece diameter (max.): 900 mm, workpiece weight (max.): 1,000 kg, total height: 3,200 mm, total length: 6,100 mm, total width: 3,500 mm, table width: 500 mm, table length: 500 mm, overall weight: 18,000 kg, spindle speed (min.): 35 rpm, spindle speed (max.): 7,000 rpm, spindle motor power: 26,000 W, Equipment: chip conveyor, Dear Sir or Madam, we are offering you a used CNC horizontal machining center "MAZAK" in good condition. Nsdjxf T Txjpfx Ah Dodd Please refer to the attached file for details.

Condition: ready for operation (used), Year of construction: 2007, operating hours: 32,510 h, functionality: fully functional, machine/vehicle number: 11670000823, travel distance X-axis: 800 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, rotational speed (max.): 10,000 rpm, number of slots in tool magazine: 180, TECHNICAL DETAILS X-axis travel: 800 mm Ndjdpfxjxf Htxs Ah Dsd Y-axis travel: 800 mm Z-axis travel: 800 mm Drive: Variable-speed asynchronous motor with liquid cooling Control: Sinumerik 840D powerline Work spindle Tool holder: HSK-A63, hydraulic-mechanical tool clamping Spindle speed: 0 – 10,000 rpm, continuously programmable Feed Drive: AC brake motors on the X, Y, Z, and B axes Feed range on the X, Y, and Z axes: 0 – 60,000 mm/min Rapid traverse on the X, Y, and Z axes: 80 m/min Measuring system Resolution on the X, Y, and Z axes: 0.001 mm Position tolerance on the X, Y, and Z-axis: 0.008 mm Pallet Number: 2 Size: 630 × 630 mm Hole pattern: 108 × bushing Ø 16.02 H6 Centering bushing: Ø 16.02 H6, 38.5 mm deep NC rotary table Max. tabletop rotation: 30 rpm Tabletop holding torque at 40% duty cycle: 5,000 Nm Tabletop holding torque at 100% duty cycle: 3,250 Nm Workpiece weight Per pallet: max. 800 kg Difference with different loads: max. 800 kg Tool magazine Type: Vertical chain magazine HSK-A63 Positions: 180 Tool changing system: Double gripper Max. tool diameter standard: 80 mm Max. tool diameter with free adjacent positions: 160 mm Max. Tool length from spindle nose: 550 mm Max. tool weight: 12 kg Max. magazine load: 630 kg MACHINE DETAILS Space requirement: 6.0 x 6.0 m Height: 3.2 m Weight: 18 t Power requirement: 71 kVA Machine dimensions: approx. 4.7 x 5.6 x 3.2 m EQUIPMENT - Internal coolant supply - Chip conveyor - Belt filter system - Cooling unit - Rotoclear - Tool breakage detection (laser) - Mist separator - Measuring probe - Handheld control unit - Flushing gun - Blow-air cooling system - 4-color signal lamp - Dynamic package

Condition: ready for operation (used), Year of construction: 2009, operating hours: 21,927 h, Control Unit Brand FANUC Model Series 21i-MB General Data Measurements width 2770 mm Measurements depth 4950 mm Measurements height 2804 mm Machine weight 15000 Main Drive Spindle speed range 8000-12000 Spindle motor power 22 kW Number of axis 4 Ndodpfx Ahsxfwxlj Ded Movement X-Axis Movement 850 mm Y-Axis Movement 700 mm Z-Axis Movement 750 mm Workpiece Workpiece weight 500 kg Table Outer length 500 mm Outer width 500 mm Tools Max weight 8 kg Max tool diameter 40 mm Max tool length 400 mm This HYUNDAI KIA HS500i Horizontal Machining center was manufactured in 2008. The 4 axis machine has a total of 21927 working hours. It operates through a FANUC Series 21i-MB control unit. The machine reaches a 12000 rpm spindle speed. It is in good technical condition, has full documentation and is ready for testing. Application Types Milling

Condition: used, Year of construction: 2018, Heller HF3500 Base Machine HF 3500 APC Equipment Package POWER NC Swivel Rotary Table for 5-Axis Machining with Tilted Rotary Axes Travel Paths X710/Y750/Z710 Plane Transformation (CYCLE800) Tool Extraction Execution in accordance with EC Machinery Directive with Declaration of Conformity and CE Marking Precision Water-Air Cooling Unit (Compressor cooler for cooling the direct drives of A- and B-axes as well as for spindle and control cabinet cooling) HSK-A 63 Tool Holder according to DIN 69 893 Standard control panel at the tool setup station (chain) Workpiece setup station, pallet manually rotatable and lockable in 90° increments (cannot rotate freely with media interface) Workpiece clamping mechanical Two pallets as zero-point clamping systems with DIN hole pattern in base machine Scraper belt conveyor for wet machining Main control console in desk design with 24" screen with multitouch function and “HELLER Operation Interface” Equipment/Accessories PC 63 i Power Cutting Unit (12,000 rpm, 45 kW, 228 Nm) Receiver for wireless probe, make RENISHAW (incl. HELLER measuring cycles only with Siemens) Wireless probe with tool holder and probe insert, make RENISHAW RMP 60 Tool magazine with 80 places, chain version Fast drill breakage detection Comfort control terminal at tool setup station (chain) Enforced-Drive in A – Reinforced torque drive for the A-axis (for simultaneous 5-axis machining) Coolant purification system, paper band filter TMF600, ICS 70 bar with frequency-controlled high-pressure pump, work area rinsing Coolant chiller (water-air / type: compressor) Extraction system for emulsion Door window air blow device for work area door Siemens SINUMERIK ONE Ndodpexck I Uofx Ah Ded Process-integrated tool monitoring (IPM) LED status light red - yellow - green Technology package milling (ONE Dynamics 5 axes) Collision avoidance strategy AutoCal (Automatic Calibration) Handheld control device SINUMERIK HT 2, make Siemens Interface for handheld control device Extension package Standard-MF-II PC keyboard for main control console Extension to 4 pallets Additional equipment not included in the purchase price (available separately) Hyper Mill post-processor 3D machine model STP

Condition: used, Year of construction: 2018, Heller HF3500 Base Machine HF 3500 APC Equipment Package POWER NC Swivel Rotary Table for 5-Axis Machining with Tilted Rotary Axes Travel Paths X710/Y750/Z710 Plane Transformation (CYCLE800) Nedpfoxurknex Ah Dodd Tool Extraction Execution in accordance with EC Machinery Directive with Declaration of Conformity and CE Marking Precision Water-Air Cooling Unit (Compressor cooler for cooling the direct drives of A- and B-axes as well as for spindle and control cabinet cooling) HSK-A 63 Tool Holder according to DIN 69 893 Standard control panel at the tool setup station (chain) Workpiece setup station, pallet manually rotatable and lockable in 90° increments (cannot rotate freely with media interface) Workpiece clamping mechanical Two pallets as zero-point clamping systems with DIN hole pattern in base machine Scraper belt conveyor for wet machining Main control console in desk design with 24" screen with multitouch function and “HELLER Operation Interface” Equipment/Accessories PC 63 i Power Cutting Unit (12,000 rpm, 45 kW, 228 Nm) Receiver for wireless probe, make RENISHAW (incl. HELLER measuring cycles only with Siemens) Wireless probe with tool holder and probe insert, make RENISHAW RMP 60 Tool magazine with 80 places, chain version Fast drill breakage detection Comfort control terminal at tool setup station (chain) Enforced-Drive in A – Reinforced torque drive for the A-axis (for simultaneous 5-axis machining) Coolant purification system, paper band filter TMF600, ICS 70 bar with frequency-controlled high-pressure pump, work area rinsing Coolant chiller (water-air / type: compressor) Extraction system for emulsion Door window air blow device for work area door Siemens SINUMERIK ONE Process-integrated tool monitoring (IPM) LED status light red - yellow - green Technology package milling (ONE Dynamics 5 axes) Collision avoidance strategy AutoCal (Automatic Calibration) Handheld control device SINUMERIK HT 2, make Siemens Interface for handheld control device Extension package Standard-MF-II PC keyboard for main control console Extension to 4 pallets Additional equipment not included in the purchase price (available separately) Hyper Mill post-processor 3D machine model STP

Condition: used, Year of construction: 2015, Control Siemens In our opinion, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as Njdjxb Egvjpfx Ah Dedd subject to prior sale!

Condition: good (used), Year of construction: 2002, Technical details are shown on picture. Parts shown on pictures not come. Nsdpsw U Alqsfx Ah Dedd

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, travel distance X-axis: 950 mm, travel distance Y-axis: 720 mm, travel distance Z-axis: 760 mm, table width: 630 mm, table length: 630 mm, TECHNICAL DETAILS Travel distances X-axis travel: 950 mm Y-axis travel: 720 mm Z-axis travel: 760 mm Spindle Spindle speed range: 12,000 rpm Work table Nsdjw Nwupjpfx Ah Dsdd Table outer length: 630 mm Table outer width: 630 mm MACHINE DETAILS Control: Fanuc Series 16I-M Dimensions Machine width: 3,200 mm Machine height: 3,200 mm

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, Standard Specifications of the Machine Table: Working area: 305 x 305 mm Max. workpiece volume: Ø 500 mm x 560 mm Max. table load: 250 kg Travel: X-axis: 510 mm Y-axis: 510 mm Z-axis: 490 mm Rotary axis: 0.001° – 360° Distance table top – spindle center: 40 - 550 mm Distance table center – spindle nose: 100 - 590 mm Spindle: Spindle taper: NST No. 40 Spindle speed: 20 – 20,000 rpm Drive: 4-step gearbox (2 mechanical, 2 electric) Max. torque: 157 Nm Feed: Rapid traverse X, Y, Z-axis: 50,000 mm/min Rapid traverse 4th axis: 9,000°/min 90° rotation of 4th axis: 0.6 seconds Cutting feed X, Y, Z-axis: 40,000 mm/min Tools: Tool positions: 40 Tool selection: direct, bi-directional Tool holder: BT (SK) 40 Max. tool diameter: 95 mm (150 mm if adjacent positions are empty) Max. tool length: 300 mm Max. tool weight: 10 kg Tool change time (tool-to-tool): 1.7 seconds Tool change time (chip-to-chip): 5.0 seconds Motors: Spindle motor (30 min./continuous operation): 11.0 kW AC Tool changer motor: 400 W AC Coolant system motor: 1,200 W AC Pallet: Pallet change time: 6.0 seconds Other: Power supply: 25 kVA, 200V AC, 3-phase Air supply: 5 bar, 330 l/min Dimensions: Machine height: 2,940 mm max. Footprint with chip conveyor: 3,492 mm x 3,173 mm Weight: 9,900 kg Control: Fanuc 16iMB Standard Accessories Spindle with 20,000 rpm and 4-step gearbox (2-speed gear drive, 2-speed electronic gear) 2-Point spindle bearing compensation within 0.005 mm (IAC System 1) Big-Plus spindle (contact in taper and face) Automatic spindle taper cleaning with compressed air Through-spindle coolant at 15 bar with separate pump Spindle bearing lubrication system (air-oil mixture) Spindle cooler Automatic lubrication of axis ballscrews in X, Y, and Z axes Automatic high-speed tool changer with 40 tool stations Fixed tool position: each tool is independently coded by the machine and identified in the magazine Original Kitamura tool wait-release function via pre-selection of the T-code Automatic 180° pallet changer (2 stations) Coolant pump 1,200 W Double-deck chip conveyor with 2 chip belts for coarse and fine chips, with filter system Lower chip flushing with separate 1,200 W pump Fully enclosed guard Automatic central lubrication of guideways Air FRL unit (filter, regulator, lubrication) Hydraulic power unit with tank Work light Cycle end lamp Tapping without compensating chuck 4 free M-functions, M20 – M23 Swiveling control panel Portable handwheel RS 232C interface PCMCIA interface Door interlock Ndjdpfxjw Al Tbs Ah Ded Emergency stop at tool magazine Manual index switches at tool magazine Self-diagnostic function

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, machine/vehicle number: S2749544010016, travel distance X-axis: 800 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, controller manufacturer: SIEMENS, controller model: SINUMERIK ONE, rotational speed (max.): 16,000 rpm, number of slots in tool magazine: 167, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Highlights: - Powerfull motorizied spindle 16.000 U/min | 206 Nm Ndedpfxswz Eddo Ah Dod - Rotary pallet storage system PSS-R1800 with 10 storage locations - 167 tools in system _____ Basic machine G440 Travels: X=800, Y=800, Z=800 mm Power supply 400 V, 50 Hz, TN-S Decentralized work area mist collector: 1,000 m³, filter class ISO ePM1 80% Machine cooling system with air-cooled cooling unit dynamic package Electrical cabinet lighting Machine control system SINUMERIK ONE with machine control GROB⁴Pilot gen. 2 Swivel axis calibration GSC for 4-axis machining centers Program for creation of an automatic clamping sequence Time-controlled start of warm-up program - programmable at the HMI EES function to realize CN program on an external data carrier (SIEMENS) Technology package SINUMERIK MDynamics - milling (SIEMENS) Control panel to enter tool data at tool loading and unloading position Pallet guide element at rotary table Extension of B-axis' radius of action Motorized spindle HSK-A 63, 16,000 rpm, 159/206 Nm, 25/32 kW, oil-air lubrication GROB spindle diagnostics GSD Triple disk-type tool magazine HSK-A 63 with 167 (47+10|50|60) tool pockets Tool cleaning device Tool coding, system BIS-M Electromechanical tool breakage detection device Laser measurement system LaserControl NT LC50-DIGILOG for milling tools Setup station door for manual loading and unloading and automatic load and unload systems Rotary pallet storage system PSS-R1800 with 10 storage locations Air gun at setup station Cutting fluid return from pallet storage system PSS to machining center Lighting in the setup station of the PSS pallet storage system Clamping program editor for setup station of PSS-R450-1800 Support EES-call PSS-R450-1800 Support GSC swivel axis calibration PSS-R450-1800 NC program management system by the primary control PSS-R450-1800 Tool requirement planning PSS-R450-1800 5x Pallet 500 x 630 mm, T-slots Pallet equipped with 6 fluid connections High-pressure cutting fluid system (5-40 bar, IKZ) Cooling fluid system Premium - system description Premium flushing package Part clamping system in work area, customer-specific Part clamping system in setup station of pallet storage system PSS, customer-specific Part clamping system in setup station of pallet changer, customer-specific Rotating inspection glass for work area door Infrared probe OMP60 (RENISHAW) Remote machine diagnostics with access control switch 12-month warranty
