Hans Knecht GmbH

Condition: refurbished (used), Year of construction: 2006, travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 650 mm, table width: 1,140 mm, table length: 1,640 mm, workpiece length (max.): 1,770 mm, workpiece width (max.): 1,270 mm, workpiece height (max.): 680 mm, feed rate Z-axis: 12 m/min, table load: 7,500 kg, Status: completely overhauled Control: Mitsubishi - 64 bit CNC Generator power: 70 amps - multipulse Travel paths (X, Y, Z): 1000 x 1500 x 650 mm Electrode changer: 30-way pick-up plate changer Work container (W x D x H): 1770 x 1270 x 680 mm Workpiece clamping table (W x D): 1640 x 1140 mm Load capacity: 7,500 kg Accessories: - CO2 fire extinguishing system - Cartridge filter system - HSJ technology (High Speed Jump) Fodpfexf Ezuex Afpjgh

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, machine/vehicle number: 575650, travel distance X-axis: 550 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 450 mm, TECHNICAL DETAILS Fgodew T Thmopfx Afpeh Design: Lift tank Internal dimensions (W x D x H): 800 x 1100 x 480 mm Dielectric height programmable/automatic: max. 450 mm WORKING HEAD On ram clamping system UPC/H8000/Dynafix: 150 kg Min. distance electrode clamping system to worktable: 135 mm Max. distance electrode clamping system to worktable: 585 mm INTEGRATED C-AXIS Adjustable rotation speed: 1 - 20 rpm Measuring resolution: 0.001 degrees Load capacity with manual electrode change: 50 kg Load capacity with automatic electrode change: 15 kg Holding torque/clamping force: 120 Nm Max. moment of inertia of electrode: 0.4 kgm² WORKTABLE Support surface (W x D): 760 x 1000 mm Load capacity: 2,000 kg TRAVEL PATHS X / Y / Z (inside work tank): 550 x 850 x 450 mm Y (for electrode change and loading position): 1180 mm CONTROL PC-NC dialog: 2 x 32 bit Drive type: digital AC servo motors Max. travel speed X, Y, Z: 5,000 mm/min High speed jump max.: 18,000 mm/min MACHINE DETAILS Main voltage: 400 V / 50 Hz Control voltage: 24 VDC Maximum fuse: 32 A Power consumption: 19 kVA Machine weight: 6,400 kg Main dimensions (W x H x D) including generator: 2760 x 2730 x 2940 mm Footprint with generator: 9 m² Generator weight: 640 kg Operating hours: 3,221 h

Condition: refurbished (used), Year of construction: 2006, travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 650 mm, table width: 1,140 mm, table length: 1,640 mm, workpiece length (max.): 1,770 mm, workpiece width (max.): 1,270 mm, workpiece height (max.): 680 mm, feed rate Z-axis: 12 m/min, table load: 7,500 kg, Status: completely overhauled Control: Mitsubishi - 64 bit CNC Fgjdpfxsw Sm Tys Afpsh Generator power: 70 amps - multipulse Travel paths (X, Y, Z): 1000 x 1500 x 650 mm Electrode changer: 30-way pick-up plate changer Work container (W x D x H): 1770 x 1270 x 680 mm Workpiece clamping table (W x D): 1640 x 1140 mm Load capacity: 7,500 kg Accessories: - CO2 fire extinguishing system - Cartridge filter system - HSJ technology (High Speed Jump)

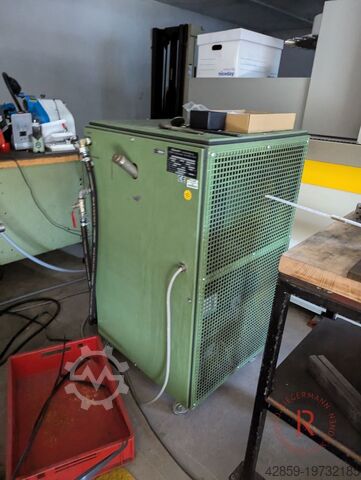

Condition: used, Year of construction: 2004, machine/vehicle number: 575259, travel distance X-axis: 550 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 450 mm, For sale is a high-quality sinker EDM machine from the renowned manufacturer OPS Ingersoll. This machine is ideal for precise EDM operations in tool and mold making, and comes equipped with an extensive range of features. 🔍 General Information: Manufacturer: OPS Ingersoll Model: Gantry 800 Machine No.: 575259 Year of manufacture: 2004 Origin: Made in Germany Condition: Used, well-maintained, and fully operational ⚙️ Technical Specifications: Travel distances (X/Y/Z): 550 x 850 x 450 mm Worktable size: approx. 800 x 1000 mm Max. head load: 200 kg Max. clearance: 585 mm Max. traversing speed: 12,000 mm/min 💡 Equipment & Features: 30-position tool changer, EROWA Mitsubishi 64-bit CNC control (separate control panel) Programming software: MultiProg Control technology: Multipulse PRO Chuck: ER-016841 Integrated CO₂ fire extinguishing system Cartridge filter unit Dielectric cooling system by Weinreich Industriekühlung Extensive accessories and connection cables available ⚡ Electrical Data (as per type plate): Supply: 400 V / 3~ / 50 Hz Control voltage: 24 V AC / DC Power consumption: 17 A Fusing: 25 A Wiring diagram no.: 107258 Fodpfx Ajw Ig A Hsfpegh Errors, typos and prior sale excepted.

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 1,010 mm, travel distance Y-axis: 1,510 mm, travel distance Z-axis: 700 mm, workpiece weight (max.): 2,000 kg, OPS Ingersoll Gantry 800 Eagle Year of manufacture: 2014, overhauled in 2024 Control: Eagle powertec 3036 Generator: Eagle Powertec PT 60 Travel paths: 1010x1510x700mm Fedpfx Afow Hdbfepogh Clamping table: 760x1000mm Load capacity: 2000kg Max. dielectric height: 450mm 30-position EROWA tool changer Integrated C-axis 0.001° Max. head load: 200kg High Speed Jump max. 18m/min interval on Z axis Multi Prog Powertes - technology programming Powertec handheld unit Manual eroding with Powertec Dielectric cooler

Condition: refurbished (used), Year of construction: 2006, travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 650 mm, table width: 1,140 mm, table length: 1,640 mm, workpiece length (max.): 1,770 mm, workpiece width (max.): 1,270 mm, workpiece height (max.): 680 mm, feed rate Z-axis: 12 m/min, table load: 7,500 kg, Status: completely overhauled Control: Mitsubishi - 64 bit CNC Generator power: 70 amps - multipulse Travel paths (X, Y, Z): 1000 x 1500 x 650 mm Electrode changer: 30-way pick-up plate changer Work container (W x D x H): 1770 x 1270 x 680 mm Workpiece clamping table (W x D): 1640 x 1140 mm Fgjdpfx Aew Evx Tsfpeh Load capacity: 7,500 kg Accessories: - CO2 fire extinguishing system - Cartridge filter system - HSJ technology (High Speed Jump)

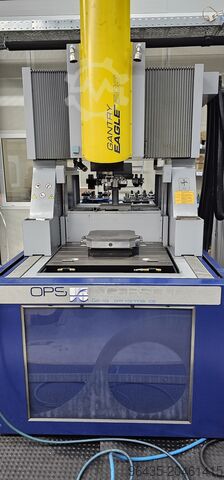

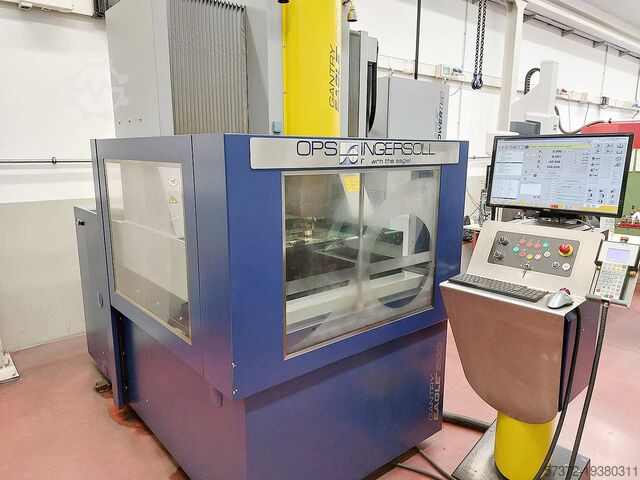

Condition: used, Year of construction: 2011, Sinks (see attached images) Gantry Eagle 500 Year of manufacture: 2011 Travel paths: x/y/z = 525x400x450 Tool changer: 24 positions Weight: 5000 kg Fgodpfx Afsw D Hcgopoh

Condition: like new (used), Year of construction: 2016, operating hours: 1,011 h, functionality: fully functional, travel distance X-axis: 905 mm, travel distance Y-axis: 705 mm, travel distance Z-axis: 450 mm, workpiece weight (max.): 3,000 kg, total height: 3,100 mm, total width: 2,090 mm, total length: 3,400 mm, table width: 850 mm, type of input current: three-phase, distance table to quill: 705 mm, table length: 1,150 mm, warranty duration: 12 months, feed length X-axis: 1,100 mm, feed length Y-axis: 705 mm, feed length Z-axis: 450 mm, feed rate X-axis: 5 m/min, feed rate Y-axis: 5 m/min, feed rate Z-axis: 15 m/min, input voltage: 400 V, overall weight: 7,500 kg, year of last overhaul: 2025, table load: 3,000 kg, input frequency: 50 Hz, working range: 1,200 mm, Equipment: documentation/manual, EDM314MF30 - Low Usage Overhauled Technical Data: Travel X/Y/Z: 905x700x455 mm Workpiece Clamping Table: 1150x850 mm Work Tank: 1200x900 mm Filling Height: 500 mm Distance Table/Electrode Holder: 250/705 mm Workpiece Weight: 3000 kg Dielectric Capacity: up to 1800 liters Dimensions (W x D x H): 2090x3416x3100 mm Machine Weight: 7500 kg Equipment: Color: Light Grey Operating Interface: MF30 Software with latest NC version Mobile Panel Handheld Control Console with Enable Switch Generator: 60 Amps Latest TEC 8 Technology Table: Steel with T-slots Filter Pump, Flushing Pump, Filling Pump 3 Cartridge Filters Automatic Tank Height Adjustment Integrated Cooler C-Axis: 100 rpm, Direct Measurement, Holding Brake Chuck System: EROWA, 3R, Hirschmann Tool Changer: 20 positions CO₂ Fire Extinguishing System Contact Protection Transport, Commissioning, Training on request Options: 120A Generator Power AWEX/EROWA/Pcam Automation Fgjdpewyvkrsfx Afpoh Remote Access Maintenance-free Backflush Filter C-Axis Bridging etc.

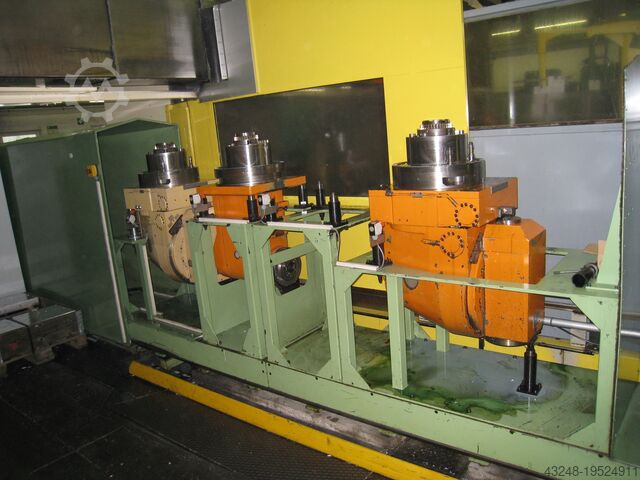

Condition: used, Year of construction: 1988, functionality: fully functional, travel distance X-axis: 7,500 mm, travel distance Y-axis: 3,100 mm, travel distance Z-axis: 1,000 mm, table width: 2,000 mm, table length: 7,000 mm, overall weight: 180,000 kg, year of last overhaul: 2016, Table 7020x1810 mm Note portal width 2250 mm Travel paths: X=7387 mm Y=3070 mm Z=Support up to max without tool 920 mm + W 1000 Control: Heidenhain ITNC 530 Simultaneous: In X,Y,Z yes. In A,B,C with 1° Hirth gearing Spindle type: SK50 / Gearbox spindle Four attachment heads Fgjdpfxewx Nlto Afpsh Internal spindle cooling: Yes Operating hours: 95475 h Spindle hours: 37984 h Modernization carried out: 2003 / Control and drives renewed

Condition: used, Year of construction: 2017, functionality: fully functional, machine/vehicle number: 576409, OPS INGERSOLL GANTRY EAGLE 1200 Year of construction 2017 Machine No. 576409 Standard Specifications 1.01 Eagle Powertec PC/NC * Multiprog Powertec technology programming on PC/NC and as CD (external programming place) * Powertec Easy Burn high-speed programming * Powertec Handheld - multi-functional hand control device * Manual eroding with Powertec Handheld * Interfaces Ethernet and USB 　 * Multi-control light (remote maintenance via Internet), free of charge during the guarantee period 1.02 Eagle Powertec fine finish generator PT60 1.03 Eagle Power Jump with 18m/min interval speed in the Z-axis 1.04 Pressure flushing programmable, suction connection manually 1.05 Filter unit, 32m² paper filter Fgjdowu Hb Ropfx Afpeh 1.06 Compressor cooler 1.07 CO2 fire-extinguishing system 1.08 Color: Structural lacquer in cobalt-blue (RAL5013), grey (ral 7045), yellow (RAL1021) 1.09 Machine shoes Feature Specification XYZ travels 1 000 × 1 500 × 700 mm Tank size 1 270 × 1 770 × 680 mm Table size 1140 ×1640mm Table load capacity 7 500 kg Max head load 300 kg Rapid traverse 5 000 mm/min High-speed Z jump 18 000 mm/min (18 m/min) CNC Control Dual 32-bit PC, touchscreen, USB/Ethernet Generator (PT60) Adaptive current, 60 A Dielectric volume & filter 2 400 L, 32 m² filter Machine size & weight 2 950 × 3 950 × 3 440 mm, ~12 000 kg

Condition: used, Year of construction: 2012, An OPS-Ingersoll die-sinking EDM machine is available. Travel X/Y/Z: 525mm/400mm/450mm, C-axis: 360°, table dimensions X/Y: 750mm/650mm, max. workpiece weight: 1000kg, container dimensions X/Y/Z: 770mm/670mm/440mm, generator power (Eagle Powertec): 60A, electrode changer: 20-fold, high-speed jump: 18m/min, fine finishing generator: PT60, weight: approx. 5000kg, control: Eagle Powertec PC/NC 3060. 5000kg, control: Eagle Powertec PC/NC 3060, including compressor recooling unit, CO2 fire extinguishing system and pressure rinsing. Documentation available. On-site inspection is possible. Fgedewtrc Dopfx Afpoh

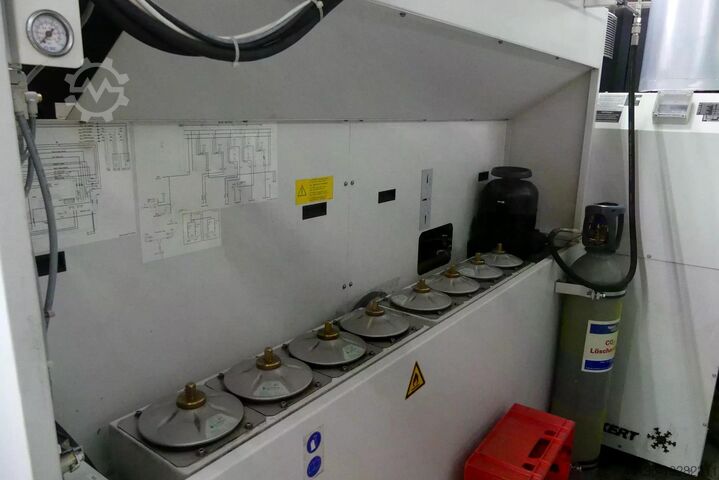

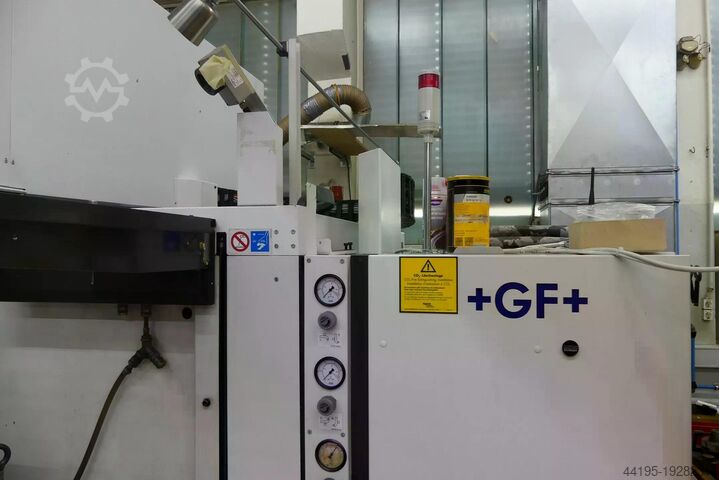

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, travel distance X-axis: 900 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 500 mm, workpiece weight (max.): 3,000 kg, total height: 3,320 mm, total width: 3,100 mm, total length: 2,970 mm, workpiece length (max.): 1,814 mm, workpiece width (max.): 1,215 mm, workpiece height (max.): 600 mm, overall weight: 7,000 kg, GF FORM P900 Year of manufacture 2017 Die-sinking EDM machine in C-design with fixed table Travel paths (X/Y/Z): 900 x 700 x 500 mm Speed X/Y: 6 m/min Speed Z: 7.5 m/min Measuring resolution (X/Y/Z): 0.05 µm Max. workpiece dimensions: 1814 x 1215 x 600 mm Max. workpiece weight: 3000 kg Max. electrode weight: 50 kg ISPG generator with 80 ampere Best surface roughness: Ra 0.1 µm Including C-axis (U: 0-100 1/min) Including 20-position electrode changer Control AC FORM HMI 15" LCD color screen, mouse, touchscreen, and keyboard Machine dimensions: 2970 x 3100 x 3320 mm Total weight: 7000 kg Dielectric volume: 2500 liters The FORM P900 belongs to the latest generation of die-sinking EDM machines from GF Machining Solutions and is in excellent condition in our stock. After order placement, it will be thoroughly serviced and extensively tested by us. Fgodpfxjwprpis Afpeh We are also happy to offer you commissioning and training. This also includes a 6-month warranty.

Condition: used, Year of construction: 2019, Diesinking / EDM Travel distance X: 900 mm Travel distance Y :700 mm Travel distance Z: 500 mm table size X: 1300 mm table size Y: 900 mm max. workpiece size X: 1814 mm max. workpiece size Y: 1215 mm max. workpiece size Z: 600 mm max. electrode weight: 50 kg max. workpiece weight: 3000 kg tool changer: 20 -time Fodpfx Aewlhw Uefpogh generator: 80 Ampere cooler drop tank control Charmilles

Condition: excellent (used), Year of construction: 2011, Control PC-NC Dialog Travel paths X/Y/Z: 1000/1510/700 mm Fedjwhrgrjpfx Afpsgh C-axis 30-way electrode changer Hirschmann clamping system Support surface WxD 1140/1640 mm Load capacity 7500 kg Filter system Fire extinguishing system

Condition: used, Year of construction: 2006, Diesinking / EDM Travel distance X: 700 mm Travel distance Y :500 mm Travel distance Z: 400 mm max. workpiece size X: 750 mm Fedpfxsv D Nr Ej Afpsgh max. workpiece size Y: 1100 mm max. workpiece size Z: 370 mm max. electrode weight: 80 kg max. workpiece weight: 2000 kg electrode changer: 15 - time C-axis generator: 104 Ampere

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,510 mm, travel distance Z-axis: 650 mm, workpiece weight (max.): 7,500 kg, total height: 3,900 mm, total width: 2,950 mm, total length: 3,430 mm, Equipment: documentation/manual, For sale: OPS Ingersoll Gantry 1200 EDM machine, built in 2004, with a general overhaul in 2016. The machine was running flawlessly until recently and is in very good condition. An on-site inspection is possible, but please note that the machine is currently not powered. Fgjdpfxsvwa Nbs Afpoh For sale: OPS Ingersoll Gantry 1200 EDM machine, built in 2004, with a general overhaul in 2016. The machine was running flawlessly until recently and is in very good condition. An on-site inspection is possible, but please note that the machine is currently not powered.

Condition: used, Year of construction: 2000, Diesinking / EDM Travel distance X: 825 mm Travel distance Y :680 mm Travel distance Z: 405 mm table size X: 1200 mm table size Y: 850 mm max. workpiece weight: 3000 kg electrode changer: 50 - time Generator POCON 60 Quill holder: EROWA heavy duty adapter Fjdpfx Afjvtfn Uspsgh O module halogen light

Condition: repair required (used), Year of construction: 2002, Year of manufacture 2002 20-fold changer Fodpfx Afju St A Iepogh C02 extinguishing system Please note: Dielectric cables leaking, axle module defective. Loading free. ex warehouse 95643 Tirschenreuth Shipping possible, transportation costs borne by the buyer

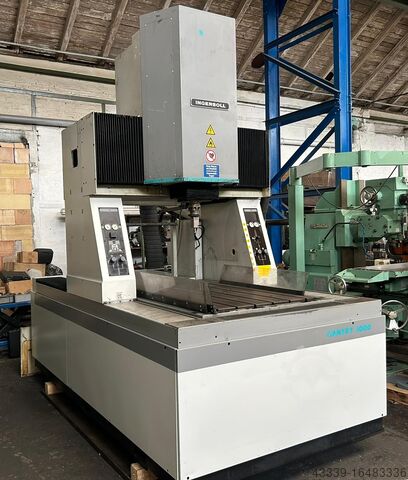

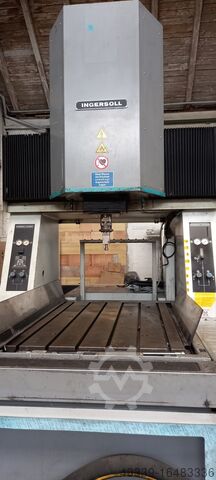

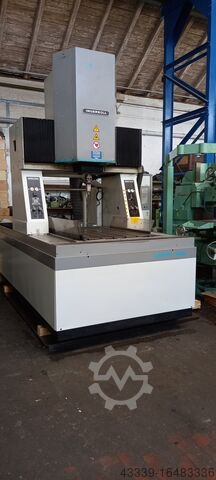

Condition: good (used), Year of construction: 1998, CNC die sinking machine INGERSOLL HANSEN Type: GRANTRY 1000 Year 1998 Control MITSIBISHI 64 Bit CNC multipuse Generator 70 Amp Travels : X 700 mm Y1350 mm Z500 mm work bowl : 1000 mm X1600 mm X 550 mm Table load max : 3000 Kg Cooling system , Documentation available Data backup available Accessories Tool holder Hirschmann . Fodpfot Dbakex Afpegh

Condition: refurbished (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 700 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 400 mm, workpiece weight (max.): 2,000 kg, quill stroke: 400 mm, distance table to quill: 215 mm, workpiece length (max.): 920 mm, workpiece width (max.): 550 mm, workpiece height (max.): 550 mm, overall weight: 4,000 kg, Die-sinking EDM machine GF AgieCharmilles Spirit 4 Year of construction 2008 Travel (X/Y/Z): 700 x 500 x 400 mm Max. Workpiece dimensions: 920 x 550 x 370 mm Max. Workpiece weight: 2000 kg Distance table - quill: 215 -615 mm Bath level up to 415 mm Incl. pneumatic chuck 3R-Systems or Erowa ITS 50 of your choice Incl. 28-fold electrode changer Max. Electrode weight: 80 kg Incl. C-axis with U=0-40 rpm Total weight (without dielectric): 4000 kg Dimensions: 3000 x 3000 x 2865 mm The machine is cleaned, serviced and tested by us after receipt of order. We are happy to offer you the following additional services and products: - Commissioning - transportation - training - Clamping devices - Dielectric - Cooling unit Fgedpfx Afsq N Ap Sjpjh

Condition: good (used), Year of construction: 1994, Manufacturer: AEG-ELOTHERM Type: ELBOMAT 443B Fjdpfeiu Ur Tox Afpegh Year of manufacture: 1994

Condition: as good as new (ex-display), Year of construction: 2015, operating hours: 985 h, travel distance X-axis: 905 mm, travel distance Y-axis: 705 mm, travel distance Z-axis: 455 mm, workpiece weight (max.): 3,000 kg, EDM314MF30 - SLM (second-live-machine) General overhaul Travel paths X x Y x Z 900x705x455mm Machine table 1150x850mm Container size 1200x900mm Distance table/chuck 260/710mm Electrode weight 50/500kg Workpiece weight max. 3000kg Fsdpfx Afjhfaizopegh Overall dimensions of machine 2210x3450x3250mm Power supply 400V/DS/50/60Hz Container height 750mm Equipment: MF30 user interface Movable control panel Touch screen Lift speed 15000mm/min (high jump) Eroding generator 60A Integrated cooling unit Cartridge filter system Tool changer 8-fold C-axis with direct measurement, resolution 0.0001 degrees C-axis as positioning - rotation - and erosion axis C-axis 100 rpm. Automatic container tracking Filling, filter and rinsing pump Transport IB Training 12 month warranty
