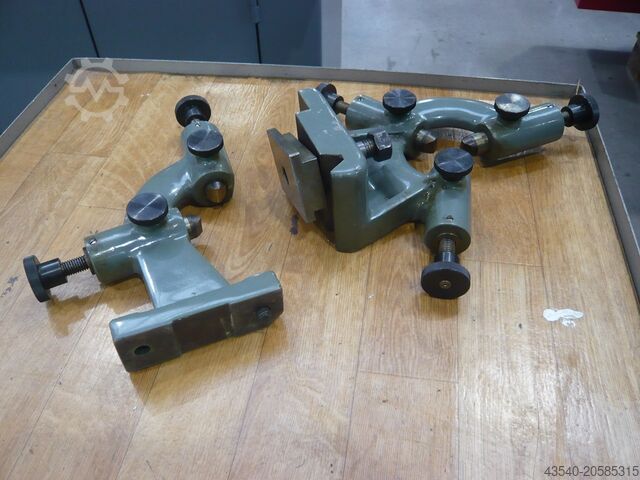

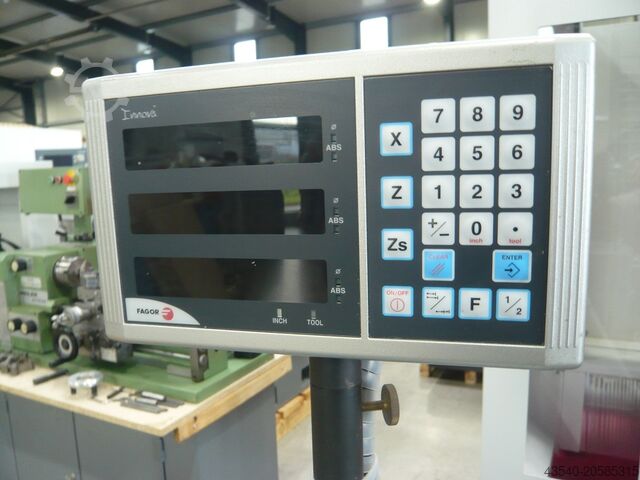

Condition: excellent (used), functionality: fully functional, High-Precision Lead and Feed Screw Lathe Model B30 LZS with Accessory Cabinet and 3-Axis Fagor DRO from UNI Technical Data: >> Centre Height: 120 mm >> Centre Distance: 560 mm >> Spindle Bore: 30 mm >> Max. Swing Diameter: 250 mm >> Longitudinal and Cross Feeds >> Thread Cutting: Metric, Module, Inch >> Infinitely variable spindle speeds from 30–3000 rpm Accessories: - 3-Axis Fagor Digital Readout - Tool cabinet including: >> 3-jaw chuck Kedpfx Adsxyh Nds Isdw >> 4-jaw chuck >> Toolholder >> Drill chuck; live centre >> Collet chuck with collets >> Fixed and travelling steady rest >> Machine feet >> And much more About the Machine: Offered is a Lorch high-precision lead and feed screw lathe in very good condition. The machine is, of course, fully functional. All slides move smoothly and evenly. The machine runs quietly, even at high speeds. Equipped with a 3-axis Fagor digital readout and a wide range of accessories. The machine was previously installed in a university. You are welcome to inspect the machine under power on site and see its excellent condition for yourself.

Condition: good (used), WEILER Precision Lathe MADADOR with HEIDENHAIN 3-Axis Digital Readout Year of manufacture: approx. 1980, retrofitted with emergency stop (EMERGENCY-OFF) and electrically interlocked chuck guard. 2 units available! Centre height: 145 mm Centre distance: 500 mm Swing diameter over cross slide: 160 mm Spindle nose: DIN 55022 Size 5 Spindle bore: 36 mm Spindle speeds: 30 – 3,000 rpm Motor power: approx. 3.0 kW Tailstock quill: MT 3 Quill stroke: 90 mm Weight: approx. 620 kg Dimensions: 1420 x 700 x 1200 mm Kdodpfx Ajxx S Hdjd Isw Technical data not binding! Robust leadscrew/feedshaft lathe for workshop and advanced DIY users Condition: good Equipment: • 3-axis precision digital readout HEIDENHAIN • Lever-operated quick collet chuck • Electrically interlocked chuck guard • Multifix tool post head size A • 3-jaw chuck • Coolant system • Machine feet • Chip guard (rear panel) • Machine lamp • Bed stop • Emergency stop button • Lockable tool compartment • Automatic feeds for longitudinal and cross slide Available from March 2026

Condition: excellent (used), Year of construction: 1985, functionality: fully functional, Conventional Lathe WEILER Praktikant 140 B Year of manufacture: 1985 Working area: Centre height: 140 mm Centre distance: 650 mm Swing diameter over bed: 280 mm Swing diameter over cross slide: 190 mm Spindle: Spindle taper: DIN 55027/DIN ISO 702-3 Gr. 5 Spindle bore: 43 mm Spindle diameter at front bearing: 70 mm Kdsdpfxjxw Sbxo Ad Iow Main drive: Drive power: 2.6 / 3.1 kW Speed range: 48 – 2,500 rpm Number of speeds: 16 Feed range: Number: 24, Longitudinal feed: 0.02 – 0.63 mm/rev, Cross slide: 0.006 – 0.2 mm/rev. Length x Width x Height: 1600 mm × 800 mm × 1300 mm Weight: Approx. 650 kg

Condition: excellent (used), Year of construction: 2018, functionality: fully functional, machine/vehicle number: 1306.00.05, spindle bore: 26 mm, center height: 140 mm, center width: 500 mm, spindle speed (max.): 2,800 rpm, spindle speed (min.): 50 rpm, GDW Lead and Feed Screw Lathe LZ280G – Used but Powerful! For sale is a robust and precise GDW LZ280G lead and feed screw lathe, ideal for workshops, training centers, or single-part production. 🔧 Technical Data (excerpt): Model: LZ280G Manufacturer: GDW – Gustav Dermentz Machine Tools Distance between centers: 500 mm Ksdpfx Adjxtbbaj Isdw Center height: 140 mm Swing over bed: 280 mm Spindle bore: 26 mm Speed range: 50–2800 rpm Machine weight: approx. 750 kg ✅ Features & Condition: Equipped with 3-jaw chuck, live center, and change gear set Includes machine lamp and splash guard Very well maintained, regularly serviced Ready for immediate use 📍 Location: Porta Westfalica 📦 Inspection by appointment possible We are happy to answer any questions you may have.

Condition: ready for operation (used), turning length 500 mm Kdedpfexq Hhysx Ad Isw turning diameter over bed 297 mm turning diameter over slide rest 160 mm spindle bore 36.0 mm tool adaptor DIN 55022 Gr. 5 quill: 3 MK quill travel 90.0 mm turning speeds 30 - 3550 U/min motor speeds: 1410 / 2830 U/min total power requirement 3.3 kW voltage 380 V weight of the machine ca. 620 kg. range L-W-H 1420 x 700 x 1200 mm from a vocational school - in very good condition (!!) particularly suitable for medium-precision turned parts Features: - Robust lead/feed screw lathe - RÖHM three-jaw chuck Ø 160 mm - Foldable lathe chuck guard - Chuck key - MULTIFIX steel holder A, with 3x new inserts - Movable tailstock - Swiveling machine light - Control panel, front left - Automatic feeds for face and upper support - Machine base, with cabinet door (storage space) - Chip splash guard rear panel - 1x empty tool cabinet - Emergency stop button - Operating instructions

Condition: excellent (used), functionality: fully functional, EMCO Maximat Super 11 – Precision Lathe in Very Good Condition For sale is a used EMCO Maximat Super 11, a robust and precise universal lathe "Made in Austria." This machine is ideally suited for workshops, training centers, or demanding hobbyists who value quality and accuracy. The machine is pre-owned but well-maintained and fully operational. All gear shifts are smooth, the guides are in good condition, and the machine has been regularly serviced. Technical Specifications: Center height: 140 mm Distance between centers: 600 mm Spindle speed range: 55 – 2200 rpm (8 geared steps) Tailstock: MT2 taper Tool holder: Quick-change toolpost Lighting: Integrated LED work light Weight: approx. 360 kg Dimensions (L × H × W): approx. 1.3 m × 1.2 m × 0.6 m Condition & Accessories: Machine runs quietly with low vibration Tailstock is smooth and easy to adjust with high precision Quick-change toolpost included LED work light for optimal visibility Various clamping devices or tools can be purchased additionally upon request (by arrangement) Price: The price is within a reasonable range and negotiable. Open for price discussions upon serious interest. Kjdpfxsxqx Nve Ad Iodw Miscellaneous: Collection preferred, viewing by appointment possible Machine can be shown under power

Condition: excellent (used), Year of construction: 2017, XYZ 1340 Trainer Lathe 2 Axis Digital Readout Max. Distance Between Centres 1000mm Max. Swing over Bed 330mm Max. Swing over Gap 495mm Spindle Bore 35mm Spindle Speeds 53 – 2000 rev/min Spindle Motor 3hp Quick Change Tool Post Kdjdpfxsxqq H Te Ad Iew Tailstock MT3 Tailstock Dia’ 40mm Tailstock Travel 110mm Manufactured | 2017 415V Electrics Supplied with: Tool Holders as Pictured Change Gears FOR SALE WITH JET MACHINERY LTD Jet Machinery Stock No: #78011 Machine Serial Number: TBC Cost: £3,950.00 + VAT Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.

Condition: like new (used), Weiler Optimum Excellent condition Incl. tooling Kjdpfx Aexqacksd Isdw

Condition: used, Year of construction: 1993, functionality: fully functional, Weiler / Contec (licensed manufacturing) Matador lathe, year of manufacture 1993, with 3-axis Elesta digital readout, four-jaw chuck, Multifix quick-change toolpost, rear splash guard, and electrical chuck guard. The machine is in good, ready-to-use condition and can be demonstrated under power by arrangement. Kodpexp Rvlofx Ad Iedw

Condition: used, Year of construction: 1993, functionality: fully functional, Weiler / Contec (licensed manufacturing) Matador lathe, year of manufacture 1993, with 3-axis Elesta digital readout, four-jaw chuck, Multifix quick-change toolpost, rear splash guard, and electrical chuck guard. The machine is in good, ready-to-use condition and can be demonstrated under power by arrangement. Kdodoxp Ru Uopfx Ad Iow

Condition: used, Turning length: 1500 mm, center height: 170 mm, with 2-axis digital readout, spindle bore diameter: 60 mm, machine lamp Kjdpfsxpy E Aex Ad Isdw

Condition: excellent (used), Year of construction: 1998, Parallel Lathe WABECO D6000E Between points: 600 mm Maxi Ø on bench: 270 mm Maxi Ø over saddle: 170 mm Spindle speed: from 45 to 2300 RPM Multifix turret type A Concentric 3-jaws chuck Ø 100 mm (NEW) Year of construction: 1998 (machine very little used) Spindle speed by variator Tailstock CM2 Scale 2 axes EAE type Mikronel 220 L Supplied with one clamp tie rod Accessories: 5 tool holders + different thread wheels Kjdpoxpuhxsfx Ad Isdw Voltage: 220 V mono Dimensions (L x W x H): 1500 x 900 x 1700 mm Weight: approx 200 kg

Condition: ready for operation (used), turning length 500 mm turning diameter over bed 297 mm turning diameter over slide rest 160 mm spindle bore 36.0 mm tool adaptor DIN 55022 Gr. 5 quill: 3 MK quill travel 90.0 mm turning speeds 30 - 3550 U/min motor speeds: 1410 / 2830 U/min total power requirement 3.3 kW voltage 380 V weight of the machine ca. 620 kg. range L-W-H 1420 x 700 x 1200 mm from a vocational school - in very good condition (!!) particularly suitable for medium-precision turned parts Kedpexndbfofx Ad Ijdw Features: - Robust lead/feed screw lathe - HEIDENHAIN 3-axis digital display “VRZ 773” - RÖHM three-jaw chuck Ø 160 mm - Foldable lathe chuck guard - Chuck key - MULTIFIX steel holder A, with 3x new inserts - Movable tailstock - Swiveling machine light - Control panel, front left - Automatic feeds for face and upper support - Machine base, with cabinet door (storage space) - Chip splash guard rear panel - 1x empty tool cabinet - Emergency stop button - Operating instructions

Condition: ready for operation (used), turning length 500 mm turning diameter over bed 297 mm turning diameter over slide rest 160 mm spindle bore 36.0 mm tool adaptor DIN 55022 Gr. 5 quill: 3 MK quill travel 90.0 mm turning speeds 30 - 3550 U/min motor speeds: 1410 / 2830 U/min total power requirement 3.3 kW voltage 380 V weight of the machine ca. 620 kg. range L-W-H 1420 x 700 x 1200 mm from a vocational school - in very good condition (!!) particularly suitable for medium-precision turned parts Features: - Robust lead/feed screw lathe - HEIDENHAIN 3-axis digital display “VRZ 773” - RÖHM three-jaw chuck Ø 160 mm - Foldable lathe chuck guard - Chuck key - MULTIFIX steel holder A, with 3x new inserts - Movable tailstock - Swiveling machine light - Control panel, front left - Automatic feeds for face and upper support - Machine base, with cabinet door (storage space) - Chip splash guard rear panel Kjdpexnda Uofx Ad Iedw - 1x empty tool cabinet - Emergency stop button - Operating instructions

Condition: ready for operation (used), turning length 500 mm turning diameter over bed 297 mm turning diameter over slide rest 160 mm spindle bore 36.0 mm tool adaptor DIN 55022 Gr. 5 quill: 3 MK quill travel 90.0 mm Kdjdpfx Ajxmak Hod Isw turning speeds 30 - 3550 U/min motor speeds: 1410 / 2830 U/min total power requirement 3.3 kW voltage 380 V weight of the machine ca. 620 kg. range L-W-H 1420 x 700 x 1200 mm from a vocational school - in very good condition (!!) particularly suitable for medium-precision turned parts Features: - Robust lead/feed screw lathe - HEIDENHAIN 3-axis digital display “VRZ 770” - RÖHM three-jaw chuck Ø 160 mm - Foldable lathe chuck guard - Chuck key - MULTIFIX steel holder A, with 3x new inserts - Movable tailstock - Swiveling machine light - Control panel, front left - Automatic feeds for face and upper support - Machine base, with cabinet door (storage space) - Chip splash guard rear panel - 1x empty tool cabinet - Emergency stop button - Operating instructions

Condition: ready for operation (used), turning length 500 mm turning diameter over bed 297 mm turning diameter over slide rest 160 mm spindle bore 36.0 mm tool adaptor DIN 55022 Gr. 5 quill: 3 MK quill travel 90.0 mm turning speeds 30 - 3550 U/min motor speeds: 1410 / 2830 U/min total power requirement 3.3 kW voltage 380 V weight of the machine ca. 620 kg. range L-W-H 1420 x 700 x 1200 mm from a vocational school - in very good condition (!!) particularly suitable for medium-precision turned parts Features: - Robust lead/feed screw lathe - HEIDENHAIN 3-axis digital display “VRZ 773” - RÖHM three-jaw chuck Ø 160 mm - Foldable lathe chuck guard - Chuck key - MULTIFIX steel holder A, with 3x new inserts - Movable tailstock - Swiveling machine light - Control panel, front left - Automatic feeds for face and upper support - Machine base, with cabinet door (storage space) - Chip splash guard rear panel - 1x empty tool cabinet - Emergency stop button Kjdpfx Adsxmakye Iodw - Operating instructions

Condition: used, functionality: fully functional, LATHE 1000 X 250 PB 55 Used machine INTERNAL CODE: CAR 30 Kdjdpfsxltdqex Ad Iow

Condition: as good as new (ex-display), operating hours: 40 h, functionality: fully functional, total length: 1,685 mm, total width: 745 mm, total height: 1,590 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 70 rpm, overall weight: 512 kg, OPTIturn TH 3309D Art. 3402040 TH 3309D with digital position display DPA 21 used for demonstration purposes. -Hardened and grinded z-axis guideway Kdedpfoxivf Eex Ad Ijw -Spindle collet Camlock DIN ISO 702-2 no. 4 -Guaranteed concentricity of spindle nose better than 0.015 mm -Motor circuit breaker (TH 3309 / TH 3309D) -DC 24-Volt electric system with two-channel safety circuit as per EN 23125 -Lockable main switch -Right-handed/left-handed rotation switchable on bed slide -Leading spindle cover -Universal machine substructure and tool compartment on right-hand side -Safety hand wheels with release function in the X and Z axis -Emergency stop device with foot pedal

Condition: good (used), WEILER MATADOR lead and feed screw lathe - Heidenhain - Digital Readout - ND 780 - Centre height: 140 mm - Centre distance: 500 mm - Swing over cross slide: 155 mm - Spindle speed range: 20-3,500 rpm - Automatic longitudinal/cross feeds Kdsdpoxhz T Ejfx Ad Isw - Thread cutting: metric/inch etc. - Spindle bore: 36 mm - Tailstock: MT3 - Three-jaw chuck - Collets – quick-change system - Emergency stop - Chuck guard - Documentation Dimensions: LxWxH 1.6x0.7x1.6 m / Weight: 750 kg Errors and omissions excepted

Condition: good (used), Year of construction: 2011, machine/vehicle number: NL 201KF3443, travel distance X-axis: 260 mm, travel distance Z-axis: 590 mm, rotational speed (max.): 5,000 rpm, feed rate X-axis: 30 m/min, feed rate Z-axis: 30 m/min, bar passage: 73 mm, | Category | Feature | Details | |-----|-----|----- | | General | Year of Manufacture | 2011 | | | CNC Controller | MSX-850 III or M730BM (MAPPS) | | | Number of Axes | 2 | | | Dimensions (L x W x H) | Approx. 2700 x 1920 x 2120 mm | | | Approximate Weight | 5400 kg | | Main Spindle | Spindle Nose | A2-6 | | | Spindle Motor Power | 15 kW (20 HP continuous / 26 HP peak) | | | Spindle Speed Range | 50 to 5000 rpm (up to 6000 rpm on some models) | | | Spindle Bore / Bar Capacity| 73 mm / Ø 65 mm | Kjdpoxgui Rofx Ad Ijdw | Axis Travels | X Axis Travel | 260 mm | | | Z Axis Travel | 590 mm | | Turret | Number of Tool Positions | 12 stations (BMT) | | | Tailstock (if equipped) | 564 mm travel, MT4 taper | | Machining Capacity | Max. Turning Diameter | 356 mm (over cross slide) / 366 mm (over bed) | | | Max. Turning Length | 510 mm | | | Swing Over Bed | 755 mm (over cross slide) / 924 mm (over bed) | | Standard Equipment | Chip Conveyor | Yes (optional at base version) | | | Tool Measurement | Renishaw probe (dual-arm possible) | | | High Pressure Pump | Yes | | | Lighting & Signalization | Three-color signal lamp | | | Bar Feeder Interface | For bar loader | | | Coolant Tank Capacity | 235 L | | | Others | Gantry Loader part extractor, MAPPS conversational programming, USB/RS-232 interface | Japanese precision (repeatability < 0.005 mm), robust construction for heavy-duty machining, low maintenance requirements.

Condition: good (used), WEILER LZ 330 / From Educational Facility - Swing over bed: 330 mm Kdjdoxf Uf Njpfx Ad Iow - Swing over cross slide: 165 mm - Turning length: 800 mm - Speed range / gearbox: 25-2800 rpm - Automatic longitudinal / face feeds - Spindle bore: 38 mm - 3-jaw chuck - Collet chuck system incl. 20 collets - Multifix incl. 3 tool holders - Copying device - Various accessories - Documentation Dimensions: LxWxH 1.8x0.7x1.6 meters / Weight: 750 kg Errors and omissions excepted

Condition: like new (used), functionality: fully functional, center height: 180 mm, GRAZIANO SAG 14 Lathe 1000 x 180 AP Kdsdpfoxf Hxuex Ad Iew Bed length: 280 mm Carriage diameter: 220 mm Spindle mount: 5 Number of spindle speeds: 12 Spindle bore: 51 mm Equipped with Elbo Controlli DRO USED MACHINE INTERNAL CODE: SER 47

Condition: good (used), Year of construction: 1998, Schaublin 65 TM-3 Length 2800, Width 1700, Height 2150 Kdodsxf D S Ejpfx Ad Ijw Motor 27 kW Including as shown in the picture Chip conveyor Chuck Fanuc 18i-T

Condition: new, Year of construction: 2025, functionality: fully functional, turning diameter: 290 mm, turning length: 750 mm, total length: 1,400 mm, total width: 700 mm, total height: 1,030 mm, rotational speed (max.): 1,800 rpm, spindle mount: MK 3, The following features and characteristics make the G2930 combination lathe unique and competitive in the market: 1. V-shaped guideways provide superior stability and are securely anchored. 2. The gearbox is fixed for maximum stability and offers comprehensive feed and thread cutting functions. 3. State-of-the-art tapered roller bearings support the D1-4 spindle with the highest precision. 4. Automatic vertical feed enables maximum threading capabilities. 5. The cross-slide is equipped with T-slots. 6. Guideways are effectively controlled by adjustable gibs. 7. Advanced gearbox design with maximum functionality. 8. Maximum working area due to the lowered bed section. 9. Carriage-mounted spindle is operated by a lever arm. 10. Two feed screws are integrated. 11. User-friendly forward/reverse interface with zero backlash. 12. Versatile tailstock that can be offset for taper turning. Kodpoxb Up Tjfx Ad Iedw 13. Emergency stop button, load switch, process control, etc., are installed. TECHNICAL DATA Max. turning diameter over bed: 290 mm Max. turning diameter over cross slide: 165 mm Distance between centers: 750 mm Spindle taper: MT5 Spindle bore: 38 mm Max. tailstock travel: 80 mm Tailstock taper: MT3 Longitudinal carriage travel: 560 mm Cross-slide travel: 140 mm Compound slide travel: 80 mm Cross feed: 0.017~0.25 mm/rev, 15 steps Longitudinal feed: 0.07-1.0 mm/rev, 15 steps Metric thread: 0.2-3.5 mm, 18 steps Imperial thread: 8-56 TPI, 21 steps Spindle speed range/steps: 50~1800 RPM, stepless Motor power: 1.5 kW Further dimensions and weight: Overall dimensions: 1400 x 700 x 1030 mm Packing size: 1450 x 750 x 970 mm Net weight: 290 kg Gross weight: 310 kg

Condition: used, turning length 500 mm turning diameter over bed 297 mm turning diameter over slide rest 160 mm spindle bore 36.0 mm tool adaptor DIN 55022 Gr. 5 quill: 3 MK quill travel 90.0 mm turning speeds 30 - 3550 U/min motor speeds: 1410 / 2830 U/min total power requirement 3.3 kW voltage 380 V Kdodpfx Asxacired Isw weight of the machine ca. 620 kg. range L-W-H 1420 x 700 x 1200 mm from a vocational school - very good condition (!!) regularly receive a WEILER factory service particularly suitable for medium-precision turned parts Equipment: - robust lead/pull spindle lathe - KLOPFER four-jaw chuck Ø 140 mm - KLOPFER three-jaw chuck Ø 140 mm - collet holder with lots of collets - foldable lathe chuck guard - chuck key - MULTIFIX steel holder A, with 3x new inserts - movable tailstock - adjustable bed stop - control panel, front left - automatic feeds for face and top support - pole-changing drive motor - machine base frame, with cabinet door (storage area) - chip splash guard rear wall - emergency stop button, bottom right - machine swing feet - original operating instructions
