Arrow Oü

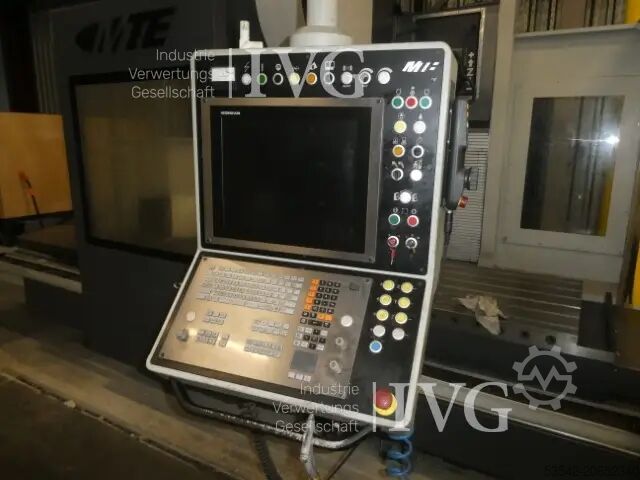

Year of construction: 2023, condition: used, machine/vehicle number: 23051428, HEIDENHAIN control, clamping table approx. 850x2,700 mm, travel paths (X/Y/Z): approx. 2,500/1,000/1,100 mm, 24-position tool changer, chip conveyor URRETXU MAQ 1421, year of construction: 2023, serial no.: PL0000073, industrial cooling EATA EL3-R5/VERT, year of construction: 2023, serial no.: 32011, REXROTH hydraulic unit, safety enclosure Todpfxex Aklyj Agcjf

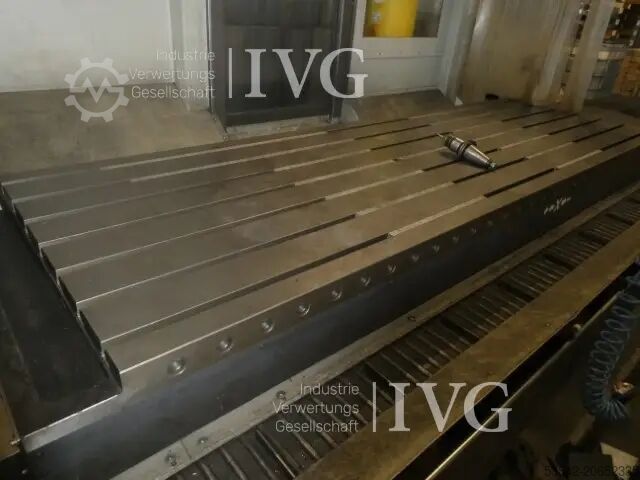

Year of construction: 2023, condition: used, machine/vehicle number: 23071429, HEIDENHAIN control, clamping table approx. 3,200x1,000 mm, travel (X/Y/Z): approx. 3,000/1,500/1,300 mm, 24-position tool changer, industrial cooling EATA EL3-R5/VERT, hydraulic unit REXROTH, chip conveyor URRETXU MAQ 1429, year of manufacture: 2023, serial no.: PL020644, safety enclosure. Tjdex Akltjpfx Agcef

Year of construction: 2018, condition: used, machine/vehicle number: 7.F1/105-16 38204, 1 refrigerated dryer Tedpex Akhzjfx Agcjf

Year of construction: 2023, condition: used, machine/vehicle number: 23091433, HEIDENHAIN control, clamping table approx. 1,000x4,200 mm, travel (X/Y/Z): approx. 4,000/1,500/1,300 mm, 24-position tool changer, URRETXU MAQ 1433 chip conveyor, year of manufacture: 2023, serial no.: PL020646, EATA EL3-R5/VERT industrial cooler, year of manufacture: 2023, serial no.: 31842, REXROTH hydraulic unit, safety enclosure Todpjx Akl Hsfx Agcjf

Condition: new, functionality: fully functional, A new control system for your machine – modern servos – new controller – up to 6 axes The Retrofit Kit V2.0 enables the existing scale of Maho 600 Series industrial machines to continue being used. Previously, digital operation required feedback from the motor to the servo amplifier. With the analog system, position feedback is routed to the CSMIO. This means that the motor encoder is now only required for the servo drives, no longer for the CNC controller. As a result, pitch errors can be eliminated thanks to the direct measurement approach. Todpfexz Dkgex Agcof The kit for the Deckel Maho 600 Series includes: - 1 x Delta B3 Controller with 1500-watt output - 1 x Delta B3 Motor 1500 watts with brake - 2 x Delta B3 Controllers with 1000-watt output each - 2 x Delta B3 Motors 1000 watts - 2 x 5-meter encoder cables - 2 x 5-meter motor cables without brake - 1 x 3-meter encoder cable - 1 x 3-meter motor cable with brake - 2 x B3 plug-in boards without brake incl. 3 patch cables per board - 1 x B3 plug-in board with brake incl. 3 patch cables per board - 1 x BIG IO interface module - 1 x Maho Deckel & Co connection board - 2 x encoder boards - 1 x Digital Input 12-23 board - 1 x patch cable set - 1 x CSMIO IP-A controller - 1 x milling SIM software with customized interface - 1 x 24 V 10A power supply - 1 x power distribution unit with LED display - 1 x C2000 4.0 kW frequency inverter We are also happy to provide you with a quote for Deckel, Mikro, etc.

Year of construction: 2018, condition: used, Empty weight: 6.500 kg Dimensions (LxBxH): 400 x 240 x 250 cm Price: On request Todpfsxztltjx Agcof - Year: 2018 - Documentation available: No - CE certificate present: No - Serial number: M299366D2NC - Transport dimensions: 4000mm x 2400mm x 2500mm (l x w x h) - Transport weight [kg]: 6500kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Year of construction: 1998, condition: ready for operation (used), General Data Measurements width 5100 mm Measurements depth 10500 mm Measurements height 4900 mm Machine weight 51000 kg Control Unit Brand SIEMENS Model SINUMERIK 840D Additional Equipment Todpfx Aoxzlu Tjgcsf Automatic Tool Changer: Included / Number of Places in the Magazine: 90 / Max. Tool Diameter: 125 mm (300 mm with free secondary positions) / Max. Tool Length: 450 mm/ Max. Tool Weight: 30 kg /Tool Change Time: Approx. 5 sec Compressed Air Connection / Air Volume: 6 bar - 5 m³/h / Nominal Voltage: 3 AC 400 V / Control Voltage: DC 24 V / Connected Load: Basic machine 65 kW Cooling Lubricant Supply and Filter System: Included / Tank Capacity: 1500 l / Pump for External Cooling: Q= 20/40/60 l/min switchable / Pump for Internal Cooling: Q= 35 l/min at 50 bar Work Area Guard with Lighting: Included / Set of Chip Conveyors: Included, with scraper belt type, discharge height 1000 mm This 4-axis MIKROMAT 20V gantry milling machine was manufactured in 1998. Ideal for precision milling, it offers robust construction and reliable performance. Consider the opportunity to buy this MIKROMAT 20V gantry milling machine. Contact us for more information. Application Types Milling

Condition: ready for operation (used), Year of construction: 1986, Immediately available from location: Fully automatic milling machine Busch Type NF 8/32 Todpjxzdkysfx Agcsf Year of manufacture: 1986 Groove width up to 32 mm Machining length up to 6100 mm Automatic material feed Automatic infeed Drive 5.5 kW Accessories: support tables Tool holders, milling cutters Coolant system Digital readout Weight: 4 t Price: EUR 3,750.— plus VAT, ex location.

Condition: good (used), Year of construction: 2009, functionality: fully functional, Technical details max. wheel diameter 2-45 mm gear width 250 mm max. module 1,5 mm min. module 0,5 mm Control Fanuc 18i-MB weight of the machine ca. 2,2 t dimensions of the machine ca. 2100 x 1440 x 1700 m Additional information The combined CNC gear hobbing and worm milling machine KOEPFER MZ 120 is characterized by its flexible usability and is used in the small module area. Just by swiveling the milling spindle from the horizontal to the vertical position and selecting the corresponding operating mode of the CNC control, the worm milling machine becomes a gear hobbing machine and vice versa. CNC control Fanuc 18i-MB (Dialog/ISO) CNC axes = X-axis plunge axis Z-axis longitudinal axis C-axis workpiece spindle B-axis tool spindle Todpfsxy Nhhox Agcof V-axis loader axis longitudinal A-axis swivel axis tool spindle head (included as an option) Y-axis shift axis (included as an option) With the following production programs: Worm milling Hobbing Worm hobbing Bevel gear and spur gear milling Bevel gear hobbing Milling cycles = straight, oblique, crowned toothing, radial, radial-axial, co- and counter-rotating milling, roughing, finishing, worm gears, straight-toothed bevel gears, face gearing (option only in the partial process) Worms [Equipment] Coolant tank 300 liters KF with LNS Turbo MS 250 Chip conveyor, built in 2021!!! Kraft and Bauer fire extinguishing system Spiral conveyor Machine documentation [Technical data] Workpieces: Workpiece diameter 2-45 mm Max. workpiece length 250 mm Tooth length 150 mm Max. module in steel= 1 mm (gear hobbing) 1.5 mm (worm milling) 0.5 mm (bevel gear hobbing) Tools: Cutter diameter= 16-32 mm (gear hobbing) 40-63 mm (worm milling) Machine: Max. setting angle of milling head= +/- 45° (gear hobbing) +/- 30° (worm milling) Shift travel= 34 mm (manual adjustment) 34 mm (CNC axis) Collet/retraction mandrel W 20 Max. speed of workpiece spindle 770 rpm. Milling spindle drive 0.55 kW Max. milling spindle speed 8000 rpm Axis drives = X-axis (plunging) / travel 80 mm via CNC Z-axis (longitudinal feed) / travel 190 mm via CNC C-axis (workpiece axis) via CNC Rapid traverse = X-axis 6000 mm/min. Z-axis 6000 mm/min. Hydraulic unit 0.37 kW

Condition: ready for operation (used), Offered is a milling machine from MAHO with Heidenhain TNC 121 control, table X/Y 1000mm/600mm, SK40 tool holder, 3526h. Operating manual is available. Inspection is possible by appointment. Todpfoxyk U Aox Agcsf

Year of construction: 1987, condition: ready for operation (used), Offered is a Deckel FP4NC vertical milling machine with Heidenhain TNC 355 control. Year 1987, including tool cabinet as well as various tools. Travel distances: X/Y/Z: 560mm/500mm/410mm, dimensions X/Y/Z: approx. 1800mm/1600mm/2000mm, weight: approx. 2400kg. Viewing is possible by appointment. Tedpfxjxyk Upj Agcsf

Year of construction: 2017, condition: ready for operation (used), Offered is an OptiMill MF 4V milling machine, almost new, 100h. Year of construction 2017, travel ranges X/Y/Z: 800mm/320mm/400mm, stepless spindle speed 9-6750rpm in 8 speed ranges, with electronic speed control, quill stroke: 127mm, 3-axis digital display DPA21, right/left rotation reversing switch, drilling depth stop, cross table X/Y 1244mm/230mm T-slot 16mm, chuck guard, coolant system, manual central lubrication, universal compressed-air tool clamping system ISO 40, stepless table feeds in X/Y, weight approx. 1200kg. Viewing is possible by arrangement. Todpfx Agexyk Ucecjf

Year of construction: 1994, condition: ready for operation (used), General Data Machine weight 12000 kg Tjdpfxexxnkxe Agcof Control Unit Brand HEIDENHAIN Model TNC415 This 3-axis Zayer ZF 2000 gantry milling machine was manufactured in 1994. It features a robust table clamping surface of 2000 × 800 mm, with longitudinal, transverse, and vertical travels of 1703 mm, 803 mm, and 863 mm respectively. It supports a maximum table load of 6000 kg and offers rapid traverse rates up to 15,000 mm/min. If you are looking to get high-quality milling capabilities, consider the Zayer ZF 2000 machine we have for sale. Contact us for more information. Application Types Milling

Condition: new, Year of construction: 2002, operating hours: 1 h, functionality: fully functional, machine/vehicle number: 13347, Brand new showroomodel: Technical specifications: · Automatic feeds and rapid traverses adjustable by DC motor and PLC control · Hardened and ground main spindle gears · Hardened and ground slideways with central automatic lubrication · Automatic gearbox lubrication, main spindle equipped with electric brake · All controls on one side of the machine · Hardened and ground ball screw spindles for precise movement · Automatic hydraulically operated tool release and automatic clamping Tsdpfx Asxxkn Hegcof · for longitudinal, transverse, and vertical movement · Clamping surface (hor) fixed angle table 800x400 mm · 7 T-slots 14mm, 50mm center-to-center · Max. workpiece weight 400 kg · Mounting surface (vert) base slide 1000x260 mm · 5 T-slots 14mm, 50mm center-to-center 50 mm Longitudinal travel of base slide/automatic 500 mm Cross travel of main spindle slide/automatic 350 mm Vertical travel of base slide/automatic 400 mm Clamping surface (hor) universal tilting rotary table 700x400 mm Hor. rotation of universal table 360° Tilt left-right universal table 30° Tilt front-back universal table 30° Number of automatic feeds: infinitely variable Automatic longitudinal and cross feed range: 10-1000 mm/min Automatic vertical feed range: 10-1000 mm Rapid traverse, longitudinal and cross travel: 1500 mm/min Rapid traverse, vertical travel: 1500 mm/min Speed range: vert./hor. Spindle 50-2500 rpm Number of speeds: 18 Main spindle motor power: 4 kW Feed motor power: 2.2 kW Hydraulic motor: 0.8 kW Lubricator motor: 0.04 kW Cooling pump: 0.04 kW Power supply: 380 V 3 Ph 50 Hz Machine dimensions: 1020 x 1640 x 1710 mm Machine weight: 2600 kg · Universal 2-sided tilting swivel table · Fixed angle table · 3-axis digital readout: Yeef GSW3 · Cooling system · 24 V work light · Vertical head with quill and spindle feed

Year of construction: 2008, condition: repair required (used), functionality: limited functionality, machine/vehicle number: 346100, Machine SAR-1000-B-015 including accessories: ULT ASD 300 Ex extraction unit. The operating manual can be provided as a PDF. Todpfx Aexwvruogcof The machine is currently in the condition shown in the pictures. It can be placed on pallets for collection if required. The machine has been inspected by Schunk, who determined that the following spare parts are needed: - Z-axis - Bearings for Y1 and Y2 axes - Replacement of power cable, Hall sensor cable, and pneumatic hoses - X-axis brake - Extraction nozzle and extraction hose - Shuttle sensor (B4.3/E) - Tool holders (5 pieces) - Replacement of UPS - Hold-down brush - Bulb for signal lamp - Hold-down sealing ring, pneumatic cylinder, guide shaft and plain bearing bush, spindle retaining plate - External exhaust hose ULT - Table lift cylinder (?) According to Schunk, material requirements are approx. €16,000. As we are selling the machine as defective/in need of repair and have listed all known deficiencies, the item is sold under exclusion of any warranty or liability for material defects.

Year of construction: 2015, condition: ready for operation (used), A CNC milling machine Spinner is available. Travel X/Y/Z: 760mm/460mm/460mm, table dimensions X/Y: 900mm/410mm, max workpiece weight: 350kg, tool stations: 24, max tool weight: 8kg, max tool length: 200mm, speed: 12000rpm, max tool diameter: 80mm, tool holder: SK40. Machine dimensions X/Y/Z: approx. 2600mm/1600mm/2850mm, weight: approx. 4000kg. Including automation and robot M10. Documentation available. An on site inspection is possible. Tedsxwn I Uspfx Agcof

Condition: ready for operation (used), Two nearly identical Haas CNC milling machines are available. Travel X/Y/Z: 710mm/400mm/390mm, table dimensions X/Y: 710mm/400mm, max. table load: 250kg, speed: 10000rpm, power: 11.2kW, rapid traverse: 60m/min, feed rate: 30m/min, tool positions: 20, positioning accuracy: +/-0.005mm, repeatability: +/-0.0025mm. Machine dimensions X/Y/Z: approx. 1700mm/1800mm/2400mm, weight: approx. 2400kg. Automation included. Documentation available. An on site inspection is possible. Todjxwn Nfopfx Agcef

Year of construction: 2012, condition: ready for operation (used), Travel X/Y/Z: 600mm/410mm/500mm, speed: 10000rpm, tool holder: BT-40, tool stations: 24, rapid traverse: 36m/min, table dimensions X/Y/Z: approx. 800mm/450mm, max. table load: 450kg, repeat accuracy: 0.003mm, positioning accuracy: +/-0.005mm. Machine dimensions X/Y/Z: approx. 2000mm/2300mm/2800mm, weight: approx. 3500kg. Documentation available. An on site inspection is possible. Tsdpfx Agoxwn I Ijcef

Year of construction: 1995, condition: ready for operation (used), Travel X/Y/Z: 850mm/630mm/500mm, table dimensions X/Y: 1200mm/550mm, max. table load: 700kg, tool holder: SK40, tool stations: 34, speed: 5000rpm, spindle head swivel: +/-90°, feed rate: 10m/min, rapid traverse: 10m/min. Machine dimensions X/Y/Z: approx. 4000mm/2800mm/2400mm, weight: approx. 6800kg. Documentation available. An on-site inspection is possible. Todpfxoxwct Sj Agcef

Condition: ready for operation (used), A CNC universal tool milling machine Hermle is available. Travel X/Y/Z: 700mm/550mm/500mm, table dimensions X/Y: 1000mm/500mm, quill stroke: 100mm, tool holder: SK40, spindle speed: 3150rpm, feed rate: 2m/min, rapid traverse: 5m/min, max. workpiece weight: 400kg. Machine dimensions X/Y/Z: approx. 3900mm/3300mm/2100mm, weight: approx. 3300kg, control: Heidenhain TNC 150. An on-site inspection is possible. Todexwcu Aspfx Agcof

Condition: used, Motor power: 1.0 / 1.4 kW Tedpexv Am Nofx Agcof Spindle mount: MK 3 with drawbolt thread Table size approx.: 450 x 150 mm Weight (estimated) approx.: 600 kg Dimensions (W x D x H) approx.: 1 x 0.6 x 1.6 m

Year of construction: 1990, condition: ready for operation (used), Travel X/Y/Z: 700mm/550mm/500mm, table dimensions X/Y: 1000mm/490mm, tool holder: SK40, speed: 3150rpm, quill stroke: 100mm. Machine dimensions X/Y/Z: approx. 3500mm/2500mm/2100mm, weight: approx. 3300kg, control: Heidenhain 415, operating hours: approx. 64000h. Including coolant pump and an enclosed length measuring system LS403C. Documentation available. An on-site inspection is possible. Todpfx Ajxvrvgegcef

Year of construction: 1987, condition: ready for operation (used), Travel X/Y/Z: 560mm/500mm/450mm, tool holder: SK40, speed: 4000rpm, feed rate: 3.6m/min, rapid traverse: 4m/min, table dimensions X/Y: 530mm/900mm, max. table load: 450kg. Machine dimensions X/Y/Z: 2350mm/2200mm/2000mm, weight: approx. 2200kg, control: Deckel Contour 2. An on-site inspection is possible. Todpfexvddvox Agcsf

Year of construction: 2022, condition: like new (used), functionality: fully functional, controller model: CNC-Steuerung, total length: 1,745 mm, total width: 1,877 mm, total height: 2,100 mm, machine/vehicle number: 411546, The Kunzmann milling machine WF 410 M is very rare and has only been used for light-duty work. It is therefore immediately ready for operation. Working area: Longitudinal: 410 mm Cross: 350 mm Vertical: 450 mm Main drive (100%/25% duty cycle): 8.5/16.2 kW Speed range: 1–4,500 rpm Tedpfx Aoxvbkgjgcof Tool holder: SK 40 DIN ISO 7388-1 Feed range: up to 5 m/min Display/traverse control: TNC 128 Weight: approx. 1900 kg Clamping surface: 650 x 375 mm T-slots: 5x 14H7 Table load: 250 kg

Condition: good (used), PACKAGE with 5 machines automated table Tsdoxvbiijpfx Agcof
