Condition: used, sheet width 2500 mm plate thickness 2 mm distance between columns . mm The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. Cgedpfxsyqvuds Ah Iop About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: excellent (used), functionality: fully functional, working width: 2,040 mm, bending angle (max.): 180 °, sheet thickness (max.): 2 mm, 6-way programmable control 2040 x 2 mm Cgodpfx Ahjynwiqj Iop

Condition: new, neu ca. 6 Monate ab Auftragse Taiwan 51300 € 969.57 € 2540 mm 3.5 mm Hydraulisch Cgedpfoynm U Nsx Ah Ijp 135 ° 3 kW 3850 mm 1700 mm 1860 mm 3700 kg NC control for bending angle manual back gauge 600 mm hydraulic driven vertical movement of upper beam segmented blade segmented goose neck rail 30°, 110 mm with quick tool change system one piece flat bottom bar 30 mm according to CE rules (sample photo showing model V-AMH 2535 2 axes NC control) OPTION: 2 axes NC control with touchscreen incl. motorized back gauge 800 mm

Condition: new, neu ca. 6 Monate ab Auftragse Taiwan 46700 € 891.97 € 2540 mm 6.5 mm Hydraulisch 135 ° 3900 mm 1750 mm 2050 mm 6200 kg hydraulic driven NC control for bending angle manual back gauge 600 mm sharp rail 45° (in one piece) front angle beam 75 mm mechanical stop adjustment of upper beam clamping force adjustment of upper beam according to CE rules Cgedpfsynm T Ejx Ah Isp ALTERNATIVELY: versionAMH-K,withSECTIONEDsharp rail 45° € 48.300,-- OPTION: 2 axes NC control with 7" touchscreen incl. motorized back gauge 800 mm € 11.400,-- (sample photos)

Condition: new, neu ca. 6 Monate ab Auftragse Taiwan 43500 € 830.85 € 2540 mm 4.5 mm Hydraulisch 135 ° 3900 mm 1700 mm 1900 mm 5100 kg hydraulic driven NC control for bending angle manual back gauge 600 mm sharp rail 45° (in one piece) front angle beam 75 mm mechanical stop adjustment of upper beam clamping force adjustment of upper beam according to CE rules Csdpfoynm Txsx Ah Iogp ALTERNATIVELY: versionAMH-K,withSECTIONEDsharp rail 45° OPTION: 2 axes NC control with 7" touchscreen incl. motorized back gauge 800 mm (sample photos)

Condition: new, neu ca. 6 Monate ab Auftragse Taiwan 42200 € 806.02 € 2540 mm 3.5 mm Hydraulisch 135 ° 3.7 kW 3850 mm 1700 mm 1860 mm 3900 kg hydraulic driven NC control for bending angle manual back gauge 600 mm sharp rail 45° (in one piece) front angle beam 75 mm mechanical stop adjustment of upper beam Cgsdpfxjynm Tre Ah Iop clamping force adjustment of upper beam according to CE rules ALTERNATIVELY: versionAMH-K,withSECTIONEDsharp rail 45° OPTION: 2 axes NC control with 7" touchscreen incl. motorized back gauge 800 mm

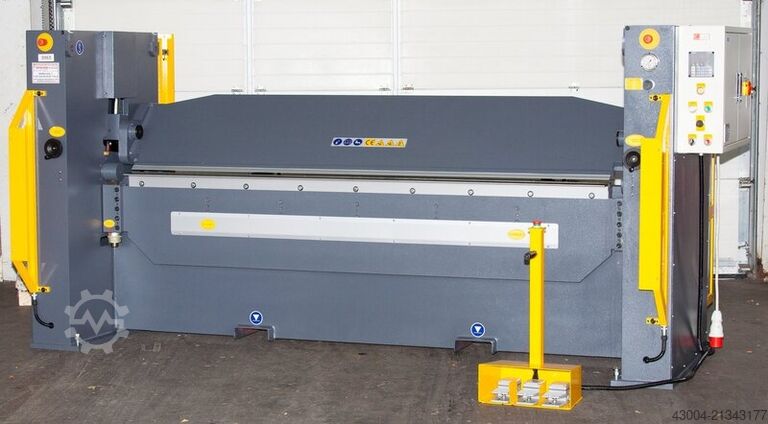

Condition: new, neu ca. 6 Monate ab Auftragse Taiwan 39400 € Cjdpfxjynm Tle Ah Ijgp 752.54 € 2540 mm 2.5 mm Hydraulisch 135 ° 3850 mm 1700 mm 1800 mm 3400 kg hydraulic driven NC control for bending angle manual back gauge 600 mm sharp rail 45° (in one piece) front angle beam 75 mm mechanical stop adjustment of upper beam clamping force adjustment of upper beam according to CE rules ALTERNATIVELY: versionAMH-K,withSECTIONEDsharp rail 45° OPTION: 2 axes NC control with 7" touchscreen incl. motorized back gauge 800 mm (sample photos)

Condition: new, neu ca. 6 Monate ab Auftragse Taiwan 41900 € 800.29 € 2035 mm 6.5 mm Hydraulisch 135 ° 3300 mm Codpfx Aeynm Tfjh Isgp 1550 mm 1900 mm 3710 kg hydraulic driven NC control for bending angle manual back gauge 600 mm sharp rail 45° (in one piece) front angle beam 75 mm mechanical stop adjustment of upper beam clamping force adjustment of upper beam according to CE rules ALTERNATIVELY: versionAMH-K,withSECTIONEDsharp rail 45° OPTION: 2 axes NC control with 7" touchscreen incl. motorized back gauge 800 mm (sample photos)

Condition: new, neu ca. 6 Monate ab Auftragse Taiwan 39100 € 746.81 € 2035 mm 4.5 mm Hydraulisch 135 ° 3300 mm 1550 mm 1900 mm Cgsdpfx Ahoynm S Ue Iop 3200 kg hydraulic driven NC control for bending angle manual back gauge 600 mm sharp rail 45° (in one piece) front angle beam 75 mm mechanical stop adjustment of upper beam clamping force adjustment of upper beam according to CE rules ALTERNATIVELY: versionAMH-K,withSECTIONEDsharp rail 45° OPTION: 2 axes NC control with 7" touchscreen incl. motorized back gauge 800 mm (sample photos)

Condition: new, neu ca. 6 Monate ab Auftragse Taiwan 35900 € 685.69 € 2035 mm 2.5 mm Hydraulisch 135 ° 3000 mm 1100 mm 1750 mm 2100 kg hydraulic driven Csdoynm Agspfx Ah Ijgp NC control for bending angle manual back gauge 600 mm sharp rail 45° (in one piece) front angle beam 75 mm mechanical stop adjustment of upper beam clamping force adjustment of upper beam according to CE rules (sample photo) ALTERNATIVELY: versionAMH-K,withSECTIONEDsharp rail 45° OPTION: 2 axes NC control with 7" touchscreen incl. motorized back gauge 800 mm

Condition: used, Year of construction: 2010, Schroder manual folding machine. The machine is very robust, fully operational, and the blades are in good condition. Testing is possible. Completely repainted in original colors. Cjdpfx Aeymnhbsh Isgp Specification: Manufacturer: Schroder Model: Ak 2500/1.0 Year of manufacture: 2010 Working length: 2500 mm Bending thickness: 1.0 mm Other: Repainted. Pneumatic clamping. No back gauge. If you have further questions, we will be happy to assist you.

Condition: used, Year of construction: 1995, sheet width 3000 mm plate thickness 4 mm work height max. 900 mm 450 mm Csdpoyk Diijfx Ah Iogp total power requirement 5,5 kW weight of the machine ca. 4800 kg dimensions of the machine ca. 4250 x 1500 x 1850 mm Equipment: - electric bending angle adjustment - electric upper beam adjustment - foot switch - operating instructions

Condition: good (used), Year of construction: 1991, machine/vehicle number: 91212035, Offer 26016 Technical Data: - Max. working width: 2040 mm - Max. material thickness at 40 kg/mm² tensile strength: 4 mm - Bending angle adjustment: electronically pre-selectable from 0 to 135° - Automatic sequence control for a complete working cycle - Maximum opening width / stroke of the upper beam: 350 mm - Height adjustment: - of the bending beam: 100 mm - of the lower beam: 100 mm Cgodpfsyi A I Iex Ah Ijp - Upper beam drive: 400 V / 4 kW - Bending beam drive: 400 V / 4 kW - Accessories: motorized bending beam adjustment - Backgauge adjustable via handwheel - Electric foot switch - Space requirement with backgauge: approx. W 3200 x H 1650 x D 2100 mm - Weight approx.: 4500 kg

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2020, machine/vehicle number: 20021, working width: 2,100 mm, bending angle (max.): 150 °, sheet thickness (max.): 3 mm, distance between stands: 2,450 mm, opening stroke: 160 mm, TECHNICAL DETAILS Sheet width: 2,100 mm Sheet thickness: 3.0 mm Cgedpfjygw Hajx Ah Ijp Frame width: 2,450 mm Opening width: 160 mm Max bending angle: 150° Backgauge - adjustable: 6.0 - 1,000 mm Control: CNC MACHINE DETAILS Total power requirement: 5.37 kW Dimensions: 3,250 x 2,450 x 2,100 mm Machine weight: approx. 3,850 kg EQUIPMENT - ERBEND 15.6" CNC control panel - Electric backgauge from 6.0 - 1,000 mm - Material support table with ball rollers - Servo motor drive - LED machine lighting - 1x 30 upper tool - radius 1.0 mm - 1x bending rail 15 mm - 1x bending rail 25 mm - Electric safety device at the front (light curtains) - Mobile foot control - Operating manual - CE declaration SPECIAL ACCESSORIES - Divided Geifu upper tool, height = 90 mm - CNC electric motorized adjustment of lower beam - Manual crowning of the bending beam

Condition: excellent (used), Hydraulic folding machine by Schröder Group, model SCHRODER-FASTI 215-40-4 A proven, robust industrial machine for precise bending, folding, and profiling of sheet metal. Despite its age, the machine operates flawlessly, delivering precise and clean results. Technical Data Machine type: Folding machine / hydraulic shear & folding machine Manufacturer: SCHRODER-FASTI Model: 215-40-4 Control: FASTI-matik 4000 (CNC) Max. sheet thickness: 4 mm (at 400 N/mm²) Working length / reference dimension: approx. 2,000 mm Stroke of upper beam: 350 mm Motorized adjustment of bending beam: 80 mm Motorized adjustment of lower beam: 80 mm Motor power for adjustments: 0.75 kW Cgedpfxsygv S Ue Ah Isp Features - Motorized adjustment of bending and clamping beams - High clamping pressure speed - Robust, adjustable bending options - FASTI-matik 4000 CNC control - Segmented/finger rails Tools / rails: Flat rail: 18 mm Medium rail: 45° Reinforcing rail: 36 mm Finger size: 150 mm - High repeat accuracy - Fast setup times - Proven FASTI quality "Made in Germany" Condition: Used Technically tested, fully functional, and ready for immediate use Delivery time: immediate Shipping terms: ex works, loaded free of charge Loading: possible by forklift or crane Transport / forwarding: can be arranged

Condition: used, Max. bending length: 2540 mm Max. sheet thickness: 5 mm steel Upper beam stroke: 350 mm Manual and automatic mode possible Motors adjustable rear stop with spring fingers and digital display Codjyglvvopfx Ah Iegp Central lubrication Segmented upper and lower gate rack for 2050 mm 5600 kg

Condition: new, Year of construction: 2026, CNC-controlled electric motor-driven precision sheet metal folding machine / swivel bending machine Csdjyf U Raspfx Ah Iegp Maximum bending length: 2,600 mm Maximum bending capacity with a 25 mm wide bending rail: - Steel sheet DC01-A with a tensile strength of approx. 350N/mm² or material S235JR: 3.5 mm - Stainless steel sheet 304L: 2.3 mm - Aluminium sheet H24 with a tensile strength of approx. 145N/mm²: 4.5 mm - Zinc sheet according to DIN EN988 with a tensile strength of approx. 190N/mm²: 2.3 mm Upper beam rail: 160° Upper beam stroke up to 240 mm Lower beam height approx. 830 mm Drive power: 9 kW Dimensions without rear gauge approx. 4.1 x 1 m x height 1.9 m Weight: 3,500 kg - Manual crowning device for the folding beam - Rear gauge with 8 folding stop fingers - Stop range 10 to 750 mm (optionally 1,000 mm or 1,500 mm), Adjustable travel speed up to 500 mm/sec.

Condition: used, Year of construction: 2011, total length: 2,660 mm, total width: 1,200 mm, total height: 1,210 mm, Empty weight: 1.260 kg Price: On request - Year: 2011 - Documentation available: Yes - CE marking present: Yes - CE certificate present: No - Serial number: 0138 - Drive system: Conventional - Folding machine model: Semi-automatic - Power [kW]: 0.8 - Bending direction: Upward bending - Max. sheet thickness [mm]: 2 - Max. working width [mm]: 2000 - Stop type: Manual - Angle adjustment: Motorized Cgsdoyf Hcbspfx Ah Iep - Tool holder: Fixed & fingers/segments - Transport dimensions: 2660mm x 1200mm x 1210mm (l x w x h) - Transport weight [kg]: 1260kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, functionality: fully functional, Year of construction: 2019, operating hours: 1,750 h, machine/vehicle number: 37790530, control type: manual, degree of automation: semi-automatic, actuation type: electric, working width: 3,020 mm, sheet thickness steel (max.): 1 mm, sheet thickness stainless steel (max.): 1 mm, sheet thickness aluminum (max.): 3 mm, sheet thickness brass (max.): 1 mm, sheet thickness copper (max.): 1 mm, overall weight: 2,200 kg, total length: 3,975 mm, total width: 560 mm, total height: 1,290 mm, input voltage: 400 V, input frequency: 50 Hz, type of input current: three-phase, We offer this used METALLKRAFT MSBM 3020-15 SH sheet metal bending machine, year of manufacture 2019. Codox Upcwepfx Ah Isgp If you have any questions or require further information, please send us a message or call us.

Condition: good (used), Here we offer a folding machine with rotary foot punch. Cedpfox Rp T Ijx Ah Ijgp Suitable for 4 mm sheet thickness over a length of 3000 mm.

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2001, control type: NC control, working width: 2,520 mm, sheet thickness (max.): 4 mm, overall weight: 3,720 kg, TECHNICAL DETAILS Sheet width: 2,520 mm Sheet thickness: 4 mm Upper beam stroke: 250 mm Folding beam adjustment: 80 mm MACHINE DETAILS Control type: NC Dimensions & Weight Dimensions (L x W x H): 3,150 x 805 x 1,425 mm Machine weight: approx. 3,720 kg Upper beam drive power: 2.2 kW Folding beam drive power: 3.0 kW EQUIPMENT Foot switch Cjdex I Eqqspfx Ah Isgp Electric backgauge Sharp-edge rail

Condition: ready for operation (used), Year of construction: 2000, sheet width 2520 mm plate thickness 4.0 mm ST thickness at "Niro-steel" 2.0 mm upper clamping bar adjustment 250 mm adjustment speed 100 mm/sec Adjustment folding beam 80.0 mm work height max. 869 mm control POS 2000 voltage 400 V total power requirement 6.0 kW Cgodpfox H Alcex Ah Ijp weight 4100 kg range L-W-H 4120 x 2400 x 2090 mm current list price ~ 90.000 euro from a maintenance workshop with excellent equipment (!!) new touchscreen installed in 2023 - in checked conditoins - machinevideo - ?v=5Y2NheJjdWo Features: - CNC electro-motorized universal bending machine * ??High-precision mechanics with modern control technology * For individual and series production * Robust high-speed machine with high axis speeds * Torsion-resistant welded construction - SCHRÖDER CNC control model POS 2000 * Control panel front right (operable with PC mouse) * Touchscreen replaced in 2023 * Color display * USB interface * Automatic cutting calculation * Material and tool library * Dimensionally accurate bending simulation * Windows XP operating system * Swiveling control, front right - Servo inverter-controlled drives * For bending/upper beam & electric backgauge - CNC motorized lower beam adjustment - CNC electro-motorized Backgauge * Travel speed 300 mm/sec. * with rear sheet metal support surface - 1x freely movable double foot switch - Operating instructions (PDF) * Optional accessories included: - SCHRÖDER split gouge tools - top

Condition: good (used), functionality: fully functional, A cassette set of bending tools for FASTI MAK Codpfxsx Hx S Sj Ah Isgp

Condition: used, Year of construction: 1997, sheet width 2540 mm plate thickness 3 mm distance between columns 2600 mm min. cut-off length 5 x s mm adjustment of lower beam 80 mm adjustment of upper beam 80 mm Cjdox Harmjpfx Ah Ijgp daylight opening 350 mm total power requirement 4 kW dimensions 4 x 1 x 1,5 m With accessories and PLC control made by Alba.

Condition: good (used), functionality: fully functional, machine/vehicle number: 02212007, control type: CNC control, working width: 2,040 mm, sheet thickness steel (max.): 6 mm, Swing bending machine in excellent condition. It is powered on and can be inspected at any time. Cgjdox Eiw Tspfx Ah Iep
