Current offers from similar dealers
Listing
Eilenburg
7,973 km
Travelling column milling machine
SHWUF31
SHWUF31
Call
Condition: good (used), Year of construction: 1988, travel distance X-axis: 1,000 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 600 mm, 5-axis machine
Feed rate stepless: 2-4000
Total power requirement: 20 kW
Itsdpfjxx Tw Dsx Ad Dsp
Machine weight approx.: 7 t
Space requirement approx.: 7 linear meters
Listing
Czech Republic
8,339 km

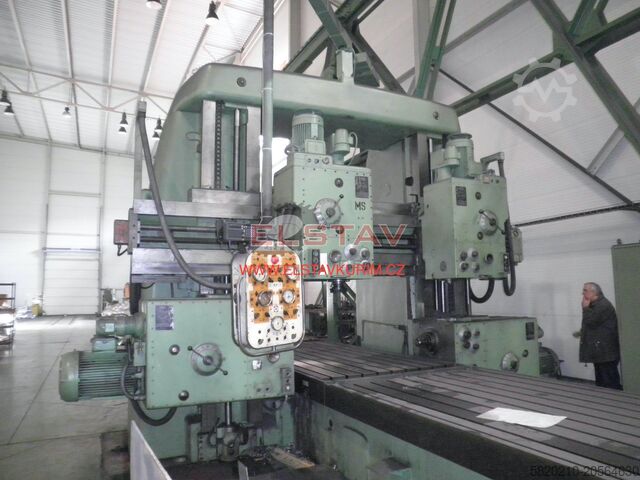

Milling machine with moving column
TOS KUŘIMFRPD 16X30
TOS KUŘIMFRPD 16X30
Call
Condition: ready for operation (used), Year of construction: 1970, functionality: fully functional, machine/vehicle number: 50052, Year of manufacture: 1970
Serial number: 50 052
The machine was overhauled in 2007.
GENERAL CHARACTERISTICS OF THE MACHINE
The machine features a fixed gantry with a moving table. The gantry is equipped with a height-adjustable crossbeam, which can be fitted with one or two vertical spindles in the VF 120 version. The gantry can also be fitted with one or two side-mounted (horizontal) VF 160 headstocks.
The clamping surface consists of two interconnected clamping tables, which can also be used individually when disconnected (only one table can be operated at a time).
Clamping Table:
Dimensions of one table: 1,600 x 3,000 mm
Total length of connected tables: 7,000 mm
Clamping surface of connected tables: 6,500 mm
Clamping T-slots (width x pitch x number): 28 mm x 160 mm x 9 pcs
Table height from base: 900 mm
Travel of one table: 3,000 mm (connected tables: 6,500 mm)
Table feed rate: 20 – 2,000 mm/min
Rapid traverse: 4,000 mm/min
Gantry with height-adjustable crossbeam:
Clearance between side columns: 2,020 mm
Crossbeam height adjustment: 110 - 1,685 mm
Crossbeam feed rate: 1,450 mm/min
VF 160 Horizontal Headstock:
Taper: ISO 60
Motor power: 30 kW
Speed range: 15 – 710 rpm
Feed rate: 10 – 2,000 mm/min
Number of speeds: 16
VF 120 Vertical Headstock:
Taper: ISO 50
Itodoxxwy Aopfx Ad Dsp
Motor power: 18 kW
Speed range: 28 – 910 rpm
Number of speeds: 16
Overall machine dimensions (L x W x H): 14,780 mm x 5,650 mm x 4,800 mm
Listing
Stalowa Wola
8,540 km
Universal milling machine
SHWUF 21
SHWUF 21
Call
Condition: used, Year of construction: 1976, Machine type: Universal milling machine
Manufacturer: SHW
Model: UF21
Year of manufacture: 1976
Control type: NC
Country of origin: Germany
Iodpfjxwnm Dox Ad Detp
X-axis travel: 1050 mm
Y-axis travel: 500 mm
Z-axis travel: 500 mm
Spindle taper ISO: SK40
Spindle head swivel right-left: 90°
Quill travel: 180 mm
Spindle speed range: 36–1800 rpm / 18 steps
Feed rate X+Z: 0.3–1800 mm/min
Feed rate Y: 0.3–900 mm/min
Rapid traverse X/Z: 1800 mm/min / Y: 900 mm/min
Table size: 1200 x 550 mm
Total power requirement: approx. 10 kW
Estimated weight: 4400 kg
Machine dimensions (L x W x H): approx. 3.1 x 2.5 x 2.2 m
Spindle motor power: 6.8 kW
Listing
Sweden
7,663 km

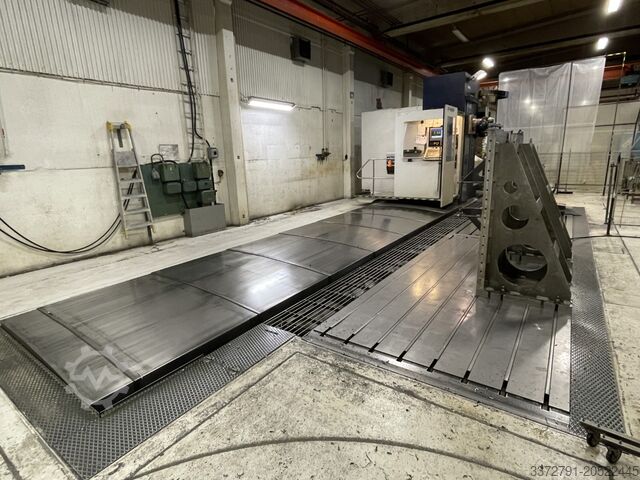

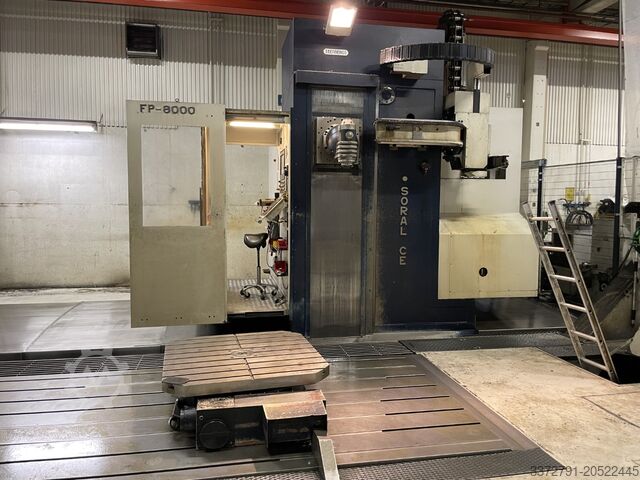

Milling machine with moving column
SoraluceFP8000
SoraluceFP8000
Call
Condition: excellent (used), Year of construction: 2009, functionality: fully functional, Longitudinal travel: 8000 mm
Cross travel: 1300 mm
Vertical travel: 2100 mm
Floor plate: 9000x2000x300 mm
Automatic milling head: 2.5°/2.5°, 910 Nm
Spindle speed: 20–4000 rpm
Spindle taper: ISO50
Feed/Rapid traverse: 10/25 m/min
ATC: 60 positions
Power supply: 52 kVA/94 A
Spindle motor: 32 kW
Ijdpfxoxwlrqe Ad Djtp
Length: 19950 mm
Width: 7140 mm
Height: 4770 mm
Index table: 1200x1200 mm, 5 tons, 0.001°
Automatic index angle head: 2.5°/2.5°
Air/water through spindle via M-code
Coolant: 5/20 bar, 50 l/min
Renishaw RMP 60
Heidenhain scales X-Y-Z
Electronic temperature compensation
Hand control
Software for 2-zone operation
Listing
Germany
7,683 km

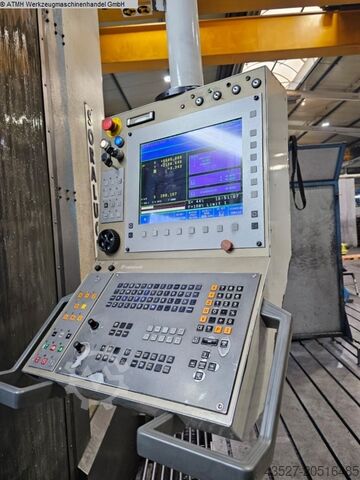

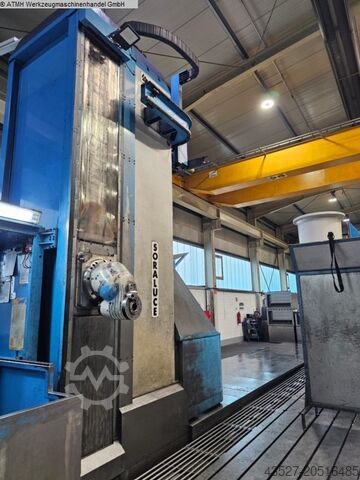

Travelling column milling machine
SORALUCEFR-12.000
SORALUCEFR-12.000
Call
Condition: used, Year of construction: 1999, x-travel 12000 mm
y-travel 3600 mm
z-travel 1500 mm
spindle turning speed range 3000 U/min
Control: Heidenhain iTNC430
Milling head 2 axes, indexed 2.5°
Vertical (Y-axis): 3600 mm
Transverse (Z-axis): 1500 mm
Longitudinal (X-axis): 12,000 mm
Guide rail length: 14,700 mm
Guide rail width: 1400 mm
Lowest milling position of the spindle nose measured from the floor (head horizontal): 855 mm
Low column design 870 x 900 x 2,625 mm: 3,000 kg
High stand design 870x900x3,025 mm: 3,500 kg
Motor power: 37 kW
Mounting: ISO 50/ DIN 69871-A
Speeds: 11.7:231:3000 rpm
Feed range: 2:2500 mm/min
Rapid traverse
X-axis: 12000 mm/min
Z-Y axis: 15000 mm/min
Feed motor power
X-axis: 55 Nm
Z-axis: 37 Nm
Y-axis: 37 Nm
Accuracy
Positioning accuracy: 0.025 mm
Repeatability: 0.015 mm
Weight: approx. 42,000 kg
Itodpoxwdygsfx Ad Dop
Air supply to the machine: 300 L/min at 4.5 bar
NOTE: The clamping plates and chip conveyors are not included in the scope of delivery.
However, we can offer you both used and new clamping plates and chip conveyors on request.
Listing
United Kingdom
6,838 km
Travelling column milling machine
SoraluceSP10000
SoraluceSP10000
Call
Condition: used, Year of construction: 1997, Soraluce SP10000 Travelling Column Table Type Milling Machine with Siemens Sinumerik CNC Control
Table Length Approx 10,000mm; Table Width Approx 1,100mm; Column Horizontal Travel 'X' Approx 8,500mm; Head Vertical Travel 'Y' Approx 1,600mm; Ram Cross Travel 'Z' Approx 1,200mm; (60) Station Automatic Tool Changer; (1) 1,000mm Dia., Integrated Horizontal/Vertical Rotary Table (8-T Slots) with 400mm Dia. 4-Jaw Chuck; Horizontal/Vertical Tool Change Facility; BT50 Spindle; 20-2,000 RPM; S/No. 108537.
Operator Platform; Stand Alone Oil Filtration System; Urretzu Swarf Conveyor; Hine Lubrication System; (2) 10-Draw Tool Cabinets (1,100mm x 800mm x 1,100mm) including Assorted Machine Tooling Aids & Fixings; Overall Dimensions of Machine Approx 14,785mm x 4,770mm x 4,420mm High; Weight of Machine Approx 30,000kg.
Itodpfx Aexvx S Iod Dep
Listing
Siegen
7,752 km
Travelling column milling machine
SoraluceSLP-8000
SoraluceSLP-8000
Call
Condition: reconditioned (used), Year of construction: 2016, travel distance X-axis: 6,500 mm, travel distance Y-axis: 1,800 mm, travel distance Z-axis: 1,300 mm, feed length X-axis: 10,000 mm, feed length Y-axis: 10,000 mm, feed length Z-axis: 10,000 mm, rapid traverse X-axis: 35 m/min, rapid traverse Y-axis: 35 m/min, rapid traverse Z-axis: 35 m/min, spindle speed (max.): 7,000 rpm, spindle speed (min.): 20 rpm, table length: 8,000 mm, table width: 1,100 mm, RepairFIT by Dornhöfer
The difference.
Including installation & commissioning!
Year of manufacture: 2016
Capacities / Travel distances:
Longitudinal (X): 6,500 mm
Vertical (Y): 1,800 mm
Cross (Z): 1,300 mm
Table size:
Length: 8,000 mm
Width: 1,100 mm
Number of T-slots on the table surface: units: 7
Width of T-slots: 22 mm
Distance between slots: 140 mm
Paintwork:
RAL 7021 (black grey)
RAL 7035 (light grey)
ref F-38 (DanobatGroup Blue)
Tool holder: ISO 50, DIN 69871 AD
Pull stud: DIN 69872 Type A
Main drive:
Drive power: 100% duty cycle 43 kW
Spindle speed range:
Max. spindle speed: 20 – 7,000 rpm
Torque: 900 Nm
Itsdpjxvx Amofx Ad Dop
Feeds: X, Y, and Z axis mm/min 2 – 10,000
Max. rapid traverse speed: X, Y, and Z axis 35,000 mm/min
Base area SLP8000: (without enclosure) 13.0 x 4.5 m
Overall height: approx. 4.4 m
Weight: approx. 34,000 kg
Heidenhain TNC 640 HSCI
Automatic milling head, Diagonal H207
Adapter angle milling head SK50 with Hirth gearing
Automatic tool changer, 60 magazine places
Chip conveyor
Preparation / integration of NC rotary table
Adaptive control
ACCURA HEADS
Coolant system 2
RepairFIT is our proven solution for a profitable entry into our product lines.
The machines offered in this line are procured by us through a strict selection process and undergo a thorough inspection (Deep-Dive Check). After intensive cleaning, any identified defects or faults are professionally repaired by our expert service team.
Listing
Lauchheim
8,007 km
Travelling column milling machine
NICOLAS CORREAL30-43
NICOLAS CORREAL30-43
Call
Condition: used, Year of construction: 1998, x-travel 4.300 mm
y-travel 1.200 mm
z-travel 1.500 mm
control Heidenhein TNC 426 PB
table-size 6.120 X 1.000 mm
taper ISO ISO-50
Number of revolutions 20 - 3.000 rpm
work speed 5.000 mm/min
Iodpfxjxvtgao Ad Detp
handwheel HEIDENHAIN HR-410
table weight 20.000 Kg
Tools changer 40 fach/tools
rapid traverse 12.000 mm/min
weight of the machine ca. 28 t
Listing
Lauchheim
8,007 km

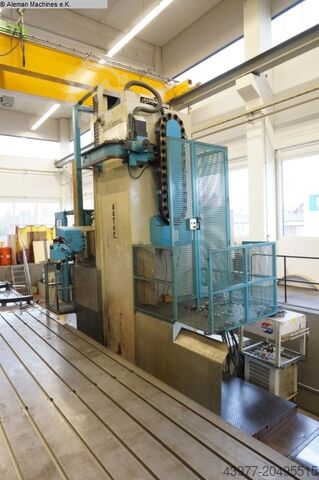

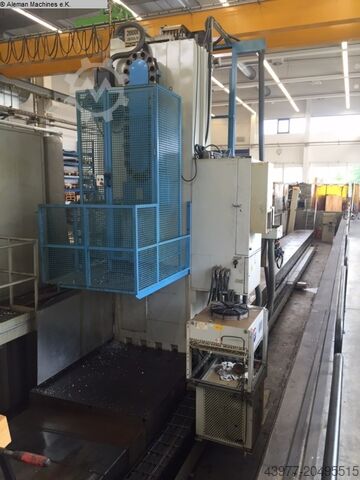

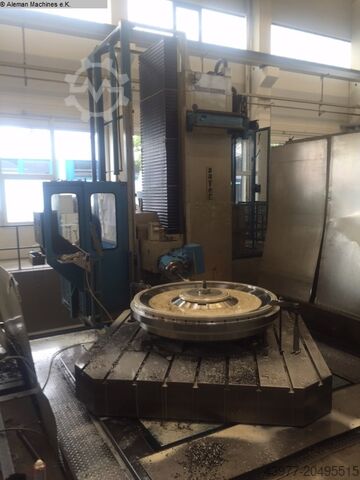

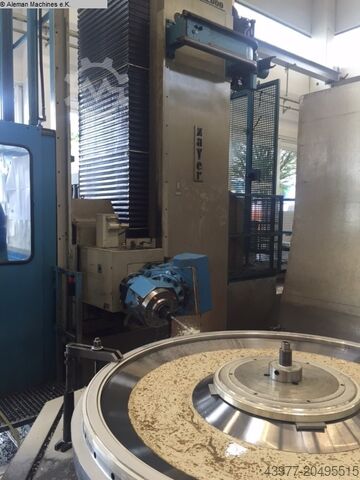

Travelling column milling machine
ZAYER30 KCU 22.000
ZAYER30 KCU 22.000
Call
Condition: used, Year of construction: 2000, x-travel 22.000 mm
y-travel 1.500 mm
z-travel 3.000 mm
control SIEMENS 840 D
milling head -swivable 0,001/0,001 Grad
milling head Universalfräskopf 45°
Internal cooling system 20 bar
Chip coveyor ja
Tools changer 30 pos.
coolant 1.100 l
Tool taper DIN 69871A ISO 50
total power requirement 45 kW
weight of the machine ca. 68 t
The round table shown in the pictures as well as the plate field are not
sold with !
urning Speeds 6.000 r.p.m.
AutoIndex Head 45 º
Head 360.000 Pos.
Elbow 360.000 Pos.
Main Motor Power 37 Kw.
Nº Change Range 2 Ranges
Automatic Tool Charger INCLUDED
Tools at ATC 30
Ijdjxvtf Nopfx Ad Dstp
Coolant Through Tool 20 Bar INCLUDED
Soluble Oil Tank with filter paper INCLUDED
Head Coolant System + CF Box INCLUDED
Longitudinal Chip Conveyor INCLUDED
Operator?s Platformd with 2000 mm Vertical movement. INCLUDED
Ready for Rotor Translating Table
(Regulator + Wires) /INCLUDED
Coolant System in Electrical Cabinet INCLUDED
Machine Weight 68.000 Kg.
Machine Colour RAL 7038 – 5012
Portable Handwheel INCLUDED
Listing
Neuss
7,653 km
Travelling column milling machine
Zayer30KCU7000
Zayer30KCU7000
Call
Condition: used, Model 2003 (17,000 working hours)
Heidenhain i TNC530 control system
Linear travel (X): 7,000 mm
Vertical travel (Y): 2,000 mm
Cross travel (Z): 1,250 mm
Spindle motor output (S1/S6): 37 kW
Two-speed gearbox
Spindle speed range: 4,500 rpm
Spindle taper: ISO 50
Rapid traverse rate: 20/10 m/min
Approximate footprint required: 12,700 x 9,400 x 6,200 mm
Weight: 60 t
Itodpfx Adsxu Uqwj Djp
Equipment:
• Automatic milling head (0.001° indexing on both axes)
• Spindle cooling system, 15 bar
• Tool magazine for 60 tools
• Chip conveyor
• Renishaw RMP60 workpiece measuring probe
• Base plate 7,000 x 1,500 x 350 mm
• Rotary table 1,200 x 1,200 mm (5 t load capacity)
• Spare manual milling head
Listing
Davidschlag
8,274 km
Travelling column milling machine
AXAVario 1
AXAVario 1
Call
Condition: used, Year of construction: 1999, operating hours: 19,500 h, functionality: fully functional, machine/vehicle number: 85525, travel distance X-axis: 1,760 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 600 mm, feed rate X-axis: 30 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 30 m/min, spindle speed (max.): 6,000 rpm, type of input current: three-phase, total width: 2,900 mm, total height: 3,100 mm, total length: 3,800 mm, table length: 2,030 mm, table width: 500 mm, table load: 900 kg, tank capacity: 290 l, tool length: 250 mm, tool diameter: 180 mm, Equipment: documentation/manual, rotational speed infinitely variable, 4 axes
Itedpfx Adexup Iqo Dep
36 tool stations SK40
Pendulum operation with partition wall
2x swiveling bridges
Coolant tank 290 l with belt filter
Control unit Heidenhain TNC 410 MA
A-drive RTA 200/300
Listing
Borgo San Dalmazzo
8,135 km
Travelling column milling machine
SORALUCEFP600
SORALUCEFP600
Call
Condition: excellent (used), Year of construction: 2002, functionality: fully functional, travel distance X-axis: 6,000 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 2,000 mm, spindle speed (max.): 4,000 rpm, SELCA 4045 CNC
TRAVEL
Longitudinal travel: 6.000 mm
Vertical travel: 2.000 mm
Transverse ram travel: 1.200 mm
SPINDLE
Motor power: 30 kW
Spindle head taper: DIN 69871-B ISO50
Itodpfjxtqqdsx Ad Djp
Speed: 4.000 rpm
FEEDS AND RAPID TRAVELS
Maximum working feed range: 5.000 mm/min
Rapid travels: 15.000 mm/min
Maximum axis thrust on cutting tool: 11.000 N
Listing
Germany
8,087 km
Travelling column milling machine
DMG MORIDMF 180-7
DMG MORIDMF 180-7
Call
Condition: used, Year of construction: 2018, x-travel 1.800 mm
y-travel 700 mm
z-travel 700 mm
control 840 D sl op. ( CELOS ) Siemens
turning speed range - main spindle 20 - 20.000 min/-1
power capacity - main spindel 35 / 25 kW
max. Torque 130 / 86 Nm
tool taper HSK-A63
swivellable B: +/- 100 °
table surface area 2.100 x 700 mm
max. table load (1.500) kg
number of T-slots 7
table diameter 750 mm
max. table load 500 kg
number of T-slots 7
T-slot - distance 63 mm
table height 255 mm
rotatable C: 360 °
turning speeds 16 1/min
resolution 0,001 °
number of toolpositions 60 pos.
tool taper HSK-A63
max. tool weight 6,0 kg
max. tool diameter 80 mm
max. tool-dia with free toolbox 130 mm
max. tool length 300 mm
change-time chip to chip 7,6 sec
rapid traverse ( X / Y / Z ) 40 m/min
Accelaration 4 m/s²
Itedpexr Racsfx Ad Djp
feed speeds max. 40.000 mm/min
Feed force ( X / Y / Z ) 8 kN
total power requirement 73 kVA
weight of the machine ca. 13,7 t
dimensions of the machine ca. 7,5 x 6,5 x 3,0 m
5-Axis CNC - Travel Column Milling Machine
DMG MORI - DMF 180-7
- Motorspindle SpeedMaster
- Swivel-Head (B-Axis)
- rotary-table included in working-table
- internal coolant system
- Spindle, Y-axis and B-axis clamping overhauled in 04/2025
Listing
Malakoff
7,528 km
MOBILE MOUNTING MILL
JOBSJOMACH 143
JOBSJOMACH 143
Call
Condition: used, Year of construction: 1994, functionality: fully functional, Equipment: documentation/manual, rotational speed infinitely variable, Jobs 5-axis milling machine.
Type Jomach 143
CNC Fidia
Year 1994
X4000 Y2700 Z1250
A 190
C continuous
Itjdpfx Adsxr I Scj Dop
B
W
Listing
Düsseldorf
7,655 km
Travelling column milling machine
SORALUCEFS-5.000
SORALUCEFS-5.000
Call
Condition: used, Year of construction: 1998, travel -x axis 5.000 mm
travel -y axis 2.800 mm
travel -z axis 1.500 mm
control HEIDENHAIN TNC426CB
number of spindle speeds 20 - 3.000 U/min
table length 4.000 mm
table width 2.000 mm
max. table load 20.000 kg
tool taper ISO SK50
numbers of positions in the tool changer 100
Dimensions (L x W x H) 9.800 x 6.200 x 7.100 mm
machine weight ab. 31.600 kg
Isdpfx Ajxrvl Djd Dstp
Travelling column milling machine | SORALUCE - FS-5.000
The machine is in very good condition.
A machine video from the production plant will be shared on request.
Please refer to further technical details in the attachement of the offer.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
#Tags: FS 5.000 | FS5.000 | FS 5000 | FS5000
Listing
Madrid
7,604 km
CNC moving column milling machine
ANAYAKHVM 7000
ANAYAKHVM 7000
Call
Condition: good (used), TECHNICAL DATA
• CNC: Heidenhain TNC 430
• Table surface: 7,100 x 1,200 mm
• Longitudinal travel (X axis): 7,000 mm
• Cross travel (Y axis): 1,500 mm
• Vertical travel (Z axis): 1,500 + 500 mm
• Rapid traverse (axes): 20,000 mm/min
• Maximum working feed: 10,000 mm/min
• Automatic head with 1º / 1º indexing: Included
• Spindle taper: SK-50
• Spindle speed range: 20 – 3,500 rpm
• Number of speed ranges: 2
Itedpfxexqq Rrs Ad Dop
• Main motor power: 50 kW
• Automatic tool changer: Included
• Tool changer positions: 60
• Internal coolant supply: Included
• Swarf/chip conveyor: Included
• Electronic handwheel: Included
• Additional tank with paper filter: Included
• Operator platform: Included
• Guarding with 4 sliding doors: Included
• Permissible load on table: 30,000 kg
• Machine weight: 45,000 kg
Listing
Skrzyszów
8,401 km
Thermal press
Monti AntonioMOD.200-3/VACUUM
Monti AntonioMOD.200-3/VACUUM
Call
Condition: ready for operation (used), Year of construction: 2010, Vacuum press – working area 205 x 415 cm – 2 worktables
For sale: Professional vacuum press with a 205 x 415 cm working area, equipped with two independent worktables and a high-performance vacuum pump. The machine is in perfect technical condition, currently in continuous operation – ready for immediate use without any additional investment.
Included in the set:
spare membrane set,
Itsdpfxoxqht Dj Ad Dop
felt,
table cover/protector.
Price negotiable.
Listing
Czech Republic
8,339 km
Milling machine with moving column
TOS KUŘIMFREP-D 20X40A
TOS KUŘIMFREP-D 20X40A
Call
Condition: excellent (used), Year of construction: 1986, functionality: fully functional, machine/vehicle number: 50166, travel distance X-axis: 9,000 mm, travel distance Y-axis: 2,295 mm, travel distance Z-axis: 2,500 mm, rapid traverse X-axis: 9 m/min, rapid traverse Y-axis: 1 m/min, rapid traverse Z-axis: 2 m/min, feed rate X-axis: 3 m/min, feed rate Y-axis: 1 m/min, feed rate Z-axis: 2 m/min, spindle speed (max.): 710 rpm, spindle speed (min.): 15 rpm, rotational speed (max.): 710 rpm, total width: 8,500 mm, total height: 7,150 mm, total length: 20,720 mm, table length: 9,000 mm, table width: 2,000 mm, torque: 6,500 Nm, clearance between the columns: 2,750 mm, year of last overhaul: 2003, table height: 1,000 mm, table load: 45,000 kg, spindle motor power: 50,000 W, workpiece weight (max.): 45,000 kg, Equipment: documentation/manual, rotational speed infinitely variable, GENERAL MACHINE CHARACTERISTICS
The machine features a rigid gantry design with a movable table. The gantry is equipped with a height-adjustable crossbeam, which can be fitted with one or two vertical spindle heads of type VFS 160. Additionally, the gantry can accommodate one or two lateral (horizontal) spindle heads VFS 160.
The specified spindle head types can be equipped with additional spindle heads, with up to 4 available.
The clamping surface of the machine consists of two connected clamping tables, which can also be used separately when disconnected (only one can be active at a time).
Clamping Table
- Dimensions of one table: 2,000 x 4,000 mm
- Total length of connected tables: 9,000 mm
- Clamping surface of connected tables: 8,500 mm
- Clamping T-slots (width x spacing x quantity): 36mm x 180mm x 11 pcs
- Working table height from base: 1,000 mm
- Load per meter of table length: 5,000 kg
- Table travel: 4,250 mm (connected tables: 9,000 mm)
- Working feed rate: 15 – 3,000 mm/min
- Rapid traverse: 9,000 mm/min
Gantry with Height-Adjustable Crossbeam
- Clearance between columns: 2,750 mm
- Crossbeam vertical adjustment: 2,295 mm
- Crossbeam travel: 750 mm/min
Vertical Spindle Head VFS 160
- Toolholder taper: ISO 60
- Spindle power: 50 kW
- Speed range: 15 – 710 rpm
- Working feed: 10 – 2,000 mm/min
- Rapid traverse: 2,000 mm/min
- Distance from spindle nose to clamping table: 425 – 2,720 mm
Horizontal Spindle Head VFS 160
- Toolholder taper: ISO 60
- Spindle power: 50 kW
- Speed range: 15 – 710 rpm
- Working feed: 5 – 1,000 mm/min
- Rapid traverse: 1,000 mm/min
- Distance from spindle nose to table centering T-slot: 377 – 1,177 mm
Overall Machine Dimensions (L x W x H):
20,720 mm x 8,500 mm x 7,150 mm
Additional Spindle Heads:
NVS Head (Extension Adapter)
Itjdpfx Adoxpudto Dsp
- Toolholder taper: ISO 60
- Speed: 15 – 710 rpm
- Max. transmitted power from 60 rpm = 40 kW
- Max. torque: 6,500 Nm
HFUS Head (Universal Milling Head)
- Toolholder taper: ISO 60
- Speed: 15 – 710 rpm
- Max. transmitted power from 80 rpm = 22 kW
- Max. torque: 2,700 Nm
- Swivel range vertical axis: 360°
- Swivel range horizontal axis: 360°
- Quill adjustment: 50 mm
HFOS Head (Double-Sided Right-Angle Milling Head)
- Toolholder taper: ISO 60
- Speed: 15 – 710 rpm
- Max. transmitted power from 60 rpm = 40 kW
- Max. torque: 6,500 Nm
Listing
Babberich
7,577 km
Bed type milling machine FPT - AREA EV
FPT IndustrieAREA EV
FPT IndustrieAREA EV
Call
Condition: excellent (used), Year of construction: 2005, travel distance X-axis: 16,000 mm, travel distance Y-axis: 3,500 mm, travel distance Z-axis: 1,500 mm, Head Pick up Station
TUPC CNC Indexing Micro Head
A-Axis 360.000 x 0,001 Gr
C-Axis 360.000 x 0,001 Gr
SELS Spindle extionsion L=500 mm
CTS Internal coolant system
ATC Chain Tool changer 60 Positions
Itedpjxpfkksfx Ad Dsp
Hydrostatic guideways
Optional T Slotted floorplates 5600 x 1875 (2x) + 4000 x 1875 mm
X-Axis: 16.000mm
Y-Axis: 3.500mm
Z-Axis: 1.500mm
Power on spindle: 80kW
Spindle speeds: 4000Rpm
Spindle Taper: Sk59ISO/Bt/Mk
Feed rate X-Axis: 25000mm/min.
Feed rate Y-Axis: 25000mm/min.
Feed rate Z-Axis: 25000mm/min.
Millinghead auto-index:2.5 x 2.5°
Length: 24000mm
Width: 6500mm
Height: 6500mm
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
Listing
Thiene
8,296 km
Travelling column milling machine
STSPerformance
STSPerformance
Call
Condition: excellent (used), Year of construction: 2009, functionality: fully functional, travel distance X-axis: 6,000 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 2,000 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, spindle speed (max.): 5,000 rpm, Used STS moving column milling machine model Performance with:
- X-axis travel 6000 mm
- Y-axis travel 1200 mm
- Z-axis travel 2000 mm
- Selca 4045D CNC unit
- 2 clamping tables
- Table size each: 3500 x 2000 mm
- Automatic head 1°x1°
Itedpfx Ajxn Axisd Djp
- Spindle speed: 5000 rpm
- Tool magazine with 40 positions
- OMR rotary table, full 4th axis, 1000 x 1000 mm
- High-pressure coolant system through spindle: 20 bar
- Standard accessories included
Free 12/24 month payment extension
Listing
Babberich
7,577 km
Bed type milling machine SORALUCE FP8000
SoraluceFP 8000
SoraluceFP 8000
Call
Condition: excellent (used), Year of construction: 2012, travel distance X-axis: 8,000 mm, travel distance Y-axis: 3,100 mm, travel distance Z-axis: 1,600 mm, feed rate X-axis: 25,000 m/min, feed rate Y-axis: 25,000 m/min, feed rate Z-axis: 25,000 m/min, spindle speed (max.): 4,000 rpm, table length: 8,000 mm, table width: 2,500 mm, table load: 15,000 kg, Chain ATC Tool changer 80 positions
Rotary table 1500 x 1500 with V-Axis 1500 mm
Table load 15.000 Kg
Optional Box table 3500 x 1000 x 1000 mm
Under power
X-Axis: 8000mm
Y-Axis: 3100mm
Z-Axis: 1600mm
Table Length: 8000mm
Table Width: 2500mm
Table load: 15000
Ijdpfx Adjxm Sudj Djtp
Power on spindle: 43kW
Spindle speeds: 4000Rpm
Spindle Taper: 50ISO/Bt/Mk
Feed rate X-Axis: 25000mm/min.
Feed rate Y-Axis: 25000mm/min.
Feed rate Z-Axis: 25000mm/min.
Control: iTNC530
Millinghead auto-index:2.5 x 2.5°
Length: 14000mm
Width: 6000mm
Height: 6000mm
Weight: 68000kg
Listing
Niederhelfenschwil
8,036 km
Milling Machine (floor type)
SORALUCEFLP 6000
SORALUCEFLP 6000
Call
Condition: used, Year of construction: 2017, travel distance X-axis: 6,000 mm, travel distance Y-axis: 2,200 mm, controller manufacturer: HEIDENHAIN, controller model: TNC 640, CONTROLS
.. CNC controls HEIDENHAIN TNC 640
WORKING RANGE -CUBIC-
.. number of processing axes (excl parallel axes): 5
.. X-axis travel: 6000 mm
.. Y-axis travel: 2200 mm
.. Z-axis travel: 1300 mm
SPINDLE / HEAD
.. - positioning/indexing: 2.5 °
.. drive power: 37 kW
.. spindle revolutions (max): 5000 /min
.. tool fixture: ISO SK 50
.. drive power: 43 kW
AXIS DRIVES
.. feed velocity (max): 35000 mm/min
DIMENSIONS / WEIGHTS
.. space requirements -left/right-: 14500 mm
.. space requirements -front/back-: 7500 mm
.. total height: 4905 mm
.. total weight approx.: 32000 kg
ATTACHMENTS
.. chip conveyor: yes
.. coolant unit: yes
Itjdpfxsxm Rxzj Ad Dsp
.. band filtration unit: yes
.. through spindle coolant attachment: yes
.. European CE standards: yes
tool magazine with 60 slots
Coolant system via shower ring and IKZ up to 70 bar
Coolant type Coolant lubricant / air / air with MMS
Electronic handwheel with cable transmission
Accessories:
Chip conveyor
Coolingsystem
Listing
Germany
7,683 km
Travelling column milling machine
SHWUFZ5 / UF5L
SHWUFZ5 / UF5L
Call
Condition: used, Year of construction: 2000, x-travel 6000 mm
y-travel 1600 mm
z-travel 1300 mm
control FIDIA C20 /4H-SB
tool taper SK50
spindle turning speed range 22 - 4000 U/min
SHW – UFZ5
Year of manufacture: 2000
Specifications
X-axis 6000 mm
Y-axis 1600 mm (stroke with vertical head rotated 1900 mm)
Z-axis 1300 mm
Orthogonal head 2 axes, indexed 1°
Automatically swivelling milling head holder (rear) 360x1 degree
Automatically swivelling milling head holder (front) 180x1 degree
Control: Fidia - C20 / 4H-SB
Iodpfx Adsxmaqye Djtp
SK 50 - DIN 69871
Infinitely variable feed range;
X-axis: 2–12,000 mm/min.
Y-axis: 2–18,000 mm/min.
Z-axis: 2–18,000 mm/min.
Rapid traverse;
X-axis: 12,000 mm/min.
Y-axis: 18,000 mm/min.
Z-axis: 18,000 mm/min.
Spindle/auto. Milling head: Speed 22 - 4,000 rpm
Torque max. 1180 Nm
Total current load: approx. 50 kVA/80 A.
Without clamping plate
Without chip conveyor
Listing
Montichiari
8,240 km
Travelling column milling machine
SACHMANMP 212
SACHMANMP 212
Call
Condition: used, Year of construction: 2004, travel distance X-axis: 6,000 mm, travel distance Y-axis: 2,500 mm, travel distance Z-axis: 1,400 mm, CNC HEIDENHAIN iTNC 530
X-AXIS STROKE 6000 MM
Y-AXIS STROKE 1400 MM
Z-AXIS STROKE (VERTICAL) 2500 MM
Ijdpfx Adjxhqivj Dstp
SPINDLE CONNECTION ISO 50 DIN 69871-B50
SPINDLE SPEED 5000 RPM
MOTOR POWER S1 37 KW - S6 56 KW
AUTOMATIC INDEX HEAD 1 ° X 2.5 °
TOOL CHANGER 40 PLACES
COOLANT TROUGH THE SPINDLE AND EXTERNAL
CHIP CONVEYOR
ANCHORING PLATE 8000 X 2000 MM
PERIMETER PROTECTIONS
Listing
Quarta Zona Industriale Artigianale
8,295 km
Travelling column milling machine
FPT IndustrieLEM2/RS
FPT IndustrieLEM2/RS
Call
Condition: used, Year of construction: 1994, functionality: fully functional, feed length X-axis: 1,400 mm, feed length Y-axis: 650 mm, feed length Z-axis: 850 mm, spindle speed (max.): 3,000 rpm, front and vertical axle
Itjdpfxexhfmij Ad Dop
