Unbehau & Schäfer GbR

Condition: excellent (used), METALLKRAFT Profile Steel Shear / Punch HPS 65 DS Combined Hydraulic Profile Steel Shear and Punch with Punching Station, Notching Station, and Flat Steel, Angle Steel, and Profile Steel Shear – enables simultaneous operation at punching and profile steel shear. Punching Station - Punching Force: 65 t - Punching Capacity: max. Ø 26 x 20 / Ø 57 x 10 mm* - Throat Depth: 305 mm - Stroke Length: max. 55 mm - Number of Strokes: 25 strokes/min - Working Height: 900 mm Rod Steel Shear - Cutting Capacity Round: max. Ø 45 mm* - Cutting Capacity Square: max. 45 x 45 mm* Angle Steel Shear - Cutting Capacity L-Profile 90°: 120 x 120 x 12 mm* - Cutting Capacity L-Profile 45°: 70 x 10 mm* - Cutting Capacity U/I Profile: 120 x 58 mm - Cutting Capacity T-Profile: 90 x 11 mm - Working Height: 1,140 mm Flat Steel Shear - Cutting Capacity 90°: max. 300 x 20 / 375 x 15 mm* - Miter Cut 45°: max. FL 100 x 15 mm* - Blade Length: 380 mm - Working Height: 900 mm Notching Station - Material Thickness: max. 10 mm* - Notching Width: max. 45 mm - Notching Depth: max. 90 mm - Notching Station: 100 x 100 x 10 mm Machine Data - Motor Power: 5.5 kW | 400 V - 50 Hz - Dimensions (LxWxH): 1700 x 950 x 1880 mm - Weight (net): approx. 1,600 kg Shipping on pallet via freight forwarder possible Europe-wide. Additional machines available! Take a look at our listings. If you have any questions, feel free to contact us by message or phone: Maschinenhandel Nord Gerstenstraße 2 17034 Neubrandenburg Fgodpfx Afsxizanopoh

Condition: used, functionality: fully functional, Year of construction: 2007, punching force: 80 t, Hydraulic Punching Machine GEKA Brand: GEKA Model: HYD 80 S Serial No.: 14981 Year: 2007 Punching force: 80 tons Number of stations/positions: 5 workstations (the machine allows for 2 simultaneous work positions in the Hydracrop series). Throat depth (S version): 300mm Fgsdjxgdf Uepfx Afpeh Punching capacity (typical examples): up to Ø 40x14mm Flat bar shearing: e.g. 450 × 15mm Profile cutting (L angles): typical values around 130×130×13mm Round: 45mm Square: 45mm *Delivered with 10 sets of punches and dies No.6 from 4 to 28mm of your choice

Condition: used, Year of construction: 1991, pressure 70.0 t punching cross-cut in cmm 27 in 20 mm Fgjdpfx Afoxabu Tepoh punching cross-cut in cmm 32 in 14 mm work height max. 1060 mm column arm 500 mm weight of the machine ca. 1500 kg. total power requirement 7.0 kW range L-W-H 1550 x 1200 x 1950 mm good / well-maintained condition (!!) New price approx. 21.000 euros Special price on request Equipment: - electro-hydraulic hole punch, with large projection - large GEKA stop table with movable stop system - sheet metal stripper with stripper plates - stepless stroke adjustment - die base - 1x freely movable foot switch - operating instructions (PDF)

Condition: used, Year of construction: 2007, pressure 80.0 t punching cross-cut in cmm Ø 25 in 23 mm stroke 10 - 100 mm column arm 510 mm work height max. 1050 mm no. of strokes 28 Hub/min punch diameter max. Ø 160 in 4.0 mm oil volume 103 l total power requirement 5.6 kW Fgjdsxaa Rmspfx Afpsh weight of the machine ca. 2300 kg. range L-W-H 1620 x 865 x 1980 mm good / well-maintained condition (!!) Furnishing: - heavy / robust electro-hydraulic hole punch, with large throat - Punching station with material/sheet metal scraper - large support table with movable stops - stepless stroke adjustment .. 10-100 mm - freely movable foot switch including protective cover - Crane hanging eye for easy transport - side storage areas - various punching tools (stamps + matrices) - Machine light - Collection container for punched material - Hydraulic unit, integrated - EMERGENCY STOP button, front - Three-phase motor, 400 volts, 50 Hz - User manual (PDF)

Condition: excellent (used), Year of construction: 1990, Machine sold with accessories, table for large punches, and set of punches. Specifications: Punching force: 50 T Sheet length: mm Sheet width: mm Maximum thickness (standard steel): 20 mm Sheet length with repositioning: 60 mm Sheet width with repositioning: 4 mm Maximum punching diameter: 40 mm Fedsw Nh Rhepfx Afpogh Stroke rate (strokes/min): 37 Maximum sheet weight: kg Number of tools: ----- Dimensions (L x W x H): 1500.0 × 1250.0 × 1900.0 mm Weight: 2000 kg

Condition: excellent (used), Year of construction: 2010, Punching machine – Tagliaferri OMERA OM 70/HY Used, CE 2010. Hydraulic. Combined for punching, shearing, etc. Punching force: 70 tons. Max. hole in thickness: 35 x 16 mm. Round cut: 20 / 40 mm. Square cut: 20 / 40 mm. Flat bar cut: 400 x 15 mm. Throat depth: 310 mm. Punch stroke: 0–40 mm. Strokes per minute: 24. Dimensions: 2,070 x 1,680 x 650 mm. Weight: 1,900 kg. Supplied with operation and maintenance manual. Fedpswtnucofx Afpegh

Condition: used, pressure: 70throat depth: 750messurements (LxWxH): ca. 900 x 2300 x 1900 Hole punch GEKA Puma 70/E-750 Specifications: Punching force            70 t Punching capacity      27 in 20 mm Fsdpfx Aswrkcyofpjgh Punches max. Drm.    70 in 8.0 mm or Drm.                        100 in 5.0 mm or Rectangular             50 in 8.0 mm or Rectangular             60 in 7.0 mm or Rectangular             70 in 6.0 mm Projection                     750 with -Separate PT 700 / Leonard and Bauer Economic controller for positioning table for punching -Foot switch

Condition: good (used), functionality: fully functional, Year of construction: 2012, Punching machine including accessories. Fgedpfsv T I Nbox Afpeh

Condition: new, Year of construction: 2023, Sunrise punch-cutting machine IW-80SD IW-80SD Specifications tonnage 80ton punching capacity ᴓ 26x22mm/ᴓ 50x12mm discharge 510mm angle bar 150x150x12mm 90⁰ strip 460x15mm / 300x20mm Weight 2550 KG Fgsdpfx Ajvf I Rcefpeh Multiple models available from stock.

Condition: new, Year of construction: 2024, punching force: 85 t, power: 7.5 kW (10.20 HP), PLACE OF PRODUCTION : TURKEY WARRANTY PERIOD : 12 MONTHS DELIVERY DATE : INQUIRY DELIVERY METHOD : EXW BURSA/TURKEY STANDARD FEATURES : - 12 separate hydraulic pistons and 2 separate foot controls for two people to work at the same time - 2Adjustable piston stroke distance for faster work - 3Central lubrication system - 4Backrest with electric switch - 5Working lamp - 65 separate workstations on the same body: 6.1 - Ø22 mm punch and matrix and standard drilling tools 6.2 - Full round and full square material cutting knife set 6.3 - Angle cutting knife set 6.4 - Blade and sheet metal cutting knives 6.5 - U-notching knife set TECHNICAL SPECIFICATIONS : Ton 85. Engine power Kw 7.5 Dimensions: mm 1,920 x 950 x 2,040 (L x W x H). Weight: 2.315 Kg: 2.315 Kg Fjdpfevfyngsx Afpjgh DRILLING Drilling capacity: mm Ø 33 x Thickness 20 mm. Indentation depth: mm 355. Drilling stroke: mm 80. Working height: mm 1,080. CUTTING: Sheets: mm 380 x 20. mm 480 x 15. Blade length: mm 482. Round bars: mm Ø 50. Square bars: mm 50. 90° corner profiles: 150 x 150 x 15 mm. 45° angle profiles: mm 80 x 8. SPRAYING: Max thickness: mm 13. Width: mm 52. Depth: mm 100. Working height: mm 940.

Condition: new, SAHINLER HKM 65 hydraulic punch-cutter Exerted power : Ton 65. Engine power : Kw 5.5 Dimensions (mm) : mm 1.700 x 900 x 1.670 ( L x W x H ). Weight: 1.600 Kg: 1.600 Kg PUNCHING : Punching capacity : Fodoggbuhjpfx Afpsgh mm Ø 2 x Thickness 20 mm. Recess depth: mm 305. Punching stroke : mm 55. Working height : mm 1.030. SHEARING : Plates : mm 300 x 20. mm 375 x 15. Length of blades : mm 380. Round bars : mm Ø 45. Square bars : mm 45. 90° corner profiles : 120 x 120 x 12 mm. 45° corner profiles: mm 70 x 70 x 10 SKIRTING : Max thickness : mm 10. Width : mm 45. Depth : mm 90. Working height : mm 900.

Condition: new, Combined hydraulic shear with two independent pistons, punching station with mechanical stop and adjustable piston stroke, notching, shearing of plates, bars and profiles with adjustable stop with automatic cutting control, double pedal board, centralized lubrication system, working light. Machine supplied with safety guards according to CE rules, CE conformity declaration, user manual. Power : Ton 85. Engine power : Kw 7.5 Dimensions : mm 1.920 x 950 x 2.040 ( L x W x H ). Weight: 2.315 Kg: Fgsdjggbt Sopfx Afpjh 2.315 Kg PUNCHING : Punching capacity : mm Ø 33 x Thickness 20 mm. Recess depth: mm 355. Punching stroke : mm 80. Working height : mm 1.080. SHEARING : Plates : mm 380 x 20. mm 480 x 15. Length of blades : mm 482. Round bars : mm Ø 50. Square bars : mm 50. 90° corner profiles : 150 x 150 x 15 mm. Angle profiles at 45°: mm 80 x 8. SKIRTING : Max thickness : mm 13. Width : mm 52. Depth : mm 100. Working height : mm 940.

Condition: used, Max. punching force: 650 kN For example, it can drill a 20 mm hole in 20 mm steel. For further performance data, see the nameplate or request. Includes a selection of punches and dies. Fsdpfx Afsf Nwqlspjgh

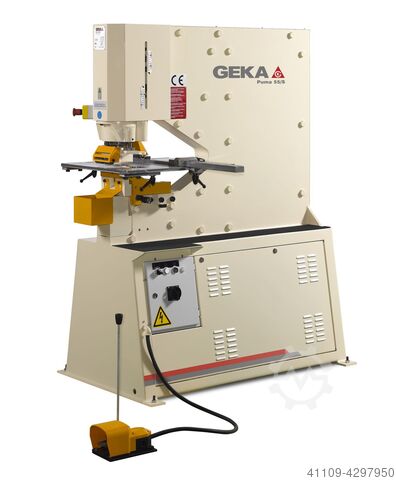

Condition: new, Hydraulic hole punch model PUMA 55 Fodpfx Aefdgh Tofpjgh For punching sheet metal, flat steel and steel profiles Technical data: punching force 550 kN Max. Punching capacity Ø 40 in 10 mm Throat 500 mm Engine power 5 kW Stroke rate with 20 mm stroke 38 /min maximum stroke 60 mm Machine weight at outreach 500: 1150 kg Optional accessories available, please ask for price. Optional extras: Oversized punching unit up to 100 mm complete Base table plate for oversized punching equipment Throat 500 mm Laser positioning unit integrated in the downholder Multi-position table For Puma 55 S table size 1000 x 650 mm (see figure 2) Punching device for UNP and INP from 40-80 mm Special die for this Linear rail 2000 mm, complete with 8 tilt stops, Linear punching table with fence ruler and 2 finger stops with console Automatic positioning table Semi Paxy with stop in 2 axes incl. control B&R Table 1000 x 400 mm with B&R control 15" Table 2000 x 400 mm with B&R control 15" (Table can be extended by the meter up to 5000mm) (Figure 3 shows 15" controller) service: Training and instruction incl. travel expenses
