Proto Tools Kft

Condition: like new (used), Year of construction: 2023, INJECTION MOLDING MACHINE Arburg ALLROUNDER 1300 T 1000 – 170 Year of manufacture: 2023 Technical Specifications Clamping Unit: Ndedpfexzklqox Ah Dod Clamping force: 1000 kN – ensures high process stability Rotary table diameter: 1300 mm – optimizes production cycle Usable mold mounting area: 800 × 590 mm Minimum mold height: 300 mm Maximum daylight between platens: 585 mm Injection Unit (3 interchangeable cylinders): Cylinder Ø 30 mm: 83 cm³ at 2200 bar Cylinder Ø 40 mm: 140 cm³ at 1250 bar Cylinder Ø 20 mm: 36 cm³ at 2500 bar Additional equipment: - 2 hydraulic cores – for operating complex molds - 2 pneumatic valves – for additional mold functionalities - GK control – enables direct control of 3 heating zones from the machine - SELOGICA DIRECT control system – precise process control, capability for custom sequence programming Year of manufacture: 08/2023 Pump operating hours: 1062 h Detailed Description The machine is fitted with a hydraulic system featuring two energy-efficient variable displacement pumps and a servo valve for precise pressure and movement control. The hydraulic power unit is mounted outside the injection molding machine’s frame, significantly reducing operational noise. Thanks to precision filters and low oil volume, the oil change interval is extended to 20,000 hours. T2 servo-regulation technology includes: - Two adjustable variable delivery pumps - Programmable, adjustable, and stabilized clamping force - Programmable and manually adjustable nozzle contact force - Capability for simultaneous (parallel) movements (nozzle, ejector, cores) The machine is also equipped with: - Additional continuous oil filtration and cooling system (bypass circuit) - AES system – automatic optimization of main drive operation, reducing energy consumption by smoothly adjusting pump speed according to machine load (for 15–75 kW motors, 380–480V, 50–60 Hz). Required option: 525/02 – adjustable machine cooling circuits Tool plates are equipped with a central injection position and a Ø 125 mm centering hole.

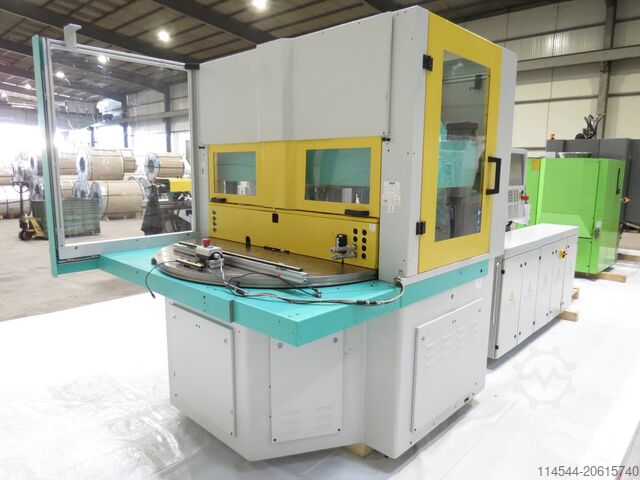

Condition: excellent (used), Year of construction: 2014, ARBURG A 1500 T 1600-400 rotary table (29.279 h) (S&P 3786) Manufacture year: 2014 Operating hours: 29,379 Stunden Screw: 35 mm Injection pressure: 2500 bar Stroke volume: 154 cm³ Clamping Force: 150 t Tie bar distance: 1500 mm Mould installation height min.: 400 mm Nsdpjxzfv Rofx Ah Djdd Plate distance max.: 700 mm Dimensions: 4600 x 1900 x 2300 mm Eeight: 11000 kg Connected load: 22 kW 1500mm Table-diameter, 2-station (180°) turntable, 4 x Corepuller, Airvalve, Interface Colorizing, Interface Robot etc... Price: on request contact: Mr. Ralf Schulz

Condition: ready for operation (used), Year of construction: 2007, operating hours: 64,291 h, functionality: fully functional, clamping force: 1,200 kN, screw diameter: 35 mm, displacement volume: 154 cm³, injection pressure: 1,595 bar, installation height: 300 mm, TECHNICAL DETAILS Clamping force: 1,200 kN Screw diameter: 35 mm Shot volume: 154 cm³ Injection pressure: 1,595 bar Platen size: 740 mm x 470 mm Minimum mold height: 300 mm Maximum platen distance: 800 mm Opening stroke: 507 mm MACHINE DETAILS Control system: CC100 Dimensions & Weight Machine dimensions (L x W x H): 4.35 m x 2.2 m x 2.1 m Total weight: 7,300 kg Operating hours: 64,291 h EQUIPMENT Screen language German & English CEE socket 16 A Hydraulic core pull 2x Handling unit Conveyor belt Safety enclosure Levelling elements EUROMAP 12 interface Ndedpoxzfl Ssfx Ah Dsd Interface for ejector plate monitoring Schuko socket 10 A

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, clamping force: 1,300 kN, screw diameter: 55 mm, displacement volume: 510 cm³, injection pressure: 1,650 bar, ejector force: 61,000 N, Injection moulding machine, function-tested and immediately ready for operation by an Engel specialist technician! Inspection with dry run possible at any time. TECHNICAL DETAILS Clamping force: 1,300 kN Screw diameter: 55 mm Shot volume: 510 cm³ Injection pressure: 1,650 bar Ejector force: 61,000 N Ejector stroke: 150 mm Platen length: 750 mm Platen width: 750 mm Opening stroke: 600 mm Screw length: 20 l/d Minimum mould installation height: 300 mm Maximum platen distance: 900 mm Daylight: 900 mm Ndsdpexzfkbofx Ah Djd MACHINE DETAILS Control system: CC200 Power supply type: Three-phase current Input frequency: 50 Hz Input voltage: 400 V Dimensions & Weight Machine dimensions (L x W x H): 5.8 m x 1.7 m x 2.3 m Total weight: 9,500 kg Operating hours: 24,896 h EQUIPMENT Documentation/manual Display language: German CEE socket 16A Hydraulic core pull 1x Water manifold Levelling elements EUROMAP 67 interface Interface for ejector plate monitoring Schuko socket 10A Mould heating 8x Note: The machine is sold without material hopper and safety guarding.

Condition: ready for operation (used), Year of construction: 2005, operating hours: 64,218 h, functionality: fully functional, clamping force: 2,000 kN, screw diameter: 50 mm, clearance between the columns: 520 mm, displacement volume: 392 cm³, injection pressure: 2,000 bar, TECHNICAL DETAILS Clamping force: 2,000 kN Screw diameter: 50 mm Tie bar distance: 520 mm Shot volume: 392 cm³ Injection pressure: 2,000 bar Mould height (h x v): 520 x 520 mm Platen size (h x v): 728 x 728 mm Minimum installation height: 250 mm Maximum platen opening: 900 mm Opening stroke: 650 mm MACHINE DETAILS Nodpfjxzfh Tsx Ah Dodd Control system: Selogica Dimensions & Weight Machine dimensions (L x W x H): 5.45 m x 1.95 m x 2.1 m Total weight: 7,300 kg Operating hours: 64,218 h EQUIPMENT Screen language: German CEE socket 16A Hydraulic core pull 1x Pneumatic core pull 1x Air valve 1x Water battery Levelling elements EUROMAP 12 interface Interface for handling Schuko socket 10A Mould heating 12x Note: Machine is sold without material hopper.

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, clamping force: 1,100 kN, screw diameter: 40 mm, clearance between the columns: 470 mm, displacement volume: 217 cm³, injection pressure: 2,377 bar, The machine has been partially refurbished and is ready for immediate use! The clamping side has been completely refitted with new seals and two almost new tie bars have been installed! TECHNICAL DETAILS Clamping force: 1,100 kN Screw diameter: 40 mm Distance between columns: 470 mm Nsdpfxsxzfg Ns Ah Djdd Shot volume: 217 cm³ Ejector force: 22,000 N Ejector stroke: 150 mm Clear opening: 900 mm Injection pressure: 2,377 bar Opening stroke: 600 mm Platen length: 770 mm Platen width: 745 mm Minimum mould height: 300 mm Maximum daylight: 900 mm MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 4,400 x 1,500 x 2,120 mm Total weight: 6,000 kg Power supply type: Three-phase current Input frequency: 50 Hz Input voltage: 400 V EQUIPMENT Documentation / manual Display language: German CEE socket 16 A CEE socket 32 A Hydraulic core pull 2x Air valve, movable WAP Levelling elements EUROMAP 12 interface Schuko socket 10 A Note: The machine is sold without a material hopper and water battery.

Condition: ready for operation (used), Year of construction: 2010, operating hours: 54,872 h, functionality: fully functional, clamping force: 2,500 kN, screw diameter: 55 mm, clearance between the columns: 630 mm, displacement volume: 570 cm³, injection pressure: 2,387 bar, TECHNICAL DETAILS Clamping force: 2,500 kN Injection pressure: 2,387 bar Screw diameter: 55 mm Tie bar spacing: 630 mm Shot volume: 570 cm³ Ejector force: 58,000 N Ejector stroke: 200 mm Opening stroke: 820 mm Mold size H x V: 630 x 630 mm Platen size H x V: 995 x 1,050 mm Minimum mold height: 330 mm Maximum daylight: 1,150 mm MACHINE DETAILS Control system: MC5 Dimensions & Weight Dimensions (L x W x H): 6,500 x 2,200 x 2,300 mm Total weight: 15,000 kg Input frequency: 50 Hz Input voltage: 400 V Operating hours: 54,872 h EQUIPMENT Documentation/manual 2x temperature control units for hot runner Screen text: German CEE socket 16A Accumulator for increased injection performance + ejector or core pull parallel operation Hydraulic core pull 1x Air valve 4x Material hopper Water manifold Leveling elements EUROMAP 12 interface EUROMAP 67 interface USB interface Schuko socket 10A Njdpoxzd R Tefx Ah Djdd Wear-resistant plasticizing unit Note: Machine is sold without handling unit.

Condition: ready for operation (used), Year of construction: 2018, operating hours: 9,585 h, functionality: fully functional, clamping force: 1,600 kN, screw diameter: 55 mm, clearance between the columns: 520 mm, displacement volume: 523 cm³, injection pressure: 1,904 bar, TECHNICAL DETAILS Clamping force: 1,600 kN Screw diameter: 55 mm Tie bar spacing: 520 mm Injection pressure: 1,904 bar Mold dimensions (h x v): 520 x 470 mm Platen size (h x v): 710 x 660 mm Shot volume: 523 cm³ Ejector force: 33,000 N Ejector stroke: 150 mm Minimum mold height: 200 mm Maximum mold height: 600 mm Opening stroke: 1,050 mm MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 6,700 x 1,600 x 2,300 mm Total weight: 10,900 kg Power supply type: Three-phase current Operating hours: 9,585 h EQUIPMENT Display language German CEE socket 16 A CEE socket 32 A Accumulator for increased injection performance 3 freely programmable inputs and outputs each Core pull pneumatic 2x Water manifold Levelling elements Interface for dosing unit Interface for temperature control unit USB interface Schuko socket 10 A Low-wear plasticizing unit Tool heating 24x Ndsdpfx Asxzd Nvjh Dod Note: Machine is sold without material hopper.

Condition: good (used), Year of construction: 2006, operating hours: 58,401 h, machine/vehicle number: 61007671, Technical details Clamping force: 4200 kN Size of mould platens (H x V): 800 mm x 800 mm Mould opening stroke: 1020 mm Minimum mould height: 380 mm Maximum mould height: 1400 mm Max daylight: 1380 mm Hydraulic ejector – stroke: 250 mm Ejector force forward/backward: 95 kN Injection unit Screw diameter: 80 mm Ndodpexzdqaefx Ah Ded Injection pressure: 1829 bar Stroke volume: 1433 ccm Shot weight PS: 513 g Screw speed: 218 1/min Maximum plasticising rate: 108 g/sec

Condition: good (used), Year of construction: 2002, operating hours: 7,192,484 h, functionality: fully functional, machine/vehicle number: 58985, Technical details Clamping force: 3500 kN Size of mould platens (h x v): 1100 mm x 1016 mm Distance between tie bars (h x v): 800 mm x 710 mm Mould opening stroke: 670 mm Mould height min: 375 mm Mould height max: 710 mm Max daylight: 1380 mm Hydraulic ejector - stroke: 250 mm Ejector force forward/backward: 81 kN Nsdpfjxzdnrjx Ah Dodd Injection unit Screw diameter: 55 mm Ls/D ratio: 22 Injection pressure: 2041 bar Stroke volume: 653 ccm Shot weight PS: 594 g Screw speed: 253 1/min Plasticising rate max: 52 g/sec

Condition: used, Year of construction: 2005, functionality: fully functional, machine/vehicle number: 193818, clamping force: 2,000 kN, screw diameter: 50 mm, clearance between the columns: 470 mm, injection pressure: 2,080 bar, injection weight: 297 g, ejector stroke: 225 mm, opening stroke: 650 mm, plate width: 685 mm, plate height: 685 mm, installation height: 250 mm, total length: 5,500 mm, total width: 1,600 mm, total height: 2,160 mm, overall weight: 6,630 kg, number of injections: 1, input current: 125 A, Equipment: documentation/manual, All items are sold as used and untested unless otherwise specified. Only the injection moulding machine is offered for sale, without handling device or accessories. Please pay attention to the item description. Nsdpfexy Iugsx Ah Dedd

Condition: ready for operation (used), Year of construction: 2013, operating hours: 27,551 h, General Data Nodpfx Ajxy Anzoh Dedd Measurements width 1260 mm Measurements depth 6460 mm Measurements height 2100 mm Clamping Unit Clamping force 2200 kN Additional Equipment Sepro Robot SDR 22 This SUMITOMO SHI DEMAG IntElect 220/610-750 smart was manufactured in 2013. It's an electrical injection moulding machine known for its precision and efficiency. Ideal for those looking to enhance their production capabilities with reliable technology. Contact us for more information. Application Types Injection Moulding

Condition: ready for operation (used), Year of construction: 2013, operating hours: 17,577 h, General Data Ndodpfx Ahexy Anns Dod Measurements width 1460 mm Measurements depth 5370 mm Measurements height 2060 mm Clamping Unit Clamping force 1600 kN Additional Equipment Sepro Robot SDR 11 This SUMITOMO SHI DEMAG IntElect 220/610-750 smart was manufactured in 2013. It's an electrical injection moulding machine known for its precision and efficiency. Ideal for those looking to enhance their production capabilities with reliable technology. Contact us for more information. Application Types Injection Moulding

Condition: ready for operation (used), Year of construction: 2005, operating hours: 79,600 h, General Data Machine weight 22500 kg Nedpfexy Anbjx Ah Dsdd Clamping Unit Clamping force 4000 kN Injection Unit Shot weight 1860 g Screw diameter 90 mm This Arburg 820S-4000-3200 was manufactured in 2005. It features a clamping force of 4000 kN, a screw diameter of 90 mm, and a shot weight of 1860 g. The machine operates with a SELOGICA control system and has a total installed power of 96.2 kW. Consider the opportunity to buy this Arburg 820S-4000-3200 hydraulic injection moulding machine. Contact us for further details regarding this machine. Application Types Injection Moulding

Condition: excellent (used), Year of construction: 1999, Engel ES 650/150 HL Clamping force: 150 tons Year of manufacture: 1999 Ndodpfx Ajxy Ak Nsh Ded Screw diameter: 45 mm

Condition: used, Year of construction: 1991, Glöckchen förmatik Nsdpfoxy Ai Esx Ah Dodd Clamping force 160 tons Year of manufacture 1991

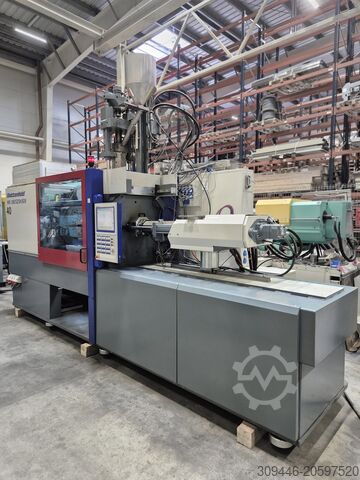

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, clamping force: 1,800 kN, Battenfeld HM 180 /525H/60V Clamping force: 180 t Year of manufacture: 2009 Injection weight: 175/20.8 g Injection unit .../525/....60 Screw diameter 35/18 mm Specific injection pressure 2743/2593 bar Injection volume 193/22.9 ccm Injection weight 175/20.8 g Screw L/D ratio 22/20 Mould clamping unit 180/... Clamping force 180 t Space between tie bars 570 x 520 mm Mould height 305 mm Ejector stroke Nsdjxyw Euepfx Ah Dodd 200 mm Year of manufacture 2009 Equipment: - Servo-driven rotary table - 3 x hydraulic core pull

Condition: excellent (used), Year of construction: 2007, clamping force: 2,000 kN, screw diameter: 55 mm, displacement volume: 618 cm³, injection pressure: 2,183 bar, injection weight: 562 g, mold height (min.): 400 mm, ejector stroke: 180 mm, Engel VC 1350/200 Tech Clamping force: 200 tons Year of manufacture: 2007 Weight: 14,200 kg Dimensions (L x W x H): 6.3 x 1.9 x 2.3 m Injection unit: .../1350 Screw diameter: 55 mm Injection volume: 618 cm³ Shot weight (for PS): 562 g Specific injection pressure: 2,183 bar Mould clamping system: 200/... Mould platen dimensions: 860 x 570 mm Mould installation height: 400 mm Opening stroke: 750 mm Maximum platen distance: 1,150 mm Ejector stroke: 180 mm Nedpfx Ahsxywgxj Dsdd Ejector force: 80 kN Equipment: - 2 × hydraulic core on moving platen - Pneumatic valve - 8 hot runner zones - 8-section rotameter

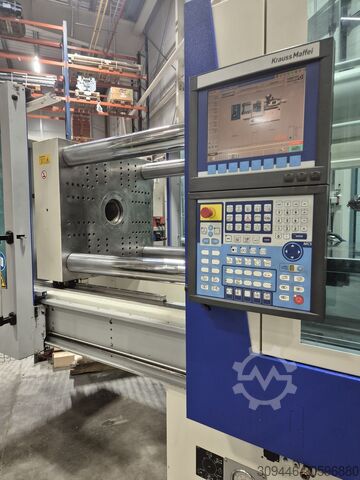

Condition: excellent (used), Year of construction: 2011, clamping force: 1,300 kN, screw diameter: 45 mm, clearance between the columns: 470 mm, displacement volume: 318 cm³, injection pressure: 2,336 bar, injection weight: 289 g, mold height (min.): 300 mm, General Information Model: Krauss Maffei KM 130/750 CX Year of manufacture: 2011 Control system: MC5 Machine weight: 6,200 kg Dimensions (L × W × H): 4.5 × 1.5 × 2.2 m ⚙️ Injection Unit Unit: .../750 Screw diameter: 45 mm Injection volume: 318 cm³ Nodpfx Ahexywfus Djdd Shot weight: 289.4 g Specific injection pressure: 2,336 bar Screw L/D ratio: 22.4 🔩 Clamping Unit Clamping unit: 130/... Clamping force: 130 t Platen dimensions: 745 × 770 mm Distance between tie bars: 470 × 470 mm Min. mould height: 300 mm Opening stroke: 600 mm Max. distance between platens: 900 mm Ejector force: 22.6 kN Ejector stroke: 150 mm 🧰 Additional Equipment Hydraulic core Pneumatic valve 4-section rotameters (2 pcs.)

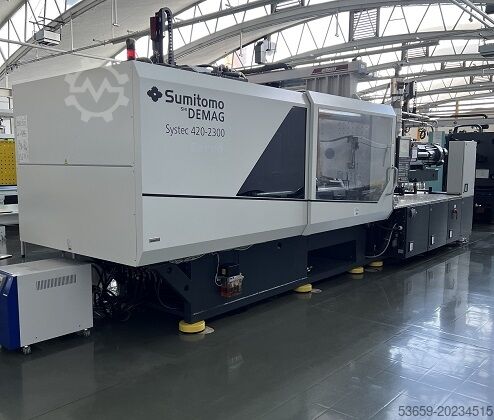

Condition: excellent (used), Year of construction: 2017, screw diameter: 70 mm, displacement volume: 1,212 cm³, injection pressure: 1,877 bar, injection weight: 1,103 g, mold height (min.): 380 mm, Demag Systec 420/820-2300 (Servo) Year of manufacture: 2017 Weight: 21,000 kg Dimensions (L × W × H): 8.0 × 2.3 × 2.6 m Control system: NC5 Operating hours: 10,800 h Clamping unit type: 420/... Nedpsxywd Dofx Ah Dedd Clamping force: 420 t Platen size (H × V): 1200 × 1200 mm Tie bar spacing (H × V): 820 × 820 mm Mold height (min.–max.): 380 – 1050 mm (increased by 225 mm) Maximum distance between platens: 1050 mm Opening stroke: – Ejector stroke: 230 mm Ejector force: 96 kN Knee lever mechanism with central oil lubrication Injection unit type: …/2300 Screw diameter: 70 mm Screw L/D ratio: 20 Injection volume: 1212 cm³ Shot weight: 1103 g Specific injection pressure: 1877 bar Hydraulic screw drive, motor I (high speed) Screw with wear protection (double bimetal, L:D standard) Additional equipment Rotary Servo Technology variable displacement pump (activeDrive) 5/2 pneumatic valve no. 1 for mold moving components (programmable, central compressed air connection, pipe installation) Freely programmable inputs/outputs (3 inputs, 3 outputs) Interface for additional nozzle band heater (socket) 2 core pull circuits controlled by proportional valves, pressure-independent (programmable with unlockable check valves against core drift) Interface for handling devices according to EUROMAP 67 (50-pin) Interface for dosing devices ("Dosing" signal) Ejector with position control, programmable independently of P/F+v, parallel to mold movement Ejector movement controlled by proportional valve, stepless adjustment Reinforced oil cooler (cooling water inlet up to 35 °C)

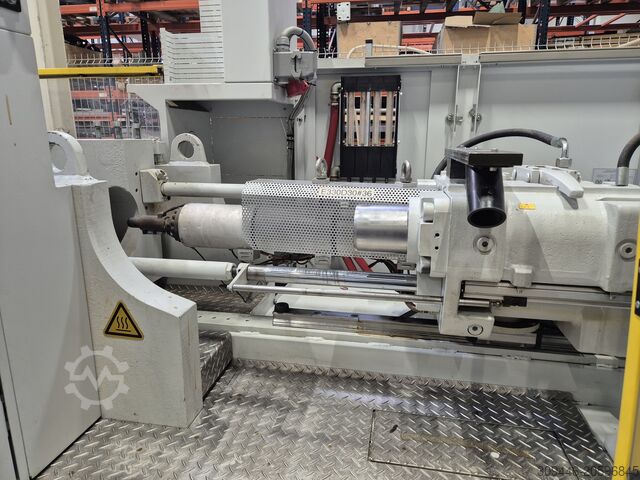

Condition: excellent (used), Year of construction: 2004, clamping force: 1,100 kN, screw diameter: 30 mm, displacement volume: 113 cm³, injection pressure: 2,178 bar, injection weight: 103 g, Engel Victory 330/110 Tech General Information Year of manufacture: 2004 Control system: CC200 Weight: 7,400 kg Dimensions (L × W × H): 5.2 × 1.6 × 2.2 m Injection Unit: 330/... Screw diameter: 30 mm Specific injection pressure: 2,178 bar Injection volume: 113 ccm Shot weight: 103 g Clamping Unit: 110/... Clamping force: 110 t Ndjdpoxywdqjfx Ah Dsd Platen dimensions: 680 × 740 mm Tie bar spacing: without tie bars mm (no exact value) Opening stroke: 500 mm Ejector System Ejector force: 40 kN Ejector stroke: 130 mm

Condition: excellent (used), Year of construction: 2005, Arburg 720 S 3200-2100 Injection Moulding Machine Year of manufacture: 2005 Machine in very good technical condition, fully operational, ready for immediate use in an industrial facility. Clamping force factory increased by Arburg to 3600 kN. Clamping unit Clamping force: 3600 kN Platen dimensions (H × W): 1040 × 1040 mm Tie bar spacing (H × W): 720 × 720 mm Minimum / maximum mould height: 300 mm Maximum opening stroke: 1400 mm Injection unit Screw diameter: 70 mm Nedpfx Aexyq H Ejh Dsdd Injection volume: 1078 cm³ Shot weight: 984 g Injection pressure: 2000 bar Electrical-hydraulic equipment Pump motor rated power: 55 kW Heater power: 30.3 kW Dimensions & weight Net weight with control cabinet: 17 t

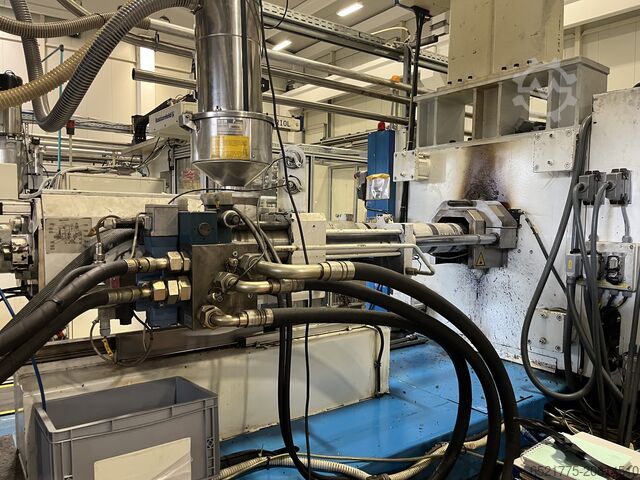

Condition: excellent (used), Year of construction: 2011, Battenfeld HM 300/1330 Injection Moulding Machine Brand: Battenfeld Model: HM 300/1330 Year of Manufacture: 2011 Category: Injection Moulding Machines The machine is in very good technical condition, fully operational, and ready for immediate production. Perfectly suited for industrial manufacturing requiring high performance and reliability. Clamping Unit: Clamping force: 3000 kN Platen dimensions (H × W): 1020 × 1030 mm Clearance between tie bars (H × W): 710 × 610 mm Minimum / maximum mould height: 375 mm Maximum opening stroke: 1150 mm Injection Unit: Screw diameter: 55 mm Njdpfoxyqxzjx Ah Dsdd Injection volume: 653 cm³ Shot weight: 600 g Injection pressure: 2040 bar Dimensions & Weight: Length × width × height: 12.2 m The machine is available for inspection and testing under power. Photos and demonstration videos can be provided upon request. Loading and transport can be arranged.

Condition: excellent (used), Year of construction: 2011, Battenfeld HM 300/1330 Injection Moulding Machine Brand: Battenfeld Model: HM 300/1330 Year of manufacture: 2011 Category: Injection Moulding Machines The machine is in very good technical condition, fully operational, and ready for immediate use. Ideally suited for industrial production requiring high performance and reliability. Clamping Unit Clamping force: 3000 kN Platen dimensions (H × W): 1020 × 1030 mm Tie bar spacing (H × W): 710 × 610 mm Minimum / maximum mould height: 375 mm Maximum platen opening: 1150 mm Injection Unit Screw diameter: 55 mm Injection volume: 653 cm³ Shot weight: 600 g Injection pressure: 2040 bar Nsdpfx Ahsxyqxuj Djdd Dimensions and weight Length × width × height: 12.2 m The machine is available for inspection and testing under power. Photos and demonstration videos can be provided upon request. Loading and transport can be arranged.

Condition: excellent (used), Year of construction: 2011, Battenfeld HM 300/1330 Injection Moulding Machine Brand: Battenfeld Model: HM 300/1330 Year of manufacture: 2011 Category: Injection Moulding Machines The machine is in very good technical condition, fully operational, and ready for immediate use. Ideally suited for industrial production requiring high performance and reliability. Clamping Unit Clamping force: 3000 kN Nsdpfx Ahoxyqw Rs Dsdd Platen dimensions (H × W): 1020 × 1030 mm Tie bar spacing (H × W): 710 × 610 mm Minimum / maximum mould height: 375 mm Maximum platen opening: 1150 mm Injection Unit Screw diameter: 55 mm Injection volume: 653 cm³ Shot weight: 600 g Injection pressure: 2040 bar Dimensions and weight Length × width × height: 12.2 m The machine is available for inspection and testing under power. Photos and demonstration videos can be provided upon request. Loading and transport can be arranged.
