Condition: like new (used), Year of construction: 2010, Retrofitted: 2025/2026 Numerical control: HEIDENHAIN TNC-i530 Technical features Dimensions Table dimensions: 8500 x 2500 mmMaximum weight on table: 35000 kgNumber of T slots: 17T slots dimensions: 22 mm Traverses of axis X axis traverse: 8000 mmY axis traverse: 3800 mmZ axis traverse: 1500 mmVertical capacity (VC): 168 / 1168 mmDistance between columns: 3100 mm Milling head Auto-indexing differential head (UAD - 0,02º)Tool clamping system: HydraulicTaper nose: ISO50 (DIN69871) / Pull stud: DIN69872Speed range: 6000 rpmSpindle power: 30 kW Feedrates Rapid feedrate (X / Y,Z): 7200 / 12000 mm/min Weight and dimensions Machine weight approximate: 79000 KgMachine dimensions approximate: 22700 x 7660 x 6800 mm Accesories Guarding: 2 sliding doors with a new perimetral wire-mesh safety fenceAutomatic tool changer: ATC-60Chip conveyor: 2longitudinal hinge typeElectronic handwheel: New HR-510Coolant: External internal high pressure through spindle Sales conditions Guarantee: 6 months mechanical spare partsPrice and sale conditions: On request View all technical features Dcsdpfx Asxllilscwen

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 6,000 mm, travel distance Y-axis: 3,200 mm, travel distance Z-axis: 1,400 mm, table length: 6,000 mm, table width: 3,000 mm, spindle speed (max.): 24,000 rpm, distance between stands: 4,000 mm, Technical Specifications • Table clamping area: 6,000 × 3,000 mm • X-axis (longitudinal travel): 6,000 mm Dcsdpfx Asxlip Ascwsn • Y-axis (cross travel): 3,200 mm • Z-axis (vertical travel): 1,400 mm • Distance between columns: 4,000 mm • Feed speed: 30,000 mm/min • Table load: 4,000 kg/m² • Max. spindle speed: 24,000 rpm • Max. spindle power (S1-100%): 42 kW • Max. spindle torque (S1-100%): 67 Nm • Tool holder: HSK63A • Tool changer: 24 positions • C-axis: ±360° • A-axis: +95° / -110°

Condition: as good as new (ex-display), Year of construction: 2023, operating hours: 1,700 h, functionality: fully functional, machine/vehicle number: MP7/5/P, travel distance X-axis: 730 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 400 mm, feed length X-axis: 585 mm, feed length Y-axis: 250 mm, feed length Z-axis: 400 mm, feed rate X-axis: 50 m/min, feed rate Y-axis: 50 m/min, feed rate Z-axis: 50 m/min, spindle speed (min.): 1 rpm, spindle speed (max.): 42,000 rpm, rapid traverse X-axis: 80 m/min, rapid traverse Y-axis: 80 m/min, rapid traverse Z-axis: 80 m/min, type of input current: three-phase, table load: 60 kg, workpiece weight (max.): 60 kg, overall weight: 8,000 kg, MP7-5 Axis with integrated pallet changer 5-axis with rotary/swivel axis Travel range X/Y/Z 585x250x400 mm Travel range B +/- 105 degrees Travel range C continuous Workpiece weight 60 kg Distance machine table to spindle nose 450 mm Machine dimensions (W x D x H) 2845 x 2370 x 3000 mm Machine weight 8000 kg Spindle speed 42,000 rpm Equipment: Control: Heidenhain TNC640 Main spindle: HVC140 HSK-E40 with rotary union for internal media supply - Max. speed 42,000 rpm - Milling power S1/S6 10 kW / 13 kW - For internal coolant supply, air and emulsion Oil mist extraction for oil/emulsion Dust extraction: L-CUT Machine-integrated workpiece changer for 36x EROWA ITS50 or 18x EROWA ITS115 Hand-held control unit with electronic handwheel and enabling switch Measuring probe system: Renishaw OMP400 Dcodpsxlctbofx Acwjn Aerosol DRY LUBRICATION (ADL) - Precise dosage of media externally and through the tool Rotary table chuck: EROWA PowerChuck P on 5-axis Blum laser: LC50 Media distributor: MHT Tool changer 90 positions, HSK E40 Warranty: 12 months Transport Initial commissioning on site Training

Condition: used, Year of construction: 1993, operating hours: 23,927 h, functionality: fully functional, machine/vehicle number: 85280, travel distance X-axis: 3,200 mm, travel distance Y-axis: 1,350 mm, travel distance Z-axis: 350 mm, overall weight: 23,000 kg, spindle mount: MK 4, Control: Siemens Sinumerik with magnetic clamping table, dimensions 4,000x1,500 mm, due to insolvency. Can be inspected under power. Dodpfsxk U T Rjx Acwjcn

Condition: good (used), functionality: fully functional, spindle speed (max.): 6,000 rpm, spindle speed (min.): 30 rpm, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 1,150 mm, table length: 2,800 mm, table width: 1,500 mm, Equipment: rotational speed infinitely variable, X-axis: 3.000 mm Y-axis: 2.000 mm Z-axis: 1.150 mm Table size: 2.800 x 1.500 mm Spindle nose: ISO 50 Spindle speeds: 30 - 6.000 rpm ATC: 50 pockets CNC controller: OSP7000M Distance between columns: 2.050 mm Featured with: - Vertical milling head attachement - Touch probe - Double chip conveyor (recently renewed) - Cooling unit (recently renewed) - Machine manuals Dedpsxixrbjfx Acwecn Country of origin: Japan Machine LxWxH: 9.000 x 3.500 x 3.500 mm +/- Machine weight: 27.500 kg

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 6,612 mm, travel distance Y-axis: 5,645 mm, travel distance Z-axis: 1,250 mm, table length: 7,000 mm, table width: 2,500 mm, spindle speed (max.): 4,500 rpm, distance between stands: 3,800 mm, Technical Data • Table clamping surface: 7,000 × 2,500 mm • X-axis (longitudinal travel): 6,000 + 612 mm • Y-axis (cross travel): 4,670 + 975 mm • Z-axis (vertical travel): 1,250 mm • W-axis (vertical travel): 1,200 mm • Distance between uprights: 3,800 mm • Distance table surface – spindle nose: 2,015 mm • Drive power AC motor: 60 kW • Spindle speed, 2-step, digital spindle drive: 60 – 4,500 rpm • Feed rate in CNC operation (rapid traverse): up to 10,000 mm/min • X-axis: 20,000 mm/min • Y- and Z-axis each: 25,000 mm/min • C-axis rotary table: ±180° • 45° milling head rotation: 360° Dsdpfxjxgr Epe Acwocn Main components of the machine • Heidenhain path control iTNC 530 with 15" monitor • Tool changer with 60 positions • Rotary table for operation with multiple milling heads and automatic milling head change, consisting of collet system for holding various milling heads, quick couplings for hydraulic, coolant, and power supply, as well as the corresponding electrical safety switches • Centering of the milling heads on the rotary table using Hirth face toothing (on the mounting plate and respective milling head) • 2 x milling heads: straight-head adaptor (direct spindle), automatic 45° milling head • Crossbeam motorized traversable (for positioning only) • Operator platforms: 2 operator platforms with protective enclosure and integrated control panel, traveling along X-axis, each with 2 doors • Chip conveyor on both sides of the table plus a transverse conveyor • X-axis longitudinal and Y-axis cross drive by rack and pinion with 2 servomotors (play-free electronic pre-tensioning, master-slave principle) • Z-axis vertical adjustment by ballscrew (Ø 80) with preloaded double nut • Zayer guideway system made of inlaid or bolted, hardened steel strips • All axes equipped with INA roller recirculating shoes on each track surface • Counter-guides on all axes with additional polymer coating for optimal damping • Anchoring and leveling elements • The machine complies with the currently applicable EC directives The above information is taken from the machine documentation. The seller assumes no liability for completeness or accuracy. The decisive factors are the actual technical data and functions of the machine.

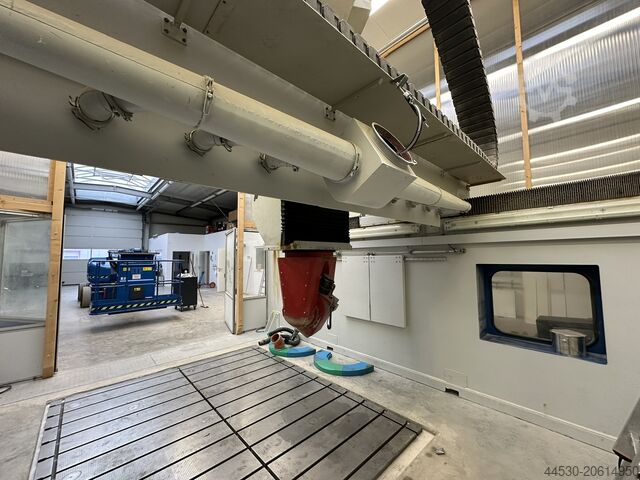

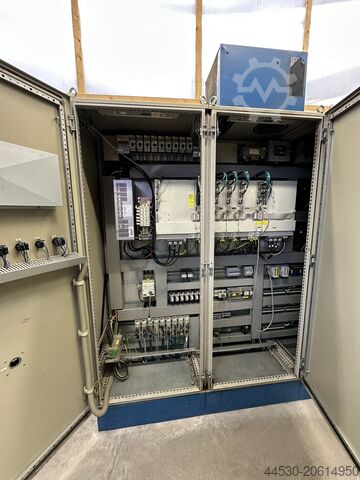

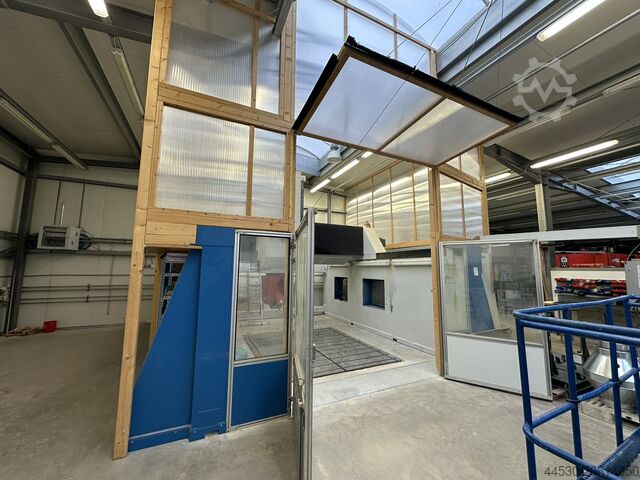

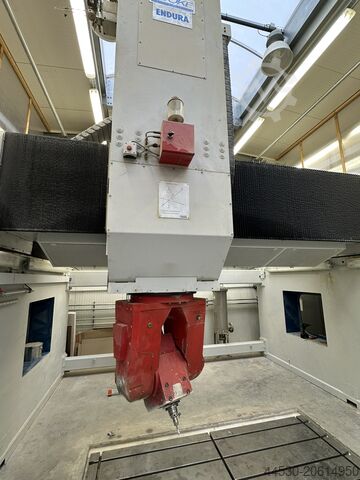

Condition: good (used), Year of construction: 1999, travel distance X-axis: 3,000 mm, travel distance Y-axis: 2,500 mm, travel distance Z-axis: 1,150 mm, total length: 6,000 mm, total width: 5,200 mm, rapid traverse X-axis: 20 m/min, rapid traverse Y-axis: 20 m/min, rapid traverse Z-axis: 10 m/min, Manufacturer/ Make: FOOKE Model/ Type: Endura Type 8 Year of manufacture/ YOM: 1999 Control: Siemens 840 D Powerline Tool holder/ Tool holder: HSK-A63 Max. speed/ max. rpm: 16,000 X-Way/ X-Way: 3000 mm Dedpfoxgg Urjx Acwscn Y-Way/ Y-Way: 2500 mm Z-Way/ Z-Way: 1150 mm A-Axis/ A-Axis: +/- : 100 mm C-Axis/ C-Axis: +/- : 181.5 mm Table size/ Table size: 3000 mm x 2500 mm Option/ option: Blowing air outside Kinematics/ kinematics: Clevis

Condition: good (used), Year of construction: 2009, travel distance X-axis: 6,230 mm, travel distance Y-axis: 4,250 mm, travel distance Z-axis: 1,100 mm, table length: 6,000 mm, table width: 3,000 mm, table load: 15,000 kg, Portal milling machine KAO MING - KMC 636 Multiface Double guideway four box way construction Head changer for Multi-Face machining off larger compontents ATC tool changer for Horizontal and vertical milling head swivabel Distance table spindle nose    345 - 1445 mm Distance table spindle center 132 - 1232 mm Indexing Horizontal head 5 Degrees x 72 positions HeidenHain iTNC530 with HR410 handwheel Spindle torq 1018 Nm ISO50  X - Travel: 6230mm Y - Travel: 4250mm Z - Travel: 1100mm Distance between column: 3600mm Table Length: 6000mm Table Width: 3000mm Table load: 15000 Feed rate X-Axis: 7000mm/min. Feed rate Y-Axis: 8000mm/min. Feed rate Z-Axis: 10000mm/min. Spindle Taper: 50ISO/Bt/Mk Power on spindle: 26kW Speeds / ranges: 4000Rpm ATC / revolver: 30 Number of controlled axis:3+2 Chip conveyor: Yes Coolantsystem: Yes Length: 14330mm Width: 7913mm Height: 5080mm Weight: 66000kg Dedpjxf Haxefx Acwocn

Condition: good (used), Year of construction: 2008, travel distance X-axis: 4,230 mm, travel distance Y-axis: 1,950 mm, travel distance Z-axis: 750 mm, table length: 4,000 mm, table width: 1,250 mm, table load: 11,000 kg, Portal milling machine KAO MING - KMC 4000 SV-H Double guideway two box way construction Head changer for Multi-Face machining off larger compontents ATC tool changer for Horizontal and vertical milling head swivabel Distance table spindle nose    213 - 1093 mm Distance table spindle center  130 -.mm Dcodpfsxf E Twox Acwon Indexing Horizontal head 5 Degrees x 72 positions HeidenHain iTNC530 with HR410 handwheel Spindle torq 1018 Nm ISO50 Universal Huron type milling head X - Travel: 4230mm Y - Travel: 1950mm Z - Travel: 750mm Distance between column:1500mm Table Length: 4000mm Table Width: 1250mm Table load: 11000 Feed rate X-Axis: 12000mm/min. Feed rate Y-Axis: 15000mm/min. Feed rate Z-Axis: 12000mm/min. Spindle Taper: 50ISO/Bt/Mk Power on spindle: 26kW Speeds / ranges: 4400Rpm ATC / revolver: 30 Chip conveyor: Yes Coolantsystem: Yes Length: 10100mm Width: 4500mm Height: 4250mm Weight: 30000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: good (used), Year of construction: 2004, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 2,100 mm, travel distance Z-axis: 850 mm, spindle speed (max.): 6,000 rpm, X-axis: 4.230 mm Y-axis: 2.100 mm Z-axis: 850 mm CNC Controller: Heidenhain iTNC 530 Spindle nose: ISO 50 Spindle speed: 6.000 Rpm Toolchanger: 30 pockets Table size: 4.000 x 1.650 mm Distance between columns: 2.300 mm Featured with: - Vertical milling head attachement - Touch probe - Cooling throught spindle - Double chip conveyor - Cooling unit - Machine manuals Country of origin: Taiwan Machine LxWxH: 9000 x 3500 x 4000 mm +/- Djdpfsxd H H Aox Acwecn Machine weight: 30.000 kg

Condition: used, Year of construction: 2020, Manufacturer: Heyligenstaedt Model: Heynumill XL 3500 PF Year of manufacture: 2020 Clamping area: X = 5,500 mm Y = 3,000 mm Column passage: Y = 3,500 mm Z = 2,200 mm Travel paths: X = 6,000 mm Dedpfxoxdk Tas Acwecn Y = 4,400 mm Z = 1,500 mm Table load capacity: max. 40 t Milling performance: S1 79.6 kW S6 96.0 kW C-axis: infinitely rotating The machine bed is made of granite, ensuring high precision. Enclosure: On both sides Side-mounted tool changer Tool table with T-slots, size 28 Chip conveyor: underground conveyor with 2 inclined sections Machine cooling system by Lahntechnik Hydraulic unit: by Kuwega Control cabinets: Air conditioned CNC Control: Heidenhain ITNC 640 incl. hand control unit Milling heads: Milling heads: 1 pc. Angle milling head WKF 100/560 1 pc. 2-axis fork milling head FK 110/2D/6000 Either: 1 pc. Straight milling head FK 120/450/6000 or 1 pc. Straight milling head FK 100/610/6000 Operating hours: Control powered on: approx. 8,467 Machine powered on: approx. 2,996 Rapid traverse: X, Y axes: 30,000 mm/min Z axis: 15,000 mm/min Machine dimensions: Overall machine length: 14,700 mm Overall length with enclosure: 15,200 mm Overall width with enclosure: 9,950 mm Top edge of ram (highest position) above floor: 6,950 mm All information without guarantee. Subject to prior sale. Loaded free of charge.

Condition: ready for operation (used), CNC Bed Type Milling Machine Rambaudi Ram Mill 800 Table Size 3700x800 X travel 3000 Y travel 1000 Dedpfx Aoxddp Iocwscn Z Travel 800 CNC Selca 3045 4th axis Dia 400 with tail stock complete with tooling

Condition: good (used), Year of construction: 2012, Ref. -No.: 10290 Manufacturer: KOLB KLUEPPELBERG Type: Cubimat YC 2000 Year of construction: 2012 Type of control: CNC Control: Siemens Sinumerik 840 D Storage location: Halberstadt Country of origin: Deutschland Machine number: 016453-20.1 X-Travel: 7000 mm Y-Travel: 4000 mm Z-Travel: 4000 mm W-Travel: 2.000 mm Speed work spindle: 4.000 RPM Dodpfsxdaxlsx Acwscn Max. Torque: 2.100 Nm Max. Workpiece Weight: 20 t Table-Size (Lxw): 2.800 x 2.000 mm Table load max.: 18.000 kg Tool Taper: SK 50 Tool places: 360 Distance Between Columns: 3.200 x 4.000 mm Further information: - 4 milling heads available - 1 universal head - Pick Up Head Station The machine can be viewed under power by arrangement.

Condition: new, Year of construction: 2025, Ref. -No.: 10464 Manufacturer: IGREK Type: 3500 XXL Year of construction: 2025 Type of control: CNC Control: Siemens 840 D / Heidenhain iTNC 640 Storage location: Istanbul Country of origin: Türkiye X-Travel: 10500 mm Y-Travel: 3500 mm Z-Travel: 1400 mm A-Axis: +/- 115 ° Dsdpsxc Tr Aofx Acwocn B-Axis: 360 ° Max. Torque: 235 Nm Rapid Traverse X/Y/Z: 30 m / min Drive power spindle: 54 kW Table load max.: 4000 kg Tool Taper: HSK-A100 Spindle Speeds: 12500 RPM Machine length: 16000 mm Machine width: 7400 mm Machine Height: 8500 mm Weight: 195 t Further information: GREK 3500 XXL – Customized precision for large-scale projects The IGREK 3500 XXL is a CNC 5-axis portal milling machine of the latest generation, developed for the high-precision machining of large components. Built in 2024, it is ready for immediate use and equipped with the latest technology to meet the most demanding requirements in heavy industry and mechanical engineering. Key features: Gigantic machining areas: With travel distances of 10,500 mm (X), 3,500 mm (Y) and 1,400 mm (Z), the machine offers extraordinary flexibility for machining large parts. 5-axis simultaneous machining: The A-axis with +/- 115° and the B-axis with 360° guarantee maximum precision and versatility when machining complex workpieces. Powerful spindle: Equipped with a speed of up to 12,500 rpm, a maximum torque of 235 Nm and a drive power of 54 kW – ideal for high-performance machining. Robust and durable: Weighing 195 tons and with a table load of up to 4,000 kg, the machine is designed for heavy-duty machining. Innovative tool holding fixture: The HSK-A100 tool holding fixture enables quick tool changes and increases efficiency. Speed and efficiency: Rapid feed rates of 30 m/min on all axes ensure maximum productivity. Technical data at a glance: Traverse paths: X 10,500 mm / Y 3,500 mm / Z 1,400 mm Spindle power: 54 kW Spindle speed: 12,500 rpm Table load: up to 4,000 kg Machine dimensions (LxWxH): 16,000 x 7,400 x 8,500 mm Weight: 195 tons Additional benefits: The machine is supplied with the advanced Siemens 840D or Heidenhain iTNC 640 control system and offers worldwide warranty and service support from the manufacturer. Choose the IGREK 3500 XXL for precision and efficiency in the machining of large parts. Contact us now for a non-binding offer!

Condition: used, Year of construction: 2003, Technical details: x-axis: 4000 mm y-axis: 3000 mm z-axis: 1500 mm total power requirement: 30 kW dimensions of the machine ca.: 9,5 x 6,7 x 6,2 m Passage height: 1550 mm Passage width: 2500 mm table width: 2000 mm table length: 3000 mm max. table load: 12.000 kg tool taper: HSK-A100 max. tool weight: 30 kg max. tool diameter: 250 mm Djdpfx Acoxc Idaowocn tool length - max.: 500 mm bore spindle turning speed range: 5-6.000 U/min max. torque on milling spindle: 800

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 6,000 mm, travel distance Z-axis: 1,250 mm, spindle speed (max.): 12,000 rpm, controller model: Heidenhain iTNC530 mit Handrad, Machine with 4th axis as a swivel axis & regularly serviced by the machine manufacturer! TECHNICAL DETAILS Working areas X-axis: 3,000 mm Y-axis: 6,000 mm Z-axis: 1,250 mm Milling head A-axis: controllable, tiltable Milling spindle Spindle power: 4.4 kW Spindle speed: 12,000 rpm Tool holder: 78/8 flange Tool clamping: manual with clamping nut Dcodsxcld Djpfx Acwjn Linear axis drives Feed rate X, Y, Z axes: up to 20 m/min Axis acceleration X, Y, Z axes: up to 1.5 m/s² MACHINE DETAILS Control: Heidenhain iTNC530 with handwheel Connected load: approx. 25 kW Main fuse: 42 A Dimensions & Weight Space requirement for machine: approx. 5,500 x 9,000 x 4,500 mm Total weight: 9,600 kg FEATURES Conversion to high-frequency spindle possible Important: Table and the wooden board shown in the photos are not included in the scope of delivery.

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, GANTRY MILLING MACHINE Manufacturer NICOLAS CORREA Model FOX M 65 New in Month / Year 06 / 2016 CNC HEIDENHAIN iTNC 530 HSCI Table Table Dimensions 7500 x 3000 x 300 mm. Max. Weight on Table 15.000 kg/m2 Travels and feeds Longitudinal trave of the table l (X Axis) 6.500 mm. Ram cross travel (Y Axis) 4.250 mm. Vertical travel (Z Axis) 1.500 mm. Dcedpfx Aoxclddocwen Distance between columns 3.800 mm. Distance from table to lower part of the ram 2.200 mm. Rapid Feed (X-Y-Z Axis) 30.000 mm/min. Main spindle Taper HSK 100 Spindle speed 6.000 r.p.m. Speed ranges 2 Main spindle power 37 kW Others Approx. machine weight 85.000 kg. Total Power 80 KVa Power On hours 28.475 Program running hours 12.629 ADDITIONAL EQUIPMENT Automatic tool changer INCLUDED Tool magazine positions 60 Coolant through the spindle 36 Bar with regulated variable pressure system. INCLUDED External coolant 5 Bar INCLUDED Coolant system with paper filter and magnetic separator and 2000l deposit INCLUDED Double longitudinal chip conveyor (6.500 mm. length) INCLUDED Cross chip conveyor INCLUDED Absolute Heidenhain measurement rules in all axes with pressurization INCLUDED Orthogonal automatic indexing head model OAD with 0.02º/0.02º positioning, 6.000 rpm, 1.298 Nm, HSK 100 INCLUDED High torque front spindle (4.000 rpm / 1.893 Nm / HSK 100) INCLUDED Long snout right angle head model AL600 (1.500 rpm / 1298 Nm / ISO 50) INCLUDED Automatic head-changer INCLUDED Pick Up Station for 3-head automatic changer INCLUDED Part probe M&H 20.41 INCLUDED Radio Portable Handwheel HEIDENHAIN HR-550 FS 3 aspiration system in the work area INCLUDED 2 units surveillance camera in the work area with monitor INCLUDED Perimeter fence with doors. INCLUDED

Condition: used, Year of construction: 2005, x-travel 5.000 mm y-travel 3.100 mm z-travel 1.200 mm Control HEIDENHAIN TNC 530 HSCI table surface area 5.000 x 2.000 mm T-slots 11 T - slots - width 22 mm table weight 30.000 Kg rapid traverse X-axis 20.000 mm/min rapid motion - y-axis 30.000 mm/min number of spindle speeds 6.000 U/min/rpm Spindle power 32 kW taper ISO Kegel ISO 50 distance between columns 2.800 mm Djdpfexcbiiex Acwecn Internal cooling system 20 bar weight of the machine ca. 65 t dimensions of the machine ca. 15.100x6.200x6.250 mm Head UAD II positioning 0.1º / 0. 1º Speed ranges 2 Tool clamping Hydraulic Head 2 – Vertical mandril ATC positions 30 2 longitudinal chip conveyors 1 cross chip conveyor Portable handwheel Laser tool presetter

Condition: used, Year of construction: 2016, x-travel 6.500 mm y-travel 4.250 mm z-travel 1.500 mm Control HEIDENHAIN iTNC 530 HSCI table-size 7500 x 3000 x 300 mm distance between columns 3.800 mm rapid travel x/y/z 30.000 mm/min tool taper HSK 100 number of spindle speeds 6.000 U/min/rpm transmission ratio 2 Motor output 37 kW Number of working hours 28.475 h Dsdjxb Ed Uopfx Acwecn Spindle hours 12.629 h Tools changer 60 fach/tools Internal cooling system 36 bar Chip coveyor Doppel milling head 5-Achs-Fräskopf OAD total power requirement 80 kWA weight of the machine ca. 85 t

Condition: excellent (used), Year of construction: 2001, x-travel 2200 mm y-travel 3200 mm z-travel 1250 mm Control FIDIA C20 Dsdpfexa Hl Rjx Acwecn c-axis +/- 200 ° milling-head swivable +/- +90 ° milling-head swivable +/- -100 ° feeds X-axis 50 m/min feeds Y-axis 50 m/min feeds Z-axis 50 m/min tool taper HSK A63 tool change unit 16 Pos. spindle turning speed range 18000 U/min distance between columns 4060 mm dist. milling spindle - table surface 1796 mm connected load 238 kVA weight of the machine ca. 45 t dimensions of the machine ca. 9 x 7 x 5 m This JOBS LinX6 is in very good condition and can be viewed under power by arrangement with the seller. Description: Jobs LinX6 Type: 5-axis milling machine with movable gantry and fixed table Control: FIDIA C20 Year of manufacture: 2001 Travel X: 2200 mm Y travel: 3200 mm Z travel: 1250 mm A-axis travel: +90° / -100° C-axis travel: +200° / -200° Max. feed rate in X/Y/Z: 50 m/min Table clamping surface: 4000 x 2500 mm Clearance between columns: 4060 mm Clearance height between table and portal: 1807 mm Clearance height between table and spindle nose: 1796 mm Milling head: T2K D.01.06 Tool holder: HSK A63 Tool changer: 16-fold Spindle power: S1 from 6800 rpm 40KW Spindle speed: 250 - 18000 rpm Total connected load: 238 kVA Special equipment: - Siemens linear motors in all axes - JIMS / preparation for semi-automatic motor spindle change - Replacement spindle as spare part - External coolant supply / 1000L tank - Minimum quantity coolant dosing - Scraper conveyor - Renishaw TS27 tool measuring system - Ethernet connection - Manual control module Other: Complete documentation available Machine weight: approx. 45 tonnes Space requirements: 8.7 m (width) x 6.7 m (depth) x 5.1 m (height)

Condition: like new (used), Year of construction: 2007, Retrofitted: 2025 Dcjdpfx Acexaqh Nswjn Numerical control: NUEVO/NEW HEIDENHAIN TNC-i640 Technical features Dimensions Table dimensions: 4500 x 2000 mmNumber of T slots: 11T slots dimensions: 22 mm Traverses of axis X axis traverse: 4000 mmY axis traverse: 3000 mmZ axis traverse: 1000 mmVertical capacity (VC): 240 - 1240 mmDistance between columns: 2500 mm Milling head Auto-indexing differential head (UAD - 0,1º)Tool clamping system: HydraulicTaper nose: ISO50Speed range: 6000 rpmSpindle power: 30 kW Feedrates Feedrate: 5000 mm/minRapid feedrate (X / Y,Z): 15000 / 12000 mm/min Weight and dimensions Maximum weight on table: 10000 KgMachine weight approximate: 35500 KgMachine dimensions approximate: 10975 x 4770 x 5345 mm Accesories Guarding with 2 doors and new perimetral safety fenceAutomatic tool changer: ATC-60 (sale option with no ATC)Chip conveyor: 1 transversalElectronic handwheel: New HR-510Coolant: External internal high pressure through spindle Sales conditions Guarantee: 6 months mechanical spare partsSale conditions: On request View all technical features

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 1,500 mm, table load: 12,000 kg, rotational speed (max.): 6,000 rpm, number of slots in tool magazine: 100, TECHNICAL DETAILS X-axis: 4,000 mm Y-axis: 3,000 mm Z-axis: 1,500 mm C-axis: -10 to 370° B-axis: -5 to 95° Table, longitudinal travel: 0 - 30 m/min Milling and drilling unit, horizontal: 0 - 60 m/min Spindle slide, vertical: 0 - 60 m/min Spindle unit horizontal/vertical: 0-15 / 0-10 rpm Clearance height: 1,550 mm Clearance width: 2,500 mm Table Passage height between table and spindle nose: 1,550 mm Clearance width: 2,500 mm Table width: 2,000 mm Table length: 3,000 mm T-slots, transverse direction: 22 H8 mm, spacing 250 mm T-slots, longitudinal direction: 15 H7 mm (250 mm from outside, 10 mm deep) Max. table load: 12,000 kg Drilling spindle speed range 1st gear: 5 - 1,400 rpm 2nd gear: 25 - 6,000 rpm Max. torque: 800 Nm Dcsdpfx Aew T Rx Ajcwjn Drive power: 30 kW Cross-section of spindle slide: 400 x 400 mm Tool system Tool holder per DIN 69893: HSK-A 100 Number of tool stations: 100 Max. tool weight: 30 kg Max. tool diameter: 250 mm Max. tool length: 500 mm Distance from station to station: 140 mm Average chip-to-chip time: < 20 s Feed rates X-axis, table longitudinal: 0 - 30 m/min Y-axis, milling and drilling unit horizontal: 0 - 60 m/min Z-axis, spindle slide vertical: 0 - 20 m/min C-axis, spindle unit horizontal: 0 - 15 rpm B-axis, spindle unit vertical: 0 - 10 rpm MACHINE DETAILS Overall machine length: 9,500 mm Overall machine width: 6,700 mm Overall machine height above floor: 6,200 mm Coolant system Pump pressure: 12 bar (external coolant supply), 50 bar (internal coolant supply) Delivery rate external: 40 l/min at 1 bar Delivery rate internal: 20 l/min at 40 bar at the spindle Coolant principle: two-phase drum separator Coolant volume: 1,500 L Chip conveyor system Usable width, longitudinal conveyor: 450 mm (2 units) Usable width, transverse conveyor: 225 mm (1 unit) Bilateral at the machine bed, transverse conveyor with overflow discharge

Condition: like new (used), Year of construction: 2017, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 1,200 mm, table length: 3,500 mm, table width: 1,750 mm, spindle speed (min.): 24,000 rpm, Heidenhain iTNC 530 control Main spindle HSK-A 63 Speeds: 1-24,000 rpm Tool changer for 50 tools Through-spindle cooling Dcsdjw S T Iqopfx Acwsn 5-axis milling machine with simultaneous milling head (Gabelkopf)

Condition: new, Year of construction: 2025, travel distance X-axis: 860 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 500 mm, VU500M – Precision 5-Axis Gantry Milling Machine for the Highest Demands in Mechanical Engineering The VU500M is a state-of-the-art 5-axis gantry milling machine, being showcased for the first time to an international trade audience at EMO. It combines maximum machining accuracy with high dynamics, making it ideal for complex workpieces in tool and mold making, aerospace technology, as well as general mechanical engineering. High-Performance Technology for Maximum Precision Equipped with the FANUC 0i-MF Plus control system (5 axes, up to 4 simultaneously controllable), the VU500M offers advanced CNC technology including iHMI, TCP (Tool Center Point Control), and intelligent spindle temperature compensation. Travel ranges: X 860 mm / Y 800 mm / Z 500 mm A-axis swivel range: +90° to -120° C-axis rotary range: 360° Spindle: HSK-A63, 15,000 rpm, direct drive Spindle power: up to 38 kW, max. torque 149 Nm Tool magazine: 20 positions (drum-type ATC) Dedew Ru Dwepfx Acwocn Load capacity: 300 kg (horizontal) / 250 kg (tilted) Thanks to a directly driven high-speed spindle and high-resolution FAGOR glass scales on all axes, the machine achieves a positioning accuracy of 0.006 mm and repeatability of 0.004 mm.

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, Initial commissioning: 2000 Control system: Heidenhain TNC 430 M Machine hours: 111,500 h X-axis: approx. 4,000 mm Y-axis: approx. 2,360 mm Z-axis: approx. 1,250 mm A-axis: ±110° C-axis: ±300° Clamping table Clamping surface: approx. 6,000 x 2,000 x 420 mm T-slot spacing: 18H12 / 250 mm Max. table load: 30,000 kg/m² 2-axis milling head AC3 Spindle power: 25 kW Spindle speed: max. 15,000 rpm Torque: 80 Nm Tool holder: HSK 63A Tool clamping: hydraulic Dsdpfxow Rl S Sj Acwscn Spindle freshly overhauled at the end of 2024! Linear axis drives Feed rate X, Y axis: up to 20 m/min Feed rate Z axis: up to 20 m/min Axis acceleration X, Y, Z: up to 1.5 m/s² Connection data Connected load: 40 kW Main fuse: approx. 80 A Dimensions & weights Machine footprint with peripherals: approx. 8,500 x 5,600 x 4,945 mm Total weight: approx. 18,000 kg Colour Enclosure, gantry, control cabinet: light grey Milling head and applications: green Additional equipment - 3-sided enclosure, without extraction ducts - The additional clamping table shown is not included in the scope of supply Condition of the machine Fully functional, in very good condition. Machine remains connected and is available immediately.
