Condition: excellent (used), Max. diameter: 320mm Nlodpfsxy Hnrsx Ah Dei Max. working length: 1000mm

Condition: good (used), Year of construction: 2009, Control: Siemens 828-D SL Nlodoxyv Uzjpfx Ah Doi Max. grinding diameter: 500 mm Max. grinding length: 2000 mm Max. workpiece weight: 500 kg between centres Swiveling of grinding head: +45 / -15° (manual) Grinding wheel: 500/80/203 mm With steady rests With enclosure

Condition: used, KELLENBERGER KEL-VARIA R175 x 1500 is a CNC cylindrical grinder engineered for high precision, top accuracy and reliable production. Capacities: centre height 175 mm, distance between centres 1500 mm, Z-axis 1650 mm, workpiece weight on centres max. 150 kg; grinding wheel Ø500×80 mm (bore 203 mm) or Ø400×63 mm (bore 127 mm); max wheel travel 320 mm. Key specs: wheel speeds stepless 1000–2150 rpm (peripheral speed 45 m/s); feed 7500 mm/min; work spindle swivels -10/+100° with 8–800 rpm; permitted load 160 Nm; grinding spindle motor 7.5 kW; work spindle motor 2 kW; 3×400 V 50 Hz; rapid 15 m/min; approx. weight 6000 kg; dimensions 4700×2300×2000 mm; air 6 bar. Accessories: coolant system, paper filtration, MARPOSS touch probe, set of grinding wheels, rotary centre, set of centers, set of workpiece drivers, set of throat gauges, lamp, 2 tool cabinets, tailstock with fine adjustment, oil mist extractor, spindle nose for collets. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tool Nedpfx Aoxx U S Aoh Dsli

Condition: used, KELLENBERGER KEL-VARIA 2RU 225/1500 is a CNC cylindrical grinder engineered for precision, high accuracy and reliability. Capacities: centre height 225 mm, distance 1500 mm, max grinding Ø 432 mm, workpiece weight 150 kg; wheels L 400×63×127, R 500×80×127. Wheel speeds 1000–2150 rpm (45 m/s); work spindle 8–800 rpm, taper 5 CM, permitted load 160 Nm. Tailstock taper 4 CM, stroke 50 mm, pressure 200–700 N; supply 3×400 V 50 Hz. Options: KEL‑ASSIST 100, MOVOMATIC, KEL‑SET, MOVOMATIC C25, KEL‑BALANCE, coolant through spindle, paper filtration, 400 mm magnetic chuck, dressing, swivel diamond holder. Enables tight tolerances; sectors: automotive, watchmaking, machine tools, aerospace, medical. Nedpfexx U Hajx Ah Dsli

Condition: like new (used), functionality: fully functional, I am selling this grinder, as new, for internal grinding, including accessories. A video of the machine can be sent via WhatsApp. 4. Specifications 4-1 Machine Specifications Item Unit OGM-250UDX Capacity Swing diameter over table mm 220 Distance between centers mm 500 Max. workpiece diameter mm 200 Max. workpiece weight kg 60 (centered workpiece) Grinding wheel External diameter x width x bore mm ⌀305 x 25 x ⌀127 Rotational speed (via belt change) min-1 2357 / 2087 Max. peripheral speed m/min 2000 Grinding spindle X-axis travel mm 203 Swivel angle degree +30° Minimum travel increment mm ⌀0.001 Handwheel feed value mm/rev ⌀2 per revolution Table Z-axis travel mm 640 Swivel angle degree 4 to 9 Handwheel feed value mm/rev 7.5 per revolution Automatic feed rate mm/min 50 to 4000 Workhead Spindle type Spindle for combination — fixed/rotary Nlodpfjxwm Uaex Ah Doi Spindle taper Morse No. 3 Spindle through hole diameter mm ⌀17.5 Spindle speed min-1 10–500 Swivel angle degree 30° to 90° Tailstock Quill stroke mm 20 Quill taper Morse No. 3 Motors Grinding wheel spindle motor kW 1.5 (2.2) Workpiece spindle kW 0.4 Table feed kW 0.4 Lubrication pump kW 0.01 Coolant pump kW 0.06 Magnetic separator (optional)kW 0.025 Power Supply Power consumption kVA 10 Voltage V 200 Frequency Hz 50 Tank Capacity Coolant tank liters 80 Lubrication tank liters 5 Workpiece center height from floor mm 1040 Required Footprint Width mm 2880 Depth x Height mm 1884 x 1600 Net weight kg 1900

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 1845/455, Completely refurbished: Mechanics, geometry, hydraulics, and electrical components Wheelhead Disassembly, cleaning of parts, replacement of worn and defective components, motor overhaul, replacement of bearings, replacement of belts, spindle disassembly, replacement of seals and O-rings, plus adjustment. New paintwork. Workhead Disassembly, cleaning of parts, replacement of worn and defective components, motor replacement, replacement of belts. New spindle bearings. New paintwork. Tailstock Disassembly, cleaning of parts, replacement of worn and defective components, motor replacement, replacement of belts. New spindle bearings. New paintwork. Internal grinding attachment Disassembly, cleaning of parts, replacement of worn and defective components, installation of the support and geometry alignment. New paintwork. Hydraulics Njdpfx Ahoxt Ilfe Deli Disassembly, motor replacement, hose replacement, defective and worn parts replaced. Hydraulic block checked. X-Axis Disassembly, replacement of worn items such as O-rings, seals, rings, etc., overhaul of hydraulic piston, regrinding of tables. Z-Axis Disassembly, regrinding of tables, replacement of worn and defective parts, overhaul of hydraulic piston, scraping of V and flat guides. New paintwork. Measuring system Digital 2-axis display included. Electrical cabinet Replacement of motor contactors and relay controls. New wiring. New variable speed drive (frequency inverter) for the workhead. TECHNICAL SPECIFICATIONS Distance between centers: 1500 mm Distance between centers (workhead to tailstock overhang): 1650 mm Center height, standard: 125 mm Center height with riser blocks: 225/250 mm Maximum grinding diameter: Ø 250 mm Maximum grinding diameter with riser blocks: 450/500 mm Table Usable surface: 2060 x 140 mm Max. length and width for surface grinding: 1750 x 200 mm Longitudinal travel, manual or hydraulic: 1750 mm Manual table movement, 1 handwheel revolution – coarse: 20.006 mm Manual table movement, 1 handwheel revolution – fine: 2.457 mm Table speed, continuously via hydraulics: up to 6 m/min Table swivelling: 6° Stop and return: 0–5 sec. Workspindle Workpiece speeds, continuously variable (electric): 20–400 rpm Swivelling: 360° Workspindle taper (internal): MT5 Tailstock Internal taper, tailstock spindle: MT3 Spindle retraction, manual or hydraulic: 30 mm Diamond dresser taper (internal): MT0 Universal grinding head Cross slide travel for wheel: 285 mm Rapid traverse for wheel slide, front and rear: 40 mm Grinding spindle speeds: 1500 – 1700 – 2200 – 3600 rpm Vertical grinding spindle movement, center heights: 125–330 mm Max. wheel for cylindrical grinding: 400 x 50 x 127 mm Max. wheel for surface grinding: 250 x 20 x 76 mm Head swivelling with locking at every 90°: 270° Wheel feed 1 division of the micrometer drum: 0.005 mm/Ø Automatic wheel feed, max.: 0.9 mm/Ø Motors Grinding spindle motor: 2,900 rpm / 4.0 hp Workspindle motor: 3,000 rpm / 2.0 hp Coolant pump motor: 2,850 rpm / 0.12 hp Internal grinding attachment Bore: 70 mm Internal grinding spindle speed Ø70 mm: 14,000 rpm Internal grinding spindle speed Ø50 mm: 21,000 rpm Subject to error or omission, the technical information is provided without obligation.

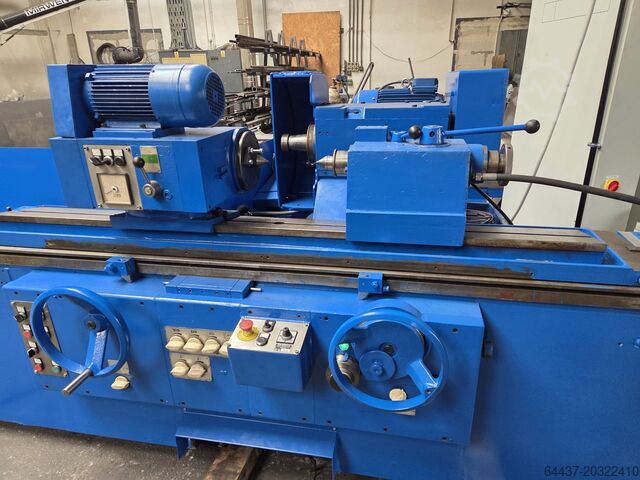

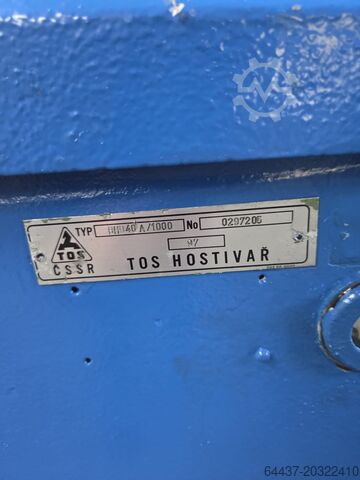

Condition: excellent (used), functionality: fully functional, workpiece weight (max.): 300 kg, grinding length: 1,000 mm, grinding diameter: 400 mm, TOS BHU 40/1000 Cylindrical Grinding machine, grinding diameter 400 mm, grinding length 1000 mm, very good technical and visual condition. Technical specifications: Grinding diameter: 400 mm Grinding length: 1000 mm Maximum workpiece weight: 300 kg Nsdpfx Ahexphdmo Djli Grinding wheel size: 600 × 150 mm Longitudinal table travel (X-axis): 1–1790 mm Rotating grinding head: ±45° Rotating table: ±5° Spindle taper: Morse 5 Maximum spindle speed: 1240 rpm Total connected power: 22 kVA Machine weight: approx. 6 t

Condition: good (used), Year of construction: 1990, Ref. -No.: 10301 Manufacturer: TITAN Type: RU 350 x 1-1500 Year of construction: 1990 Type of control: Konventionell Storage location: Halberstadt Country of origin: USA Max. Grinding length: 1.500 mm Max. Workpiece Weight: 300 kg Nedoxmd Rwepfx Ah Doli Grinding Diameter: 350 mm Max. Dia. Of Grinding Wheel: 280-500 mm Grinding Wheel Width: 80-100 mm

Condition: reconditioned (used), Year of construction: 2006, functionality: fully functional, center height: 175 mm, type of input current: three-phase, feed length X-axis: 285 mm, feed length Z-axis: 1,150 mm, overall weight: 5,700 kg, year of last overhaul: 2025, input voltage: 400 V, workpiece spindle speed (max.): 1,500 rpm, CNC Cylindrical grinder STUDER S33 TECHNICAL CHARACTERISTICS: Year of manufacturing: 2006 CNC control: FANUC 21i-TB Software installed: StuderGrind Centre distance: 1000 [mm] Height of centers: 175 Stroke X axis: 285 [mm] Min. Stroke speed X axis: 0.001 [mm/min] Max. Stroke speed X axis: 5000 [mm/min] Resolution X axis: 0.0001 [mm] Stroke Z axis: 1150 [mm] Min. Stroke speed Z axis: 0.001 [mm/min] Max. Stroke speed Z axis: 10000 [mm/min] Resolution Z axis: 0.0001 [mm] B axis swivelling stroke: -15 [°] / +195 [°] B axis indexing precision: Hirth 1 [°] Automatic B axis: Yes Workpiece spindle nose: MT5 Workpiece spindle min. speed: 1 [rpm] Workpiece spindle max. speed: 1500 [rpm] Max. part weight in part holder headstock between centres: 120 [Kg] Type of attachment tailstock: MT3 Tailstock quill stroke: 35 [mm] Tailstock quill diameter: 50 [mm] Tailstock fine adjustment: +/- 40 [mm] Supply voltage: 400 [V] Total power required: 20 [kVA] Weight: 5700 [Kg] INCLUDED EQUIPMENT: x1 internal grinding spindle type 102540B – speed: 40,000 [rpm] Nljdpfxjxg Ixxj Ah Dji x1 swiveling dressing attachment x1 rotating dressing device DR.KAISER type C42 DC 058 – speed: 25,000 [rpm] – 0.17 [kW] x1 frequency converter MAAS type SPS-9250 x1 pneumatic tailstock lift x1 pneumatic upper-table lift x1 longitudinal slide with rotary table - swiveling up to 8.5 [°] x1 automatic B-axis turret wheelhead – Hirth gearing 1 [°] x1 C-axis for thread and form grinding x1 workpiece probe MOVOMATIC C25 x1 contact control device DITTEL SENSITRON 2 x1 semi-automatic wheel balancing device MPM type 3.BMT100M x1 paper filtration unit STREULI AG x1 mist extraction unit AFS Air Filter Systeme x1 electrical cabinet air conditioner x3 external grinding wheel flanges x2 lifting blocks x1 axis bracket (for transportation of the machine) x1 set of operating manuals (French, English, and German) Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Similar machine to the brands Okamoto, ELB, GER, Tacchella, Karstens, Jones & Shipman, Jung, Favretto, Blohm, Studer. Also see surface grinder, lathe, machining center, milling machine.

Condition: reconditioned (used), functionality: fully functional, center height: 250 mm, center width: 1,500 mm, grinding diameter: 500 mm, tailstock quill stroke: 30 mm, Equipment: documentation/manual, The machine has been partially overhauled and includes, among other things, new geometry and a new control cabinet. The bearings have been replaced. TECHNICAL DETAILS Nledpfxoxgrd Sj Ah Doi Working Area Centre distance: 1,500 mm Centre height: 250 mm Max. grinding diameter: 500 mm Table swivel range: ± 8° Grinding Head Grinding wheel dimensions: 400 x 50 x 127 mm Spindle speeds: 1,500 / 1,700 / 2,200 rpm Bore for internal grinding spindle: 90 mm Workpiece Headstock Workpiece headstock orientation: 180° Spindle speed: 20 - 400 rpm Spindle taper: Morse 5 Tailstock Tailstock taper: Morse 4 Tailstock quill stroke: 30 mm MACHINE DETAILS Drives Grinding head motor power: 3 kW Tailstock motor power: 0.9 kW Machine Data Dimensions: 2,860 x 1,680 x 1,670 mm Weight: 2,500 kg EQUIPMENT Automatic working cycle Coolant tank with pump Internal grinding spindle External grinding wheels Dressing device Documentation Note: A digital readout can optionally be purchased for €3,600.

Condition: used, Year of construction: 2003, grinding diameter 450 mm grinding length 1500 mm centre height 225 mm Nledpfx Ahexflcrj Dsi

Condition: excellent (used), Year of construction: 2003, Universal cylindrical grinding machine with internal grinding attachment Year of manufacture: 1991, geometrically overhauled in 2003 Technical data: Table: Centre height: 180 mm Max. grinding diameter: 360 mm Between centers: 1500 mm Max. automatic table travel: 1580 mm Hydr. table speed: 0 – 3000 mm/min Max. table swiveling range: ± 5° Workpiece headstock: Workpiece spindle speeds: 30 – 300 rpm Workpiece spindle taper: MT 5 Tailstock taper: MT 4 Max. swiveling range: 90° Grinding spindle head: Spindle speeds: 1450 – 1600 rpm Grinding wheel diameter/bore: 450 x 127 mm Min. / max. grinding wheel width: 20 - 50 mm Max. swiveling range: 90° Min. automatic grinding head infeed: 0.005 mm Internal grinding attachment: Spindle speed: 17,000 rpm Spindle diameter: 60 mm Min. / max. grinding diameter: 18 - 100 mm Max. grinding depth at large diameter: 130 mm Motor power: Grinding spindle head: 5.5 HP Internal grinding attachment: 1 HP Dimensions and weight: Machine dimensions L x W x H: 4200 x 1400 x 1500 mm Machine weight: 3300 kg Accessories / Special features: • Manual or automatic operation • Internal grinding attachment • 3-jaw chuck • 1 fixed steady rest • Wheel dresser • 2 additional grinding wheel flanges • Balancing arbor • Wet grinding attachment The hydraulic table cylinder has just been newly sealed. Nledpfoxama Usx Ah Dji Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

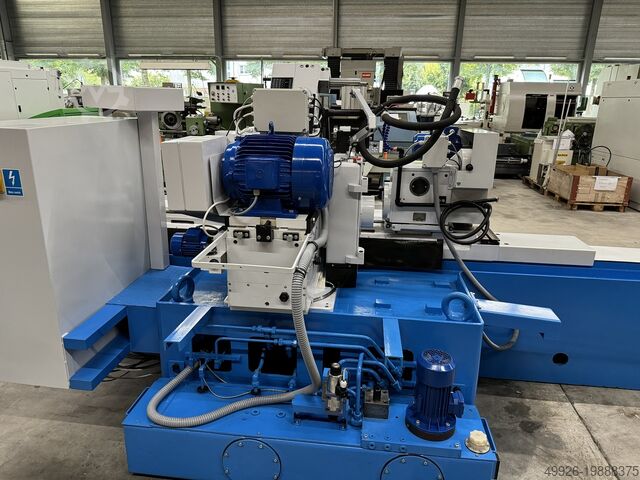

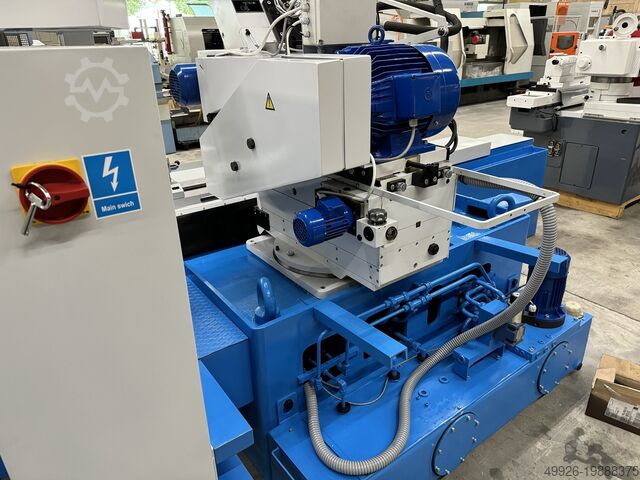

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 510-1986, CYLINDRICAL GRINDER JOTES SCHAUDT A440X1500 Specifications Maximum longitudinal travel: 1500 mm Nlodpfx Ahjw T Ti Do Doi Grinding diameter: 298 mm External grinding: Yes Internal grinding: Yes Dimensions (L x W x H): 5400 × 2400 × 1600 mm Weight: 4800 kg Operating hours: — Power-on hours: — Condition: Rebuilt Compliant with local standards: — Status: Under power Technical features - Grinding length [mm]: 1500 - Grinding diameter [mm]: 300 - Manual table displacement [mm/rev]: 10 - Table speed range [mm/s]: 0.01–5 - Smallest table stroke [mm]: 3 - Wheelhead swivel [°]: ±90 - Centre sleeve taper [Morse No.]: 4 - Grinding wheel dimensions [mm]: 500 x 63 x 203 - Spindle speed [rpm]: 32–500 - Grinding wheel drive motor power [kW]: 5.5 - Workpiece drive motor power [kW]: 0.75 - Hydraulic pump motor power [kW]: 1.5 - Grinding attachment drive motor power [kW]: 0.75 - Machine dimensions [mm]: L=5400 / W=2400 / H=1580 / Machine weight [kg]: 4800

Condition: used, functionality: unexamined, Danobat Universal Grinder model 1200 RP with automatic diamond dressing device, capable of working in automatic cycle, maximum grinding diameter 270mm, maximum wheel diameter 400mm, maximum wheel width 60mm, head power 12 HP. Nodew Iv Huopfx Ah Doli

Condition: like new (used), Year of construction: 2024, functionality: fully functional, grinding length: 1,650 mm, grinding diameter: 400 mm, We offer a new BUB40 x 1500 NC machine equipped with a MITSHUBISHI NC controller. The machine is still under lease with ING Lease. It has been thoroughly refurbished based on the TOS HOSTIVAR BUB 40 model by FAS GŁOWNO. Technical data: • Maximum workpiece diameter: 400mm • Maximum workpiece length: 1500mm • Centre height: 200mm • Distance between centres: 1500mm • Minimum grindable workpiece diameter with a 380 mm grinding wheel: 20mm • Tailstock quill stroke: 40mm • Maximum tailstock clamping force: 4000N • Spindle headstock centre taper: ISO 296-1991/Morse 5 • Tailstock centre taper: ISO 296-1991/Morse 5 • Maximum workpiece weight between centres: 500kg • Maximum workpiece weight in chuck (including chuck): 100kg • Machine width (with enclosure): 6650mm • Machine depth (with enclosure, without control panel): 2400mm • Machine height (with enclosure): 1850mm • Machine weight: 7000kg • Total power requirement: 38kVA Grinding spindle: • Standard grinding wheel dimensions: 500 x 80 x 203.2mm • Grinding spindle drive motor power: 11kW • Grinding spindle rated speeds (for 430 mm / for >430 mm and 500 mm wheels): 2000 / 1744 rpm • Grinding headstock traverse servo motor power: 2kW • Grinding headstock traverse servo motor torque: 9.5Nm • Maximum continuous X-axis traverse speed: 2m/min • Minimum X-axis grinding wheel increment: 0.001mm • Maximum continuous X-axis traverse speed: 6m/min • Minimum X-axis grinding wheel increment: 0.001mm • Maximum grinding wheel increment in INC mode: 0.1 mm • Table traverse servo motor power: 3.5 kW • Table traverse servo motor torque: 16.7 Nm Nlsdpfxowzkywo Ah Dei Workpiece spindle: • Workpiece spindle speed range: 1 – 150 rpm • Workpiece spindle servo motor power: 3.5kW • Workpiece spindle servo motor torque: 16.7Nm More information available upon request via email or phone.

Condition: good (used), Year of construction: 2013, grinding diameter 320 mm grinding length 1500 mm centre height 180 mm workpiece weight max. 150 kg grinding wheel size 400 x 50 x 203 mm grinding wheel speeds 1670 U/min grinding head - swivable +/- 30 ° adjustment grinding slide 246 mm workpiece spindle stepless 25-220 U/min grinding wheel adjustment manuell 0,01 / 0,0025 taper in spindle headstock MK 4 taper in spindle tailstock MK 4 Number of working hours ca. 20 h total power requirement 5,5 kW weight of the machine ca. 4,3 t dimensions of the machine ca. 4,3 x 2 x 2 m Hydraulic universal cylindrical grinding machine with a machining length of 1500 mm and a grinding diameter of 320 mm, with internal grinding attachment. Rotatable workpiece spindle head and swiveling table, hydraulic longitudinal table movement, hydraulic rapid traverse of the grinding head, hydraulic grinding head feed when reversing the table, manual + hydraulic adjustment of Nledpjwyd S Dofx Ah Dji the tailstock quill. For further details, see data sheets, pics 9 and 10. Commissioning 2015: The machine was only used for a FEW HOURS on special workpieces, and then the orders dried up!

Condition: excellent (used), Year of construction: 2013, Siemens Sinumerik 840D control Max. workpiece diameter: 250 mm Max. workpiece length: 1500 mm Max. workpiece weight: 150 kg Internal grinding device Paper band filter Centre tip Diamond dressing plate Grinding wheel change assist Nlsdpfx Ahowwtq De Doi

Condition: refurbished (used), TECHNICAL DETAILS - distance between centers : 1500 [mm] - centers height : 250 [mm] - max grinding diamater: 500 [mm] - table orientation : -/+ 8 [°] - universal wheelhead - grinding wheels dimensions : 400 x 50 x 127 [mm] - motor power : 3 [kW] Nljdjwu Aqhopfx Ah Dsi - spindle speed : 1500 / 1700 / 2200 - boring for internal spindle : 90 [mm] - orientation of part holder headstock : 180 [°] - spindle speed : 20 - 400 [Rpm] - spindle internal cone : Morse 5 - motor power : 0,9 [kW] - inner cone tailstock : Morse 4 - tailstock sleeve travel: 30 [mm] - dimensions : 2860 x 1680 x 1670 [mm] - weight : 2 500 [kg] Accessories/options: - automatic cycle works - tailstock - lubricating tank with pump - 1 internal grinding spindle - external grinding wheels - wheel dresser - documentations The machine is partly overhauled, included: - new geometry - new electrical cabinet - bearings replaced - new painting - etc....

Condition: used, Year of construction: 2005, grinding diameter 500 mm grinding length 1500 mm centre height 250 mm Control GRINDplusIT Maschine wird teilüberholt mit Messprotokoll und Gewährleistung innerhalb Deutschlands und Anrainerstaaten geliefert. 1 UR-RS 175 / 1500 standard version (T1, T2, T5, T7) 1 grinding wheel set T1 400x63x127mm 1 grinding wheel set T2 400x63x127mm 1 grinding wheel set T5 400x63x127mm 1 internal grinding device T7 0120 mm for HF spindles 1 centre height 250 mm 2 grinding head motor: drive power 10.0 kW 1 CNC control Heidenhain GRINDplusIT 1 Kel-ASSIST 100 PLUS (includes Kel-Assist 100 and thread calculation) 1 KEL-POLY, out-of-round grinding 1 KEL-NET for CNC control GRINDplusIT 1 B-AXIS GRINDplusIT: ‘CNC-controlled B-axis’ (standard) 1 GRINDplusIT: v constant 35m/s or 45m/s_adjustment of grinding spindle via control 1 T1, T2, T5, T7: T1 and T2: v=constant, T5: v=variable (Danfoss), T7: HF spindle 1 operating unit for 1x MFM or MFV spindles, VACON 22kW 1 x HF internal grinding spindle Fischer MFM 1224/42/31 re. HJND 21 Njdpfewulrhex Ah Doli 1 x HF internal grinding spindle MFV 1260/4 re 1 x HF internal grinding spindle IBAG HF 33 S 60 P 1 tailstock with manual retraction 1 MICRO-ADJUSTMENT: tailstock lower section with micro-adjustment 1 spring-loaded quill insert 1 pneumatic relief for the tailstock 1 upper table flooding (standard) 1 reinforced workpiece spindle MK 5 DIN 55026 size 5’ 1 C-AXIS: CNC-controlled C-axis to workpiece spindle box reinforced 1 lower part FIXED for the workpiece spindle box reinforced 1 KELPOS: Active longitudinal positioning MOVOMATIC, mounted on the grinding head 1 diameter measuring head Movomatic; DU200 1 measuring control unit Movomatic ES124 / digital 1 KELSET: KELSET tool measurement system, MARPOSS 1 Basic module for KEL-TOUCH cut-off sensor and KEL-BALANCE balancing device 1 KEL-TOUCH, cut-off sensor for diagonal/tandem 1 Full emulsion enclosure 1 Coolant cleaning gun connected to the table 1 Emulsion grinding mist extraction system 1 lubricant for initial filling HF dressing device type IBAG on OT Data from state of delivery without guarantee

Condition: refurbished (used), Kellenberger internal & external universal cylindrical grinding machine Kellenberger 1000 U - 175 (including internal grinding device) Distance between centers: 1000 mm - Center height: 175 mm Kellenberger 1500 U - 175 (including internal grinding device) Distance between centers: 1500 mm - Center height: 175 mm Nlodpswqlykofx Ah Doi Both available with various accessories. Availability: by arrangement (both machines in overhaul process)

Condition: used, Year of construction: 2017, grinding length 1000 mm centre height 180 mm length 3600 mm width 1650 mm height 1800 mm weight of the machine ca. 3,7 t Nlsdpfx Aowp Tumjh Dji

Condition: ready for operation (used), Year of construction: 1993, External cylindrical grinding machine Manufacturer: TOS Type: BUB 40-1000 Year: 1993 Control: Cetos K 51 WORKING AREA CYLINDRICAL GRINDING Max. swing diameter 400 mm Workpiece weight between centers (max) 500 kg Workpiece weight one-side clamped (max) 100 kg WORKING AREA EXTERNAL GRINDING Max. grinding diameter 400 mm Min. grinding diameter 10 mm Grinding length 1000 mm TABLE – CYLINDRICAL GRINDING Swiveling (B-direction) from 8.5 ° Rotation range B-axis up to -4.5 ° Longitudinal travel 1200 mm WORKPIECE SPINDLE STOCK Swiveling (B-direction) from 0 ° Rotation range B-axis up to 90 ° Spindle bore 40 mm Number of gear stages 2 Drive power 9.5 kW Tool holder MK 5 TAILSTOCK Quill stroke 40 mm Quill fitting MK 5 Contact force (max.) 4 kN GRINDING SPINDLE STOCK Swiveling (B-direction) from -15 ° Rotation range B-axis up to 45 ° GRINDING WHEEL Type: grinding wheel, disc Diameter (max) 500 mm Bore: diameter 203 mm Width 80 mm ELECTRICAL CONNECTION DATA Connected load 16 kVA Connection voltage 400 V Network frequency 50 Hz DIMENSIONS / WEIGHTS Required space -left/right- 4700 mm Required space -front/back- 2050 mm Total height 1900 mm Total weight approx. 5400 kg ADDITIONAL EQUIPMENT (GRINDING) Balancing device yes Machine in well-maintained condition Workpiece spindle stock swivels 90° Grinding spindle stock swivels -15°, +45° Table swivels +8°30' - 4°30' Accessories: - hydrostatic spindle Njdpfx Aowp D Aueh Djli - various corundum grinding wheels - 2 diamond grinding wheels - Balancing head MPM, renewed in 2021 - Filter system - Extraction system

Condition: used, Year of construction: 2017, grinding length 1500 mm centre height 180 mm Nsdpfowm Rqgox Ah Djli weight of the machine ca. 3,9 t dimensions of the machine ca. L: 4900 x 1650x 1800 m

Condition: used, functionality: fully functional, Maximum workpiece length: 500 mm Minimum workpiece length approx.: 5 mm Maximum workpiece length for plunge grinding: 50 mm Max. grinding diameter without steady rests: 100 mm Max. diameter: 240 mm Workpiece Swivel: 90° Grinding spindle slide Min./max. swivel: 30° Min./max. transverse movement including 300 mm quick adjustment: 100 mm Wheel diameter after rotation 1st degree: 320 - 400 mm 2nd degree: 260 - 320 mm Nedpfx Aowhp D Ujh Doli Max. workpiece weight between centers: 60 kg Max. workpiece weight in chuck: 20 kg Max. workpiece weight in faceplate: 20 kg 8 workpiece spindle speeds: 45 - 500 rpm Min./max. Tilt: 12° Min./max. longitudinal travel: 2 - 500 mm Infinitely variable table travel: 0.5 - 5 m/min Handwheel adjustment: 2 and 20/rev

Condition: used, functionality: fully functional, Grinding length: 973 mm Center height: 250 mm Maximum worktable tilt: +6° / -9° Nedpfxjwhp Dns Ah Doli Centering center: MT5 Maximum grinding head travel: 100 mm Maximum grinding head tilt: +45° / -30° Maximum grinding wheel diameter: 500 mm Speed range: 32 - 600 rpm Maximum workpiece weight between centers: 400 kg Maximum internal grinding device grindable bore: 160 mm Machine weight: approx. 5,000 kg
