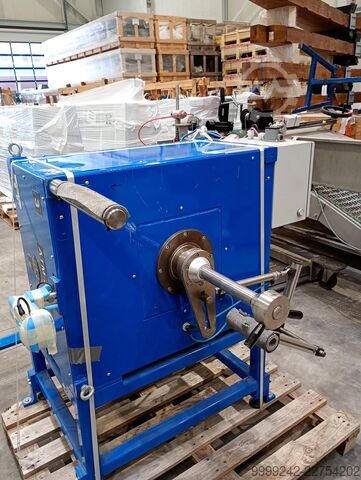

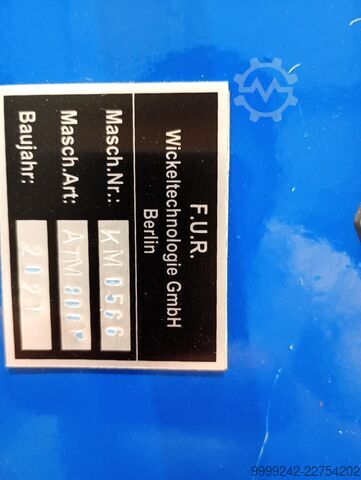

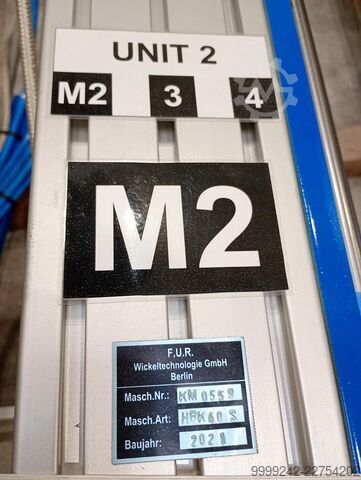

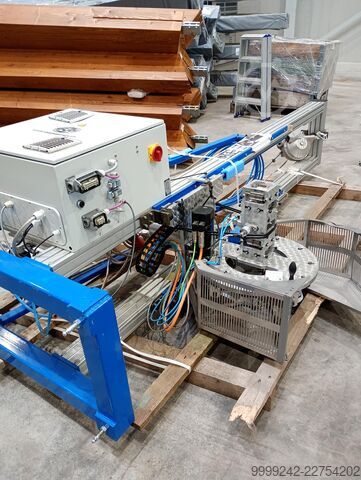

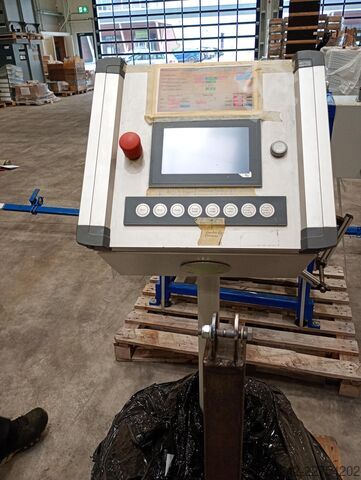

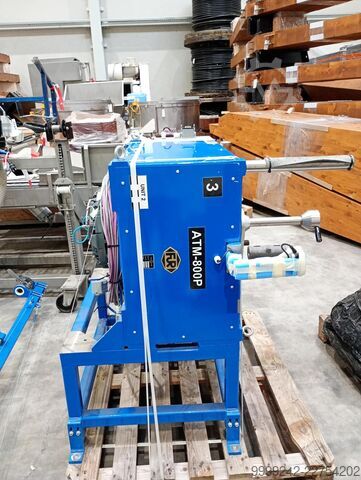

Year of construction: 2021, condition: like new (used), functionality: fully functional, Component 1: ATM-800 P Tangential Dereeler (2 pieces) Heavy-duty dereeler for controlled unwinding of copper wire coils. • Max. coil diameter: 800 mm • Max. coil width: 300 mm • Pickup hole: Ø52 / Ø56 mm • Max. coil weight: 300 kg • Braking force: 100 - 2000 N • Brake torque: 3 - 800 Nm • Max. speed: approx. 5 rpm • PLC control with torque sensor Component 2: HBK-40-S Automatic Taping Machine Professional automatic taping machine for coil and conductor insulation. • Servo-controlled taping head Hfsdpfx Acjz Ap R Io Ajl • Operator terminal and display • Integrated X-axis guidance • Electric hysteresis brake • Automatic overlap control via encoder • Suitable for various insulation materials

Condition: used, Year of construction: 2008, functionality: fully functional, machine/vehicle number: LW 08.0169, Used Ruff LW-90 table winding machine with tailstock. Self-collection only – location: 4120 Neufelden, Austria. Hfodpfozzpqfex Ac Ael

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, working width: 2,500 mm, wire diameter (max.): 7 mm, mesh size: 6,000 mm, AUTOMATIC BUNDLING AND STACKING SYSTEM FOR WELDED WIRE MESH Industrial unit consisting of a Schlatter/Jäger SAB-2 bundling machine + a Schlatter SPH stacking machine, designed to automate the output of a welded wire mesh production line. Hedpfozych Ijx Ac Ajfl The system performs the final operations of the line: receiving and transporting the mesh via roller tables, forming and bundling packages, stacking, and preparing them for subsequent removal, storage, or shipment. The unit does not need to operate in conjunction with a Schlatter welding machine. It can be integrated and connected to welded wire mesh production lines from any manufacturer, with the corresponding mechanical, electrical, and control adaptations required for the installation. This allows the unit to be used as: Automation of a currently manual line output. Replacement of an old bundling/stacking system. Expansion of an existing line. Independent end-of-line system for Schlatter machines or machines from other manufacturers. Main technical data SCHLATTER / JÄGER SAB-2 BUNDLING MACHINE Year: 2005 Model: SAB-2 Maximum mesh width: 2,500 mm Wire diameter: 5–7 mm Wire strength: max. 450–600 N/mm² Longitudinal/transverse spacing: ≥ 80 mm Maximum stacking/package height: 800 mm Roller track height: 250 mm Approximate power: 4 kW Power supply: 400 V / 50 Hz Compressed air: 6 bar Control: Siemens S7 PLC SCHLATTER SPH STACKING MACHINE Year: 2005 Model: SPH Maximum mesh width: 2,500 mm Mesh length: 4,000–6,000 mm Stacking system with 4 lifting stations Approximate lifting height: 700 mm Maximum capacity: 12 tons Stacking accuracy: ±10 mm Approximate power: 4 kW Control: Siemens S7 PLC Roller tables included

Year of construction: 2005, condition: used, A Numalliance CNC wire bending machine for the production of 2D and 3D wire-formed parts is offered. Axes: 7, wire diameter range: 3mm-10mm, control: CNC. Weight: approx. 4100kg, dimensions X/Y/Z: approx. 7900mm/3700mm/2000mm. Documentation available. The machine has been shut down since 2025. An on-site inspection is possible. Hfjdozv T I Rspfx Ac Ajl

Year of construction: 1970, condition: ready for operation (used), Equipment: wire pay-off reel, mechanical flywheel, two wire guide tracks, enclosed straightening and cutting section, mechanical cam, eccentric and lever controls, discharge chute for cut wires, pneumatic service unit and pneumatic lines, retrofitted control panel with digital display, emergency stop button and transparent safety cover. An on-site inspection is possible. Hfsdezqu Hqspfx Ac Asl

Year of construction: 2007, condition: ready for operation (used), A Wafios CNC wire and tube bending center is available. Axes: 9, wire diameter range: 1.5mm-8mm, tube diameter range: 3mm-10mm, wire tools: 2.5mm/4mm/5mm, tube tools: 6×1mm, feed speed: 120m/min, feed roller pairs: 3, bending head transverse stroke min./max.: -200mm/200mm, bending head stroke min./max.: -120mm/25mm, bending head orientation: 0°/30°, return length range: 400mm-1300mm, bending moment: 520Nm, upsetting force: 10kN. Machine dimensions X/Y/Z: approx. 3500mm/1800mm/2300mm, weight: approx. 5800kg. Documentation available. An on-site inspection is possible. Hodpfx Aszka Nwsc Aofl

Condition: used, MEP Syntax Line 25 Automatic Rebar Processing Center, Used Machine Manufacturer MEP S.p.A. (Made in Italy) Model Syntax Line 25 Machine Functions Automatic straightening from coil Hydraulic cutting CNC-controlled bi-directional bending Processing Capacity (Rebar from Coil) Single-wire operation: Ø8 mm to Ø25 mm Double-wire operation: Simultaneous processing of 2 bars from Ø8 mm to Ø16 mm Material Storage Storage capacity: Up to 14 m³ Manual loading Hedpfxszg Uv Ds Ac Aofl Collection tray: 12 × 2.5 m Overall Dimensions Width: 17,400 mm Depth: 2,400 mm Height: 1,600 mm Condition The built-in monitor is not operational. The machine is equipped with a video output, allowing an external monitor to be connected for operation.

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, coldforming machine for straightening-cutting-heading and grinding of the point suitable for the production of battery-pins wire diameter range: 0,2 - 2,5 mm lenght of the pins: 2,5 - 50 mm output: max. 600/min. weight: 1.300 Kg, Hodszdr Ncjpfx Ac Ajfl

Condition: used, operating hours: 16,158 h, Rebar Bending Machine, MEP FOCUS 12 Rebar Bending Machine, Used Machine Manufacturer: MEP S.p.A., Italy Model: FOCUS 12 Year of manufacture: 2006 Overall dimensions: Hfedpfx Aezaq Dlsc Asl MEP bending machine: Width: 3660 mm Depth: 1620 mm Height: 2350 mm Decoiler: Width: 4820 mm Depth: 1980 mm Height: 1460 mm Bending capacity: 6–12 mm Accessories: 5 pcs wire coils 1 pc 8 mm bending tool Programmability: One of the major advantages of the "Focus" series is that the bending angles can be set via an electronic control panel. There is no need to manually adjust mechanical stops as on older Hungarian machines. This significantly speeds up production when, for example, 100 identical stirrups need to be bent. The control system retains its programs even if the machine remains without power for months or even years. The software runs on a dedicated computer. MEP provides full service and technical support for all of its machines, regardless of their year of manufacture.

Condition: ready for operation (used), A fully automatic Schleuniger cable processing machine with two stations is available. Stations: 2, system: Cut-Strip-Terminate, conductor cross-section range: 0.15mm²-6mm², AWG range: 26-10, min. cable length: 60mm, max. cable length: 65000mm, max. feed rate: 12m/s, stripping length: 0mm-45mm, swivel movement range: 0°-90°, crimping force: 20kN. Machine dimensions X/Y/Z: approx. 3650mm/1850mm/1300mm, weight: approx. 900kg. Documentation available. An on-site inspection is possible. Hjdpjy Tn Nyjfx Ac Asfl

Year of construction: 2009, condition: ready for operation (used), A fully automatic cable processing machine Schleuniger with two stations and one compact station Strunk is available. Cable length range: 55mm-65000mm, conductor cross-section range: 0.13mm²-6mm², max. stripping length: 18mm, max. feed speed: 12m/s. Machine dimensions X/Y/Z: approx. 3750mm/1450mm/1850mm, weight: approx. 950kg. Documentation available. An on-site inspection is possible. Hfjdpfx Acjy Tn Nmo Aol

Year of construction: 2014, condition: ready for operation (used), A Niehoff double twist stranding machine is available. Spool size: 630mm, max. spool width: 475mm, copper processing range: 0.09mm²-6mm², single wire diameter: 0.05mm-0.85mm, max. speed: 6000rpm, max. tensile force: 200N, machine dimensions X/Y/Z: approx. 3000mm/1700mm/1600mm, weight: approx. 3000kg, operating hours: approx. 7371h. Including frame and some accessories as well as spare parts. Documentation available. An on-site inspection is possible. Hfjdpfx Aey I Ac Rec Ael

Year of construction: 1997, condition: ready for operation (used), Several Wafios wire processing machines with two payoff reels are available. 1) Wafios N90, year of manufacture: 2003. Including Wafios AHL 41 D-M payoff reel, year of manufacture: 2002. 2) Wafios DS 80. 3) Wafios N5. 4) Wafios AHL 41 DR wire payoff reel, year of manufacture: 1998. 5) Wafios AHL 41 D wire payoff reel, year of manufacture: 1997. All machines including payoff reel. An on-site inspection is possible. Individual sale possible. Hfjdpoy Eg Dmjfx Ac Asl

Year of construction: 2024, condition: excellent (used), – Power – 3,5 kw – Managament – PLC Control – One Appointments Units – Run out table – 15 m ( Possibility of upgrade ) – Diameter of block – 300mm – Wire diameter range – 1.8 – 3.2 mm – 1550 N/mm2 – Ring diameter – 300 – 420 mm - possible another diameter of rings – Capacity – 52,5 m2/8h for mesh with next characteristics : Ring diameter 350 mm – 9 coils Wire diameter – 3 mm Hjdeyx E Hajpfx Ac Ajfl Mesh dimensions – 10 x 5 m – dimensions of mesh – 10x 5 m ( possibly longer ) depends on the weight of the final mesh – Power – 3,5 kw ( complete line ) – Number of workers – 1 per shift

Year of construction: 1987, condition: used, 13-Stand Rebar / Bar Mill - 100.000 Ton/year New: Shutdown: 2003 Manufacturer: Configuration: 1987, upgrades in the late 1990's, early 2000's Billet: Products: Rebar: Rounds: Square: Hex: Flats: Angles: Controls: Drives: Schloemann, Hille Engineering, ABB, Ajax Semi-continuous, Reversing Roughing Stand plus 12 Continuous Finishing Mill 4" - 5" (102 - 127 mm) .5" - 1.2" (12.7 - 30 mm) .5" - 2.5" (12.7 - 63.5 mm) .625" - 2" (15.9 - 50.8 mm) .625" - 1.8" (15.9 - 45.7 mm) .25" x 1.5" - 1" x 4" (6.4 x 38.1 - 25.4 x 102 mm) 1" x 1" x .125" - 3" x 3" x .375" (25.4 x 25.4 x 9.5 - 76.2 x 76.2 x 9.5 mm) ABB master reference speed control system for tension free rolling Solid State ABB. Most motors and drives were replaced in 2000. Stand Number Type Roll Diameter Roll Width Motor 1 Horizontal 14.75" 20" 500 HP 2 Horizontal 14.75" 20" 500 HP 3 Horizontal 15.25" 20" 500 HP 4 Vertical 15.25" 20" 350 HP 5 Horizontal 15.25" 20" 500 HP 6 H-V Convertible 13.78" 22" 500 HP 7 H-V Convertible 13.78" 22" 500 HP 8 H-V Convertible 13.78" 22" 500 HP 9 H-V Convertible 13.78" 22" 500 HP 10 H-V Convertible 13.78" 22" 500 HP Hedoyx Exijpfx Ac Asfl 11 H-V Convertible 13.78" 22" 500 HP 12 H-V Convertible 13.78" 22" 500 HP Main Components: 1. Billet Reheating Furnace: Ajax 4 zone continuous Induction Furnace: Zone 1: 4,000 kW, 10 coils Zone 2: 3,000 kW, 12 coils Zone 3: 3,000 kW, 12 coils Zone 4: 1,000 kW, 10 coils 2. Schloemann 2 Hi Reversing Roughing Mill: Roll diameter: 26" (660 mm) Roll width: 88.5" (2,248 mm) Motor: 2,000 HP Entry and exit Roller Conveyors 3. 12-Stand Hille Engineering (UK) Continuous Mill: (3) Flying Crop and Dividing Shears Vertical Loopers in the Finishing Train4. Orbis Sizing Gauge 5. Water Quenching Line (used for sizes .75" 4. Orbis Sizing Gauge 5. Water Quenching Line (used for sizes .75" to 2.25") 6. 120' Walking Beam Cooling Bed 7. CMI Product Saw driven by 300 HP DC Motor 8. Finishing Stand Setup Area (stands 6 to 12) 9. Spare rolls, chocks, bearing and other spares The Mills is still installed. The condition of the equipment is very goo

Year of construction: 2005, condition: ready for operation (used), Three cable processing machines from a complete extrusion line are available. 1) Spindle pay-off Ka-Be-Ma AS400, spool flange diameter range: 140mm-400mm, min. core diameter: 90mm, max. spool width: 300mm, max. spool weight: 50kg, conductor diameter range: 0.1mm-1mm, max. pay-off speed: 600m/min, tensile force: 0.5N-20N, machine dimensions X/Y/Z: approx. 1200mm/1550mm/1450mm, weight: approx. 1000kg. 2) Cooling section Ka-Be-Ma T-KW-UKW-A-1,5, Zone 1: Process: immersion cooling, temperature range: 70°C-80°C, length: 2000mm. Zone 2: Process: spray cooling/deflection section, temperature: approx. 25°C. 3) Dual take-up Ka-Be-Ma DWST400-1, spool flange diameter range: 305mm-400mm, min. core diameter: 156mm, max. spool width: 282mm, conductor diameter range: 0.1mm-1mm, speed: 600m/min, tensile force range: 0.5N-1.5N, max. spool weight: 80kg, machine dimensions X/Y/Z: approx. 1200mm/1550mm/1450mm, weight: approx. 2200kg. Documentation available. An on-site inspection is possible. Hfedpfx Acjyxq Upe Ajl

Year of construction: 1991, condition: ready for operation (used), A Krollmann pointing and rolling machine for pointing wire, round, and bar material in preparation for drawing processes is available. Machine body swivel: 90°, shear: available. Wire diameter range: 0.5mm-8mm. An on-site inspection is possible. Hfedpfsyvuu Usx Ac Ajl

Condition: ready for operation (used), A Wafios wire straightening and cutting machine with a straightening attachment of 1000mm is available. Wire diameter range: 1.5mm-7mm, cutting length range: 20mm-3000mm, straightening rotor speed: 6800rpm, pitch: 71/69, cutting stroke: 270/min, machine dimensions X/Y/Z: approx. 3300mm/1200mm/1800mm, weight: approx. 1400kg. An on-site inspection is possible. Hfodpfx Aeyvuuzjc Asl

Year of construction: 1996, condition: used, functionality: unexamined, machine/vehicle number: 2566, Marsilli coil winding machine with 6 spindles, No. 437 Hfjdpfeyuthiox Ac Asl Type WM 2002/6 - 100, serial no. 2566

Condition: used, Manufacturer SCHNELL (Italy) Model barwiser 22 Main Characteristics Up to 22 mm *Images may not correspond to the real Hedsymcpgspfx Ac Asfl

Condition: used, SCHNELL Automatic Stirrup bender PRIMA R 12 Full revamped “as new”, Up to 12 mm Main Characteristics - Single strand: 6 / 12,7mm - Double strand: 6 / 10 mm - Max bending angle: 180° - Central mandrel diam.: 20 / 50 mm - Max pulling speed: 95 m/mm to 310 m/mm - Max bending speed: 1450°/sec - Bending distance: 1500 mm to 4´-11” - Avg. power consumption: 3 kW/h - Working pressure: 7 bar - 90/100 psi Hfsdpfx Asymcbiec Ael Single strand: 6 / 12,7mm Double strand: 6 / 10 mm Max bending angle: 180° Central mandrel diam.: 20 / 50 mm Max bending speed: 1450°/sec Bending distance: 1500 mm to 4´-11” Avg. power consumption: 3 kW/h Working pressure: 7 bar - 90/100 psi

Year of construction: 2006, condition: refurbished (used), SCHNELL Robomaster 6012 bending robot Currently in production Length: 12 metres Capacity: 3 bars of 40mm Refurbishment time: 60 days max from order date. Length: 12 metres Capacity: 3 bars of 40mm Hfedpfx Aceymb S Ts Ael

Year of construction: 2003, condition: used, SCHNELL Idea 12/25 assembly machine Hfsdpfx Acsymb Nre Asl Machine recently dismantled in working order, production stopped. 3 payoffs Payoffs: 3

Condition: ready for operation (used), A CNC flat wire vertical wire bending machine V&C GmbH is available. Wire thickness range: 0.8mm-10mm, max. wire width: 30mm, min. winding inner diameter: 20mm, max. winding outer diameter: 250mm, max. winding height: 160mm, max. winding height with holding rod: 500mm, max. winding length: 250mm, min. bending radius: R6°, max. number of edges: 12/revolution. Machine dimensions X/Y/Z: approx. 2650mm/1000mm/1800mm, weight: approx. 800kg. Documentation available. On-site inspection is possible. Hfodpfsycwtfox Ac Ael

Year of construction: 2003, condition: good (used), functionality: fully functional, machine/vehicle number: 03234, 6 Brush ( 3 pairs) descaling machine for steel wire size 5.5mm - 16.0 mm max (low carbon) Brush pairs arranged in a 60 degree offset for maximum effect. A very clean looking machine. Hsdpox R Uzdofx Ac Ajfl On site viewing and inspection recommended
