Used Ras Flexibend 73.40 for sale (78)

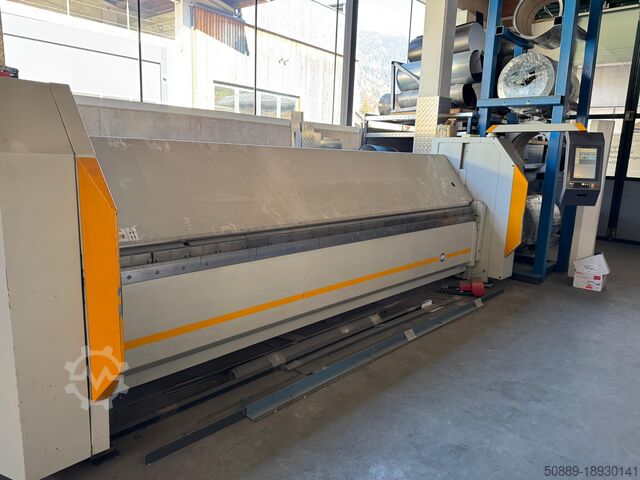

Condition: excellent (used), Year of construction: 2009, Functionality: fully functional, working width: 4,060 mm, overall weight: 5,300 kg, type of input current: three-phase, FEATURES Working length: 4060 mm Working thickness: 2.5 mm Rear table with spheres Pelhcdwowb Ar Sexjpr 155 additional tools to those present on the machine

Year of construction: 2005, Condition: ready for operation (used), General Data Measurements width 2600 mm Measurements depth 5200 mm Measurements height 1700 mm Machine weight 12000 kg Control Unit Model 6000 TOUCH Main Drive Bending length 4060 mm This RAS FLEXIbend 73.40 Bending machine was manufactured in the year 2005 in Germany. It is equipped with a SYSTEM 6000 TOUCH control unit. The machine has a bending length of 4060 mm. Application Types Bending Ppslsv Db H Ishcdwxjr

Condition: used, Year of construction: 2004, sheet width 4000 mm Ppjlhcot Hw Hfjdwxsr plate thickness 2,5 mm distance between columns 4060 mm total power requirement 3 kW weight of the machine ca. 5,5 t

Condition: excellent (used), Functionality: fully functional, machine in the maximum manufacturer's option. additional tools in the price of the machine. Ppelhcdwewfz Srjxor the machine is connected all the time and can be tested at any time

Condition: excellent (used), Year of construction: 1999, Motorized folding machine Fab. RAS Typ. Flexibend 73.30 Year 1999 Technical data Make: RAS Type: 73.30 Flexible Year of construction: 1999 Effective length: 3200 mm Sheet thickness: 3.0 mm Opening width upper beam: 300 mm Polhcjtluigedwxepr Drive: 4.5 KW Dimensions: L 4300 x 2300 x 1750 mm Weight: approx. 4.4 t Equipment - Control system 5000 - CNC - controlled back gauge 10-1500mm - Automatic upper and lower tool clamping - Automatic folding beam adjustment - Crowning - Technical documentation Tools: - Bending rail 25mm ( s = 3mm), segmented - Sharpening rail All information without guarantee. A demonstration is possible at any time in our showroom.

Condition: used, sheet width 3200 mm plate thickness 2,5 mm weight of the machine ca. 3,5 t Ppolhcdor Ngtfswxer Tools recentely grounded. Bending angle preselection via potentiometer

Condition: good (used), Year of construction: 1991, Sheet width 2500 mm Sheet thickness 4 mm Cutting angle 1.49 ° Strokes per minute 40-80 Ppelhcotq S T Nedwxor Stand projection 200 mm Number of hold-down devices 13 pieces Backgauge - adjustable 5-1000 mm Table height 750 mm Oil capacity 85 l Air pressure - required 5 bar Machine weight approx. 3600 kg

Condition: ready for operation (used), total length: 6,050 mm, total height: 2,500 mm, power: 7.5 kW (10.20 HP), workpiece length (max.): 3,200 mm, distance table to ram: 400 mm, net weight: 6,180 kg, total depth: 2,050 mm, Soort: 74.30 MultiBend-besturing Gereedschappen zijn snel te verwisselen 2 verschillende gereedschappen inbegrepen, verdeelde onderdelen Staal 37: 4 mm Aluminium: 9 mm Max tickness: St 37: 4 mm Ppslhcdjwdkqbjwxer Max displacement back gauge: 1550 mm

Condition: good (used), Functionality: fully functional, Cutting length 2520 mm Sheet thickness at 400 N/mm²: 4.0 mm Cutting angle 1.5° Strokes per minute: 47 Pelhewd I Evjcdwxjpr Back stop approx. 750 mm Thrust 350 mm . Equipment: Side stop left, 750 mm Cutting gap adjustment Back stop with vernier scale and magnifying glass (and light) Overload protection . Other: Both knives are sharp and not yet lined The cylinders are dry

Condition: used, Year of construction: 1993, Motor-controlled back stop with folding cams up to 1500 mm Motorized bending beam adjustment Control Multibend 9000 Segmented upper beam tool with automatic tool clamping (height 150 mm) Pslhcdwsgti Ehsxopr Max. bending length: 3200 mm Max. sheet thickness: 4mm steel mass: approx. 5800 kg Max sheet thickness: 4mm steel Max. Bending length: 3200 mm Max. Sheet thickness: 4 mm steel

Condition: good (used), Lockformer RAS type 22.15 Power: 2,2 kW Maxi thickness: 1,5 mm Polhcjvzq U Asdwxspr Wheel diameter: Ø 85 mm x 40 mm Voltage: 380 V Dimensions (L x W x H): 1700 x 600 x 1100 mm Weight: approx 350 kg

Condition: new, Functionality: fully functional, sheet thickness steel (max.): 3 mm, working width: 3,200 mm, FLEXIbend RAS 73.30 - Available immediately. Do you want precision? Do you want power? Do you want productivity that catapults you forward? Then you should secure this offer! The machine is designed for people like you: entrepreneurs, decision-makers, producers. No compromises - only results. Technical power Working width: 3200 mm Max. sheet thickness: 3 mm (400 N/mm²) Speed Optimizer: Up to 15% faster. Because time is money. Five highly dynamic and ramp-controlled CNC axis movements for: • Bending beam 0-180 degrees • Upper beam 0-300 mm Pelhswcatpscdwxjpr • Backgauge 10-1550 mm • Bending beam adjustment up to 80 mm • Lower beam adjustment up to 80 mm Features: Automatic tool clamping on the upper, lower, and bending beams Intelligent crowning system for 100% straight bends Touch&More control: Draw the part directly on the screen High-tech backgauge: 10-1550 mm – precise, fast, and safe Top ergonomics: Front or rear operation, 1- or 2-person operation – you decide Footswitches at the front, rear, or mobile – full control J-gauge up to 3050 mm International training & support – at your location or ours What are you waiting for? Secure your offer now.

Condition: used, Year of construction: 1989, Hydraulic Guillotine Shear Manufacturer: RAS Type 85.44 4000 x 4 mm Year of Manufacture: 1989 Technical Specifications Manufacturer: RAS Type: 85.44 Year of Manufacture: 1989 Usable Length: 4000 mm Sheet Thickness: 4 mm Power Consumption: 7.5 kW Dimensions: L 4.70 x W 2.0 (plus support arms 600 mm) x 1.70 m Weight: 5.7 t Polhcowbpwbjdwxspr Equipment - Controlled backgauge 1000 mm - Motorized cutting gap adjustment - Multicut Eco 2000 control system - Pneumatic sheet support - Angle stop - 3 support arms - Scrap cart - Technical documentation All information is subject to change. Demonstrations are available at any time in our showroom.

Condition: excellent (used), Motorized Guillotine Shear (used) Manufacturer: RAS Model: 82.10 Max. cutting length: 1040 mm Max. sheet thickness for ST 40: 2.5 mm Distance between columns: 1040 mm Continuous hold-down clamp Backgauge travel: 5 – 500 mm Ppjlhcjwardbjdwxjr Motor power: 2.8 kW Machine weight: 750 kg Space required: Depth: 2000 mm, Width: 1400 mm, Height: 1100 mm Foot switch Backgauge manually adjustable from the front Angle stop Support arms (front) The machine is in very good condition and ready for immediate use. Forklift available, truck loaded free Favourable shipping available Machine location: 48324 Sendenhorst

Condition: used, Empty weight: 3.800 kg Price: On request Polhev Umf Dscdwxjpr Maximum working width: 3200mm Maximum thickness: 2,5mm Maximum opening: 200mm Unfortunately no tooling for complete width - Documentation available: No - Serial number: 24/2 - Control: Conventional - Motor power: 4.5kW - Transport weight [kg]: 3800kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Bram van Summeren

Condition: excellent (used), Year of production: 2007 Pslhcjwbd N Eedwxepr Weight: 20,000 kg Maximum working length: 2,560 mm Maximum sheet thickness (mild steel): 2.0 mm Maximum sheet thickness (stainless steel): 1.5 mm Maximum sheet thickness (aluminium): 3.0 mm Additional equipment: blank feeder, tools NOTE: MACHINE CURRENTLY OPERATIONAL, DISPLAYS COMMUNICATION ERROR ON CAN BUS

Condition: good (used), Year of construction: 2000, sheet thickness steel (max.): 2 mm, sheet thickness aluminum (max.): 3 mm, Specifications : Maximum working length 2160 mm Maximum sheet thickness (steel 400 N/mm2) 2.0 mm Maximum thickness of sheet metal (stainless steel) 1.5 mm Maximum sheet metal thickness (aluminum) 3.0 mm Maximum development sheet width 1500 mm Maximum four-sided fold height max * 203 mm Bending blade reach 180 degrees Ppolsqzibtshcdwxer Machine width 5500 mm approx. Machine length 7000 mm approx. Machine height 2500 mm Total weight 21000 kg Power 18 kW Frequency 50 Hz Pressure 6 bar INCLUDED drag loading system

Condition: used, Year of construction: 2008, Functionality: fully functional, Used RAS 86.33 swing-beam guillotine shear with newly ground upper and lower blades, always serviced and rarely used. Technical specifications: Year of manufacture: 2008 Weight: 6,800 kg Max. sheet thickness at 400 N/mm²: 6.3 mm Working length: 3,190 mm Stop depth: 5-1,000 mm Working height: 800 mm Stroke rate per minute: 30-64 N/min Connections: 400 V / 50 Hz / 40 A 3 PE / three-phase AC Power consumption: 18.5 kW Machine width: 3,830 mm Pelhcdev Tk Exewxspr Machine depth without angle stop: 2,195 mm Machine depth with angle stop: 3,275 mm Machine height: 1,725 mm Air pressure: 5 bar Frame overhang: 100 mm Tank capacity: 150 l

Condition: used, Year of construction: 1997, Hydraulic folding machine Manufacturer RAS Type. 74.30, 3200 x 4 mm Year of manufacture: 1997 Technical specifications Make: RAS Year of manufacture: 1997 Type: 74.30 Usable length: 3200 mm Power: 4 mm Stroke: 400 mm Lower beam adjustability: 80 mm Bending beam adjustability: 80 mm Bending angle adjustment: 0 – 180° Bending angle accuracy: +/-0.1 mm Motor power: 7.5 kW Dimensions: L 5.65 x W 2.10 x H 2.50 m Weight: approx. 5.8 t Equipment • Motorized backgauge with various stop fingers • RAS Multibend 9000-32 control system, monitor replaced • Motorized bending beam adjustment • Large tool package according to Photos Bending splint, sectioned 2 x goat's foot splints, sectioned All information is subject to change. A demonstration is available at any time in our showroom. Pjljwbgb Rohcdwxepr

Condition: used, Used RAS 62.30 Turbobend CNC Folder Used RAS 62.30 Turbobend CNC Folder Year 2014 Sheet thickness 2mm, Working length 3,200mm back gauge depth 6 – 1,550mm, back gauge accuracy +/- 0.15mm, accessories Ppjlhcofuakysdwxsr

Condition: used, Year of construction: 1965, Press brake, folding bench, bending press Model: Hydraulic Manufacturer: RAS Type: 70/1 Working width: 2040mm Capacity: 5mm Pelhcdwov Umcpsxjpr Max opening height: 90mm Back-gauge: 600mm Hydraulische Motor: 3kW Machine-dimensions: 3500x1300x2350mm Machine-weight: 3500kg - Year: 1965 - Documentation available: No - Serial number: 16212 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Bram van Summeren

Condition: reconditioned (used), Year of construction: 2015, sheet thickness steel (max.): 3 mm, working width: 600 mm, total length: 600 mm, Refurbished RAS MiniBendCenter 79.05 Technical data Board length: 50–600 mm Board width: 40–600 mm Sheet thickness max. (400 N/mm²) depending on tool: 3.0 mm Upper cheek stroke max: 500 mm Smallest leg height Standard value depends on tool: 5 mm x s Maximum leg height: 127 mm Weight of bending cell: 10 tons Weight of cladding and electrics: approx. 2027 kg Weight of machine elements: approx. 945 kg Motor operation: 400V, 50/60 Hz, 3-Ph Year of construction: 2015 Condition: refurbished—good used condition Bending cell: Automatic sheet thickness adjustment Automatic tool clamping Blank scanner Main manipulator: 3 servo motors for X,Y,Z 1 servo motor for lower rotary axis + separate drive for rotary axis Ppolhcdev N Eutowxer Double sheet detection Tool changer: 3 servo motors for X,Y,Z 1 pneum. Swivel drive for rotary axis Tool gripper Tool magazine on 2 levels Automatic tool clamping in the tool magazine Cladding: Bending cell front and rear Movable control panel: 18" Touch & More control unit Pallet station: Roller conveyors and heavy-duty chain conveyors 1 space for new pallets (parts that are being processed) 1 space for "pallet in process" 2 spaces for finished pallets (empty or with remaining quantity) Additional equipment: Intelligent charging robot Combined camera-scanner system Analysis software Transfer table, Sauerfeld (52x9mm) suction cup series (7x20mm) Conveyor curve belt with 6 connection stations Cladding finished part output Complete tool set RAS CAM-Office software incl. SolidWorks license and maintenance contract for 2 years This high-quality used RAS MiniBendCenter 79.05 offers you proven quality at an attractive price and is available directly from the manufacturer. It is a fully automatic bending center specifically designed for the efficient processing of small parts. It comes with a manufacturer's warranty, maintenance included, and the latest software version. With advanced technology such as automatic sheet thickness adjustment, an intelligent loading robot, and a powerful control system, it optimizes your production and reduces costs. Benefit from high flexibility and fast amortization through automated processes and versatile configuration.

Condition: good (used), Machine number: 302/7 max.sheet thickness: 1,75 mm Projection: 200 mm Weight: 160 kg Accessories: roller set on request condition: repaired (very good) Ppolody Sp Rohcdwxsr

Year of construction: 2023, Condition: as good as new (ex-display), motorized beading machine RAS 11.35 Operation via foot pedal right/left rotation via foot pedal Speed infinitely variable via potentiometer Ppjlhsf Dqldjcdwxjr feed via hand crank complete with 9 pairs of standard rollers Divided stop sheet thickness 1,25 mm roller centre distance 50 mm Throat 200 mm

Condition: used, back gauge: 550 mm, Mechanical Guillotine Shears Manufacturer: RAS Type 83.20 2040 x 3 mm Technical Specifications Pslhcsv S Udvodwxjpr Manufacturer: RAS Type: 83.20 Usable Length: 2040 mm Power: 3 mm Motor Power: 5.5 kW Dimensions: approx. L 2.60 x W 2.10 x H 1.20 m Weight: approx. 2 t Features • Angle Stop • Support Arms • Manual Back Gauge 550 mm All information is subject to change. A demonstration is available at any time in our showroom.
