AXI - PCB AOI and X-ray unit combined

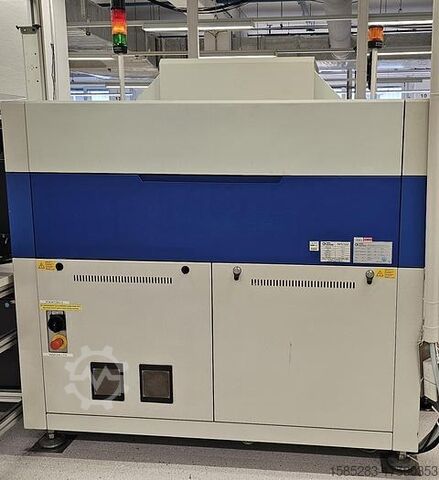

Goepel XLine 3D X-Ray & AOI

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, The Scheugenpflug dosing system K06399 is a stand-alone dosing machine. The unit is specifically configured to dispense DOWSIL 744 from a 20 kg Hobbock. Nedeua Acqspfx Afcjwc It features the following axes: X, Y, Z, needle pivotable 45°, carrier rotatable with a lift/rotate unit. A needle cleaning and measuring station is included. The Bosch conveyor belt for the carriers has a fixed width of 400 mm (non-adjustable). Please note: originally, the unit was equipped with inlet and outlet buffers—these components are no longer present, the pictures only illustrate them for reference. Inlet and outlet buffers are no longer included—they are shown for understanding only. / years, not used in the last 2 years due to change of product line.

Condition: ready for operation (used), Year of construction: 2022, functionality: fully functional, machine/vehicle number: E22614162, M-20iD/25 with R-30iB MATE PLUS Nwjdpfew Id Iyjx Afcec A05B-2682-B144 cabinet. ready to use. quite new

Year of construction: 2019, condition: ready for operation (used), An automatic optical inspection machine Göpel for inline quality control of electronic printed circuit boards is available. Inspection types: 2D/3D/360°/AOI, viewing angle: 45°, 3D camera module: ViewZ, resolution X/Y: 21µm/10.5µm, component clearance below/above the assembly: 50mm/40mm, max. inspection speed: 100cm²/s, max. inspection dimensions X/Y: 570mm/510mm, max. printed circuit board weight: 5kg, min. printed circuit board width: 80mm, machine dimensions X/Y/Z: approx. 1200mm/1450mm/1650mm, weight: approx. 950kg. Including licences. Documentation available. An on-site inspection is possible. Njdpfxjymfccj Afcowc

Year of construction: 2021, condition: excellent (used), functionality: fully functional, Complete AOI Production Line GÖPEL Vario Line 3D X100 incl. Handling – Used System For sale is a complete, integrated AOI production line consisting of a GÖPEL Vario Line 3D X100 inline AOI system including full PCB handling (loading and unloading, buffer and verification stations). Line configuration (excerpt): - GÖPEL Vario Line 3D X100 Inline AOI Nodpfx Afsyhzunjcswc - 3D measurement module (ViewZ) - Orthogonal and angled view inspection - PILOT AOI software incl. CAD import, OCR/OCV, statistics - Inspection area: 510 x 470mm PCB Handling (RG Modules): - LPE-1M Loader (magazine loader) - PB 500/1 buffer conveyor - PB 500/3-AP buffer conveyor with integrated inspection/verification station - LPA-2M/QV unloader with pass/fail sorting (2 magazines) - Electric width adjustment (bus connection) - Inline interfaces (SMEMA) - Verification and analysis workstations Condition: - Used equipment from ongoing production - Well maintained and fully functional - Sale as a complete line, not individual components Viewing & Service: - Sale on behalf of a customer - On-site inspection possible - Training and commissioning can be offered on request - Support with disassembly, transport, and recommissioning available by arrangement - Ideal for EMS providers and electronics manufacturers Location: Germany Scope of delivery: as inspected
