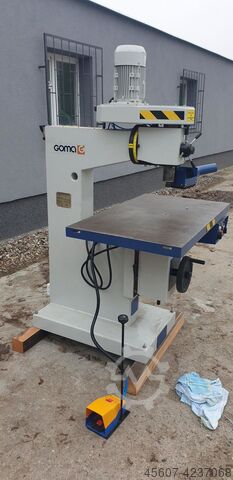

GOMA GS-900 Router Milling top

GOMA GS-900

GOMA GS-900 Router
Manufacturer GOMA
Model / type of the GS-900 machine
Production year 2019
Machine category Router
Location

Gorzów Wlkp.
Conditions of delivery

OWN COLLECTION
Cost of delivery

Customer cover
Startup Type

to be agreed
Description
Comments

Value Data
Spindle speed 9000 - 18000 rpm
Two-speed engine 3.2 / 2.4 kW
Head rotation +/- 45 °
Vertical table travel 150 mm
Table dimensions 700 x 800; (700 x 1200) mm

The GS-900 router is intended for processing solid wood and wood-based materials, i.e. chipboard, MDF, etc.

Characteristic:
- processing of solid wood and chipboard,
- milling of grooves in plates, edge profiling according to a curvilinear route or a straight line,
- remote control for working with templates extended from the table,
- double bearings allow you to use the full engine power,
Crsdofbl Epspfx Agmjh
- pneumatic smooth lowering of the spindle controlled by a pedal,
- spindle tilt in the range of +/- 45 degrees.

Machining of very short, very long, complex curved edges or other unusual work requires the use of special equipment necessary for safety reasons. This tooling must sufficiently cover the tool and guarantee reliable material guidance to prevent kickback or kicking.

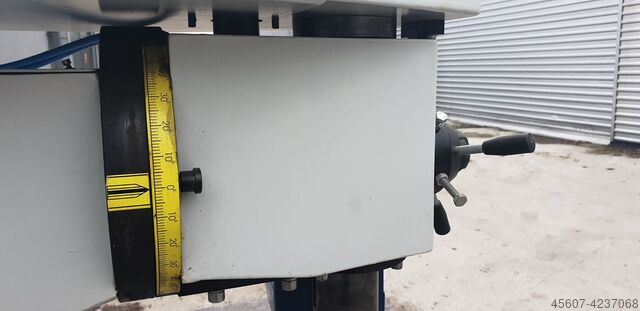

The headstock is tilted sideways manually; the vertical position is determined by the removable pin. In the table, coaxially with the tool, there is a retractable pin D = 10 mm. After extending and installing the bearing, it provides guidance for the template with the workpiece. Clamps that can be purchased at Lignum can be used to attach the item. The tool is mounted directly in the spindle. Combined with reinforced bearings, this allows high feed rates.

ATTENTION!!!
The purchase of tools lies with the buyer.
Spindle lock yes
Table Length 1200
Spindle length mm 700
Number of heads piece 1
Number of engines pcs. 1
Number of pistons pcs. 1
Number of Spindles pcs. 1
Maximum Working Length mm 2500mm
Maximum Working Width mm 1200
Maximum cutting height mm 150mm
The machine has CE marking yes
Engine power kW 3.2 / 2.4 kW
Supply voltage V 380
New machine yes
Spindle speed rpm 9000/18000
Security Guards yes
Full Operation and Maintenance Documentation yes
Extraction connection mm yes 70 mm
Table working surface mm x mm 1200x800
Noise Level Db 50 db
Manual adjustment yes
Very Good Condition yes
Machine weight kg 500
Capacity m3 / h 1800 m3 / h
Machining height mm 150 mm
With noise suppression housing yes
