GOMAD WU 3 lignum universal drill

GOMAD Lignum WU 3

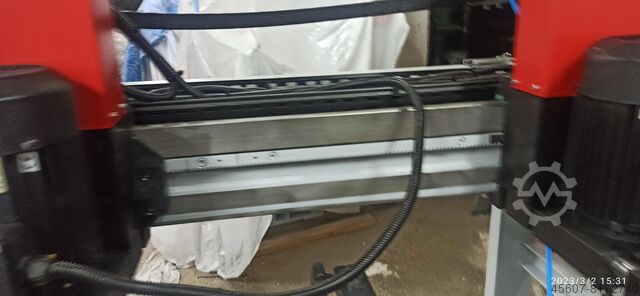

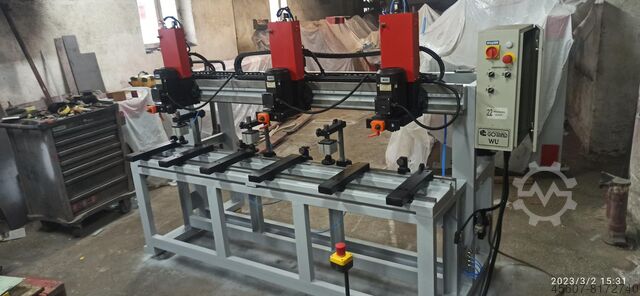

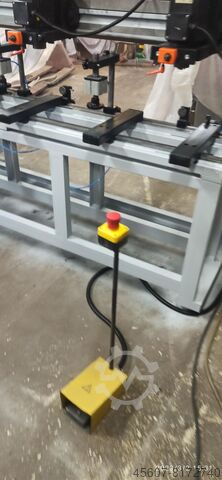

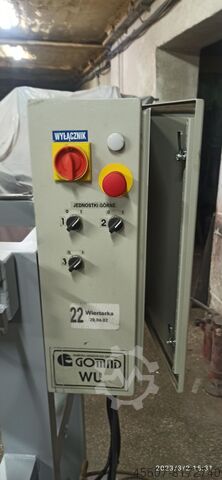

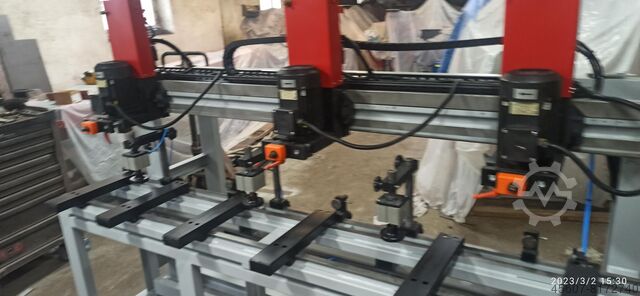

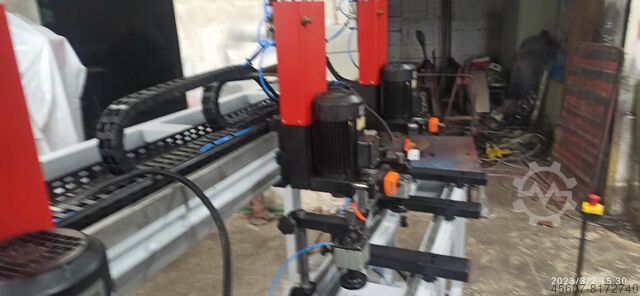

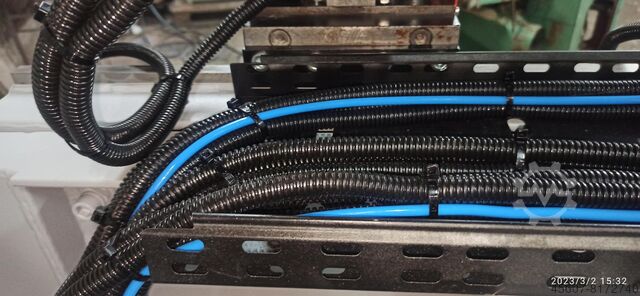

Condition: reconditioned (used), Year of construction: 2002, drill gomad WU 3G 2002 YEAR LIGNUM WU drills Drill WU 3G 3 TOP UNITS Flexible task drills with adjustable spacing of top, side, bottom and swivel drilling units equipped with multi-spindle drilling heads. Designed for drilling all kinds of holes. The modular structure provides many configuration options (working length, number of units, pneumatic clamps, etc.). They enable single- and multi-stage drilling and programming the operation of units depending on the needs. Feeding and receiving of the processed material is done manually. Other drilling functions are performed automatically (material pressure, simultaneous 3-sided drilling, pressure release). Spindle spacing scale Dodpfx Asi Hqhfogmjul according to the order 16 - 44 mm Distance between JC head units 250 - 2500mm Width of JG, JB, JC, JS units 160mm Unit feed cylinder stroke JG - 100mm, JB 100 (120mm) Maximum material width 200mm Maximum material thickness 50mm Maximum drilling diameter 35mm Spindle speed 3000rpm JB units spindle center height above table 6 - 35mm (55mm) Drilling unit engine power 1.1 kW Duration of one-stage and two-stage cycle 4 - 6 sec and 6 - 10 sec Air pressure required 0.4 - 0.6 MPa Compressed air demand 2 m3/h per drilling unit Type of feed drive pneumatic with stepless speed regulation Supply voltage 400V, 50Hz Overall dimensions (L x W x H) 2200 - 4000 x 1500 x 2000mm Weight 2500 - 3000 kg Contact the advertiser Przemyslaw Kretowicz is online lignum 602 Show number

Year of construction: 2021, condition: new, modular drilling machine 8 automatic units Do: Go mad Model: Wu 3g 2C 3T Description: Dodpfx Agjhara Dsmsul Producer GOMAD Benh7jc8jp Year of production 2021 Machine category Modular drilling machine location Gorzów Wlkp. Conditions of delivery OWN COLLECTION Shipping costs Client protection Start type to be agreed Description Remarks MODULAR MODULAR DRILL, TRAILER SLIDING BLADE, HALF-ADAPTATION WITH AIR PEDAL DRILL EQUIPMENT Year: 2021 THE NEW VERSATILE DRILLING MACHINE

Condition: as good as new (ex-display), machine/vehicle number: G-V7-LBM2200-2S-RL-400-Schweiz, Exhibition machine Hans Schreiner long hole drilling machine with one-hand operation. Optimum work thanks to fixed table and movable drill head. Standard with left/right rotation, dowel drilling device and 2-speed motor including tool compartment, eccentric clamp, miter stop Technical data: Motor output 3.8 kW Voltage 400 V Table size 570 x 300 mm Dedpfxevw Edqs Agmeul Max. drilling depth 150 mm Side travel 290 mm Height adjustment 140 mm Dowel drilling device 16, 20, 22, 25 mm hole spacing Max. drill holder 20 mm Speeds 1400/2800 rpm Weight 140 kg Suction connection 100 mm Packaging dimensions 855 x 600 x 1160 mm Prices subject to change, errors, printing and typesetting errors reserved
