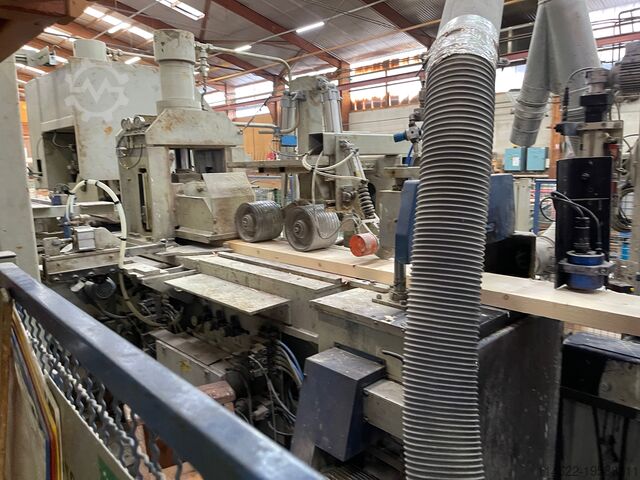

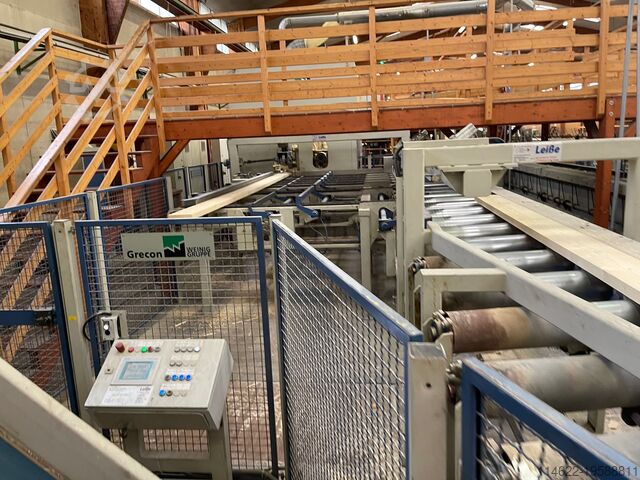

Multi-finger joint assembly line

GRECON Compact

Year of construction: 2009, operating hours: 214 h, condition: like new (used), functionality: fully functional, Thin-Cutting Frame Saw DSG Sonic – Wintersteiger Model / Type: DSG Sonic Year of Manufacture: 2009 Condition: EXCELLENT, only 214 operating hours Technical Specifications 🔹 Cutting and Block Parameters: - Feed speed: approx. 1.7 m/min - Saw frame stroke: 210 mm - Stroke frequency: approx. 550 strokes/min - Cutting heights depending on saw length: - Saw length 380 mm: Cutting height 30–88 mm (with Air Jet and magazine), 45–88 mm (with double planer) - Saw length 420 mm: Cutting height 30–128 mm, 45–128 mm - Saw length 500 mm: Cutting height 80–210 mm, 45–210 mm - Saw length 550 mm: Cutting height 80–254 mm, 45–254 mm - Block lengths: - Basic machine: +185 mm - With magazine: 250–1700 mm - With double planer: +250 mm - Block height variation: ±0.5 mm - Cutting width with side fence: 140 mm 🔹 Additional Technical Data: - Cutting width with center fence: 2 × up to 60 mm - Optional channel width: 2–4 × 15–60 mm - Minimum lamella thickness (depending on wood type and cutting height): >1.5 mm - Kerf thickness (material loss): from 0.9 mm Blade lifespan (depending on wood): approx. 40 hours 🔩 Machine Weight: Basic unit: 3000 kg 🔉 Noise Levels (hearing protection required): At 1 m from the machine: Gedpfx Aajw Dp Ufj Ijil - Idle: 97 dB(A) - Cutting: 99 dB(A) At the operator's workstation: - Idle: 85 dB(A) - Cutting: 88 dB(A) 🌬️ Extraction and Compressed Air Requirements: Dust extraction: Two connections: Ø 120 mm and Ø 150 mm Capacity: 3200 m³/h (30 m/s) Compressed air: - Minimum pressure: 6 bar - Consumption: 200 l/min Lubrication: Centralized system with guide monitoring ⚡ Electrical Data: - Power supply: L1, L2, L3 + PE - Power cable cross-section: up to 16 mm² - Control cable: 2 × 1.5 mm²

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, feed length X-axis: 13,000 mm, feed length Y-axis: 240 mm, feed length Z-axis: 100 mm, feed rate X-axis: 25 m/min, pressing force: 40 t, input voltage: 400 V, total height: 1,120 mm, working height: 1,120 mm, milling spindle length: 330 mm, control voltage: 400 V, workpiece height (max.): 100 mm, tool diameter: 240 mm, rotational speed (max.): 6,000 rpm, air pressure: 7 bar, total length of planing tables: 13,000 mm, We offer a fully automated production line for the manufacture of KVH structural timber. Gjdpfx Aajxfzyyo Isil The line is fully certified with CE marking and by the Wood Technology Institute in Poznań. Compliant with ENPN 14.081 and 14.081 standards 1. Angled discharge conveyor 2. Infeed table for visual wood grading 3. Buffer before defect cutting saw 4. Automatic defect cutting saw with camera for fluorescent chalk 5. Buffer before finger jointing machine 6. Finger jointing machine with glue applicator and cross-cut saw for lengths up to 13 m 7. Chain conveyor storage from finger jointing machine to four-side planer 8. Automatic infeed for four-side planer 9. Four-side planer Winter 6-33 10. Outfeed roller conveyor from four-side planer 11. Automatic packaging machine for planed timber 12. Chain conveyor 13. Strength tester for laminated timber

Condition: excellent (used), Year of construction: 2012, Weinig H1000 moulder with E3 infeed and A3 outfeed Weinig Hydromat 1000 with 5 Spindles. (Year 2012) Separate electrical panel Separate remote control panel Automatic lubrication system for bedplates Memory system Full sound enclosure Godpfsxdx Dmox Aa Ijil Weinig E3 moulder infeed +pack scissors lift (3000kg). Weinig A3 drop leaf outfeed + pack scissors lift (3000kg) + pack outfeed chain conveyor. No 1. 7.5kw - Bottom 6000rpm + Outboard bearing + Straight jointer No 2. 7.5kw - Right 6000rpm + profile jointer No 3. 7.5kw - Left 6000rpm + profile jointer No 4 . 7.5kw - Top 6000rpm + Outboard bearing + Straight jointer No 5 . 7.5kw - Bottom 6000rpm + Outboard bearing + Straight jointer 50mm spindles Beam 0.55kW Full documentation included. Extraction manifold included.

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, Finger jointing line Grecon ProfiJoint Year of production: 2014 Technical condition: very good Technical data: Finished element length: 2100 mm Gjdpexyq Nmjfx Aa Isil For an additional fee, installation, start-up, and operator training are available. We also offer ongoing service.
