Thermoformer

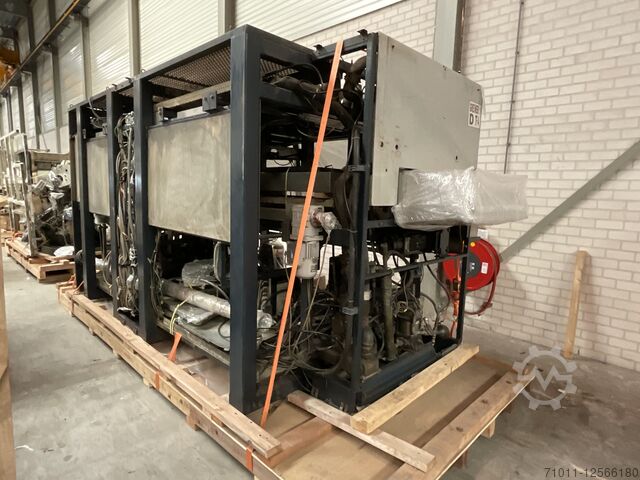

GREINER Thermorunner 4

Condition: excellent (used), Year of construction: 2000, machine/vehicle number: 403, THERMO FORMING MACHINE TFT IMC 5030 (WITH TOOLS) Equipment / Additional information: unwinding: Roll recording: easy Max roll diameter: mm 1000 Settlement: automatically Thermoforming machine: Maximum tool dimensions: mm 520x330 Pos. Molding height max .: 15 mm Neg. Molding height max .: 120 mm Sheet width: mm 150/760 Movement Step: mm 50/330 Max HIPS film thickness: 1.8 mm Hub of the sub-table: 150 mm Clamping force: 7500 Kg Inst power top heater: 18.8 Kw Inst power under heater: 14.1 Kw Idle clock speed: per minute 40th power main drive motor: 2.2 Kw Engine power. Film feed: 0.75 Kw Air operating pressure: Kg / cm2 7 Water consumption at 12 °: 1t / 1` approx.30 Air consump. at 7 kg / cm2: 1t / cycle 125 Installed power: Kw 50 9xTool: Article no. // Tool no. // Cavities // Description / Product: 3599 // 457 // 10 // Vending machine cup capacity/capacity/contenance=223ml 593 // 460 // 8 // Coffee-to-go / thermo mug / thermo cup Filling capacity / Capacity / Contenance=300ml / 12 oz Podpsn D Ew Isfx Agqjrd 509 // 452 // 6 // Ice cream cup: filled to the brim=140ml / Filling capacity with headspace 6mm: 120 ml 591 // 459 // 10 // Thermo mug ⌀ 81/180ml 740 // - // - // Standard cup with sealing edge ⌀ 75-120ml 3589 // 458 // 12 // Coffee-to-go / thermo mug / thermo cup: Filling capacity / Capacity / Contenance=80ml 595 // 456 // 10 // Vending cup / Gobelet pour automate: Filling capacity / Capacity / Contenance=150ml 210 // - // - // Baking case / technical part / plate or tray 8000 // 455 // - // Granule cup 180 ml / technical part with flat sealing edge

Condition: new, Year of construction: 2017, operating hours: 25 h, functionality: fully functional, saw band length: 520 mm, saw band width: 580 mm, total height: 1,500 mm, total length: 5,200 mm, total width: 2,350 mm, type of input current: three-phase, overall weight: 2,500 kg, input voltage: 380 V, New machine. Psdpfxjunia Hj Agqord

Condition: reconditioned (used), functionality: fully functional, Plate size: 2000 x 1000 mm Forming area: 1960 x 960 mm Drawing depth: 600 mm If you would like further details or a quote, please contact us. Psdpfx Ajwf Ebwogqjrd

Condition: excellent (used), Year of construction: 2006, operating hours: 29,750 h, Stations: Forming, Cutting and Stacking Max Forming Area: 500 x 350 mm Min Forming Area: 300 x 160 mm Film width: 540 mm Height of Forming Above-Below Material Level: 100 / 40 mm Max Mould Closing Force: 55 kN Forming Pressure: 2 bar Cycles/Min: 40 Total motor power: 32 kW Total heating power: 44,9 kW Rated current: 115 A Prjdsw Rp Eiepfx Agqod Dimensions (L x W x H): 8,3 x 2,3 x 2,5 m

Condition: excellent (used), Year of construction: 2006, Manufacturer Gabler Model M92 L Year 2006 Condition Very Good Stock Number 00006 Max forming area 750 x 436 mm Pedpfx Agsw Rpzqeqjrd Depth of draw 150 mm Max material width 835 mm Max cycles / min 44 Max mould closing force 350 kN Max top heater output 81.90 kW Max bottom heater output 54.60 kW Operating air pressure 8 bar Power Supply 230V 50Hz Total Connected Load 138.66 kW Approx Dimensions 7,925 x 5,320 x 3900mm (LxWxH) Approx Weight 10,400 kg Notes All details are subject to change and/or errors. All equipment is subject to availability and/or prior sale.
