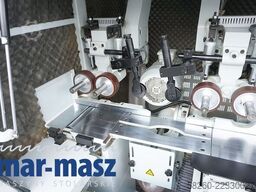

Four-sided planer with 6 heads

GRIGGIO G240/6U głowica uniwersalna

CATALOGUE NUMBER: 6679

TECHNICAL DATA
- max. width of workpiece: 250mm
- max. height of workpiece: 170mm
6 spindles:
1) horizontal lower: 250mm, 5.5kW
2) vertical right: 170mm, 5.5kW
3) vertical left: 170mm, 5.5kW
4) horizontal upper: 250mm, 7.5kW
5) horizontal lower: 250mm, 7.5kW
6) universal: 250mm, adjustable at 360°, 5.5kW
- 6 spindles, electrically adjustable up/down
- all spindles adjustable up/down, left/right
- spindle diameter: 40mm
- 6 top feeding rollers, toothed, pulling, including 2 double rollers
- 6 top delivery rollers, pulling, smooth rubber, including 2 double rollers
- 2 top pressure rollers
- 1 bottom feeding roller, toothed, pulling, swiveling on the table in front of the first spindle
- 2 bottom delivery rollers, pulling, smooth metal
- 4 bottom side pressure rollers
- feed via Cardan shafts
- rollers pneumatically pressed
- stepless feed speed adjustment on a frequency converter, 6-30m/min
- feed motor: 4kW
- working pressure: 8-10bar
- electric adjustment of planing thickness
- body lifting motor: 1.1kW
- central lubrication of the table
- length of the infeed table: 2180mm
- diameter of extraction nozzles: 6x150mm
- dimensions (L/W/H): 5000x1800x1900mm
- weight: approx. 4600kg

ADVANTAGES
- Made in Italy
- 6 heads
- DTR + CE documentation
- Ideal for both wet and dry wood
- Universal spindle
- Excellent condition / like new
Giodpfx Aozlrznok Dsw

Net price: 114900 PLN
Net price: 27350 EUR
Net price calculated based on an exchange rate of 4.2 PLN/EUR
(prices may change in case of significant exchange rate fluctuations)
