Machining Center - Horizontal

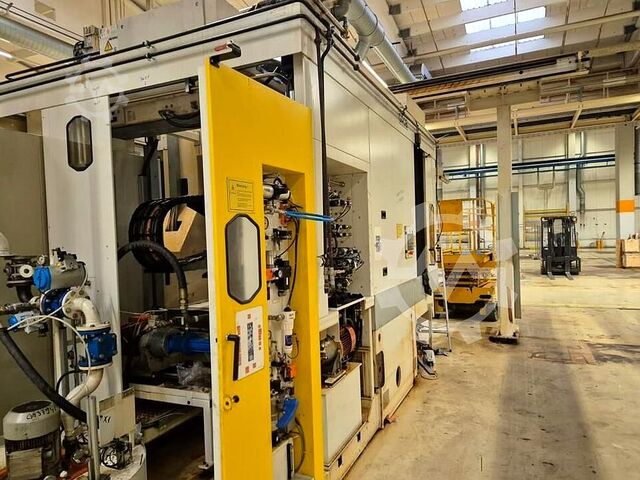

GROB-WERKE BZ 600

Condition: used, Year of construction: 1984, functionality: fully functional, travel distance X-axis: 1,800 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 2,000 mm, table load: 5,000 kg, spindle diameter: 110 mm, total height: 3,800 mm, total length: 5,000 mm, total width: 3,000 mm, table length: 1,520 mm, table width: 1,225 mm, feed length X-axis: 1,800 mm, feed length Y-axis: 1,500 mm, feed length Z-axis: 2,000 mm, Tool holder SK50, Heidenhain control, machine is ready for collection and immediately operational. Kodpfoxga Tnox Akwonb

Condition: used, Year of construction: 2004, Technical details: x-travel: 1500 mm y-travel: 1000 mm z-travel: 1000 mm control for program: TNC 530 spindle hours: noch nicht bekannt h milling head speed: 1: 30 bis 930 und 2: 930 bis 4000 / steples U/min Knedpeu Nc Riofx Akwsb tool taper: horiz./vertical: SK 50 (DIN 69871/Din 69872 Form A) max. torque on the spindle: 1000 Nm spindle head swivable left - right: 90 ° feed: 1 - 6000 mm/min feed power: 30 kN kN rapid traverse: 15 m/min Number of tools: 1 St. table clamping surface LxW: 1600 x 800 mm table load: 40 kN kN voltage: 400 V / 50 HZ V total power requirement: 42 kW Weight approx.: 15,2 t compressed air: 6,3 bar dimension machine xH: 3,1 x 4,7 x 2,6 m dimensions: Kühlfilter: 1,9 x 1,6 x 1,4 mm space requirements approx. LxWxH: ca. 38,5 m² m² Applications: Milling, drilling; tapping, boring. with direct coded length measuring systems the guideways of the 3 axes are on flat guideways CTS and external cooling Milling head position controlled +/-90° milling spindle nominal drive power 22 kW with integrated hydraulic power unit up to 100bar operating pressure with coolant unit with filtration, with high pressure pump 60 bar (internal cooling), nominal delivery 20 l/min. and low pressure pump 4 bar (external cooling) as well as spray gun Hinged belt chip conveyor DGS, type SSF 600 P50 Accessories: Measuring probe SK40 Reference tool SK40 Milling head SEMPUCO *

Condition: used, Technical details: spindle diameter: 120 mm Knedpfx Aoxt El Askwsb x-travel: 1250 mm y-travel: 1250 mm z-travel: 800 mm W-axis (spindle longitudinal): 600 mm Speed of boring spindles: 1- 2000 U/min. spindle taper ISO: 50 table surface area: 1000 x 1000 mm total power requirement: 55 kW weight of the machine ca.: 18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets coolant attachment *

Condition: excellent (used), Year of construction: 2011, TECHNICAL DETAILS CNC control: MSX-501III X axis mm: 560 Y axis mm: 560 Z axis mm: 660 B axis deg.: 360.000 Table load capacity kg: 400 Cutting feed rate mm/min X,Y,Z: 60,000 Max. rapid traverse m/min X,Y,Z: 50 Spindle speed rpm: 12,000 Spindle power kW: 15 Taper type: ISO-40 Torque Nm: 120 Tool changer type: Chain Tool changer positions: 60 Max. tool diameter mm: 70 Max. tool diameter with adjacent positions empty mm: 170 Max. tool length mm: 450 Max. tool weight kg: 8 Coolant tank capacity l: 500 Through-spindle coolant (high-pressure): Yes Ksdpfx Aexfka Nskwonb EQUIPMENT Double chip conveyor ISO-40 taper High-pressure through-spindle coolant with pump Tool breakage detection probe Part measuring probe RENISHAW MACHINE DIMENSIONS Length mm: 3,755 Width mm: 2,300 Height mm: 2,610 Weight kg: 7,600

Condition: used, Year of construction: 2014, Technical details: x-travel: 760 mm y-travel: 760 mm z-travel: 760 mm total power requirement: 43 kW weight of the machine ca.: 11,5 t dimensions of the machine ca.: 2,7 x 4,73 x 2,87 m max. table loading capacity: 500 kg Knedpexrwpdefx Akwob

Condition: good (used), Year of construction: 1983, Machine number: 316204/22 Type / Model: FSS 315/E Travel ranges x-y-z: 850 – 280 – 355 mm Table: 1,200 x 370 mm Clamping area: 1,060 x 260 mm Speed range: 28 to 1,400 rpm Spindle mount: SK 50 Quill stroke: 80 mm Feeds for x and y axes: 16 to 800 mm/min Feed for z axis: 5 to 250 mm/min Power: 8 kW Kjdpfx Akjfli Afewjnb Accessories/Equipment: Head swivels Condition: good Weight: 4 t Dimensions: 2,000 x 2,000 x 2,400 mm

Year of construction: 2007, condition: excellent (used), X AXIS: 762 MM Y AXIS: 560 MM Z AXIS: 460 MM SPINDLE SPEED: 15,000 RPM SPINDLE CONE: BT 40 TABLE DIMENSION: 460 X 760 MM MAXIMUM LOAD: 400 KG RAPID FEEDS X/Y AXIS: 40,000 MM/MIN Z AXIS RAPID FEEDS: 32,000 MM/MIN Kjdjpyg Rkopfx Akwenb WORKING FEED: 32,000 MM/MIN TOOL WAREHOUSE: 20 PLACES TOOL CHANGE TIME: 1.2 SEC – 3.8 SEC MAXIMUM TOOL WEIGHT: 8 KG MAXIMUM TOOL LENGTH: 300 MM CONTROL: OSP-P200M

Year of construction: 1989, condition: ready for operation (used), A Maho CNC 4-axis universal bed-type milling machine is available. Travel X/Y/Z: 1600mm/800mm/800mm, table dimensions X/Y: 1250mm/800mm, max. table load: 3000kg, spindle mount: SK50, main spindle speed: 4000rpm, power: 22kW. Tool positions: 36, max. tool diameter: 160mm/210mm, max. tool length: 315mm/400mm, max. tool weight: 15kg, feed rate: 4m/min, rapid traverse: 10m/min. Machine dimensions X/Y/Z: approx. 5000mm/3700mm/3000mm, weight: approx. 16000kg, control: Philips CNC 232. An on-site inspection is possible. Kjdpfsv Ubqnox Akwjnb

Condition: used, Plug-in welding control in a 19" housing Type NPS 8043-1 IQ1 with quality assurance and 50 programs Solenoid valve voltage: 24 V DC Kedpfx Aodga Nbokwenb complete with current measuring belt MB 260 OTHER CONTROL MODULES IN STOCK: e.g.: 8036 - 8036-S3 8033 8043 MPS 200 R1 RATIA 43a HWS 2202 Profil IQ

Condition: ready for operation (used), Year of construction: 2007, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,250 mm, table load: 2,500 kg, rotational speed (max.): 3,000 rpm, overall weight: 10,000 kg, CNC Heidenhain TNC 530 Kedoy Nnunepfx Akwsnb Maximum spindle speed: 3000 RPM SA 50 tool holder Power: 22 kW Tool changer Travel: 2000 x 1000 x 1250 mm Chip conveyor Machine weight: 12500 kg
