Machining Center - Universal

HÜLLER-HILLE Bluestar 5

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, travel distance X-axis: 700 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 700 mm, workpiece weight (max.): 500 kg, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Travel Travel X: 700 mm Travel Y: 630 mm Travel Z: 700 mm Spindle Spindle speeds: 10,000 rpm Drive power 100% duty cycle: 13.00 kW Drive power 40% duty cycle: 18.00 kW Spindle diameter: 80 mm Workpiece Pallet size: 2 x 500 x 500 mm Workpiece weight: 500 kg Minimum workpiece dimensions: 700 x 700 x 750 mm Tools Tool holder: HSK-A63 Tool magazine capacity: 40 positions Max. tool length: 350 mm Tool diameter: 80 mm Tool diameter with free adjacent spaces: 150 mm Max. tool weight: 10.00 kg Feed rate X/Y/Z: 1 - 50,000 mm/min Rapid traverse X/Y/Z: 50.00 m/min Codpfoxf Dckjx Abwehc Feed force X/Y/Z: 5.00 kN B-axis: 360 x 1 B-axis speed: 30.00 rpm Chip-to-chip time: 4.00 s MACHINE DETAILS Control: SIEMENS SIN840D (PCU50) Total power requirement: 24.00 kW Dimensions & Weight Dimensions (approx.): 4.00 x 4.00 x 3.00 m Machine weight (approx.): 15.00 t EQUIPMENT Chip conveyor Gravity band filter system High-pressure coolant system 40 bar at 23 l/min

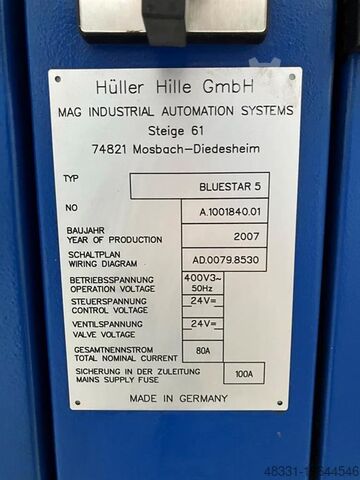

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: A.1001840.01, travel distance X-axis: 700 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 700 mm, total height: 2,900 mm, total length: 4,200 mm, total width: 2,900 mm, overall weight: 12,500 kg, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Working Area Max. workpiece contour: 750 × 700 mm Transport load per pallet: approx. 500 kg Clamping surface pallet DIN 55201, Form A2: 500 mm x 500 mm Distance table center to spindle nose in Z: 100 mm Csdswx Ed Eopfx Abwohc Distance table top to spindle nose in Y: 85 mm Working Spindle Standard tool holder: SK 40 Ball bearing in front bearing: 80 mm Standard speed range: 10,000 rpm Feed Feed rate X-, Y-, Z-axis: 1 – 50,000 mm/min Feed force X-, Y-, Z-axis, 40% duty cycle: approx. 5,000 N Rapid traverse X-, Y-, Z-axis: 50 m/min Acceleration: approx. 7 m/s² Ball screw (lead): 40 (20) mm Tool Magazine Chain magazine 40 tool positions: max. quantity 40 Tool change position: via spindle Max. tool diameter: 80 mm Max. tool length: 350 mm Max. tool change time: 2.5 s MACHINE DETAILS Electrics Operating voltage, three-phase, frequency: 400 V, 50 Hz Control voltage, frequency: 230 V, 50 Hz Connected load: 27 kVA Fuse protection: 80 A

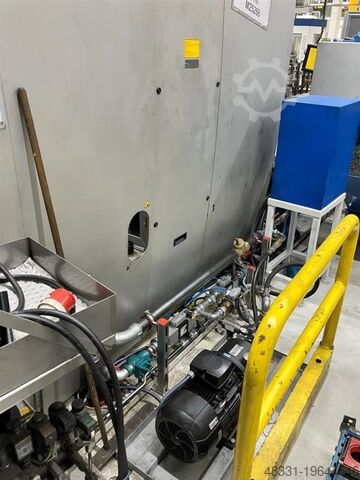

Condition: used, Year of construction: 2007, 4-axis CNC horizontal milling machine Hüller Hille BlueStar5, year of manufacture 2007. Automatic pallet changer with 2 exchange pallets, each with 4 vices (125mm), 4 additional exchange pallets (one with a mineral cast clamping tower), Renishaw measuring system, high-pressure coolant system with additional filtration, coolant and air through the spindle, 40-position tool magazine BT40. Cedew D Sbnopfx Abwohc
