CNC center lathe

HAAS St10

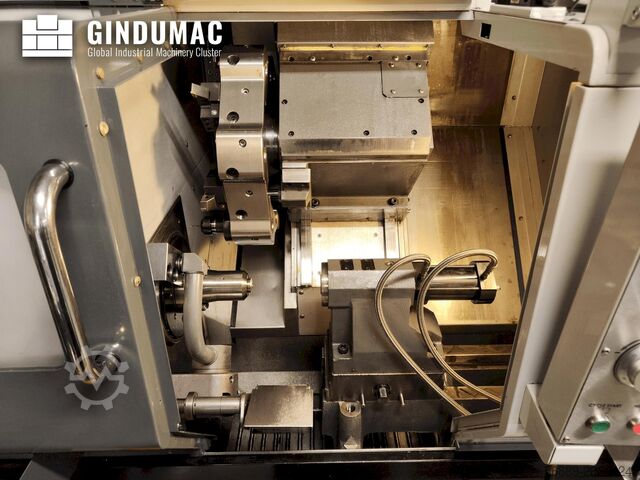

Condition: excellent (used), Year of construction: 2022, operating hours: 600 h, chuck outer diameter: 160 mm, Delivered new in 2023 . pictures show covers off while being serviced- showing as new condition inside. High spec machine as new. Tool setter swarf conveyor Tailstock Parts catcher Tooling as show. ONLY 600 CUTTING HOURS, NEAR NEW CONDITION Omega Design solutions run over 20 Haas machines and can help with all aspects of getting this machine up and running on you parts. Ncsdpfx Abex U D Eto Iol

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, machine/vehicle number: 3096524, MACHINE SPECIFICATION Swing over front apron 641mm Swing over cross slide 413mm Maximum cutting diameter 356mm Maximum cutting length 356mm Spindle nose A2-5 Spindle bore 58.7mm Bar capacity 44mm Maximum spindle speed 6000rpm Spindle motor power 11.2kW Number of turret tool stations 12 Rapid traverse Z/X axis 30.5m/min Approximate weight 2500Kg MACHINE EQUIPPED WITH Haas CNC control system Nodpfx Abox R Sb Is Ijcl 3 jaw chuck 165mm diameter Collet chuck Parts catcher Hydraulic tailstock Tool presetter Assorted tool holders Interlocked guarding Automatic lubrication system Coolant system

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: 3108833, MACHINE SPECIFICATION Swing over front apron 641mm Nedpfx Abex Ig Auj Iscl Swing over cross slide 413mm Maximum cutting diameter 356mm Maximum cutting length 356mm Spindle nose A2-5 Spindle bore 58.7mm Bar capacity 44mm Maximum spindle speed 6000rpm Spindle motor power 11.2kW Number of turret tool stations 12 Rapid traverse Z/X axis 30.5m/min Approximate weight 2500Kg MACHINE EQUIPPED WITH Haas CNC control system 3 jaw chuck 165mm diameter Collet chuck Hydrafeed MSV 65 magazine barfeed Parts catcher Hydraulic tailstock Swarf conveyor Assorted tool holders Interlocked guarding Automatic lubrication system Coolant system

Condition: excellent (used), Year of construction: 2022, operating hours: 2,394 h, functionality: fully functional, Controller HAAS Swing dia. 641 mm Swing over carriage 413 mm Maximum cutting diameter 229 mm Maximum cutting length 356 mm X axis travel 200 mm Y axis travel +/-50 mm Z axis travel 355 mm Bar Capacity 44mm C axis 0,01 degrees Spindle Speed 6000 rpm Spindle Nose A2-5 Milling spindle speed 6000 rpm Rapid Feedrates X/Y/Z = 30,5 / 12,7 / 30,5 m/minute Spindle Motor Power 11 kW Turret Positions 12 stations Tool holder type VDI30 Nodpfx Abswvf Ths Iecl Weight 3600 Kg Dimensions LxWxH = 3048 x 2108 x 1803mm Accesories, features - C Axis programmable - Y Axis - Live tool turret (each places) - Integrated tool presetter - Chip conveyor - 3 jaws hydraulic chuck D160 mm - Tailstock - Foot pedal - Machine mounts - Manuals The machine is barelly used and is in great technical and optical condition.

Condition: ready for operation (used), Year of construction: 2014, operating hours: 316 h, functionality: fully functional, machine/vehicle number: 3097899, turning length: 355 mm, turning diameter: 229 mm, spindle speed (max.): 6,000 rpm, travel distance X-axis: 200 mm, travel distance Z-axis: 355 mm, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Chuck size: 165 mm Maximum turning diameter: 229 mm Turning length without workpiece holder: max. 355 mm Bar capacity: 44 mm Spindle Maximum spindle speed: 6,000 rpm Motor power: max. 11.2 kW Torque: max. 102 Nm at 1,300 rpm Spindle nose: A2-5 Spindle bore: 58.7 mm Swing Diameter Over front cover: 641 mm Over cross slide: 413 mm Over tailstock: 597 mm Travel and Feed Rates X-axis travel: 200 mm Z-axis travel: 355 mm X-axis rapid traverse: 30.5 m/min Z-axis rapid traverse: 30.5 m/min MACHINE DETAILS Electrical Data Power supply (3-phase): 354 - 488 V Dimensions Operating height: max. 1,803 mm Operating width: max. 3,200 mm Operating depth: max. 2,108 mm Operating Hours Power-on time: 7,291 h Cycle start time: 316 h EQUIPMENT Njdpfx Aewy Rxdeb Iecl 15" LCD color display with USB interface 1-MB program storage Synchronized tapping BOT turret with 12 tool stations

Condition: excellent (used), Year of construction: 2023, operating hours: 1,168 h, functionality: fully functional, Controller HAAS Swing dia. 641 mm Swing over carriage 413 mm Maximum cutting diameter 229 mm Maximum cutting length 356 mm X axis travel 200 mm Z axis travel 355 mm Bar Capacity 44mm Spindle Speed 6000 rpm Spindle Nose A2-5 Ncodpfx Aowvgbysb Iol Rapid Feedrates X/Y/Z = 30,5 / 30,5 m/minute Spindle Motor Power 11 kW Turret Positions 12 stations Weight 3200 Kg Dimensions LxWxH = 3048 x 2108 x 1803mm Accesories, features - Integrated tool presetter - Chip conveyor - 3 jaws hydraulic chuck D160 mm - Without tailstock - Foot pedal - Machine mounts - Manuals The machine is barelly used and is in great technical and optical condition.
