Cnc-processing center

HAAS VF2

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, travel distance X-axis: 762 mm, travel distance Y-axis: 406 mm, travel distance Z-axis: 508 mm, table load: 680 kg, spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS Travel X-axis: 762 mm Travel Y-axis: 406 mm Travel Z-axis: 508 mm Table length: 914 mm Table width: 356 mm Hodpfjx Up Dhsx Ac Asfb Table load capacity: max. 680 kg Spindle speed: 12,000 rpm Feed Rapid traverse X-axis: max. 35.6 m/min Rapid traverse Y-axis: max. 35.6 m/min Rapid traverse Z-axis: max. 35.6 m/min Tool Changer Capacity: 24+1 Tool holder: CAT 40 Max. tool diameter: 76 mm Tool change time: 1.6 s Chip-to-chip time: 2.2 s MACHINE DETAILS Machine weight: 3,629 kg

Condition: used, Year of construction: 2012, axis stroke (X,Y,Z) 760, 408, 508 mm Year 2012 Weight 4500 kg 3d changer 20 fach table-size 920 x 360 mm 1200 Hfodpfxsx Uzz Es Ac Aob

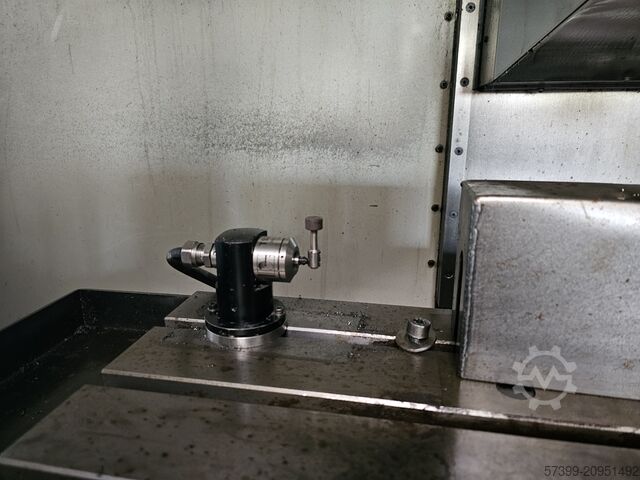

Condition: ready for operation (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 762 mm, travel distance Y-axis: 406 mm, travel distance Z-axis: 508 mm, spindle speed (max.): 12,000 rpm, coolant supply: 21 bar, spindle motor power: 23 W, Equipment: chip conveyor, documentation/manual, For sale: 2 CNC milling machines as a package deal!!! 1 x Haas VF2SS, year 12/2014, Super-Speed machining center SK 40 inline spindle! The VF 2 SS is under power for inspection and fully operational. The machine is equipped with a programmable air cylinder for dry machining, coolant ring + through-spindle coolant (IKZ) with 21 bar, and an additional coolant filtration system. Tool changer with 24 stations! Prepared for 4th axis: Drive and wiring for brushless rotary tables. Automatic air gun Programmable coolant nozzle Spiral chip conveyor Hodpfjx Uprfex Ac Ajfb 1 x Mikron VCE 1000, year 1997, with TOOL MEASUREMENT!!! Currently, the Mikron's vector drive is defective but can be repaired for approx. €1,300 (we will provide the address for repairs). Both machines are sold only as a package and will be loaded FREE OF CHARGE by us onto a truck provided by you at the listed price! This means NO additional loading or dismantling costs for you! Availability of both machines: immediate

Condition: good (used), Year of construction: 2017, operating hours: 3,200 h, functionality: fully functional, number of axes: 5, CNC Milling Machine HAAS VF-2 – 5-Axis – with Loading Robot – Year of manufacture 2017 For sale is a HAAS VF-2 CNC milling machine with 5-axis configuration, including an automatic loading robot, manufactured in 2017, with 3,200 operating hours. The machine is in good, well-maintained condition and has been in regular use. It is ideally suited for precise milling operations, series production, and automated machining. Features / Highlights: - 2-axis rotary table from Haas - Loading robot from HANS - Tool breakage detection and tool measurement from Renishaw - Renishaw OMP40 probe - Video of robot loading available via WhatsApp upon request Manufacturer: HAAS Model: VF-2 5-axis machining Loading robot for automated production Robust and reliable industrial quality User-friendly HAAS control system Regularly serviced Condition: Good condition, fully functional Year of manufacture: 2017 Inspection possible by appointment. Hedpfx Acsx Svz Ie Aofb Further technical details, accessories, and documentation available on request. Price: 49,000.— Location: Austria, Vorarlberg, Höchst

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, machine/vehicle number: 1105876, SPECIFICATION Table size 914mm x 356mm Maximum table load 1316Kg X axis traverse 762mm Y axis traverse 406mm Z axis traverse 508mm Spindle BT40 Spindle speeds 0 -8,100rpm Spindle motor 14.9kW Rapid feed rate 25.4m/min Toolchanger capacity 24 + 1 tools Tool to toll time 2.8 seconds Approximate weight 3500Kg MACHINE EQUIPPED WITH: - Haas TRT 160 5 axis trunnion table (removable) Wireless intuitive probing system Remote jog handle Swarf auger Hjdox Sq Sbepfx Ac Aefb High speed machining Programmable coolant nozzle Lighting Guarding Manual Feed cutting time 11,436 hours

Condition: used, Year of construction: 2005, Technical details: x-travel: 750 mm y-travel: 406 mm z-travel: 508 mm Hedpfex Iwr Tsx Ac Aefb weight of the machine ca.: 4 t bore spindle turning speed range: 12.000 U/min HAAS VF-2 is a 3-axis machining center designed for precision, high accuracy and reliability. *

Condition: ready for operation (used), Year of construction: 2022, Control Unit Brand HAAS Main Drive Spindle speed range 12000 This 3-axis HAAS VF-2SSYT with Pallet Pool 3+1 was manufactured in 2022. It features a 30 hp, 22.4 kW in-line spindle, capable of 12,000 rpm, and a 50+1 tool changer. It includes a 15" screen and a 3+1 pallet pool with 900x450 mm pallets. If you are looking to get high-quality milling capabilities, consider the HAAS VF-2SSYT machine we have for sale. Contact us for more information. Application Types Hsdpsx Hblujfx Ac Aefb Milling

Condition: ready for operation (used), Year of construction: 2011, General Data Machine weight 3720 kg Control Unit Brand HAAS Main Drive Number of axis 3 Hfedpfx Asx E Edljc Aob Movement X-Axis Movement 762 mm Y-Axis Movement 406 mm Z-Axis Movement 508 mm This 3-axis HAAS VF-2SS vertical machining center was manufactured in 2011. It features a 12,000 rpm spindle speed and a table size of 356 mm by 914 mm. With X, Y, and Z travels of 762 mm, 406 mm, and 508 mm respectively, it handles a variety of machining tasks. Consider the opportunity to buy this HAAS VF-2SS vertical machining center. Contact us for more information. Application Types Milling

Condition: ready for operation (used), Year of construction: 2018, General Data Machine weight 3700 kg Measurements height 2800 mm Main Drive Spindle Speed 12000 RPM Spindle motor power 22.4 kW Tool taper BT 40 Number of axis 4 Dimensions Machine Length 2700 mm Table Table load 680 kg Hfsdjx D D N Iepfx Ac Aob Movement X-Axis Movement 762 mm Z-Axis Movement 508 mm Y-Axis Movement 406 mm Tools Max weight 5 kg This 4-axis HAAS VF-2SS-EU vertical machining center was manufactured in 2018. It features a 762 mm X-axis travel, 406 mm Y-axis travel, and 508 mm Z-axis travel. Equipped with a BT-40 spindle achieving up to 12,000 rpm and a side-mount tool changer with a 30 + 1 tool capacity. Rapid traverse rates reach 35.6 m/min. Consider the opportunity to buy this HAAS VF-2SS-EU vertical machining center. Contact us for more information about this machine. Application Types Milling

Condition: ready for operation (used), Year of construction: 2008, operating hours: 5,557 h, Control Unit Brand HAAS Main Drive Spindle speed range 8100 Number of axis 3 Movement X-Axis Movement 706 mm Y-Axis Movement 406 mm Z-Axis Movement 508 mm Hfjdpfxjx D Hpke Ac Aob Workpiece Workpiece weight 1361 kg This HAAS VF-2, manufactured in 2008, offers strong machining capability with 706 mm of X-axis travel, 406 mm on the Y-axis, and 508 mm on the Z-axis. Equipped with a spindle speed of 8100 rpm and a powerful 22.4 kW spindle motor, it is well suited for demanding milling applications. The visual and technical condition of the machine is very good for its age. Contact us for more information. Application Types Milling
