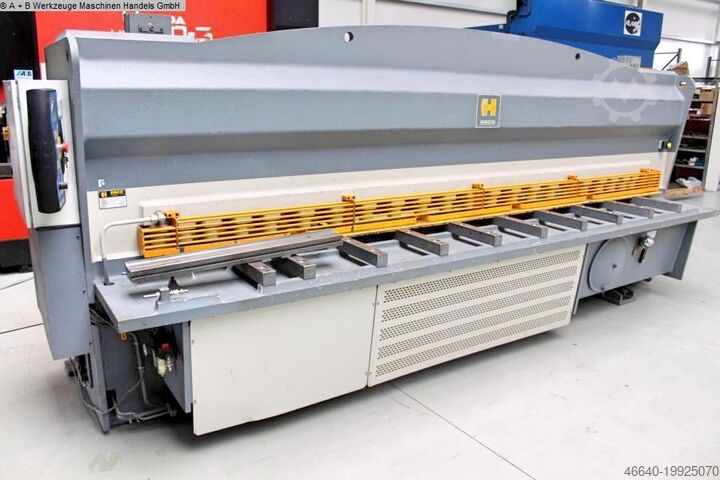

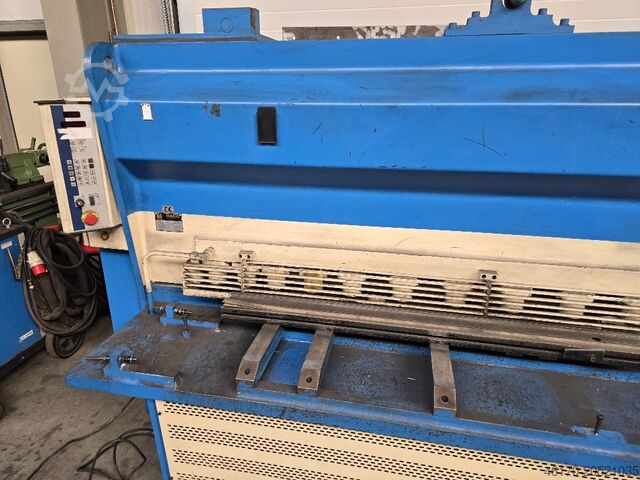

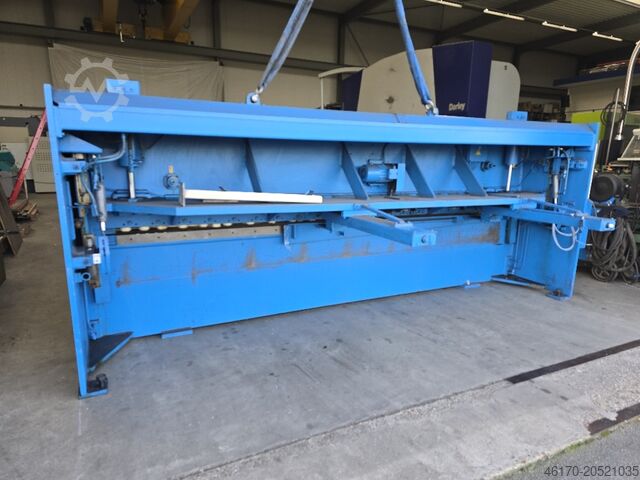

Plate Shear - Hydraulic

HACO HSLX 4006

sheet width 4050 mm
plate thickness 6.50 mm
thickness at "Niro-steel" 4.00 mm
back stop - adjustable 1000 mm
no. of strokes 6 - 11 Hub/min
work height max. 880 mm
Control SC 70
cutting angle 0.5 - 3.0 °
down holder 23 Stück
engine output 11.0 kW
weight of the machine ca. 7500 kg
range L-W-H 4950 x 1950 x 1720 mm
Machine made from light metal production (ALU)
good condition
including special accessories such as sheet metal holding device

- in checked condition - machine video -
?v=pv7RRijDXJA

Furnishing:
- electro-hydraulic/blade-guided guillotine shears
- HACO CNC control model SC 70, swiveling at the front left
* Pre-selection positioning of the backgauge
* Digital display of actual position value
* electro-hydraulic cutting angle adjustment
* electro-hydraulic cutting gap adjustment
* programmable retraction from the backgauge
* Programmable cutting length limit
Gusdjxaccrjpfx Adroi
* Emergency switch
- electro-hydraulic cutting gap adjustment
- electro-hydraulic cutting angle adjustment
- electro-motorized back gauge, on ball screws
- hydraulic hold-down devices
- front finger protection
- Ball rollers in the support table
- 1x side stop, with mm scale
- 1x freely movable foot switch
- rear guard
- original operating instructions including CE declaration

Special accessories included:
- pneumatic sheet metal holding device for thin sheet metal blanks
* for sheet thicknesses up to max. 4.0 mm
* optimal positioning of thin sheets
