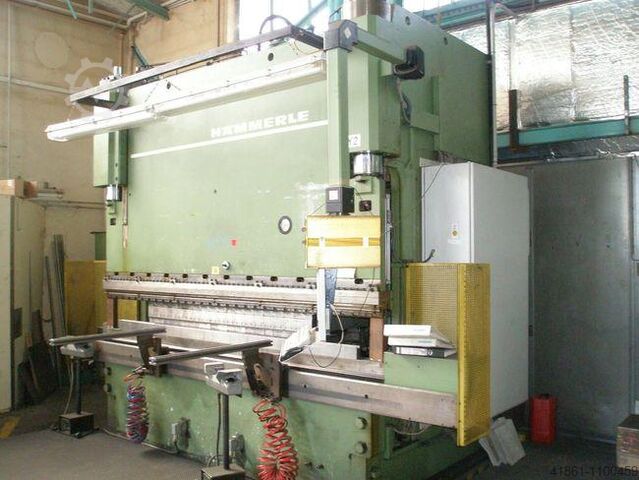

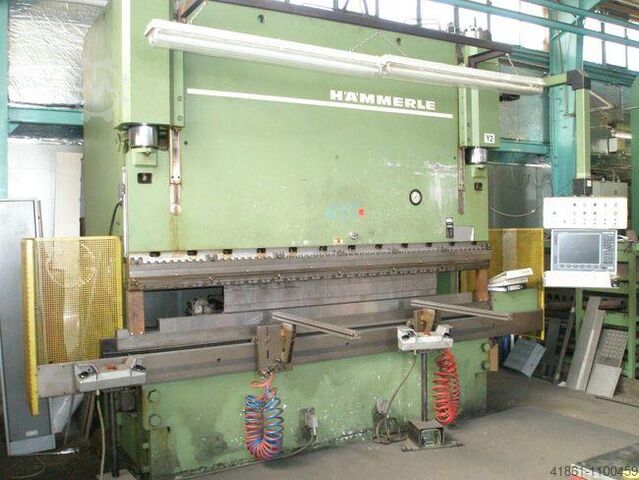

Hydr.CNC press brake

HAEMMERLE AP 200 / 3100

Condition: used, pressure 200 t chamfer lenght 3100 mm distance between columns 2750 mm stroke 400 mm throat 300 mm oil volume 330 l total power requirement 18,5 kW weight of the machine ca. 18500 kg dimensions of the machine ca. 4300 x 2400 x 3600 mm Machine is only suitable for thin sheet metal Equipment: - CYBELEC DNC7000 CNC control - Electric backgauge (X-axis) - CNC crowning - 4x controlled stop fingers - 2x front support arms with SLIDING SYSTEM - Hydraulic upper and lower tool clamping - Side + rear safety device - Tools (3 cabinets) - Foot switch - Operating instructions Kdedpfov S Irmex Ahusg

Condition: used, bending length: 3100pressure: 80motor power: 5,5oil filling: 100 Kdjdpsru Unbsfx Ahujg

Condition: new, functionality: fully functional, Comparable to Durma, Baykal, Ermaksan, etc. Bending length 3020 mm Pressing force 220 t Approach speed 140 mm/s Bending speed max. 10 mm/s Return speed 130 mm/s Stroke 350 mm Installation height 600 mm Throat depth 450 mm X-axis travel 750 mm X-axis speed 300 mm/s R-axis travel 250 mm R-axis speed 100 mm/s Clear gap between frames 2555 mm Kdsdpfx Asq D Dzlshujg Machine length 3730 mm Machine width 2290 mm Overall height 3055 mm Table height 820 mm Motor power 22 kW Oil tank 300 l Machine weight 11,500 kg (technical data may vary depending on equipment) Standard equipment: - 3 CNC axes (Y1, Y2, X) - Press beam double-guided, stable and precise - Robust backgauge, double-guided - Manual backgauge fingers, double-guided on linear rails - Movable front arms with height adjustment - Side and rear safety guards - Lower die adapter rail 60 mm - Manual upper tool clamping system (Promecam system) - Manual crowning - Foot switch with emergency stop - 380 V, 50-60 Hz, 3 phase - LED lighting Including the following options: - Delem DA 66T CNC controller - Fiessler AKAS 2M laser finger protection - FPSC Safety PLC (manual) - X-R axis with servo motors - CNC crowning for high bending accuracy - 2 additional backgauge fingers - Further bending lengths and capacities available with appropriate accessories! -

Year of construction: 1991, condition: ready for operation (used), Max. pressing force: 2000kN, max. working length: 2600mm, max. stroke: 265mm, throat depth: 300mm, weight: 16t. Kjdohkdu Hspfx Ahuedg

Condition: like new (used), functionality: fully functional, Year of construction: 2026, operating hours: 8 h, machine/vehicle number: BD89NC2A1S, bending angle (max.): 190 °, overall weight: 2,000 kg, total length: 4,300 mm, total width: 1,300 mm, total height: 1,600 mm, power: 11 kW (14.96 HP), input voltage: 380 V, type of input current: AC, warranty duration: 12 months, Semi-Automatic Single-Head Hydraulic Pipe Bending Machine BD89NC2A Machine Model: BD89NC2A Machine Applications  Transportation Sector For locomotives, automobiles, and bicycles: exhaust manifolds, brake lines, fuel supply conduits, steering mechanisms, air - conditioning ducting systems, seating assemblies, balancing components, bumper structures, window frame assemblies, handlebar components, and frame structures. Kjdpfjvu R Amox Ahuedg  Furniture Industry Indoor and outdoor seating and table sets, office furniture including desks and chairs, shelving units, bed frames and associated furniture pieces.  Leisure and Recreation Industry Fitness apparatus, infant strollers, utility carts, and amusement ride installations.  HVAC (Heating, Ventilation, and Air - Conditioning) and Appliance Industry Water heating units, electric heating appliances, gas - fired cooktops, refrigeration units, and air - conditioning equipment.  Heavy Industrial Sphere Piping networks for boilers, heat exchanger, power generation plants, chemical processing facilities, diesel engine manufacturing, and shipbuilding operations.  Diverse Other Industries Household consumer goods, rehabilitation - oriented medical devices, sanitary fixtures, the decoration and interior design sector, the construction industry, agricultural machinery and equipment, and the aviation manufacturing and maintenance industry. The largest applicable carbon steel pipe (bending radius ≥ 2d) Φ89×3.0mm (thickness Max. 3.0) The largest applicable stainless steel pipe (bending radius ≥ 2d) Φ76×2.0mm (thickness Max. 2.0) Maximum core length (*) 3500mm Maximum bending radius (*) 450mm Maximum bend angle 190° The number of bends that can be set for each pipe fitting (*) 25 bends The number of pipe fitting files can be set 280 sets (extensible) Working speed bending speed Max.30°/s Machine tool bending angle ±0.1° Hydraulic motor power 11.0kw

Year of construction: 1998, condition: good (used), machine/vehicle number: 4422758898019, Offer 22646 Hydr. profile and bar shears with notching device and hole punching machine Kdedpfxemb U Slo Ahuog Technical data: - Flat steel shear - flat steel - 400 x 16 mm - or: 300 x 18 mm - Section steel shear - L- and T-iron at 90° 130 x 12 mm - square steel / round steel 40 / 40 mm - notcher - with square notcher for sheets up to approx. 13 mm - notch depth approx. 70 mm - notch width approx. 52 mm - Hole punch - punching force approx. 60 t - throat 400 mm - stroke approx. 10 to 50 mm - punches in steel up to Ø 31 in 15 mm - material stop - div. 10 pcs. punch + dies - drive 400 V / 5,5 kW - space requirement W 1100 x H 2000 x D 1700 mm - weight approx. 2100 kg

Condition: new, Year of construction: 2024, Hydraulic press brake PBO-4016-CNC OT-41 Specifications - Nominal pressure: 1600 kN - Max working length 4000 mm - Throat depth: 320 mm - Max stroke: 180 mm - Daylight: 455 mm - Distance between side frames: 3200 mm - Max backgauge distance: 600 mm - Nominal motor power: 15.0 kW - Length: 4100 mm - Width: 1650 mm - Height: 2600 mm - Weight: 10000.0 kg Tools - Front supports: 2 pcs - Backgauge distance regulation (X-axis): servo motor - Ram control (Y-axis): servo motor - Finger height adjustment (R axis): manual - Type of punch holder: AMADA quick-action clamping Otinus CNC controller OT-41 The Otinus CNC controller features a convenient and intuitive menu. The software calculates the bending angle itself. The large colour touch screen is easy to read from any angle. Optional extra - Manual crowning So that you are always sure that the workpiece will have the same angle along its entire length. Optional extra - Automatic crowning Enables the controller to take control over crowning, thus, ensuring that the setting value is always perfectly matched to the needs. OCS - Oil Cooling System Oil Cooling System guarantees the stability of the machine's operating parameters even after long, continuous operation. Assistance by a specialist We make sure to stay in constant touch with our Clients. This is why we add a time package of tech support hours for Otinus Professional Assistance to each machine purchased. See and test the machine Join us for a one-of-a-kind demonstration where a qualified Otinus technician will show you the full functionality of the machine. In addition, you will be able to try out how the device will perform against your needs as you can provide technical drawings and sample material. Included in the machine price 2-day training including installation of the machine - 1st day (up to 8 hours) - installation of the machine and learning to use the controller. - 2nd day (up to 8 hours) - independent work on the machine under the supervision of our technician with the possibility of programming specific parts manufactured by the Client. Telephone consultation with a specialist - 7.30 a.m. to 9 p.m. (Mon-Sat) - package of 8 hours to be used within 12 months Ksdpfsh Ia Trjx Ahujdg - Free lending of transport rolls and two lifting jacks for easier positioning of the machine at Clients' facilities. The rollers and jack will be delivered after prior notification (no less than 7 days before delivery of the machine). Terms of cooperation - 24 month warranty - The machine is brand new - Warranty and post-warranty service provided by the seller - The Client is responsible for the machine during unloading and transporting on-site

Condition: used, Price for one piece! Kodpfx Ahjxwp E Ieujdg
