Jig Grinding Machine

HAUSER 3 SMO

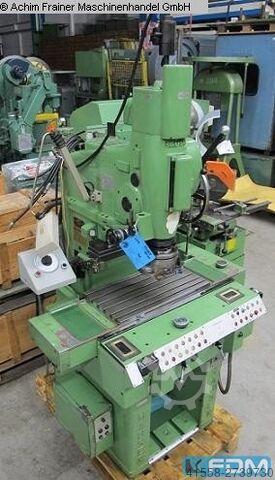

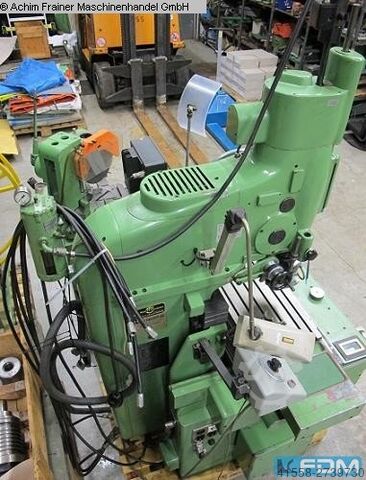

Condition: ready for operation (used), Jig grinding machine HAUSER 5 SM Table length: 750 mm Table width: 620 mm Longitudinal travel (X-axis): 700 mm Transversal travel (Y-axis): 500 mm Vertical travel (Z-axis): 150 mm 2 columns execution Travel of the vertical slide: 500 mm Passage from grinding motor to table: 500 mm Max grinding diameter with display-plate: 300 mm Passage between the columns: 840 mm Max angle with taper grinding: up to 16 degrees Vertical travel of grinding spindle, stepless: -From 3 mm -Up to 145 mm Travel speeds, stepless: up to 2.8 m/min Radial fine feed of U-axis: up to 4.5 mm Planetary motion speeds of C-axis, stepless: -From 10 rpm -Up to 280 rpm Total power required: 6.3 kW Aprox weigth 5.000 kg Jig grinding machine HAUSER 3 SMO Table length: 595 mm Table width: 320 mm Longitudinal travel (X-axis): 400 mm Transversal travel (y-axis): 250 mm 1 column execution Travel of the vertical slide: 500 mm Passage from grinding motor to table: 490 mm Distance from spindle-center to vertical slide: 310 mm Max. grinding diameter: 220 mm -With display-plate: 280 mm Max. angle with taper grinding: -Up to: 12° Vertical travel of grinding spindle (stepless): Chedpsuyuunjfx Abwsc -From: 1 mm -Up to: 110 mm Travel speeds (stepless): -Up to: 6 m/min Planetary motion speeds (stepless): c axis -Up to: 330 rpm Spindle motor: 7.50 kw weight: about 2000 kg

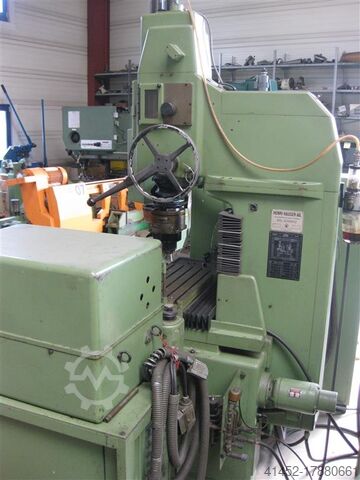

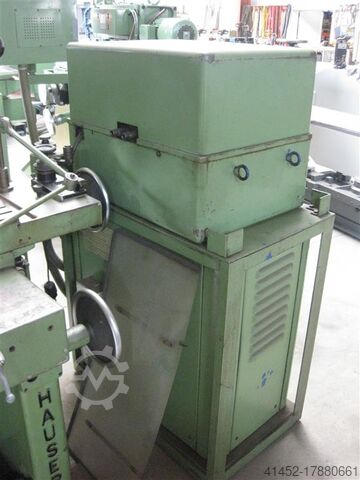

Condition: used, machine/vehicle number: 208 597, x-travel:400 mm y-travel:250 mm Chodpfjcxxuwex Abwoc workpiece height:500 mm grinding diameter:220 mm table surface area:600 x 320 mm throat:310 mm range of angles:12 ° grinding wheel stroke - vertical:110 mm stroke speeds:0 - 6 m/min grinding spindle speed:max 50.000 U/min peripheral speed:max 35 m/sec workpiece weight:80 kg weight of the machine ca.:2 t dimensions of the machine ca.:1,2 x 1,3 x 2,3 m

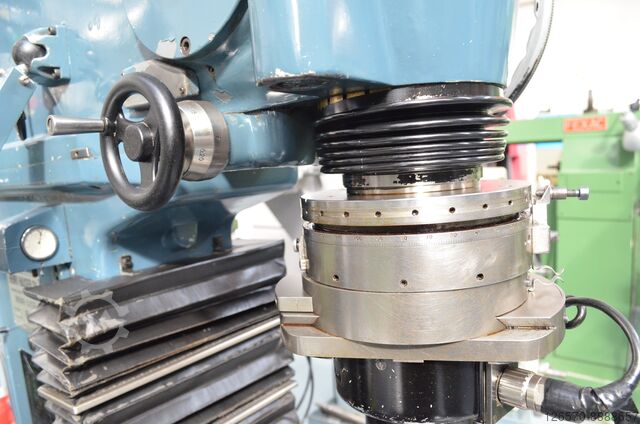

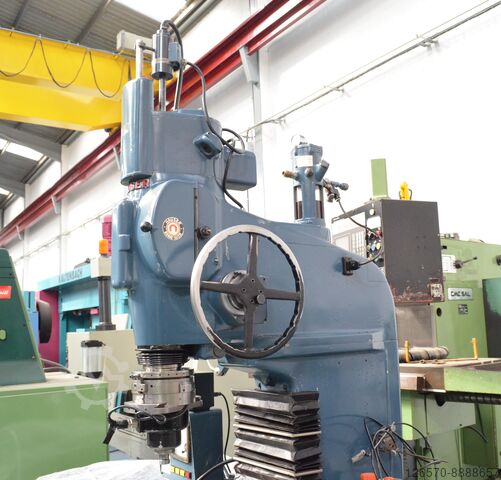

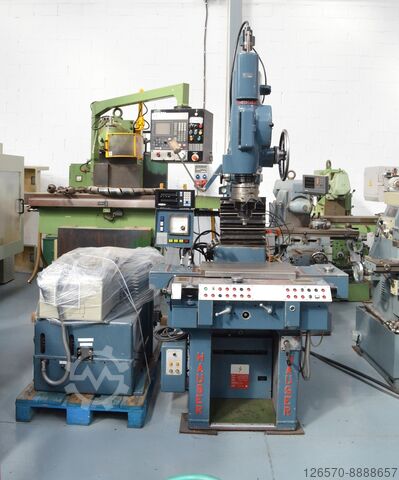

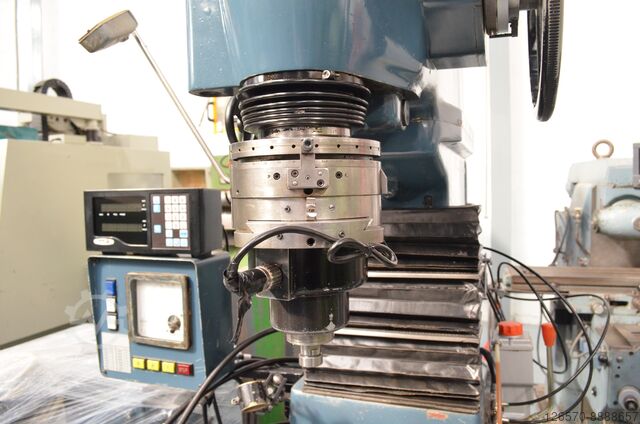

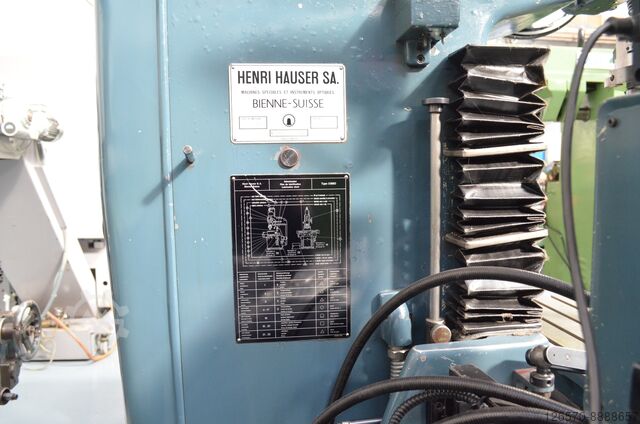

Condition: good (used), Coordinate grinding machine Cjdpfx Aektkmvebwshc Jig grinding machine Brand: Henri Hauser SA. Model: 3.S.M.O. Serial No.: 76 No.: 218···600 FAGOR 2-axis height display. Machine Type: Jig Grinding Machine Control Type: Conventional X-axis travel: 400 mm Y-axis travel: 250 mm Workpiece height: 500 mm Grinding diameter: 220 mm Table top: 600 x 320mm Neckline: 310mm Angle Range: 12° Grinding carriage adjustment - vertical: 110 mm Lifting speeds: 0 - 6 m/min. Grinding spindle speed: max. 50,000rpm Peripheral speed: max. 35m/sec Maximum weight of the piece on the table: 80 kg.
