Jig grinding machine HAUSER 5 SM
Table length: 750 mm
Table width: 620 mm
Longitudinal travel (X-axis): 700 mm
Transversal travel (Y-axis): 500 mm
Vertical travel (Z-axis): 150 mm
2 columns execution
Travel of the vertical slide: 500 mm
Passage from grinding motor to table: 500 mm
Max grinding diameter with display-plate: 300 mm
Passage between the columns: 840 mm
Max angle with taper grinding: up to 16 degrees
Vertical travel of grinding spindle, stepless:
-From 3 mm
-Up to 145 mm
Travel speeds, stepless: up to 2.8 m/min
Radial fine feed of U-axis: up to 4.5 mm
Planetary motion speeds of C-axis, stepless:
-From 10 rpm
-Up to 280 rpm
Total power required: 6.3 kW
Aprox weigth 5.000 kg

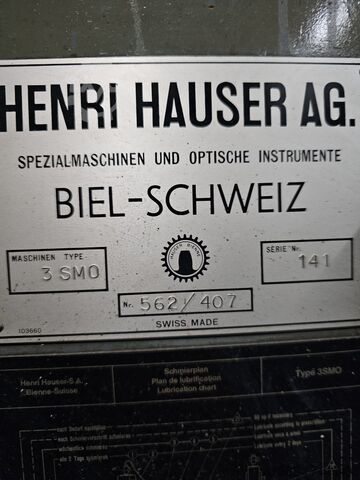

Jig grinding machine HAUSER 3 SMO
Table length: 595 mm
Table width: 320 mm
Longitudinal travel (X-axis): 400 mm
Transversal travel (y-axis): 250 mm
Cjdpjuyuunsfx Abwohc
1 column execution
Travel of the vertical slide: 500 mm
Passage from grinding motor to table: 490 mm
Distance from spindle-center to vertical slide: 310 mm
Max. grinding diameter: 220 mm
-With display-plate: 280 mm
Max. angle with taper grinding:
-Up to: 12°
Vertical travel of grinding spindle (stepless):
-From: 1 mm
-Up to: 110 mm
Travel speeds (stepless):
-Up to: 6 m/min
Planetary motion speeds (stepless): c axis
-Up to: 330 rpm
Spindle motor: 7.50 kw
weight: about 2000 kg
