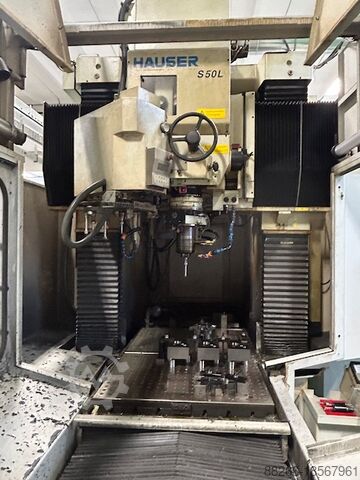

COORDINATE GRINDING MACHINE

HAUSER S50 L

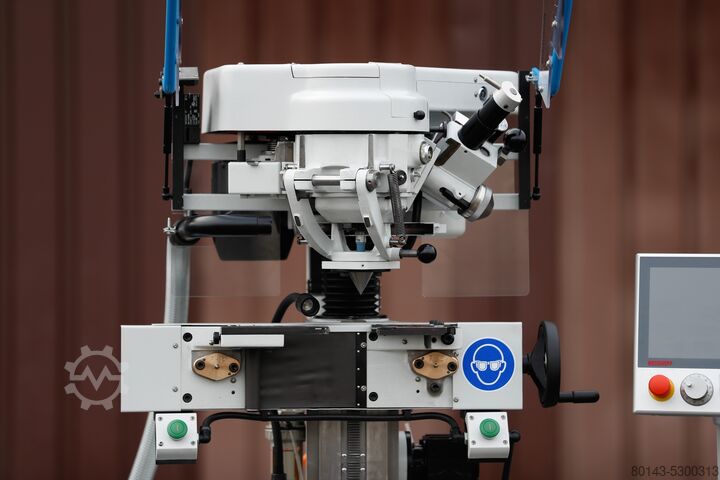

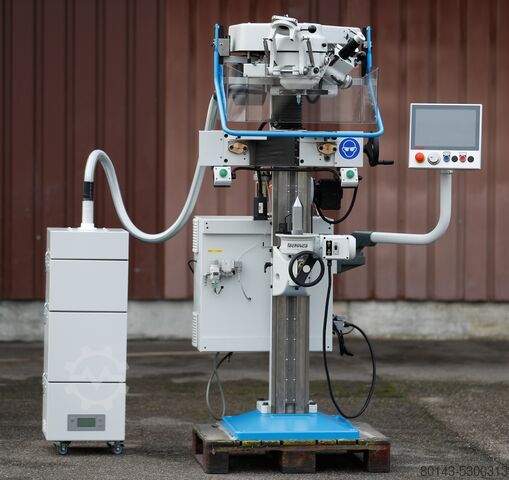

Condition: new, Year of construction: 2025, functionality: fully functional, workpiece weight (max.): 170 kg, grinding spindle speed: 45,000 rpm, spindle speed (min.): 5,000 rpm, spindle speed (max.): 45,000 rpm, clamping diameter: 140 mm, clamping length: 1,100 mm, Workpiece Clamping Diameter : ø 3 – 140 mm Workpiece Length : 50 – 1.100 mm Centre Hole Diameter : ø 1 – 100 mm Workpiece Weight : max. 170 kg Center Hole Angle : 60 ° Accuracy : < 1 µm (Submicron accuracy) Spindle Speed : 5.000 – 45.000 rpm Grinding Cone Movements : 3+1 Rotation Orbital rotation Stroke movement Kedpfjgb Ec Hsx Ad Iodw +1 Workpeice rotation Quirlig Grinding Technique : Included (Cross-hatched grinding pattern) Grinding Process : Semi-Automatic, CNC Control Panel : Beckhoff CNC Movements : Z-Axis Indurstry 4.0 Compatibility : Available Semi-Auto Grinding Cone Dressing : Included Workpiece Rotation : Available (as a option) Dust Extraction And Filtration : Available (as a option) Sectors : Precision Grinding, Aviation, Automotive, Machinery etc. Benefits: Sub-micron Precision: Achieve sub-micron (< 1 µm) precision in grinding thanks to Swiss engineering and a robust machine design. Sustainable Reliability: Ensure reliable and sustainable processing. Cost Efficiency & High Productivity: Benefit from lower production costs and high productivity due to a short grinding process and reduced production times for subsequent processes (cylindrical grinding). Quirlig Grinding Technique: Experience an optimized grinding process with the Quirlig Grinding Technique. Properly ground center holes that have cross-hatched grinding pattern. The cross-hatched grinding pattern ensures that oil is retained when the workpiece is placed between the centers during the cylindrical grinding process, creating a micro oil layer. The micro oil layer prevents unwanted "dry running" during cylindrical grinding. Easy to Use CNC Control Panel: Benefit from very simple operation and grinding program recording with the Beckhoff control panel and Z-axis servo movement. Industry 4.0: Fully compatible with Industry 4.0 applications, thanks to the Beckhoff control panel. Low Maintenance Costs: Enjoy low maintenance costs throughout the machine's service life, thanks to Swiss-quality construction. The Zentroflex SA-series center hole grinding machines are designed to deliver high-precision cylindrical grinding in the aviation, automotive, and machinery sectors. Additionally, the Zentroflex SA-series is the ideal solution for recovering parts distorted after heat treatment or for reducing cylindrical grinding costs. Z-Axis movement is provided by servo motor in CNC form. The part is loaded-unloaded and clamped manually. Settings are made from CNC control panel and grinding is started by pressing the start button. No other manual setting or control is made during grinding. Contact us for more details.

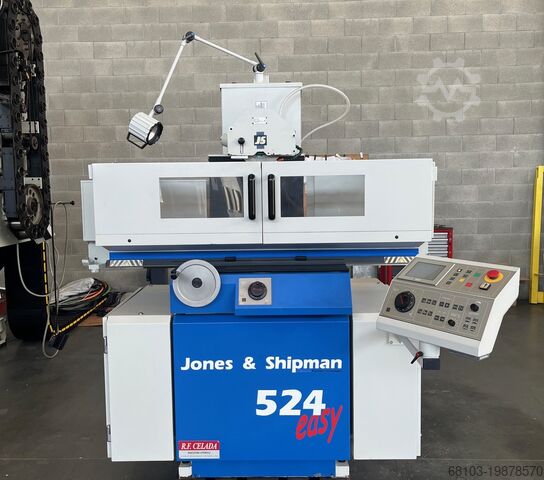

Condition: like new (used), Year of construction: 2004, functionality: fully functional, grinding length: 500 mm, grinding width: 200 mm, grinding wheel diameter: 250 mm, spindle speed (max.): 4,000 rpm, overall weight: 1,350 kg, Equipment: CE marking, documentation/manual, JONES SHIPMAN 524 EASY SURFACE/PLANE GRINDER MAXIMUM GRINDING DIMENSIONS: 500x200 mm ELECTROMAGNETIC TABLE SIZE: 500x200 mm STANDARD WHEEL SIZE: 250x20x76 mm Kdjdpfx Aew Tyzmjd Isw MAXIMUM WHEEL SIZE: 250x25x76 mm CONTROL SYSTEM: FANUC GE MOTORS & DRIVES: FANUC OPTICAL SCALE MEASUREMENT SYSTEM: HEIDENHAIN MAX WHEEL SPEED: 4000 RPM MACHINE WEIGHT: 1350 KG

Condition: used, Year of construction: 2008, max. wheel diameter 900 mm gear width 450 mm max. module 10 min. module 1 min. number of teeth 8 milling cutter dia. x width 192 x 215 mm distance table / middle of spindle 910 / 630 mm distance bet. workpiece spdl. ctr-milling sp. 50 / 550 Kjdpfewzmp Uox Ad Ijdw shifting 200 mm swivelling of milling head 240 Grad table diameter 700 mm table bore diameter 160 mm milling head speed 25 - 160 U/min total power requirement 21 kW change gears, arbors, shifting, 2-cut circle, chip conveyor, outer steady # with crowning device # in excellent working condition

Condition: excellent (used), Year of construction: 1997, grinding diameter 80 - 250 mm grinding length 600 mm Kdjdpeu D I Tlefx Ad Ijw centre height 175 mm longitudinal feed 750 mm workpiece turning speeds 6 - 600 U/min grinding spindle speed 1500 - 3600 U/min cross movement - autom. and by hand 320 mm Control Kelco 80 total power requirement kW weight of the machine ca. 4,4 t dimensions of the machine ca. 3,1 x 2,1 x 2,0 m

Condition: reconditioned (used), Year of construction: 1997, functionality: fully functional, center height: 100 mm, grinding wheel diameter: 350 mm, workpiece weight between centers: 20,000 g, distance between centers: 400 mm, type of input current: three-phase, grinding wheel width: 30 mm, spindle speed (max.): 1,200 rpm, spindle speed (min.): 30 rpm, feed length Z-axis: 420 mm, grinding spindle motor power: 3,000 W, overall weight: 1,600 kg, year of last overhaul: 2025, input voltage: 400 V, Cylindrical grinder STUDER S 20 Favorit TECHNICAL CHARACTERISTICS: Year of manufacturing: 1997 Centre distance: 400 [mm] Height of centers: 100 [mm] Stroke Z axis: 420 [mm] Working feed Z axis: 100 - 3500 [mm/min] Orientation of table: 0 - 30 [°] Grinding spindle motor power: 3 [kW] Max. diameter grinding wheel: 350 [mm] Max. grinding wheel width: 30 [mm] Grinding wheel bore: 127 [mm] Workpiece spindle nose: W20 Workpiece spindle min. speed: 30 [rpm] Workpiece spindle max. speed: 1200 [rpm] Max. part weight in part holder headstock between centres: 20 [Kg] Workpiece swiveling range: 0 [°] / +90 [°] Workpiece spindle power: 0.5 [kW] Type of attachment tailstock: MT2 Tailstock quill stroke: 20 [mm] Supply voltage: 400 [V] Total power required: 8 [kVA] Machine dimensions: 2350 x 1480 [mm] Weight: 1600 [Kg] INCLUDED EQUIPMENT: x1 paper tape filtration device x1 SONY LH 31A 2 axis digital read out x1 WALDMANN LED lamp x1 internal grinding spindle type: 82060B / Speeds: 11,900 up to 28,400 [rpm] x1 SENSITRON contact indicator x1 grinding wheel balancing device x1 grinding wheel balancing arbor x1 three-jaw chuck FN Ø100 [mm] MT3 x1 magnetic chuck Ø160 [mm] MT3 x1 table-mounted wheel dresser x37 W20 collets x2 half-centres x2 full centres x1 blunt centre x1 pulley Ø105 [mm] for internal grinding spindle x2 external grinding wheel flanges x1 TYROLIT 494271 grinding wheel for external grinding operations Various internal grinding wheels x4 driving carriers Various miscellaneous Kdjdpfswt Tgwjx Ad Isw Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Similar machine to Okamoto, ELB, GER, Tacchella, Karstens, Jones & Shipman, Jung, Favretto, Blohm. Internal and external grinding (ID/OD). Also see surface grinder, lathe, machining center, milling machine.

Condition: used, grinding diameter 450 mm grinding length 1000 mm centre height 225 mm As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your machine will be delivered overhauled. Mechanical overhaul: • Overhaul of the entire machine according to Kellenberger measuring protocol • A new service-friendly cabin • Repainting Electrical overhaul: • New, modern CNC cylindrical grinding machine control system • New built up control cabinet • New drive technology • Exchange of all electric lines, Berus pressure switch, etc. • New absolute glas scales in X- and Z- axis Kdsdpsuwv Hysfx Ad Iow • New absolute rotary encoder (for B-axis) Please remark that the pictures show an already delivered machine with other options. Wheelhead variant UR/RS: • Grinding wheel arrangement for external and angular plunge grinding in a row • Thus, in each case 400mm grinding wheel diameter • Thus, substantially lower risk of collision • Easier programming • Grinding wheel equipment in each case 400x63x127mm • HF-Spindle for internal grinding • B-axis CNC-controlled for external-, surface and internal grinding at one setting. • Swivel range +10°/-270° • C-axis for polygon grinding • Tight lower part • Grinding head motor 10,0 kW • Tailstock • Marposs measuring system for grinding wheel alignment • Marposs lateral positioning system

Condition: used, Year of construction: 2002, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm dimensions of the machine ca. 3,6/3,5 m Photos of identical machine with centre height 225mm Base: Kellenberger Kel-Varia UR175-1000 Kelco 120 Grinding head UR with T1-T2-T3 Basic equipment: -T1 500mm grinding disc diameter -T2 400mm grinding wheel diameter -Infinitely variable, high-resolution axis -Marposs measuring device for tool measurement -Active longitudinal positioning -GAP on T1 and T2 from ELASO contactless integrated in the control interface Semi-automatic balancing from ELASO integrated into the control interface -Tailstock with manual retraction -MK5 workpiece headstock with short taper DIN 55026 Belt-driven internal grinding device Options at an extra charge: - New high-precision workhead with torque drive - Internal grinding device for high-frequency spindles diameter 120mm -HF internal grinding spindle Fischer MFM-1224/42/31 D-21 -HF spindle with HSK holder 24,000 rpm with integrated GAP sensor. (delivery time) -CNC-controlled C-axis non-circular grinding -hydrostatic threaded spindle in x -new hydrostatic unit with only 1 pump and pressure accumulator thus better energy efficiency. -monitoring of the water content in the hydrostatic system -Suction system Further options available on request Mechanical overhaul: -Complete machine overhauled according to Kellenberger measurement protocol -New service-friendly cab -repainting Electrical overhaul: -New modern CNC CIRCULAR GRINDING MACHINE control with BEMA rough grinding surface -New control cabinet -New drive technology -Replacement of all electrical cables Berus pressure switches etc. -New absolute glass scales in x and z -New absolute rotary encoder (for B-axis) Control system: Kjdpfsuxfucjx Ad Isdw The grinding software consists of a basic licence and various options that are possible depending depending on the equipment of the machine. Basic software - External and internal pendulum grinding - External and internal plunge-cut grinding - External and internal pendulum grinding - External and internal plunge-cut grinding - External and internal taper pendulum grinding - External and internal radius grinding, radius dressed on disc - Semi-automatic pendulum grinding - Workpiece zeroing - Grinding wheel zeroing - Measuring the dressing diamonds - 2 moulding diamonds - 1 shaped diamond or dressing roll (dressing roll required) - Moulding roller (dressing roller required) - 3 Flat dresser - Corrections - Z-position measurement (probe required) - GAP probing (grinding device required) OPTIONS at an extra charge: Software profile plunge-cut grinding: - External and internal profile plunge-cut grinding with profile disc Profile grinding software: - External and internal profile grinding with straight disc Software thread grinding: - Single and multi-start external and internal thread grinding with thread on the disc disc Dressing. Dressing of single and multi-groove discs. Flank angle freely selectable. Trapezoidal thread grinding software: - Additional dressing of trapezoidal threads possible External and internal non-circular plunge-cut grinding: - External and internal non-circular plunge-cut grinding Non-circular grinding software: A prerequisite for non-circular grinding is that the workpiece axis is equipped with a high-resolution rotary encoder so th...

Year of construction: 2018, condition: ready for operation (used), A gear flank grinding machine Reishauer, completely overhauled by Burri Werkzeugmaschinen, is available. Grinding spindle speed: 3500rpm, cutting speed: 63m/s, max. gear diameter: 360mm, module range: 0.1-7, number of teeth: 6-600, max. workpiece height: 160mm, max. helix angle: +/-45°, max. workpiece weight: approx. 60kg. Min. wheel root circle diameter: 250mm, grinding wheel dimensions X/Y/Z: 350mm/104mm/160mm, grinding worm diameter range: 270mm-350mm, max. grinding width: 175mm, max. workpiece speed: 800rpm. Includes profiling devices, balancing device, structure-borne noise contact control, compact filter system, cooling unit, cooling water recooler, robot automation, and transport trolleys. Documentation available. An on-site inspection is possible. Kdsdpfew Rqwajx Ad Iow

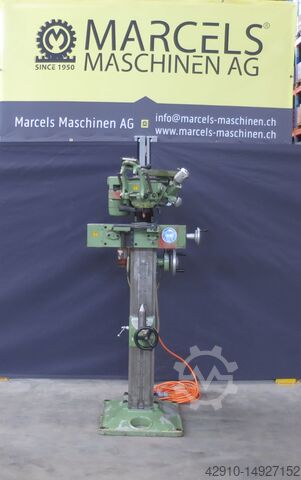

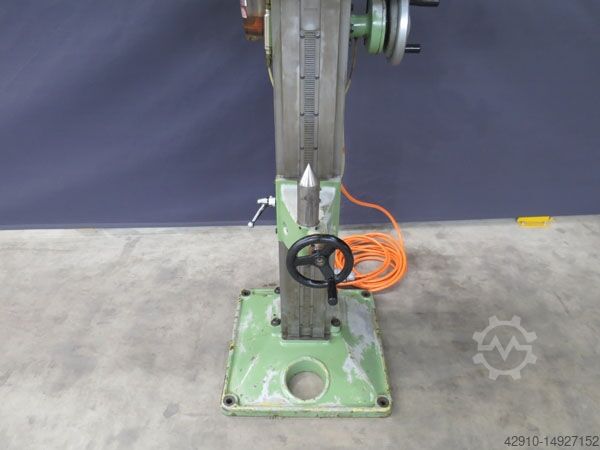

Condition: good (used), Centre bore 2- 50 mm Diameter of workpiece 8 - 125 mm Kjdorivluepfx Ad Iodw Lenght of workpiece 50 - 1000 mm Grinding wheel speeds 13'000 - 45'000 rpm Misc.accessories MARCELS MASCHINEN AG

Condition: used, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm dimensions of the machine ca. 3,6/3,5 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your is: Kellenberger Kel-Varia Baureihe mit Kelco 90 Steuerung. Mechanische Überholung: -komplette Maschine nach Kellenberger Messprotokoll überholt -Neue servicefreundliche Kabine -Neulackierung Elektrische Überholung: -Neue moderne CNC-RUNDSCHLEIFMASCHINEN-Steuerung -Neu aufgebauter Schaltschrank -Neue Antriebstechnik -Austausch sämtlicher elektrischer Leitungen Berus Druckschalter etc. -Neue Absolut-Glasmaßstäbe in x- und z -Neuer Absolut Drehgeber (Bei-B-Achse) Standardausstattung: -WSS mit Konus MK5, optional mit Adapter MK5/Kurzkegel -RST mit MK4 Konus. Optional mit Feinverstellung -Schleifspindelstock T1/T2/T3 -T1 Schleifscheibendurchmesser 400mm -T2 Schleifscheibendurchmesser 300mm -T3 Innenschleifeinrichtung riemengetrieben. -Schleifspindelmotor 4,4kW -B-Achse hochauflösend -Marposs Messsystem zur Schleifscheibenvermessung. Kdjdouwv H Tjpfx Ad Iew -Längspositionierung Marposs -GAP Control (Sensor am Schleifspindelstock) Optionen gegen Aufpreis: -HF Innenschleifspindel -Hochgenauer, höchst kippsteifer Werkstückspindelstock -Messteuerung Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.
