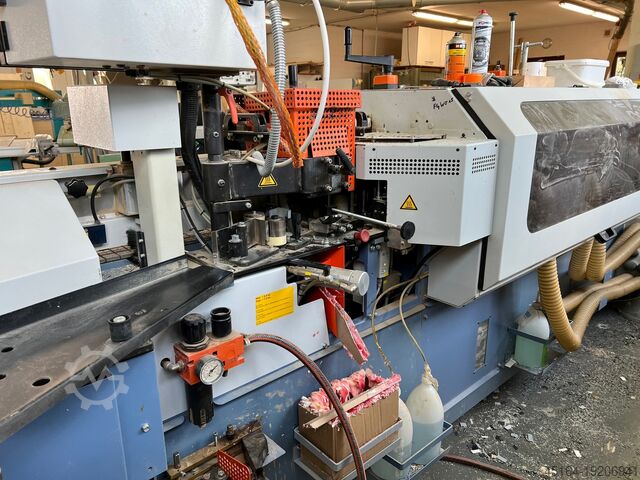

Edge banding machine

HEBROCK AKV 3005 DK-F

Condition: used, Year of construction: 2011, Pneumatic milling adjustment (Straight/Radius) Combination milling station R=2 Corner rounding cutter R=2 to 40 mm Jointing cutter up to 40 mm Flat scraper Profile scraper R=2 Short workpieces PLC control with Pro Face touchscreen Nesting Cooling/antistatic spray - airtronic Protective spraying Kante Riepe incl. interchangeable tank Workpiece thickness 8 - 60 mm Mechanical edge clamping Extraction nozzle: 140 mm Dimensions: Length with extension: 4984 mm Depth with roller table: 1425 mm Max. height: 1618 mm Worktable height: 888 mm Weight: 1400 kg Blsdpfxewmf E So Abmsp Storage location: Nattheim

Condition: used, Year of construction: 2018, Used machine GM020.0050 AKV 3005 DK - F Year of manufacture: 2018 Specification: 8 mm 1st milling station: Combination Pneumatic 3-point adjustment Cleaning station Corner rounding cutter Radius scraper station incl. lift Surface scraper PLC control incl. touchscreen Interchangeable tanks Nesting Glue discharge 60 mm workpiece thickness (joining and corner milling) Blsdsw Nif Hspfx Abmep Spraying device for panels Edge protection spraying Short workpieces

Condition: used, Year of construction: 2007, Jointing cutter 1. Milling station R=2.5 Combination unit Corner rounding cutter R=2 Surface scraper Profile scraper Pneumatic milling adjustment (Straight / Radius) PLC control with Pro-face touchscreen Swappable tank Prepared for special feature: maximum workpiece thickness 60 mm (without jointing) Storage location: Supplier Blsdpfsxnlacjx Abmop

Condition: excellent (used), Year of construction: 2012, operating hours: 730 h, Edge banding machine Hebrock AKV3005DK-F with jointing, corner rounding, and two scraping blades. Very well-maintained machine from a small business, in excellent condition. Touch-screen interface with PLC control for user-friendly operation; up to 12 operating programs can be stored. Edge thickness (coil): approx. 0.4 – 3 mm Workpiece height: approx. 8 – 53 mm Feed rate: approx. 10 m/min Soundproof hood Extendable workpiece support, special feature, extendable up to 950 mm Extraction ports: 80 + 140 mm Units/Aggregates: Quick-change glue pot with glue outlet; two glue pots included (one used for EVA glue, one for PU glue), the PU glue pot is practically as new, used only for a single order. Upper pressure manual adjustment with SIKO counter Infeed fence manual adjustment with SIKO counter Edge thickness manual adjustment with SIKO counter Bsdstpn Etspfx Abmolp Jointing cutters with Leitz Whispercut diamond cutters, still sharp Gluing unit with automatic edge feeding for coil material up to 3 mm Pressure section with 4 rollers Cross-cut saw Integrated chip container for edge offcuts Multifunctional milling unit, R2, with pneumatic adjustment between thin and thick edge Corner rounding mill R2, pneumatically adjustable between thin and thick edge The profile mill can also be used for shelf programs, i.e., only the straight edge is rounded, not the corners Radius scraper R2, pneumatically retractable Glue joint scraper, pneumatically retractable Lockable hood CE mark Operating manual A video of the machine in operation can be provided upon request. All indexable inserts for the milling units and scrapers have been replaced or rotated, saws have been sharpened. Machine is ready for immediate use. Only the diamond jointing cutters (Whispercut) have not been replaced, but are still sharp. Paintwork touch-ups have been done. The Hebrock AKV series is the predecessor of the current K-series. The machine has only approx. 730 operating hours (glue pot switched on), but the frequency inverters were only switched on for approx. 455 hours. Machine is in very good condition; see original photos. Machine dimensions: approx. 5000 x 1400 x 1550 mm (L x W x H) Weight: approx. 1550 kg. The machine can be inspected and demonstrated on-site by appointment. We only offer machines that are ready for demonstration in our warehouse; see "more offers from this seller."
