Edge Bander

Hebrock AKV 3005

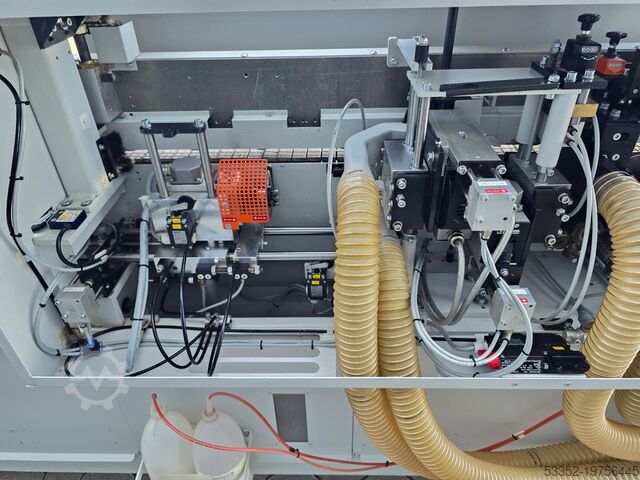

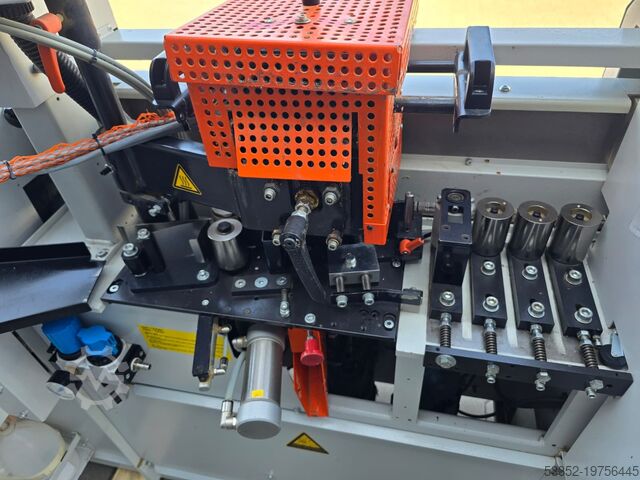

Condition: used, Year of construction: 2014, with jointing cutter aggregate including DIA tools Jointing thickness up to 40 mm, workpiece thickness up to 3 mm Combination milling station with R 2.5 mm radius Technical description: - Hot-melt glue application to the workpiece for edge material up to 3 mm - 60 mm workpiece thickness without jointing aggregate, 40 mm workpiece thickness with jointing aggregate - Maintenance-free, coated glue pot - HF end-trimming station (16,000 rpm) for front and rear edge overhang - HF milling station (16,000 rpm) with interchangeable insert cutter (combination design) and fine adjustment of the cutter from the operator side - Spare spaces for additional processing aggregates (Hebrock system) - Feed rate approx. 10 m/min - Adjustable cut depth for the end trimming saw - Signal lamp for workpiece sequence - Robust chain drive - Ergonomically arranged control panel - Double roller top pressure beam - Aggregate view windows from machine rear and operator side - PLC control including touchscreen Technical data: - Feed rate 10 m/min - Panel thicknesses from 8 - 40 mm Blodoyfp N Djpfx Ah Iod - Weight: depending on configuration, approx. 1400 kg - Dimensions (L x W x H): 5000 x 1445 x 1600 mm Airtronic for machines up to 8 mm edge thickness, 1 unit Technical data: - Edge thickness from 1.2 mm – 3.0 mm possible - Maximum panel thickness 25 mm - Feed speed 7 – 10 m/min depending on edge material - Ready for operation in 3 min - Air consumption approx. 800 l/min for the entire machine - Power supply up to 32 A / 16 kW for the entire machine, higher power connection required for machines with grooving saw - Extraction as previously - PLC control is mandatory Upgrade to 8 mm edge thickness, 1 unit (up to max. 40 mm workpiece thickness) Including pneumatic saw adjustment Separate pneumatic cutter adjustment, 1 unit, controllable from the operator panel (straight/radius) Buffing station (polishing mop), 1 unit Corner rounding cutter, 1 unit, including combination tool and pneumatic adjustment for chamfer/radius Maximum workpiece thickness: 40 mm Minimum workpiece length: 300 mm Radius R 2.0 mm Radius scraper, 1 unit, including pneumatic lift device, Radius R 2.0 mm Flat scraper, 1 unit, with pneumatic insertion control Glue station quick-change system in preparation, 1 unit, without second glue pot, including the ability to process PU adhesive with the machine, without glue discharge system underneath Special cleaning system for PU glue discharge underneath, 1 unit 60 mm panel thickness for machines with jointing, 1 unit; maximum workpiece thickness with jointing aggregate: 60 mm; jointing thickness: 40 – 60 mm; workpiece thickness up to 2 mm Special infeed fence for overloaded panels, 1 unit (16 mm and 19 mm thickness), maximum laminate overhang: 8 mm Separate extraction for jointing aggregate, 1 unit, directly at jointing cutter vertically upward, d=80 mm for optimal extraction performance, strongly recommended from AKV 3005 DK-F onwards Ball bearing for corner rounding cutter, 24.1 mm, 1 unit Ball bearing for corner rounding cutter, 24.2 mm, 1 unit Nesting for the combination milling aggregate, 1 unit, for processing workpieces with cup hinge borings (bottom side only) Nesting for the radius scraper aggregate, 1 unit, for processing workpieces with cup hinge borings (bottom side only) Release agent sprayer, 1 unit Cleaning agent sprayer, 1 unit, to facilitate removal of glue residue Antistatic spray device, 1 unit, mandatory for airtronic; antistatic coolant is sprayed onto the in

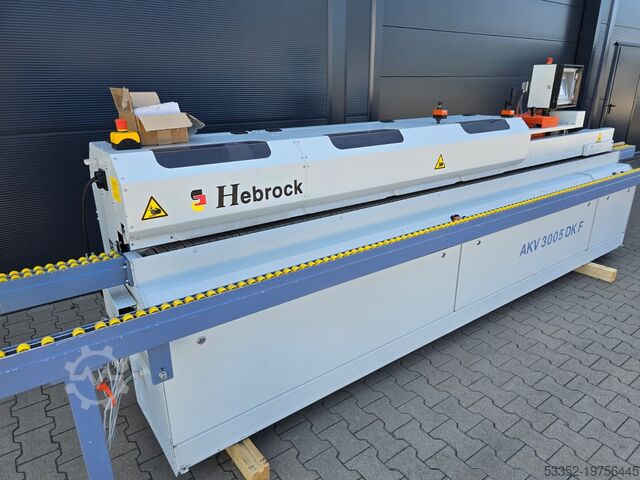

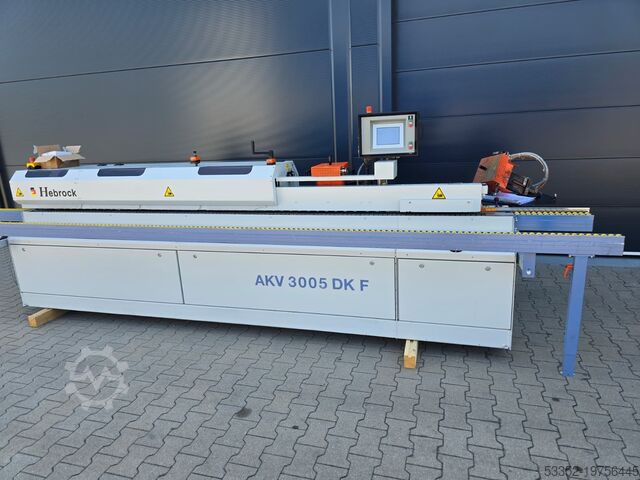

Condition: ready for operation (used), Year of construction: 2004, total height: 1,530 mm, total width: 1,200 mm, overall weight: 1,150 kg, product length (max.): 4,700 mm, Edgebander manufactured in 2004. This HEBROCK AKV 3005 DK-F features a maximum edge thickness of 3 mm and accommodates workpiece thicknesses from 8 to 60 mm. It includes a jointing milling unit with 2 milling heads, a gluing tank with a contact roller, and a combination milling unit that is pneumatically adjustable. If you are looking to get high-quality edgebanding capabilities, consider the HEBROCK AKV 3005 DK-F machine we have for sale. Contact us for further details. • Max. edge thickness: 3 mm • Workpiece thickness range: 8–60 mm • Feed speed: approx. 10 m/min • Readiness time: approx. 5 min • Minimum workpiece length: 190 mm • Minimum workpiece width: 80 mm • Control: PLC • Preparation for interchangeable trays • Units/Stations: • Jointing milling unit with 2 milling heads • Gluing tank with contact roller • Pressure zone • Trim shear • Trim saw Bjdpfxsyma A Rj Ah Iold • Combination milling unit (flush/chamfer/radius), pneumatically adjustable • 2 milling stations • Corner copying unit • Short surface scraper • Radius scraper • Spraying unit

Condition: used, Year of construction: 2011, Pneumatic milling adjustment (Straight/Radius) Combination milling station R=2 Corner rounding cutter R=2 to 40 mm Jointing cutter up to 40 mm Flat scraper Profile scraper R=2 Short workpieces PLC control with Pro Face touchscreen Nesting Cooling/antistatic spray - airtronic Protective spraying Kante Riepe incl. interchangeable tank Workpiece thickness 8 - 60 mm Mechanical edge clamping Extraction nozzle: 140 mm Dimensions: Length with extension: 4984 mm Depth with roller table: 1425 mm Max. height: 1618 mm Worktable height: 888 mm Weight: 1400 kg Bledexyiilopfx Ah Iod Storage location: Nattheim

Condition: used, Year of construction: 2000, total height: 1,600 mm, total length: 4,300 mm, total width: 840 mm, Price: On request - Year: 2000 - Documentation available: No - CE certificate present: No - Serial number: 404 - Number of units [pcs]: 6 - └ 1st unit type: Glue unit - - Tools available: Yes - └ 2nd unit type: Pressure rollers - └ 3rd unit type: Cap unit - - Tools available: Yes - └ 4th unit type: Corner rounding unit - - Tools available: Yes - └ 5th unit type: Radius scraping unit - - Tools available: Yes - └ 6th unit type: Brushing unit - - Tools available: Yes - Glue system: Glue pot - Voltage [V]: 400 - Current consumption [A]: 15.8 - Power [kW]: 10.2 - Transport dimensions: 4300mm x 840mm x 1600mm (l x w x h) - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels Bjdpoykafajfx Ah Iold

Condition: used, Year of construction: 2005, machine/vehicle number: Werksüberarbeitungsnummer: WÜA920DK-F12960, Used machine GM020.0029 Year of manufacture: 2005 AKV 3005 DK-F 8 mm version 1st milling station: Combination Cleaning station Corner rounding cutter Jointing cutter Bedpfx Ajw In R Ejh Ijld Surface scraper with extraction Profile scraper Chassis Pneumatic milling adjustment SPS control Preparation for interchangeable tanks
