Welding table

Heinrichsglück TC 2

Condition: excellent (used), load capacity: 2,000 kg, Height-adjustable welding positioner, load capacity 2 tons, with infinitely extendable clamping extensions and clamping claws included. Condition: very good. Speed, height, and tilt are infinitely adjustable. Hand and foot remote control. Welding current transmission: 600 amps. Dimensions: Length: 1940 mm, Width: 1200 mm, Table diameter: 1200 mm. Height when tilted: min. 700 mm, max. 1550 mm. Height horizontal: min. 900 mm, max. 1700 mm. Weight: 1750 kg. Dodpfx Adsx Tif Asgsup

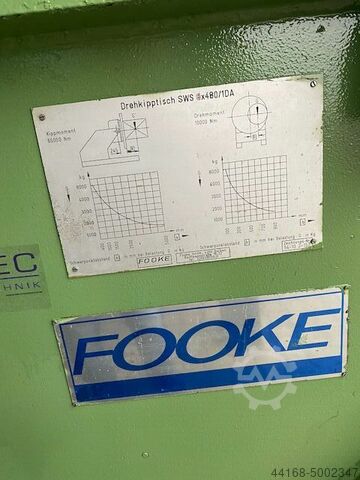

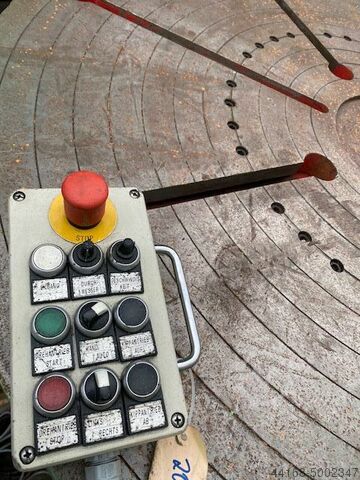

Condition: excellent (used), Welding rotary table Focker Strähler 8 tons 8000 Kg load capacity with hand and foot remote control Speed and inclination infinitely variable 0,02 U/min to 1,1 U/min diameter 1500mm height tilted to the middle 1170mm height horizontal 1400mm length 2400mm Dujdpfx Aof Ezdnsdgep width 1500mm condition optically and technically perfect, runs very quietly

Condition: good (used), Year of construction: 2013, machine/vehicle number: KA 046062, Offer 25357 Technical Data: - Max. load capacity including work table: 4000 kg - Faceplate hydraulically tiltable: 0 - 180° - Hydraulic height adjustment of the faceplate - Faceplate with holes D 28 + threaded holes, Ø 1600 mm - Table travels in the last driven tilt angle or in the horizontal position - Rotational movement electrically hydraulically actuated, reversible (right/left rotation) - Min. / max. rotational speed: 0.1 - 1.4 rpm - Min. / max. table height in horizontal position: approx. 1040 / 2140 mm - Welding current transmission: approx. 600 A Djdjxufxfepfx Adgjup - Drive: 400 V - Manual remote control + electric footswitch - Space required: approx. W 2000 x H 1100 x D 3200 mm - Weight: approx. 5000 kg

Year of construction: 1989, condition: used, Manufacturer: Hönnema Model: KAT 63/1250 Year of manufacture: 1989 General / technical data: CNC grooving machine with partial or rotary table for twist grooving. Max. stroke: 1250mm Cutting speed: stepless from 0 to 16m/min Max. Return speed: 16m/min Max. Groove width: 63mm Fully automatic twist dividing attachment: RA 450 AUDR Remark: The feed is made by stepping motor and ball screw through the machine table. The machine table has a stable and smooth-running linear guide. Dodpfx Adolu D Hksgsup The machine is approx. 1.500mm under floor! The machine is under power in our warehouse and can be inspected.

Condition: good (used), Year of construction: 2001, Data will follow.... Dusdpfx Asx Tgznodgjp

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, Mazatrol Matrix 2 Travel paths X-axis: 3,000 mm Y-axis: 800 mm Z-axis: 720 mm B-axis: 220° C-axis: 360° Dusdpfswpgn Hsx Adgep Table Table: 3,500 mm x 820 mm Rapid traverse X/Y/Z: 50 m/min B/C: 50/25 rpm Milling spindle Drive power: 35 kW max. spindle speed: 18,000 rpm SK-40 DIN69781 Tool magazine Mazak Tool Hive System Number of tool spaces: 155 Air blow-out on the workpiece High pressure 15 bar through the spindle Mazak Monitoring B (Renishaw RMP60) Tool length measurement x2 table center partition NC rotary table, 360,000 positions, diameter: 1,000 mm 5-axis simultaneous machining package
