Machining center

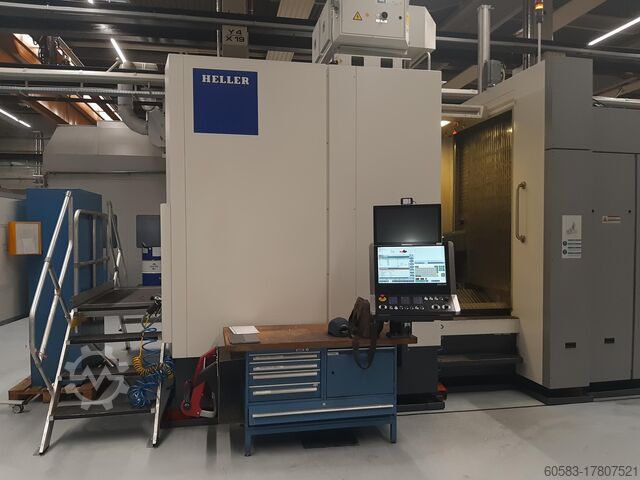

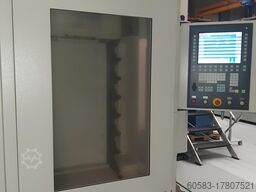

Heller H 8000

Condition: like new (used), Year of construction: 2016, functionality: fully functional, travel distance X-axis: 7,000 mm, travel distance Y-axis: 3,200 mm, travel distance Z-axis: 1,500 mm, total length: 10,500 mm, table length: 6,000 mm, table width: 3,000 mm, total width: 7,475 mm, spindle speed (min.): 2,670 rpm, spindle speed (max.): 18,000 rpm, total height: 5,380 mm, table height: 300 mm, FPT INDUSTRIE DINOMAX 3 MOVABLE BRIDGE MILLING MACHINE TECHNICAL SPECIFICATIONS Brand: FPT Industrie Model: Dinomax 3 Year: 2016 CNC: Heidenhain TNC 640 Table: 6000 x 3000 X-axis travel: 7000 mm Y-axis travel: 3200 mm Z-axis travel: 1500 mm 40-tool magazine: (25 ISO 50 positions / 15 HSK A63 positions) Pick-up system for tool magazine, 3 positions Internal coolant system, 20 Bar Swarf filter Video surveillance system during machining AutoCal (automatic calibration software) MAPR (ISO 50 measuring and alignment probe) MRLUL (verification laser probe) Lasdpfx Amsy Ta Tkjmjc

Condition: good (used), Year of construction: 2019, operating hours: 19,000 h, functionality: fully functional, 2019 HELLER H6000 CNC Double-Pallet Horizontal Machining Center CNC horizontal machining center with double pallet Low operating hours, single-shift machine, excellent condition Manufacturer: HELLER Model: H6000 Year of manufacture: 2019 Machine type: CNC horizontal machining center Pallet system: Double pallet / 2-pallet system Serial number: MXXXXX (upon request) Pallet size: 630 x 630 mm Maximum pallet load: 1,000 kg Maximum workpiece height: 1,200 mm Travel distances: X-axis: 1,000 mm Y-axis: 1,000 mm Z-axis: 1,000 mm B-axis: 360° / 0.001° indexing Rapid traverse speeds: X-axis: 50,000 mm/min Y-axis: 50,000 mm/min Z-axis: 75,000 mm/min B-axis: 25 rpm Feed forces: X-axis / Y-axis: 15,000 N at 40% duty cycle Z-axis: 20,000 N at 40% duty cycle Spindle speed range: 5 – 6,000 rpm Spindle drive power: 60 kW at S6 / 40% duty cycle Maximum spindle torque: 2,292 Nm at S6 / 40% duty cycle Spindle taper: HSK 100A Automatic tool changer: 50 positions Ljdpfx Amoy S S Hyemsac Maximum tool diameter: 280 mm Maximum tool length: 600 mm Maximum tool weight: 25 kg Condition: The machine is in top condition, has low operating hours, and can be inspected immediately. The machine is available for short-term delivery.

Condition: ready for operation (used), Year of construction: 2015, DMG UNIVERSAL MACHINE CENTER HSC 105 Linear Laedpfx Amsytpgfsmoc Year 2015 Travel : X1.050 Y800 Z 500mm Heidenhain iTnc 530 control Spindle speed 28.000rpm ATC 32 HSK-A63 Table Ø900mm NC B axis -10o ~ +110o NC C axis 360 x 0.001o Electronic hand-wheel Chip conveyor Direct measuring system.

Condition: used, Year of construction: 2004, x-travel 630 mm y-travel 630 mm z-travel 700 mm Control Meldas M650 tool adaptor HSK-A63 Laedpfxjyqv Aze Ammec Table dimensions 450x450 mm Table load 400 kg number of spindle speeds 300 - 20.000 min-1 spindle taper HSK-A63 coolant durch Spindel drive motor Ac 45/30KW kW Rapid travel Z=60 m/min rapid traverse X,Z = 120 m/min feed Schnittvorschub =0,1-60 m/min rapid traverse B=120 m/min total power requirement 30 kW weight of the machine ca. 15 t FEED RATE Rapid feed rate X,Y 120 m/min Rapid feed rate Z 60 m/min Rapid feed rate B 120 m/min Cutting feed rate X,Y,Z 0,1 – 60 m/min SPINDLE RPM spindle 300 – 20.000 min-1 Spindle taper HSK-A63 Coolant Through spindle ATC Tool holder Special HSK-A63 2 Face contact tool Tool magazine storage 40 pcs Tool change time 2,5 sec. The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: good (used), Year of construction: 2005, functionality: fully functional, Manufacturer: Daewoo Heavy Industries Laodpfx Amoyl Dqismsc Model Name: ACE-VM900 Manufactured Year: 2005
