Machining center

Heller RFK20-2-800 und DRZ20-2-800

BJ. 1999+2001
Combined Crankshaft Machining

Combination of centric turning and eccentric milling operations on two machines connected via a shared chip conveyor with a single chip discharge.

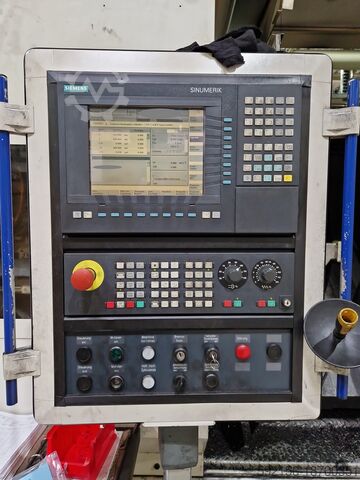

Siemens 840D control system

Tool holder - Heller
Nominal tool diameter Ø700 - tools are not included but can be purchased or newly acquired for an additional charge.
NC-controlled steady rest for milling operations
3-jaw chucks on both sides from Blessing with integrated alignment arms
Both machines with automatic loading hatch from above with a loading interface or for manual loading.

The machines are currently still in series production and can be inspected under power.
Installation of components is possible upon request for an additional charge, with documentation of the interchangeable parts and tools.
Safety lock for the control system and drives included - free location.
Availability upon request, warranty excluded.

Year of Production: 1999+2001

Combination of concentric turning. and eccentric Milling Operations in 2 separate machines, which are linked through a common chip conveyor with high drop-off
Fpsdpfx Ajv I Ab Uefpsn
Machine control: Siemens 840D

Tool Adapter - Brighter
Tooling diameter Ø700 nominal - Tooling is not subject might be subject for separate purchase or new from supplier
NC controlled support with pads
both sides 3-jaw-chucks from Company Blessing with integrated equalizing device
automatic Gantry door for overhead loading and corresponding interface or manual loading also possible
Machines are actually in serial production and can be inspected upon request
set-up of individual parts possible for separate oncost including documentation of change-over parts and tooling
safeguarding of control and drives included - free location
availability on agreement, no warranty possible

The listing was translated automatically. Translation errors are possible.
