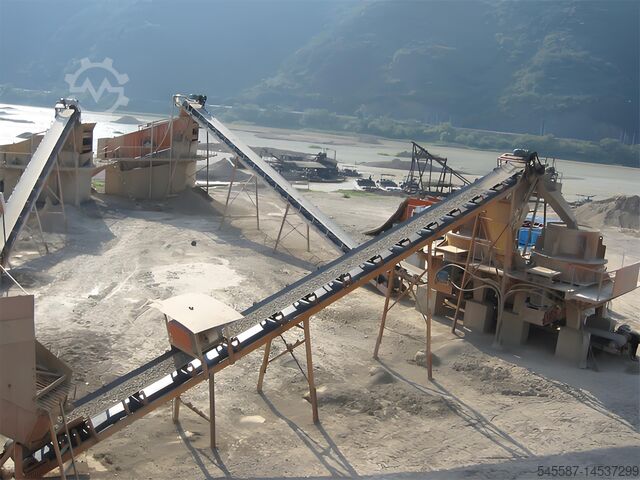

Production line for rock & concrete processing

Henan Mingyuan sand production line 50-600 t/h sand gravel production line

Henan Mingyuan Heavy Industrial Equipment Co., Ltd. has established itself as a premier global manufacturer, providing integrated Sand and Gravel Production Lines that transform raw minerals into precision-graded materials.
A MINGYUAN production line is not just a collection of machines; it is a synchronized system engineered for maximum throughput, minimal waste, and low operational costs.
-1. Core Equipment Configuration
The MINGYUAN system follows a multi-stage reduction philosophy to ensure particle shape and quality.
Vibrating Feeder (GZQ Series):Ensures a continuous, uniform flow of raw material to the primary crusher. It features grizzly bars to pre-screen dirt and "fines," protecting the crusher from unnecessary wear.
Primary Jaw Crusher (PE/C-Type): The "workhorse" designed for the initial breakdown of hard rocks (granite, basalt, river pebbles). MINGYUAN’s jaw crushers utilize a deep-chamber design for high crushing ratios.
Secondary Crusher (Impact or Cone):Impact Crusher (PF Series): Ideal for medium-hard materials; produces highly cubic final products with excellent grain shape.
Cone Crusher (Hydraulic/Spring): Preferred for high-hardness materials (granite/quartz) due to its high efficiency and low wear-part consumption.
Sand Making Machine (VSI Series): The "finisher." It uses "stone-on-stone" or "stone-on-iron" technology to shape aggregates and produce high-fineness artificial sand.

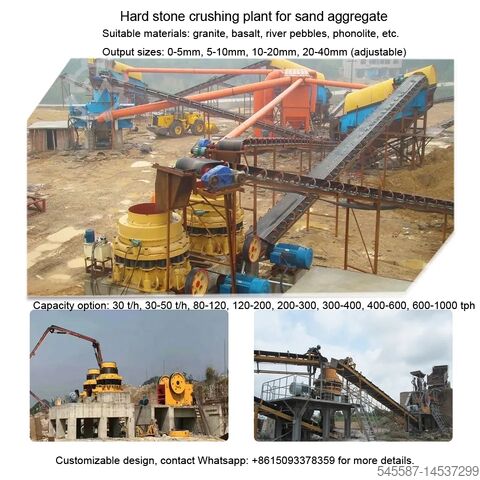

Vibrating Screen (YK Series): A high-frequency circular screen that classifies material into specific sizes (e.g., 0-5mm, 5-10mm, 10-20mm, 20-40mm).
* Sand Washing Machine (XSD/LSX Series):Removes mud and impurities to ensure the final product meets strict concrete and asphalt standards.
2. Technical Specifications & Performance
MINGYUAN offers scalable solutions tailored to project size, ranging from small-scale mobile units to massive industrial stationary plants.
| Feature | MINGYUAN Standard Specifications |
| Production Capacity | 50 – 600 $t/h$ (Tons Per Hour) |
| Max Input Size | Up to 1,100mm (depending on Jaw model) |
| Finished Product Size | 0-5mm, 5-10mm, 10-20mm, 20-40mm (customizable) |
| Power System | High-efficiency AC Motors or Diesel-Electric Hybrid |
| Control System| Centralized PLC Control Cabinet with safety interlocks |
| Materials Processed | River stone, granite, limestone, basalt, iron ore, and C&D waste |
3. The MINGYUAN Technical Advantage
What differentiates MINGYUAN in the global market is the "One-Stop" solution approach:
1. High Crushing Efficiency:Optimized crushing cavities increase the contact area between the material and the liners, reducing energy consumption per ton.
Giedpfxjq Nywxj Af Ejr
2. Environmental Compliance: Systems can be equipped with advanced dust suppression misting and fully enclosed belt conveyors to meet stringent urban environmental regulations.
3. Durability: Wear parts (jaw plates, blow bars, mantles) are manufactured using high-manganese and high-chrome alloys, significantly extending the time between maintenance cycles.
4. Flexible Layouts: Whether for a mountain quarry or a tight urban recycling site, MINGYUAN provides customized CAD layouts to optimize gravity-flow and reduce conveyor length.
4. Conclusion
A MINGYUAN Sand and Gravel Production Line represents a strategic investment in efficiency. By combining primary strength with precision finishing and washing, the brand ensures that every ton of raw material is maximized for its commercial value.
