Frame press

Hess Express

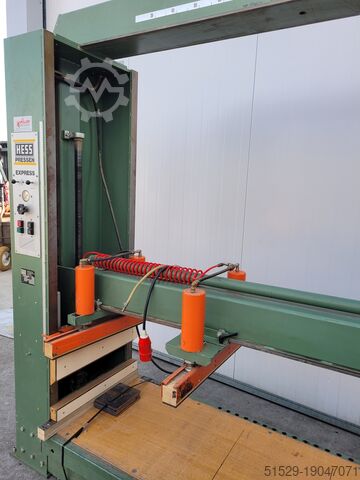

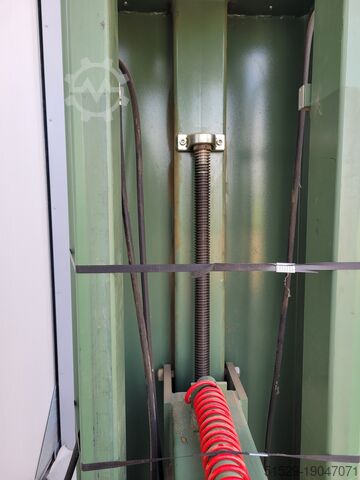

Condition: excellent (used), HESS EXPRESS Corpus Press, S/N 100954/32/1994, Year 1994 – Ref. No. 105123 Fgjdpfx Ajwvqp Ijfpoh Working Range: Width min. 250 – max. 2500 mm Height min. 250 – max. 1350 mm Depth max. 600 mm Installation Dimensions: Width 3580 mm x Height 2375 mm x Depth 790 mm - Central motorized height adjustment via push button - Automatic locking via trapezoidal spindle - Manual width adjustment via ball bearing slide carriage - Slide carriage with pneumatic central locking (3-position lock) - HESS hole grid system with 50 mm spacing - Continuous support bed as complete counter bearing - All pressing units with 2 pressure cylinders each - Central height adjustment of all vertical pressing units via pressure beam - Separate control of vertical and horizontal pressing units via one hand control valve each - Pressure adjustment from 4–10 bar according to diagram - Height adjustment using mm scale - Width adjustment using 50 mm scale - 4x vertical and 2x horizontal pressing units, each with 2 pressure cylinders, 1000 kp (approx. 10,000 N) pressing force per unit at 10 bar, 110 mm stroke, horizontal pressing units with quick couplers - Electrical connection: 0.55 kW, 380 Volt, 3/N, 50 Hz - Pneumatic connection: R 3/8", max. 10 bar Pressing units combined into pressing corners, left pressing corner consists of pressing unit and counter bearing, mechanically guided during height adjustment and always in position; right pressing corner consists of vertical and horizontal pressing units, can be positioned differently on both axes within the combined corner using guide rails, lower horizontal pressing unit height-adjustable; all pressing components are interchangeable. Condition: See attached photos, technically in excellent condition Payment: Net cash before loading Delivery time: Short-term, by arrangement Delivery: EXW Inspection: Possible at any time by prior appointment Subject to prior sale and errors.
