Tryout Press - hydraulic

HIDROLIKSAN HD 80 - 920

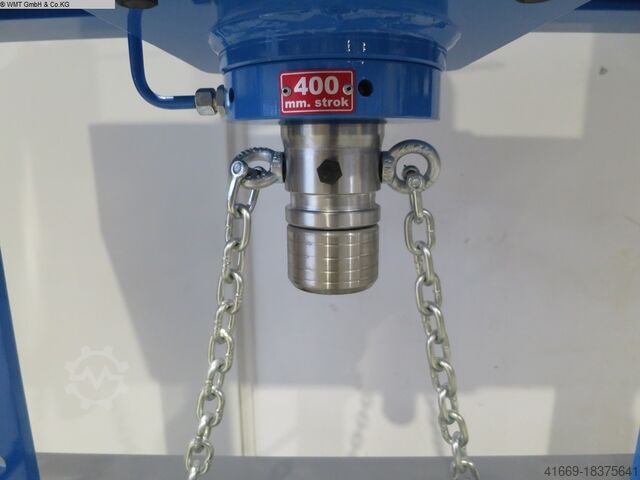

Year of construction: 1979, condition: used, pressure 160 t distance between columns 850 mm stroke 400 mm Dcsdpfxslp Uz Rj Ah Seb ram surface 800x700 mm 300 mm pressure of ejector 20 t table surface area 800x700 mm total power requirement kW weight of the machine ca. 12 t dimensions of the machine ca. 1800x1800x4200 m

Condition: good (used), Year of construction: 1998, HIGH Speed version faster in approach/work/return Hydraulic table ekjector Hydraulic feed table Home position rotation left   0 - 90 Gr Home position rotation right 0 - 90 Gr  Extended die height 2400 mm BIG Table 1600 x 1300 mm Siemens SIMATIC opperation panel Dcodpfx Ahou U Nb Aj Sob Distance between column:1360mm Hight under roof: 1700mm Table Length: 1600mm Ram stroke: 1500mm Approche speed: 200mm/min. Working speed: 50mm/min. Return speed: 180mm/min. Rotation upper table: 0 - 180° Table adjustment: 1700mm Length: 4900mm Width: 2800mm Height: 5600mm Weight: 18800kg HIGH Speed version faster in approach/work/return Hydraulic table ekjector Hydraulic feed table Home position rotation left   0 - 90 Gr Home position rotation right 0 - 90 Gr  Extended die height 2400 mm BIG Table 1600 x 1300 mm Siemens SIMATIC opperation panel

Year of construction: 1978, condition: used, pressure 25 t stroke 100 mm table surface area 440x320 mm ram surface 360x220 mm hole in the table 160x100 mm table height 900 mm tool hole in ram Ø 40 mm dayligth 280 mm weight of the machine ca. 1,5 t Dedpslp U A Ijfx Ah Socb dimensions of the machine ca. BxTxH 1500x1500x2100 mm

Condition: used, Year of construction: 1984, Pressure total: 600 ton Ram stroke: 762 mm Slide adjustment: 406 mm Shut height (stroke down, adjustment up): 1322 mm Free frontal opening L-R: 3700 mm Table surface area : 3350 x 2134 mm Slide area: 3350 x 2134 mm Die cushion capacity in table: 180 ton Die cushion stroke: 305 mm Ejector in ram: 60 ton Ejector stroke in ram: 230 mm Number of strokes: 16 s.p.m. Required power: 90 kW Weight of machine approx.: 185 ton Dedpfxouqdizo Ah Sscb Standard configuration Cushion in table pneumatic Extended machine accessories die loading charts for tool changeABB Handling robots for loading and unloading presses

Condition: used, Year of construction: 1996, pressure 63 t distance between columns 965 mm stroke 4 - 60 mm no. of strokes 30 - 800 Hub/min dayligth (stroke and adjustment up) 380 mm column travel -side 355 mm table surface area 960 x 640 mm Dcodpjvut Rgefx Ah Ssb hole in the table 850 x 140 mm table height over floor 1150 mm ram surface 960 x 460 mm power requirement 32,5 kW weight of the machine ca. 13,00 t required space 3,3 x 1,7 x 2,9 m ram adjustment 80 mm permitted for automatic mode according to the CE Regulations with infinitely variable drive, pneumatic clutch, semi-automatic stroke adjustment, motoric ram adjustment, mechanical pincer feed type GF 160 can be offered without or with putting into operation in given condition

Year of construction: 1990, condition: as good as new (ex-display), Eckolt hydraulic press in mind condition executed with plate holder see pdf for technical specs Dcodjd Siacjpfx Ah Sob

Condition: used, Year of construction: 1978, pressure 800 t distance between columns 3010 mm stroke 300 mm distance table/ram, max. stroke up, adjustment up 1350 mm table surface area 3000 x 1800 mm table height over floor 500 mm side window 1500 x 1400 mm ram surface 3000 x 1800 mm Dcsdpfx Asvuk Ipoh Seb speed down 300 mm/s oil volume 900 l height over floor 5,4 m height beneath floor 2,1 m power requirement 200,0 kW weight 80,0 t Dimensions (WxDxH) 5,2 x 2,6 x 7,5 m hydraulic high-speed press with oil-hydraulic drive, controllable dependent on pressure/time and way, hydraulic cutting impact cushioning, mechanical depth stop (motoric adjustable), ram interlocking in upper position maximum stroke frequency 50/min (when using automatic feeding devices) as is where is, WITHOUT putting into operation, stored in dismantled condition
