Straightening Press - Double Column

HIDROLIKSAN HSPS 500

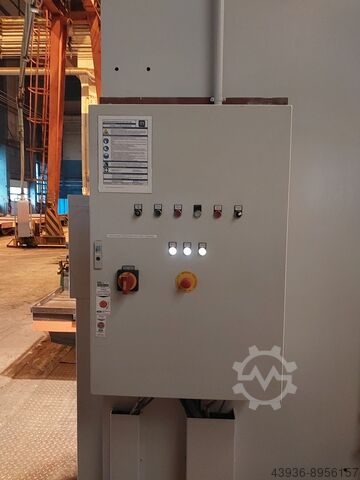

Condition: good (used), Make: Ursviken Type: VPF 1000/800-5,0 Control: Siemens Simatic panel Year: 1970 Hydraulic press for fabrication off large componts like dish heads tanks boiler shipyard and steelconstruction Ksdpfx Ajkvmi Ssfnend Renewed in 2015 with Siemens SIMATIC panel and E-Cabinet Rittal Build in height 2950 mm Maximum die height 1500 mm Movable Table & Piston in X-Ways Large package Die tooling radius 10/20/30/50/60/80/100 Pressing force 210 kg/cm2 Maximum stroke 800 mm Machine 2350 mm placed in ground Specifications Metric US Standard Capacity Kg 1000 Ton Distance between column 5010 mm Table Length 3000 mm Table Width 2000 mm Table Height 550 mm Ram stroke 1450 mm Approche speed 50 mm/min. Working speed 5 mm/min. Return speed 50 mm/min. Dimensions (Estimate) Length 0 mm Width 0 mm Height 0 mm Weight 0 kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Year of construction: 2021, machine/vehicle number: HB 2022-A-073, Portal straightening press with 300 T capacity a) idle and pressing speed up to 17 mm/sec. b) opening speed up to 55 mm/sec c) table size 2500x1600mm d) open height 700 mm e) total size approx. LBH 4500 x 2300 x 3700 mm f) Oil temperature indicator on the tank g) Lubrication via grease nipple h) table in grid construction,with T grooves according to customer's request, otherwise 22mm i) operation on swivel arm, mounted on the bridge j) pressure adjustment from 50 T to 300 T via MONITOR k) bridge moves by two gear motors, via racks l) Cylinder moves to the left and to the right via toothed racks m) Machine body double painted n) Cylinder induction hardened Type of construction Press design PORTAL PRESS Thermally neutral 80 - 120 °C Number of operating sides 3 side Forces Pressing force max. 3,000 kN Free ripping force max. 500 kN Pressure build-up time Closed die Steel to steel Max. 3 sec. Dimensions Knedpfx Aoh Agnuofned Max. Opening width 700 mm Stroke and min. opening 700 mm/ 0 mm Table height above floor approx. 9ß0 mm Height above floor (headroom) approx. 3700 mm Hall height min. 5.000 mm Deflection Determined at max. clamping force with 70% occupancy < = 0.8 mm/m Weight Total weight of press without operating materials and table plate approx. 22 T Speeds Fast closing with 17 mm sec. Pressing speed 8 mm sec. Opening 55 mm sec. Sound pressure Sound pressure level, measured at 1.5m height at the control panel after max. 78 db(A) DIN 45635-T16-KL3 Hydraulics Number of pressing cylinders 1 pc. Operating pressure max. 350 bar Pressing pressure build-up time 02. mz sec. Pressure accuracy during pressing stroke +/- 5 bar Main pump BOSCHREXROTH approx. 93 L/min Oil volume approx. HLPD 46 MW 900 liters Ambient temperature max. 45 °C Oil temperature max. 55 °C Electrical system Main supply 400 V AC Control voltage 24 V DC Frequency 50 Hz Hydraulic connection Main motor IE3 22 kW Total connection Approx. 30 kW

Condition: as good as new (ex-display), Year of construction: 2021, Gantry straightening press with 400 T capacity a) idle and pressing speed up to 17 mm/sec. b) opening speed up to 60 mm/sec c) table size 6000x3000mm d) open height 1500 mm e) total size approx. LBH 6000 x 5000 x 4500 mm f) Oil temperature indicator on the tank g) Lubrication via grease nipple h) Table in grid construction, i) operation on swivel arm, mounted on the bridge j) pressure adjustment from 60 T to 400 T via MONITOR k) Bridge moves by two gear motors, via toothed racks l) Cylinder moves to the left and right via toothed racks m) Machine body powder coated, or double painted n) T-slots according to customer requirements o) cylinder induction hardened PORTAL PRESS Thermally neutral 80 - 120 °C Number of operating sides 3 side Forces Pressing force max. 4000 kN Free ripping force max. 600 kN Pressure build-up time Closed die Steel to steel Max. 3 sec. Dimensions Max. Opening width 1500 mm Stroke and min. opening 1500 mm/ 0 mm Table height above floor approx. 900 mm Height above floor (headroom) approx. 4500 mm Hall height min. 5500 mm Deflection Determined at max. clamping force with 70% occupancy < = 0.8 mm/m Weight Total weight of press without operating materials and table plate approx. 52 T Speeds Fast closing with 17 mm sec. Sound pressure Sound pressure level, measured at 1.5 m height at the control panel according to DIN 45635-T16-KL3 max. 78 db(A) Hydraulics Number of pressing cylinders 1 pc. Operating pressure max. 280 bar Pressing pressure build-up time 2-3 sec. Pressure accuracy during pressing stroke +/- 5 bar Main pump BOSCHREXROTH approx. 150 L/min Oil volume approx. HLPD 46 MW 900 liters Ambient temperature max. 45 °C Oil temperature max. 55 °C Knsdpfjhyc Nwox Afnjd Electrical system Main supply 400 V AC Control voltage 24V DC Frequency 50 Hz Connection hydraulics Main motor IE3 30 kW Total connection Approx. 35 kW
