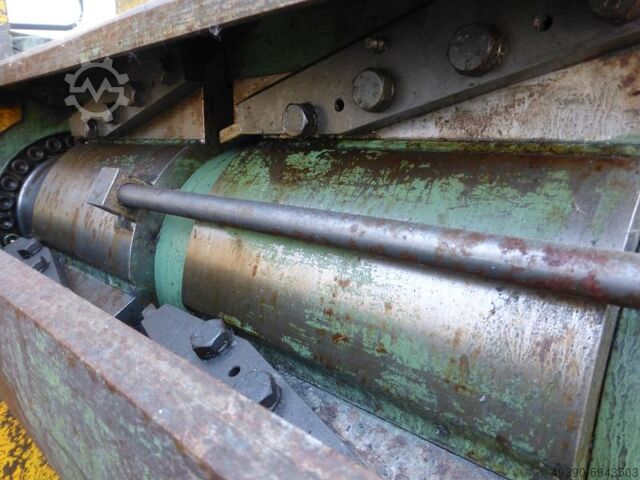

Decoiler and recoiler for coil material, spool for strip processing line

HMS BA 1.5-06/80

Unwinding and rewinding reel for coil material, HMS type BA 1.5-06/80
Machine No. Year of manufacture 1991
Coil weight max. 8000 kg
Nodpohx R Etefx Agrowl
Coil outer diameter max. 1600 mm (with loading carriage)
Coil outer diameter max. 2000 mm (without loading carriage)
Diameter of the coil running disk Ø 1700 mm
Coil inner diameter, spreading range 460-520 mm
Coil width, nominal width max. 630 mm
Width of the spreading jaws 750 mm
Height of the reel crown above the base plate 1500 mm
- Drive of the reel crown via hydraulic motor with gearbox and gear
- Pneumatic trailing brake on the reel crown TWINFLEX
- Hydraulic operating brake
- Hydraulic stop brake
- Hydraulic spreading of the reel crown, centrally via wedge slide system
- Hydraulic pressure arm with hydraulically driven double rocker roller
- Coil loading carriage with 12 ton lifting capacity and 300 mm stroke
- Reel on above-ground travel frame with motorized lateral travel drive
- Hydraulic unit located nearby (also used for other functions on a conveyor system)
- Without electrical control cabinet (or, there is an electrical control cabinet that supplied the entire conveyor system)
Transport dimensions L x W x H 3500 x 1900 x 2500 mm
Own weight approx. 5 tons
Good condition - not electrically operational.
