Chopper

Hokutech H 600

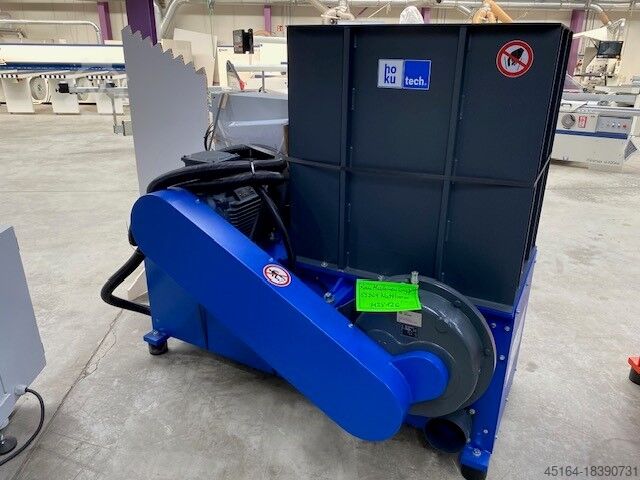

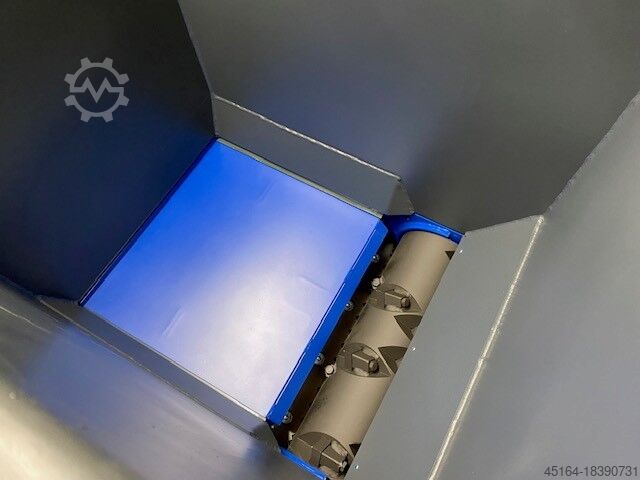

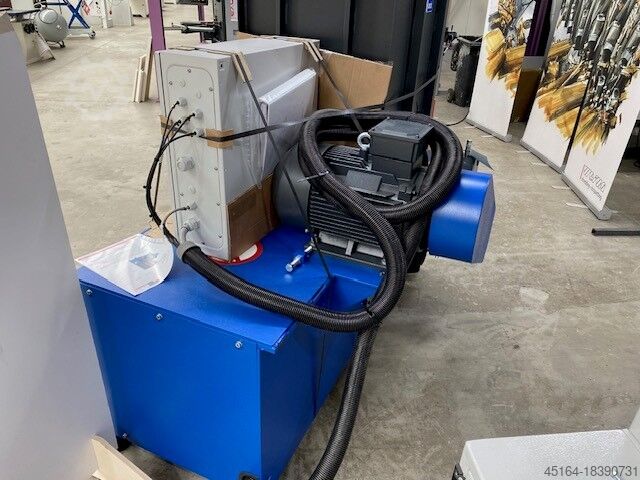

Condition: new, Year of construction: 2024, Single-shaft shredder HOKUTech special offer model H600 Compact, robust, high throughput The H600 high-performance shredder with its flexible application options can process all types of wood-based materials (hardwood, softwood, chipboard, MDF materials, plywood, veneer residues, etc.) into chips and achieves an enormous reduction in the volume of bulky materials. The hydraulically controlled pusher feeds the wood waste to be shredded into the cutting area of the rotor and is controlled automatically and load-dependent. The high-performance solid steel electric rotor has a diameter of 252 mm and operates at a rotor speed of 85-95 rpm. The concave-ground, aggressive and 4-way rotating knives / reversible cutting crowns are located in milled knife pockets on special knife carriers. This highly efficient system guarantees high throughput, low energy consumption and optimum discharge of the shredded material by reducing the cutting gap between the counter blade and the rotor. Chip size (10 - 60 mm) Technical data: - Hopper opening - Hopper capacity - Working width of the rotor - Diameter of the rotor - Drive power - Rotor speed 600 x 800 mm 0.6 m3 600 mm 252 mm 15 kW 90 rpm Kedjutmw Hspfx Anwodn Location: Comes to stock 54634 Bitburg - available by arrangement -

Condition: new, Power 15 KW Technical specification:Hopper opening: 600 x 800 mmHopper capacity: 0.6 m³Working width of the rotor: 600 mmDiameter of the rotor: 260 mmDrive power: 15 kWRotor speed: 90 ber of knives: 14 pieces 2 piecesType and size of knives: concave / 40 x 40 mm, reversible cutting crownsconcave / 30 x 30 mm, broaching knivesScreen perforation: 15/20 mmPaint finish: frame in RAL 5010, hopper in RAL 7016(HoKuTech standard paint finish)Connected load: 400 V /- 5 % / 50 Hzincluded:Switch cabinet (Rittal) with 5 m cableElectrical control (PLC Siemens)Star-delta startRubber oscillating elementsE-rotor with knife pockets milled into the profileGear limit switch1. Knife rowHold-down device on pusher for long and large partsLarge 40 x 40 mm knives for optimum material feedVery robust gearboxSpecial broaching knives to prevent lateral jammingMachine number: 510-5238 Kdodpfxevwfhcj Anwsn

Condition: new, Technical specification: Funnel opening: 600x800mm Funnel capacity: 0.6m³ Rotor working width: 600mm Rotor diameter: 252mm Drive power: 15kW Rotor speed: 90 rpm. Number of knives: 14 pieces + 2 pieces Type and size of knives: concave / 40x40 mm, Cutting crowns concave / 30x30mm, clearing knife Screen perforation: 15/20mm Paint: HoKu Tech Standard RAL5010/7016 Connection value: 400V +/- 5% / 50Hz Includes: Control cabinet with 5 m cable Electrical control (PLC Siemens) Star-delta start-up Rubber vibration elements E-rotor with knife pockets milled into the profile Gear limit switch 1st row of knives Kdedpfxjvyp Ave Anwon Holder on the slide for long and large parts Large 40x40mm knives for optimal material feed Very robust gearbox Special clearing knife to prevent jamming at the side
