Edge milling machine

HOLZ-HER

Condition: new, Year of construction: 2025, New machine Year of manufacture: 2025 Features and technical data: Cutting height 2200 mm x cutting length 5300 mm (Edging height / max. horizontal cutting height 2110 mm) PowerPackage 400 V The package consists of the following options: 1. TRK extraction unit 2. SuperCut scorer 3. Vertical digital display 4. Stepless speed control (9 kW output) Pneumatic aluminum slatted support Medium workpiece support on all fields Strip stop for recurring horizontal cuts Digital measurement display for horizontal cut at control panel Visible cut line laser Paper storage compartment Nedpfx Ajynpc Aefcowc Narrow parts device (2 pieces) Location: Solingen Availability: Short-term

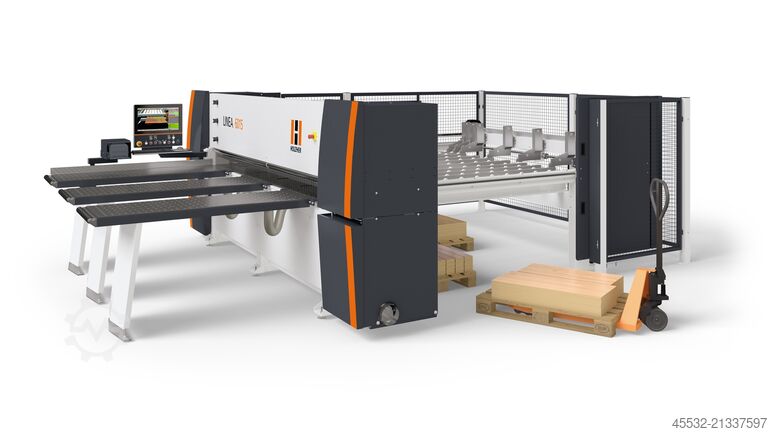

Condition: as good as new (ex-display), Year of construction: 2026, functionality: fully functional, cutting width (max.): 3,100 mm, saw blade diameter: 300 mm, section length (max.): 3,100 mm, Equipment: CE marking, scorer, HOLZ-HER Pressure Beam Saw LINEA 6015 Cutting length 3100 mm x cutting width 3100 mm Saw blade projection 68 mm Grooves up to 25 mm (bi-directional) 7.5 kW main saw motor 2.2 kW scoring saw motor 3 air-cushion tables 1800 mm with feed rollers Cut-out & recess device (for window cut-outs and insertion grooves) Nwsdpfx Afeyngt Sjcoc Side pressure, program-controlled Eco mode Handheld control device Label printer and software Easy-Plan optimization (upgrade and office version available) and much more... 12-month warranty Delivery, installation, and operator training of the machine can be arranged directly through us for an additional charge. The machine is currently located at our distribution warehouse in Gratwein / Austria. In the event of discrepancies between the German version and a foreign-language version, only the German version is legally binding. Our General Terms and Conditions can be found on our website at holzher.de/en/terms-and-conditions.

Condition: used, functionality: unexamined, machine/vehicle number: 1205, input voltage: 380 V, Used Holz-Her 1205 Vertical Panel Saw – Wall Saw – Panel Saw with Saw Blade Manufacturer: HolzHer Model: 1205 Cutting range: 445 cm width, 175 cm height Nwjdpfx Ajxiwvlsfcec Voltage: 380 volts.

Condition: used, Year of construction: 1989, Used machine Year of manufacture: 1989 Condition: Function tested Equipment and technical data: Max. edge thickness: 20 mm Max. edge height: 51 mm Max. thickness of coil material: 3 mm Min. workpiece length: 140 mm Min. workpiece width: 60 mm Glue system: 1906 cartridge Pressure unit Milling unit 1920 for flush milling up to 20 mm and chamfer milling Required space (LxWxH): 3150x1800x1375 mm Weight approx.: 800 kg Nwedpfx Asw I U E Asfcsc Location: Flörsheim Availability: Short-term

Condition: used, Year of construction: 2001, Used machine Year of manufacture: 2001 Equipment and technical data: Machine is completely workshop overhauled! Automatic horizontal and vertical positioning for absolute and incremental dimensions Digital readout for horizontal cuts PLC control with a 2-line display and plain-text error diagnosis for operation mode and fault diagnosis Infinitely variable feed speed up to 24 m/min Automatic workpiece end detection Calculator function integrated in the control panel (calculation of workpiece dimensions) Cutting length: 4300 mm Cutting height: 2200 mm Max. trimming height: 2100 mm Max. scoring height, vertical: 2100 mm Max. cutting depth: 80 mm Motor: 5.5 kW Saw blade speed: 4,500 rpm Saw blade diameter: 300 mm Air requirement: 1,200 m³/h Air velocity: 20 m/s Static negative pressure: 1,200 Pa Extraction connection: 2 x 120 mm Dimensions (L x W x H): 5,620 (plus extraction nozzle) x 1,480 x 2,948 mm Room height: 2,990 mm Compressed air connection: 6 bar Air consumption: 50 NL/min Electrical connection load: 5.7 kW With Supercut pre-scoring unit Nsdpfx Afsw Nac Aocjwc With pneumatically swiveling saw unit With longitudinal stop for lower workpiece support With short folding rail, complete Availability: by arrangement Location: Flörsheim

Condition: used, Year of construction: 1990, Used machine Year of manufacture: 1990 Features and technical data: Automatic edge feeding Cartridge glue system Pressure unit with 4 rollers Trimming saw unit Flush milling unit Combination milling unit flush/chamfer/radius Radius scraper Buffing unit Nwedpfeyncpvox Afcoc Edgeband thickness: 0.3 - 20 mm Edgeband height max.: 66 mm Edgeband length min.: 200 mm Feed speed: 8/16 or 12/24 m/min Availability: Short-term Storage location: Röllbach

Condition: used, Holz Her Auriga 1308 FÜ + PU Compact design – Edge thickness 0.4 – 6 mm SPS screen control Edge-Control PPC 221 color display Pre-milling unit for prepping before the gluing station Fully automatic edge magazine for both roll and strip materials GLU-JET adhesive application station for EVA and PUR glue, suitable for cartridges or granules + PU Adhesive application via nozzle technology Workpiece height 6–65 mm Automatic glue height adjustment 1912-3 pneumatic pressure unit 1918 pneumatic end-trimming unit for roll and strip material, edge thickness up to 8 mm Pneumatic adjustment from 0–10° for miter saw angle 1827 MOT 4 milling unit for flush trimming (8 mm), radius and chamfer milling – 15°; 1827 MOT NC-controlled axes via control panel 1832 SPS corner rounding unit for rounding edges up to 3 mm edge thickness in through-feed Scraper unit for chamfers and radii with 2 motorized scraper holders Surface scraper unit – finishing Spray system – PU Complete DIA tool package included Machine is FULLY REFURBISHED and in TOP CONDITION Available from stock in Lieboch Nsdpfx Aoymdayjfcewc

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, Working area X: 4520 mm Working area Y: 1600 mm Working area Z: 300 mm 5-axis electrospindle unit, 12 kW power, liquid-cooled, HSK 63F interface Vertical drilling heads: 18 Horizontal drilling bits X: 4 Horizontal drilling bits Y: 2 Slotting saw in X direction 18-position tool changer (carousel) 1-position tool changer for saw blade Worktable with 8 bars WS8 clamping device, 200 mm Software: Campus V7 Plus CAD/CAM Vacuum pumps Safety platforms Red laser push button Remote control panel Nwjdpjyl Uw Hjfx Afcsc PC-based control system Automatic centralized lubrication

Condition: used, Year of construction: 2009, HOLZ-HER edge banding machine CONTRIGA 1366 Edge thickness: 0.4-30 mm (depending on equipment) Edge height: 51/66 mm (depending on equipment) Panel thickness: 6-45/60 mm (depending on equipment) Edge types: Rolls and strips Feed speeds: Continuous feed from 12-30 m/min (depending on equipment) With adjustable infeed level in the magazine area (max. adjustment range 30 mm) With height-adjustable magazine plate for changing the lower edge overhang With large magazine plate Ø 820 mm for edge rolls up to Ø 800 mm With transport chain including automatic central lubrication With motor-driven, position-controlled bridge height adjustment With pneumatic locking roller for the shortest workpiece sequence With extendable workpiece support (extension width 1600 mm) With space-saving, pneumatically controlled sliding hoods over the entire machine (Deviations for individual units are possible) with motorized infeed guide with injection oiler for lubricating all joints and bolts (including operating hours counter) with central connection for extraction (2x Ø 200 mm) with integrated chip collection box at the end of the machine (when radius scraper unit is installed) PPC 231 control system - Power PC for efficient setup and changeover - 15" SVGA screen with touchscreen - 128 MB CF memory card - USB connector on board - Ethernet network connection - Keyboard connector on board - Windows-like user interface - all information in plain text and/or graphics - Rotatable and pivoting control panel at eye level - Dust-proof membrane keyboard with softkeys (pushbuttons) - LED display for unit preselection - Program list with program names and numbers - Extensive program memory - Individual selection of the units with the functions as basic setting options for setpoints, route points and tool corrections as well as the fixed route points - Centralized and clear setup processes for units and their axis settings via fine adjustment (depending on the equipment) - Interval display for the shortest workpiece distance - Integrated path control - Path points are controlled generally or program-specifically - Clear and complete recording of all operating data - Service messages in plain text - Diagnostic system - including integrated synchronous bus system for high precision in unit control - Individual administration for up to ten users, including password protection - Online maintenance (optional), data exchange with HOLZ-HER Service - Barcode interface (optional) BASIC MACHINE CONTRIGA 1366 - Belt bridge Options and accessories for the basic machine Spraying device 1856 for the inlet and outlet area For the inlet area: Electronically controlled release agent sprayer with Riepe-LPZ/II release agent For the outlet area: Electronically controlled cleaning agent sprayer with Riepe-LP163/93 cleaning agent (only in conjunction with pre-milling unit 1961 and surface scraper 1964) Joint milling unit Joint milling station 1803 (2x 2.6 kW, 200 Hz, 12000 min-1) With two plunge-controlled milling units 1 unit in up-cutting direction 1 unit in down-cutting direction Plunge path 5 mm With static frequency converter 200 Hz Without milling tool With ProLock screw-in clamp for fast tool changes Tool for 1803 (workpiece height up to 60 mm) Diamond milling cutter PRO UT 2 pieces (front and rear) including protective covers Ø 100-63 - Ø 30 mm, Z = 3 + 3 + 3, 1x left-hand rotation, 1x right-hand rotation Noise-reduced milling cutter with integrated chip guide DFC technology (Leitz syst Nwjdpfovvkfdsx Afcjc

Condition: used, Year of construction: 2002, Machining dimensions (tool diameter 25mm): X=3015 mm Y=1483 mm Z=325 mm Max. travels: X=3268 mm Y=1483 mm Z=325 mm Max. programming speed: X/Y = 75 m/min / Z = 30m/min Tool holder HSK 63F Drilling unit 7964, 14 vertical drilling spindles with 32 mm grid (10 in x / 4 in y) Sawing unit 7946 3.6 kW, 90° pneumatically pivotable Milling unit 7933 9 kW Wood Her Vector axis (C-axis) Tool magazine (6 disk places) Hand control unit Laser device (positioning of the suction cups) PC control panel with 17" monitor Operating system Windows 2000 Software: TwinCAM32 - office version Vacuum pump 100 m³/h Dry running Selective safety mats (3-field division) Nwsdsvvi Nbepfx Afcec Storage location: Nattheim
