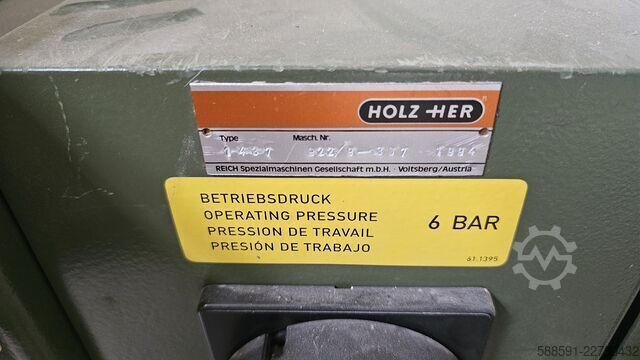

Edgebander

HOLZ-HER

Condition: excellent (used), CATALOGUE NUMBER 8010 TECHNICAL DATA Equipment: - table - pre-milling - belt feeder - 2 glue tanks: for granules and cartridges - currently, the machine uses hot melt adhesive (granules) - guillotine – for pre-cutting veneer - 3 pressure rollers - 2 trimming units with saws for final trimming - 2 milling units for edge shaping (radius cutters) - corner rounding unit Nwedpfx Aaozw Dx Aemek - sanding units – for removing excess glue - polishing units - stepless feed rate adjustment 8-18mm - workpiece thickness 6-45mm - minimum workpiece length 180mm - minimum workpiece width 600mm - maximum veneer thickness fed from a roll 3mm - air consumption 6-8 bar - dust extraction nozzle diameter 7x80mm, 1x130mm - dimensions L/W/H 6650x1260x1700mm - weight 1850kg ADVANTAGES – Made in Germany – Spray system – Pre-milling and corner rounding – 2 glue tanks – Includes 4 additional milling cutters – Unpainted – Original technical documentation and CE marking – Very good condition – Used veneer edging machine Net price: 49900 PLN Net price: 11880 EUR, depending on the exchange rate of 4.20 EUR (Prices are subject to change due to exchange rate fluctuations)

Condition: used, Year of construction: 1999, Holz-Her SPRINT 1411 edgebander Description Workpiece thickness min./max. 6/45mm Automatic edge feeder (coil up to 5mm) Workpiece min. 60mm Workpiece length min. 180mm Cartridge glue system (short heat up time 2-3 min.) End trimming unit Flush trimming unit Scraping unit (flat) Buffing (brushing) unit Nwedpfxsw Ebrxj Aamsk CE (Despite our great care all changes, mistakes in technical data, prices and all information is subject to (typing) errors. No guarantee on printed data! Availability subject to prior sales). (Alle Änderungen und Irrtümer in den technischen Daten, Angaben und Preisen vorbehalten! Keine Garantie auf gedruckte Daten!. Verfügbarkeit vorbehaltlich Zwischenverkauf).

Condition: used, Year of construction: 2019, Holz-Her Dynestic 7532 10.5 automatic CNC nesting machining center with Holz-Her Store-Master 5110 panel storage system Used machine Year of manufacture: 2019 Features and Technical Specifications: - Designed for classic nesting machining with a wear plate - Welded machine frame with ground and hardened prismatic guides for the traveling column, toolhead, and consoles - Gantry-style moving column - Rack-and-pinion drive, helical teeth, in the X and Y directions; ball screws in the Z direction for precise positioning - Machining dimensions: - Max. support area on nesting table: X = 3100 mm Y = 1560 mm - Max. travel ranges: X = 4695 mm Y = 2100 mm Z = 293 mm - Max. clearance height of DYNESTIC table Z = 100 mm from top edge of table (without wear plate) - Maximum programmable speed Vector speed: 128 m/min X = 80 m/min, Y = 100 m/min, Z = 25 m/min - DYNESTIC table: - Rigid, continuous machining table with grid markings - continuous slots in the X and Y directions - Slot spacing: 50 mm - Includes 25 meters of sealing cord for securing the wear plate - Vacuum fields: 1-circuit vacuum system - Drilling unit 7877: - 19 spindles - Drive power: 1.7 kW - 13 vertical spindles: - individually controllable - U-shaped arrangement - 5 in the X direction and 4 in the Y direction - 32 mm pitch - max. drill bit diameter: 35 mm - Total drill length: 70 mm from the mounting end (depending on panel thickness) - Spindle extension stroke: 70 mm - Rotation direction: Alternating clockwise and counterclockwise - n(max): 1000–4400 rpm, continuously adjustable - Mounting: M10 thread – 11 mm interference fit - Tool-free, without mounting adapter - 6 horizontal spindles: - 2 double drilling spindles in the X direction - 1 double drilling spindle in the Y direction - Mounting: M 10 thread, 11 mm interference fit - Total drill length: max. 63 mm from mounting end - Tool-free, without chuck - Milling unit 7842: - Power: 12.0 kW (S6) - n(max) = 1,000–24,000 rpm, continuously variable Njdpfx Aaezlbrpomjwk - Max. power at 12,000 rpm to 24,000 rpm - Air-cooled - With HSK-F 63 tool holder - With right-hand threaded nut (for right-hand rotating tools) - With collet chuck with HSK shank - Ceramic ball bearings (hybrid bearings) - Max. tool weight: 6 kg (including holder) - Tools: Milling and grinding tools, max. Ø 160 mm - Safety guarding in accordance with CE standards - Protective fencing on the sides and rear - Vacuum pump: 500 m³/h, dry-running - Operator safety via light curtains in the front area of the machine - Handheld control unit for remote control of the machine with the following operating functions: - Start/Stop of the machining program - Speed control of the machining cycles - Reset button - Manual feed/rapid traverse for all axes - Emergency Stop - CAMPUS V7 CAD/CAM software, 1 machine license consisting of: - CAMPUS NC-HOPS: - Graphical variant system with WOP and CAD/CAM features for creating part variants using macro technology - CAMPUS MT-Manager - CAMPUS Workcenter - CAMPUS DXF interface - Automatic centralized lubrication - Automatic lubrication according to defined lubrication intervals - Additional dust sealing via positive pressure in each guide carriage - Simultaneous lubrication: - for all linear guides in the X, Y, and Z directions - for all ball screws in the Y and Z di...

Condition: used, Year of construction: 2005, Second-hand machine Year of manufacture: 2005 Features and technical specifications: - Base machine 555 - Machining dimensions for contour milling: - X = 3514 mm - Y = 1544 mm - Maximum machining dimensions: - X = 3868 mm - Y = 1746 mm - Z = 325 mm - Workpiece support with 8 brackets, pneumatically clamped - Drilling unit 7968: - 18 vertical drilling spindles with 32 mm pitch - 12 in the X-axis and 6 in the Y-axis - available individually - T-shaped layout - max. drilling diameter 35 mm (depending on panel thickness) - Spindle extension stroke: 70 mm - Direction of rotation: alternating clockwise and anti-clockwise - n = 4725 rpm, infinitely variable - 2 horizontal drilling units in the X-direction, 1 horizontal drilling unit in the Y-direction Nwjdpfx Aszk N Hleamok - Sawing unit 7946: - Motor: 3.5 kW - 90° pneumatically swivelling - n = 5300 rpm - Tool holder A Ø = 200 mm, I Ø = 30 mm, B = max. 3.5 mm - Sawing/grooving in the X and Y directions - Milling unit 7935: - with 6 kW spindle, water-cooled - Milling unit 7982: - for lock case milling - Tool changer 7996: - 18-position magazine (turret) - Vacuum pump with a capacity of 140 m³/h - Handheld control unit - PC control system with TwinCAM WOP system - Siemens control system Availability: at short notice Storage location: 63934 Röllbach

Condition: used, Year of construction: 2013, Used Machine Year of Manufacture: 2013 Features and Technical Specifications: - Control system with 15-inch touchscreen - Pre-milling unit with 2 milling heads - Edge feeding unit - GluJet 301 glue application system: 2.3 kW, automatic glue height adjustment, sensing nozzle - Press unit: pneumatic - Crosscut unit: pneumatic - Diamond cutters (left and right): with CM technology - Corner copying unit with diamond cutters - Surface scraper - Sanding unit - Extendable workpiece support - Motorized pressure bridge adjustment with NC axis via program control - Exhaust hoods for trimming unit - Multifunction milling unit: MOT 4 - Vertical feeler rollers: pneumatic - Pneumatic swivel mechanism for MOT 4 milling unit - MOT 2 planing unit with chip collection box - Spray system for the infeed and outfeed areas - Minimum workpiece length: 160 mm - Workpiece thickness: 6–60 mm - Edge thickness: 0.4–6 mm - Feed speed: 10 m/min - Overall length: 4930 mm Nsdpfjzk N Dkex Aamewk - Weight: 1420 kg

Condition: used, Year of construction: 2007, Second-hand machine Year of manufacture: 2007 Features and technical specifications: Nesting system with grid table Machining dimensions: - X: 5000 mm - Y: 1240 mm - Z: 135 mm Travel ranges: - X: 5665 mm - Y: 1650 mm - Z: 325 mm with milling unit 7933: - Motor 11 kW (S6) - HSK 63 - water-cooled with C-axis with 18-position disc-type tool changer with 250 m³ vacuum pump with manual control unit with central lubrication with minimum quantity lubrication system Nwsdpfszk Nvgsx Aamjk Availability: at short notice Location: Röllbach

Condition: used, Year of construction: 2005, Second-hand machine Year of manufacture: 2005 Features and technical specifications: Travel ranges: - X-axis: 2,685 mm – Y-axis: 1,095 mm – Z-axis: 140 mm Milling unit: - 6 kW, water-cooled - Tool holder HSK 63 F – Speed 1,000 – 18,000 rpm Tool changer: 6-position, side-mounted Drilling head: - 9 vertical drilling spindles in 32 mm increments - Horizontal drilling spindle: 1+1 - Vertical drilling spindle: 1+1 Groove saw in the X-direction Control system: Twin CAM 32 Vacuum pump 100 m³/h Including vacuum suction cups Dimensions: 5,200 x 2,843 x 1,855 mm Weight: approx. 3,500 kg Nwedpfx Ajzk Nu Neamek Availability: by arrangement Storage location: Röllbach

Condition: used, Year of construction: 2004, Second-hand machine Year of manufacture: 2004 Condition: Tested and in working order Features and technical specifications: Travel ranges: - X-axis: 2,685 mm – Y-axis: 1,095 mm – Z-axis: 140 mm Milling unit: - 6 kW, water-cooled - Tool holder HSK 63 F – Speed 1,000 – 18,000 rpm - Tool changer: 6-position, side-mounted Drilling head: - 9 vertical drilling spindles in 32 mm increments - Horizontal drilling spindle: 1+1 - Vertical drilling spindle: 1+1 Groove saw: in the X-direction Control system: Twin CAm 32 Nedpjzk Nmfefx Aamswk Vacuum pump: 100 m³/h Including vacuum suction cups Dimensions 5,200 x 2,843 x 1,855 mm Weight: approx. 3,500 kg Availability: by arrangement Storage location: Röllbach

Condition: used, Year of construction: 2007, Second-hand machine Year of manufacture: 2007 Specifications and technical data Cutting length: 5,300 mm Cutting height: 2,200 mm (trimming height 2,110 mm) Nedpfxozk N S Ij Aamjwk Cutting depth: max. 60 mm Extraction system: - Saw unit 120 mm - Frame width 100 mm Workpiece support: - Sturdy plastic support for optimum stability, even for narrow workpieces. - Chips are removed via slanted slots. Lift-roller transport system: Manual, for light and gentle transport of materials Clamping: Manual, vertical and horizontal Feed: Manual, vertical and horizontal Circular saw blade: carbide-tipped, 250 mm, hollow roof-tooth, Z48 Saw motor: 4 kW at 5,450 rpm, 400 V, 50 Hz Tilting table: including workpiece support for narrow parts (5 positions) Includes strip stop with Supercut scoring device Extraction system in accordance with BG TRK guidelines (less than 2 mg of fine dust per m³ of air) Availability: at short notice Storage location: 63934 Röllbach

Condition: good (used), Holzher Sprint 1329 premium edger Nedpfx Aaszwffwomjwk CNC-controlled units Liquids pre-milling cutters glue application, cartridge glue pneumatic pre-trimming cutter pressure rollers trimming balls top and bottom milling cutters R1 R2 double corner rounding profile edge trimming flat edge trimming Liquids Polishing Maximum edge banding height: 60 mm Edge band thickness (roll): 3 mm Maximum feed rate: 18 m/min Machine length: 740 cm Machine in good condition, ready for operation.
