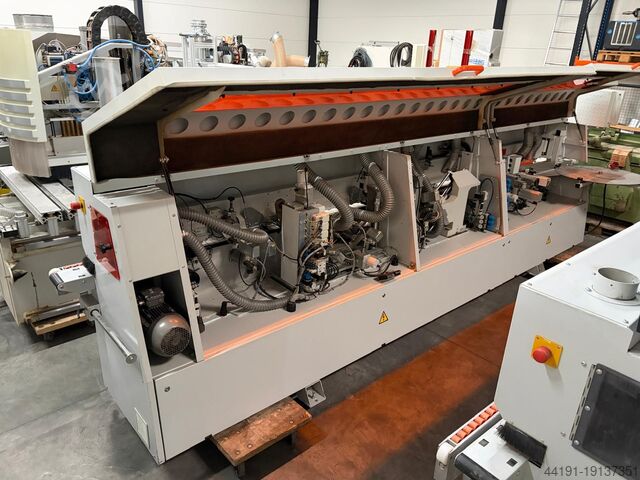

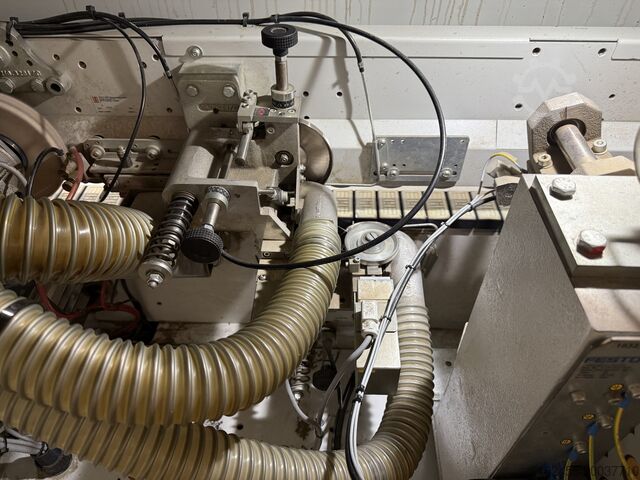

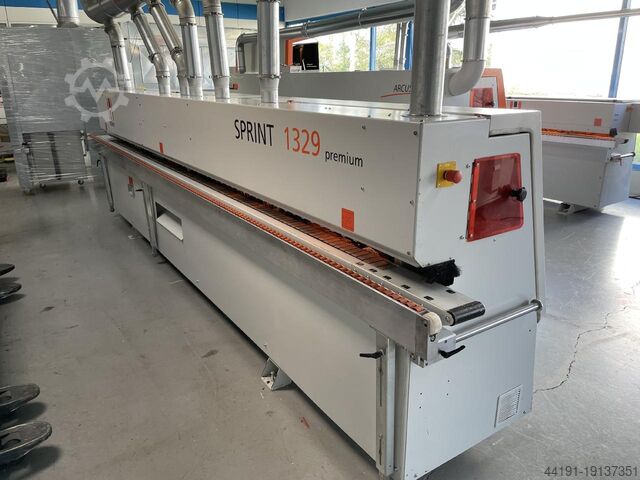

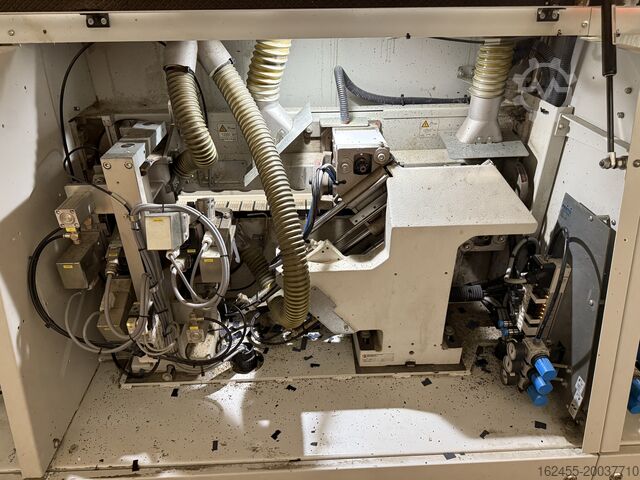

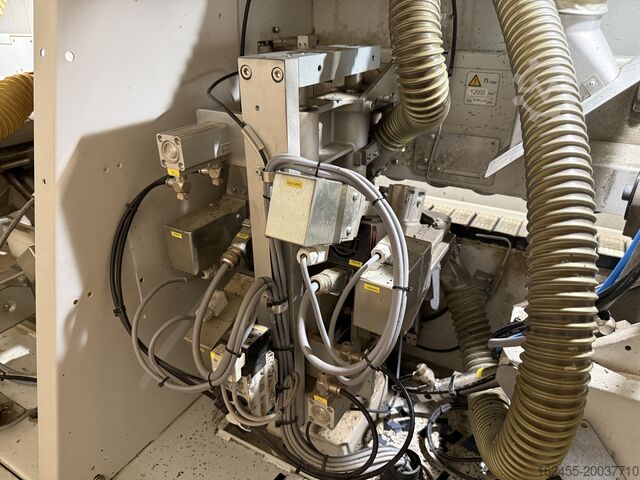

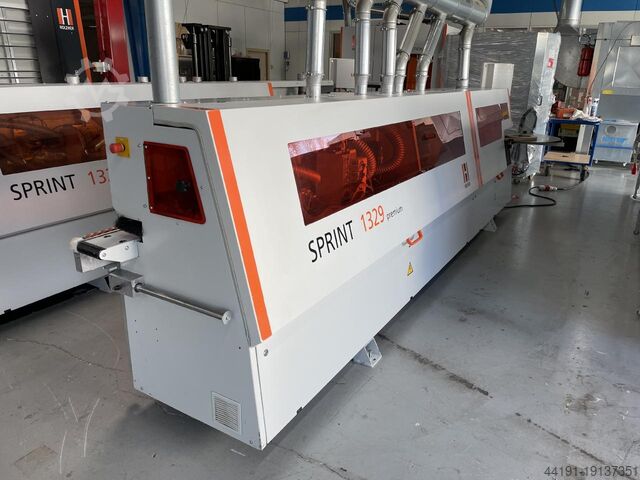

Edge banding machine

HOLZ-HER SPRINT 1329

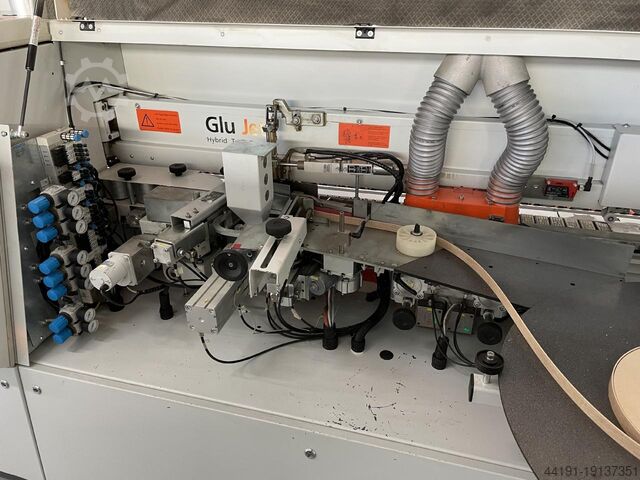

Condition: used, Year of construction: 2013, Used machine Year of manufacture: 2013 Equipment and technical data: The machine has been completely overhauled: - new Glue Jet 301 gluing system (top part 1 mm) - all units checked - all cutters sharpened - all knives replaced Electrics for stepless feed: 400 V / 50 Hz, 2.2 kW Motorized pressure bridge adjustment Automatic chain lubrication PPC 315 control system with 15" touchscreen ECO MODE energy saving function Infeed fence 1350 mm, motorized adjustment Jointing milling unit 1802: - 2 x 2.0 kW, 200 Hz, 12,000 rpm with 2 milling units for edge jointing - Cutter, diamond Ø 70 x 64 x 30 mm, Z2, left-hand rotation for jointing unit Gedpfx Abewka Iispskd - Cutter, diamond Ø 70 x 64 x 30 mm, Z2, right-hand rotation for jointing unit Edge feeding unit 1901 fully automatic Glue application station Glu Jet GJ301 automatic: - 2.3 kW; 50 Hz - Granulate hopper Pressure unit 1913 MOT End trimming unit 1918 (60 mm) pneumatic Multi-functional milling unit 1826 MOT4 (2 x 0.65 kW): - Air Stream System cutter, diamond Ø 58 mm x 24 mm, Ø 20 mm Z = 2 R = 2.5 mm left-hand rotation - Air Stream System cutter, diamond Ø 58 mm x 24 mm, Ø 20 mm Z = 2 R = 2.5 mm right-hand rotation Profile milling unit 1833 MOT4: - Cutter, diamond Ø 72.5 mm x 19 mm, Ø 20 mm Z = 4 radius R = 2.5 mm, left-hand rotation with CM technology - Cutter, diamond Ø 72.5 mm x 19 mm, Ø 20 mm Z = 4 radius R = 2.5 mm, right-hand rotation with CM technology Scraper unit 1929 MOT2: - HW reversible knives for scraper holder R = 2.5 mm (2 pcs required) Flat scraper 1964 Buffing unit 1940 (2 x 0.12 kW, 50 Hz, 1400 rpm) Availability: short notice Location: 65439 Flörsheim

Condition: excellent (used), Year of construction: 2017, HOLZ-HER SPRINT 1329 edgebander Main Advantages and Features: ● Construction: Robustly built, stable form, and excellent vibration dampening. ● ● Control Panel: Intuitive panel with a 15-inch touchscreen monitor, allowing for easy input, storage, and display of processing data, as well as machine control. ● ● Automation: Automatically records information about used programs, processed item counts, and machine operating time. ● Quiet Operation and Safety: Noise-reducing protective covers minimize noise and enhance workplace safety. ● Programming: Programmed HOLZ HER control ensures full functionality of the edgebander, with the ability to run complete machining programs. ● Motorized Adjustment: Motorized adjustment of the height of the workpieces. ● Transport: Rollers at the infeed and outfeed of the machine. The machine's transport chain has automatic lubrication. Detailed Specifications and Equipment (Working Units): 1. Pre-milling Unit 1802 (2 x 2 kW, 12000 min⁻¹): ○ One synchronous and one counter-rotating unit with two K/F 70-64 30 diamond milling cutters. ○ Motorized adjustment of milling thickness (max 3 mm). 2. Edge Feeding Unit 1901 Synchro: ○ Allows for precise adjustment of the edge overhang, significantly contributing to edge savings. ○ Edge feeding from a single plate with a diameter of 820 mm. Loading width for strip edges: 40 mm. 3. Glue Jet 2.3 Gluing System (Patented System): ○ No glue roller – glue is applied via a nozzle. ○ Compatible with both EVA glues (granules and cartridges) and PUR glues. ○ Full adjustment of the start and end of glue application, as well as glue application height depending on the workpiece thickness. ○ Hybrid technology, heating time: 3-4 minutes. 4. Pressure Zone 1913 MOT (Motorized Adjustment): ○ Three pressure rollers, with the first one driven and made with SYNCHRO technology. ○ The other two rollers are tilted for better pressure on the edges. 5. Trimming Unit 1928 (2 x 0.45 kW, 12000 min⁻¹): ○ Pneumatically adjustable. ○ For precise trimming of edges up to 60 mm thick with HM saw blades. ○ Both units adjustable 0-10°. Two saw blades Ø110. 6. Multi-functional Milling Unit 1826 MOT4 (2 x 0.65 kW, 12000 min⁻¹): ○ Motorized adjustment. ○ Designed for profiling edges from 15° to 90° or straight. ○ Uses diamond tools made with AIR STREAM technology. ○ Tool radius R=2 mm. 7. Corner Rounding Unit 1833 MOT4 (2 x 0.65 kW, 12000 min⁻¹): ○ Motorized adjustment. ○ For corner rounding on the fly, with HM tools up to max. R=3 mm. ○ Ability to duplicate radius milling on the edge. ○ Uses diamond tools. ○ Tool radius R=2 mm. ○ Workpiece thickness 10-60 mm. 8. Scraping Unit 1929 MOT4 (Profile Scraper): ○ Motorized adjustable. ○ For scraping PVC and ABS. Gjdpewn Nuasfx Abpskd ○ Max radius up to R=3 mm. ○ Equipped with two replaceable knives, blow nozzles, and dust extraction. 9. Polishing Unit 1964 (2 x 0.12 kW, 1400 min⁻¹): ○ Consists of two cleaning units with rotating felt discs. ○ Both units adjustable 0-5° for improved cleaning effect. 10. Netsystem 1856: ○ A set of 4 spraying nozzles (two at the front, two at the rear of the machine). ○ Liquid with anti-adhesive and cleaning properties. ○ Ensures an invisible joint and a pleasant finish.
