Edgebander

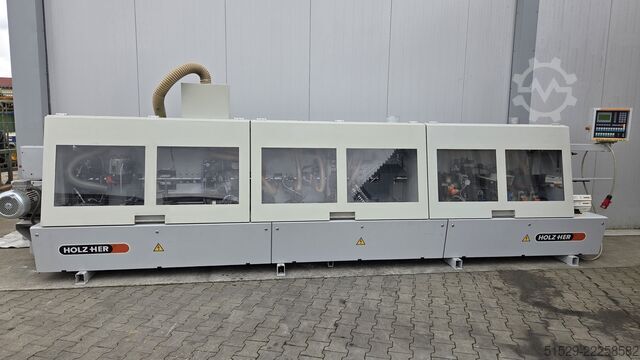

HOLZ-HER triathlon

Condition: excellent (used), Preliminary milling cutters Gluing unit for cartridges Guillotine Edge trimming cutter (front and rear) Straight milling cutters Angle milling cutters Rounding profiling cutter Corner rounding Straight profiling cutter Bjdozik R Ajpfx Ambodd Dadoing saw Polishing machine Year 2002

Condition: used, Year of construction: 1997, Used machine Bdodpfx Amjyamcwsbjd Year of manufacture: 1997 Condition: well-maintained Equipment and technical data: Machine with PLC control Feed speed: 12/16 m/min Edge feed for roll and strip material, automatic 1901 Glue application cartridge 1906 with sensing nozzle Pressure unit pneumatic, motorized adjustment to edge thickness 1926 End trimming unit, twin-motor, pneumatically tiltable 1918 Milling unit, fixed up to 30 mm 1962 Milling unit MOT 5 with multifunctional flush, radius, bevel 1966 Radius scraper 1927 Corner copying 1983 Surface scraper 1964 Buffing unit 1944 Air blow nozzles Technical data: Workpiece thickness min./max.: 6/60 mm Workpiece width min.: 60 mm Workpiece length min.: 140 mm Edging thickness max.: 13 mm Weight: 1,350 kg Machine dimensions: 5,850 x 1,000 x 1,750 mm Location: Röllbach Availability: short-term

Condition: not inspected (used), Year of construction: 2006, for coil and strip material from 0.4 - 15 mm max. panel thickness 60 mm max. edge overhang 66 mm large magazine table, D = 820 mm transport chain with automatic lubrication idler roller for shortest workpiece sequence safety/soundproof hoods central dust extraction connection, D = 160 mm, edge trimming units, D = 120 mm chip collection box, D = 100 mm equipped with: > Edge trimming units 1961 incl. DIA cutter > Memory-programmable screen control Edgecontrol > Automatic edge magazine 1901 for coil and strip material > Gluing station 1905 for cartridges + granules incl. sensing nozzle > Pressing unit 1926, motor-driven/pneumatic > Cutting unit 1819, motor-driven > Flush trimming unit 1962 > Multi-function trimming unit 1966 with various radii/chamfers > Multi-radius draw blade unit 1965 with various radii > Corner copying unit 1983, R = 2 mm incl. one interchangeable motor, R = 1 mm > Straight draw blade 1964, controlled by program > Deburring unit 1944, controlled by immersion > Spray device 1856 at the infeed and outfeed > Belt bridge > stepless feed rate up to 24 m/min > Shear arm > motor-driven bridge adjustment > infeed guide rail, motor-driven adjustable Length 8200 mm Width 1300 mm Height 2000 mm Bjdpfx Amsy Ici Robsdd Weight 3300 kg

Year of construction: 2006, condition: ready for operation (used), Glue type: PUR glue, glue application system: cartridges, max. edge thickness: 25mm, max. workpiece thickness: 60mm, feed rate: 16m/min, min. workpiece length: 140mm, min. workpiece width: 60mm. Including various spare parts and Ligmatec return. Documentation available. On-site inspection is possible. Bedpfxjugmw Ej Ambsdd

Year of construction: 1995, condition: not inspected (used), Connected load 380V 55A PMS control Pre-milling unit 1961 Magazine 1901 Glue station 1906 Printing unit 1926K Snipping unit 1916 Flush trimming unit 1962 Profile trimming unit 1966, 3 mm rounding up to 15 mm flush Rounding scraper 1927 Shaping trimming unit 1983 Bjdsnxkm Eopfx Ambodd Buffing unit 1941 Extraction 1x160 1x125 mm Compressed air connection 6 bar
