Multiple Combination

Holzkraft SCM CU 410 Elite S 32 Tersa

Maximum configuration for the professional user. Combination machine with TERSA cutterblock, miter cutting device and pivoting milling spindle
Ø 350 mm main saw blade with a maximum cutting height of 118 mm, which is also achieved when the scoring saw blade is installed
Scoring device with separate motor and Ø 120 mm saw blade, easily and conveniently adjustable from the outside
Highly precise format sliding table made of anodized aluminum on hardened and riveted steel guide rails
Large outfeed table (1200 x 650 mm) with roller and extendable aluminum telescope fence up to a maximum of 3300 mm
Saw unit can be pivoted from 90° to -45°
Pivoting milling spindle from 90° to -45° to the rear into the milling fence
Four milling speeds
Right/left rotation of the milling spindle
Quick changeover to the thickness planer thanks to parallel-opening planer tables
2-stage feed rate on the thickness table
Helical toothed steel feed roller for even wood feed
Three independent industrial motors
With separate saw parallel fence and separate joiner fence
With lockable main switch

Equipment details:

Format fence
Immediate control

Outfeed table
Outfeed table with angle-adjustable telescope stop
with degree scale

Sliding table with ball contact system
made of anodized aluminum
Guides made of hardened and ground steel F550S, 15% harder than conventional steel
Guides riveted and not glued
easy running, quiet and reliable
10-year HOLZKRAFT warranty on wear of the hardened guide rails
Cast iron double-pivot saw unit
Height adjustment via dovetail guide
extremely robust and torsionally stiff for precise cuts
located close to the saw blade, bearing on both sides
height- and up to 45° angle adjustable
standard scoring unit with separate scoring motor 0.55 kW

Double-pivot milling unit
large, pivoting double-pivot milling unit made of cast iron

Milling fence
heavy-duty professional design
the high-quality milling fence made of cast iron comes standard with fine adjustment
3-way positionable for quick restoration of the setting
with fine adjustment via rack and pinion, digital display and aluminum milling fence cheeks

Planing units
helical toothed steel feed rollers for a constant and even wood feed
massive anti-kickback devices prevent workpieces from kicking back
4-knife Tersa cutterblock ensures an optimal planing result
table lips for quieter operation

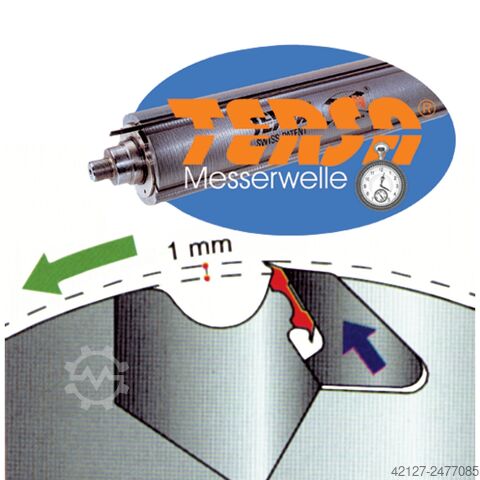

Tersa planing cutterblock
No more adjustment and screwing
Planer knife change in seconds
Self-locking
particularly quiet

Thickness table
The thickness table is mounted on four large-dimensioned spindles, which ensure maximum stability under all working conditions
Due to the special lifting device, the table position is maintained without fault, even without locking

Parallel fence
with fine adjustment and quick clamping
stable round bar guide made of ground steel
interchangeable aluminum ruler
No gap, guide rods are overlapping

Separate joiner fence
large, professional design (1800 x 150 mm)
0-45° pivotable
with quick adjustment
Dwsdocnxa Sjpfx Akhoa
stable round bar guide made of ground steel

Simultaneous opening

Type: No. 5500557
