LINE (4-SIDES) of SIZING & EDGE BANDING

HOMAG + BARGSYEDT KFL 525 + KFL 526 + TBH + TSP

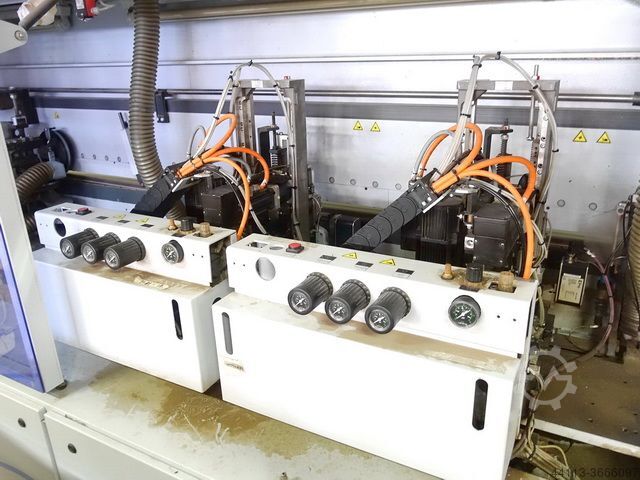

Condition: excellent (used), Double side - Independent Machine (or 1st and/or 2nd in a line) Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3 Panels thickness (min/max) mm 12 / 40 Working width (min/max) mm 225 / 2500 Numerical Control NC 21 / HOMATIC Adjustable feeding speed (m/min) 15 - 50 Safety and sound-proof enclosures/cabins Pjdpfehvi E Iex Agqjrd Distance (center-axes) of the Disappearing Dogs (mm) 500 SIZING PART (for each side): Spraying unit (Anti-sticking liquid) Anti-chipping Milling Unit 1 x Kw 4,5 Hogging Units KD 11 (2 x Kw 6,6) LEFT SIDE: Jumping Milling Unit (for grooving) SF 20 (Kw 6,6 x 1) 0°-90° RIGHT SIDE: Free space EDGE-BANDING PART (for each side): Glueing Unit (Hot Melt Glue + Quick Melt system) A3 + A34 Edge coils support (No 6 reels) Band Pressure zone "A" (1 + 4 rollers) Snipping (end-cutting) unit HL 04 (2 x kW 0,18) Rough Trimming unit 2 x Kw 0,55 (0°-35°) Multi Function Unit (Profile contour Trimming unit) FK 11 - 2 x Kw 0,4 Profile edge scraping unit PN 20 Glue scraping unit (Pneu) Buffing unit (2 x Kw 0,25)

Condition: excellent (used), AUTOMATIC MULTI-BORER "WEEKE" In line with another machine possible Numerical Control Power Control Software WoodWop (TOPDRILL BST 500) Through-feed motorized transport belts (No.) 2 (with adjustable speed) Horizontal units/supports (No.) 2 Drilling heads/Blocks for each horizontal unit (No.) 2 Spindles for each horizontal drilling head (No.) 11 Max. working width (mm) 3000 Min. working width (mm) 250 Bottom vertical units/supports (No.) 6 Drilling heads/blocks for each bottom vertical unit (No.) 2 Spindles for each drill head of the bottom vertical supports (No.) Various Top vertical units/supports (No.) 2 Podpjh Ryhnofx Agqsrd Drilling heads/block for each top vertical unit (No.) 2 Spindles for each drill head of the top vertical supports (No.) Vertical top pressure clamps (No.) 6 Transport belt to evacute chips (wastes) Quota (axes) digital display Total installed power (Kw) 26

Condition: used, Year of construction: 2009, Numerical control POWER CONTROL PC 22 Machine suitable for 1st + 2nd passage of the panel Mobile shoulder opening motorized by N.C. mm 3000 Maximum panel height mm 60 PVC-ABS edge thickness mm 3 Feed speed mt/min 40 Feed speed with rounders mt/min 20 Motorized pressure rubber belt Bearing track with retractable pin (distance between pins mm 500) Squaring part composed of: Anti-adhesive group Timed automatic anti-splinter group Double shredder group Free space for any group addition Gluing unit with pre-melter and glue pot Automatic adjustment of the edge pressure rollers Edge holder magazine with 2 positions Trimming unit with two motors Overlapped trimming unit FK rounding unit Edge scraper unit Glue scraper group Brush group Anti-adhesive group Prsdpjpp Tkfofx Agqed

Condition: excellent (used), Double side - Independent Machine (or 1st and/or 2nd in a line) Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3 Panels thickness (min/max) mm 8 / 40 Working width (min/max) mm 225 / 2500 Numerical Control PC 22 /Software WoodCommander Adjustable feeding speed (m/min) 15 - 40 Safety and sound-proof enclosures/cabins Pedeuhv R Djpfx Agqord Distance (center-axes) of the Disappearing Dogs (mm) 1000 SIZING PART (for each side): Anti-chipping Milling Unit (1 x Kw 4,5) Hogging Units KD 11 (2 x Kw 6,6) Milling Unit (vertical Joint Trimmers) UF 20/S2 (2 x Kw 4) EDGE-BANDING PART (for each side): Glueing Unit "ZERO JOINT" SCHUGOMA Kantenking (Option: EVA glue/ PU glue) Edge coils support (No 2 reels) Band Pressure zone (adjustable by N.C.) Type A Snipping (end-cutting) HL 84 (2 x kW 0,22), speed 25 m/min Rough Trimming unit BF10 (2 x kW 0,55) Multi Function Unit (Profile contour Trimming unit) FK11 (2 x kW 0,4) Profile edge scraping unit (Multi-profile, adjustable by N.C.) MN 21 Finish processing unit (Glue scraper + Buffing unit) FA 11. Spraying Unit (for polishing liquid) No. 2 Milling grooving unit SF20 (2 x kW 6,6) Motorised panel infeed roller conveyor, with panel identification system "HOMAG" Mod. POWER TBL 100/20/25

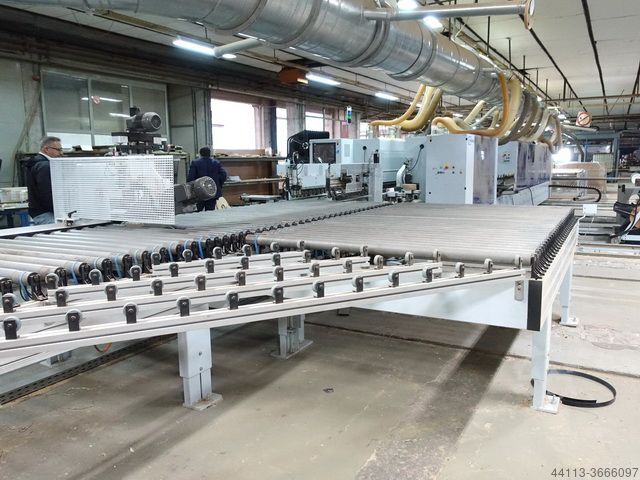

Condition: excellent (used), LINE (half line) of Double-side Sizing-Milling & Edge Banding, with max working width mm 2500, with automatic fast handling system. Composed of the following machines: A) DOUBLE LOADER (BRIDGE-FRAME) "BARGSTEDT" TBH 270 / D / 25 / 12 B) TURNING DEVICE FOR PANELS (LENGTHWISE TO CROSSWISE) "HOMAG" TDL /310 /25 /12 C) Double-side SIZING and EDGE BANDING machine "HOMAG" Mod. KFL 526/9/A3/25 D) TURNING DEVICE FOR PANELS (CROSSWISE TO LENGTHWISE) "HOMAG" TDL 510/25/12 E) DOUBLE UNLOADER (BRIDGE-FRAME) "BARGSTEDT" TSH 270 / D / 25 / 12 With LINE CONTROLLER - WOODLINE CONTROL PC52 Prsdpfx Aernrrbegqjd
