CNC machining center

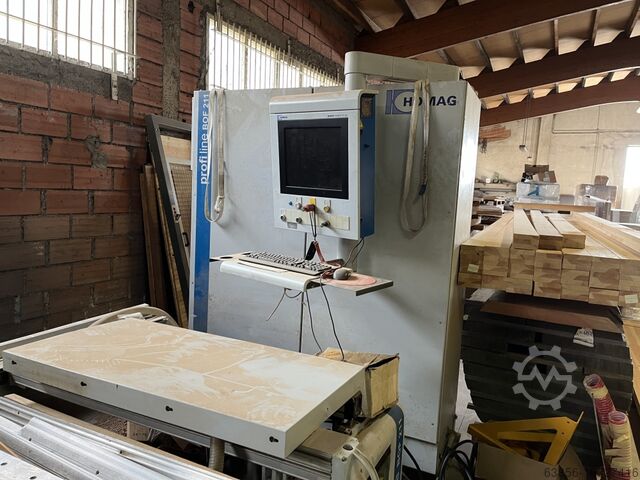

HOMAG BOF 211

Condition: used, machine/vehicle number: 005521, X axis working area: 4000 mm Y axis working area: 1400 mm Dsdpfevctlgex Acwocn Working Table: Pod and Rail Main Electrospindle power: 15 KW Number of controlled axes: 4 axes Total number of drilling spindles: 30 Total number of tool changer positions: 24

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 0-201-06-9022, rotational speed (max.): 24,000 rpm, distance between spindles: 32 mm, working height: 950 mm, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Workpiece length Single setup: max. 4,000 mm Pendulum setup: max. 1,375 mm Workpiece length for milling operations with 25 mm tool diameter Single setup: max. 4,175 mm Double setup: max. 1,950 mm Pendulum setup: max. 1,550 mm Workpiece width – front fence, operator side Milling with 25 mm tool diameter: max. 1,220 mm All units (except drilling head): max. 1,150 mm Workpiece width – rear fence Milling with 25 mm tool diameter: max. 1,730 mm All units: max. 1,600 mm Extension of consoles available as option, order no. VK 7375 Workpiece thickness Dedpfow Upu Sjx Acwjcn Including clamping devices: max. 300 mm With standard clamps, unlimited: up to max. 60 mm Dimensions are not equivalent to the maximum possible processing sizes per unit – see separate tables Minimum workpiece size: Dependent on clamping devices, workpiece surface and contour Working height Bottom edge of workpiece: 950 mm Main spindle Power S6: 18.5 kW Power S1: 14.5 kW Tool holder: HSK F63 – DIN 69893 Tool weight: max. 6 kg including holder Tool length: max. 200 mm from lower edge of motor spindle Milling tool diameter: max. 180 mm Grinding tool diameter: max. 200 mm Speed range: 0 – 18,000 rpm Full torque: 0 – 12,000 rpm Full rated output: from 12,000 rpm Maximum speed: 24,000 rpm Disc tool changer Capacity: 18 positions Tool holder: HSK F63 Configuration option 1: 18 x max. diameter 130 mm Configuration option 2: 9 x max. diameter 180 mm and 9 x max. diameter 70 mm Drilling head Spindles: 17 Motor power: 4 kW, frequency controlled Speed range: 4,500 – 6,000 rpm Function: vertical drilling Stroke: 50 mm Drill spindles: up to max. 35 mm drilling diameter Spindles X-direction: 11 Spindles Y-direction: 7 Spindle spacing: 32 mm Total drill length: 70 mm Shaft diameter: 10 x 20 mm Rotation direction: Alternating left/right MACHINE DETAILS Footprint: 5,000 x 7,750 x 3,000 mm EQUIPMENT 2x vacuum cups per console Note: Unless expressly stated otherwise, tools, tool holders, units, and mechanical clamping devices that may be visible in photos and videos are not included in the scope of delivery.

Condition: ready for operation (used), Year of construction: 2004, Travel Z: 535mm, travel speed X/Y/Z: 60m/60m/30m/min, max. workpiece dimensions X/Y/Z: 4175mm/1730mm/300mm. Main spindle: power: 18.5kW, speed: 24000rpm, max. tool diameter: 200mm, max. tool length: 200mm, max. tool weight: 6kg. Drill diameter: 35mm, speed: 6000rpm, power: 4kW, projection stroke: 50mm, swivel: 100°, cross-cut saw diameter: 180mm, number of spindles: 4, vacuum pump capacity: 100m³/h. Documentation available. On-site inspection is possible. Dcedpjwmqw Hofx Acwjn

Condition: ready for operation (used), Technical characteristics Workpiece length max: 5200 mm - for tool Ø 25: 5375 mm Workpiece width max: 1400 mm - for tools Ø 25 mm: 1550 mm Workpiece thickness 300 mm max up to 60 mm with a standard clamping device Console table: consoles with front stop 8 units Rear stop (fixed) 4 units Lifting rails Console length 1340 mm Side stops left 2 units - right 2 units Suction cups 160 x 115 x 100 mm 16 units Suction cups 125 x 75 x 100 mm 8 units Vacuum pump 140 m3 / h Modern control system from a WINDOWS computer WINDOWS XP operating system Industrial pc 17 inch flat screen Ethernet network connection WOODWOP program Voltage 400 V 50/60 HZ Additional vacuum pump 100 m3 / h Chip conveyor belt 13-spindle drilling head 9 vertical 6 x drilling spindles 4 Y-drilling spindles 4 horizontal spindles 2 pins in X 2 Y-pins Main spindle 11kW HSK F63 Liquid cooling 1000/24000 rpm Ø of tools 180 mm max C axis including C axis tilt drive Unlimited swivel range 12-station tool changer Ø 135 mm CONSOLE LED positioning system Caractéristiques usinageWindows PCVacuum pump Power and Motors Voltage: 400 V Pluging: Three-phased Overall dimensions Dedst Eyglepfx Acwocn

Condition: excellent (used), Homag work center Mod. BOF211 VENTUR 12XXL Working length in X axis 6000 mm Working width in Y axis 1550 mm No. 10 work tables Automatic positioning of X-axis crosspieces Laser positioning of suction cups 10 clamp fixing elements HSK 63 electrospindle 15 kw liquid cooling 1000-24000 rpm 4 axis Flex 5 group possibility of mounting blades, drilling and milling tips Horizontal milling group with 2 spindles Blade group D = 280 mm Automatic tool changer with 30-position chain magazine Tool transfer position Drilling head with 13 spindles (9 vertical 4 horizontal) Power control PC85 PC Windows XP Chip conveyor belt No. 02 vacuum pumps liquid EC regulation Dcjdpfx Aeu S I Icecwen

Condition: used, machine/vehicle number: 006906, X axis working area: 4175 mm Y axis working area: 1730 mm Working Table: Pod and Rail Main Electrospindle power: 18.5 KW Number of controlled axes: 4 axes Total number of drilling spindles: 20 Dcedpswgktbjfx Acwon Total number of tool changer positions: 18

Condition: ready for operation (used), Technical characteristics 5 axes Max workpiece length single 6000 mm, pendulum 2375 mm Max. workpiece width rear 1300 mm Max. workpiece thickness 300 mm, incl. clamping device Consoles with front stop 10 units 100 mm high suction cups for processing the underside of the workpiece Vacuum pump 2 x 100 m3/h Windows control system Windows XP operating system 17" TFT flat screen Dcodpfot Ttn Esx Acwon WOODWOP program Graphic representation of the clamping stations Modern 3D graphic interface software Remote diagnostics Operating voltage 400 V, 50/60 Hz Control cabinet can be positioned on the right or left 5-axis main spindle 15 kW drive5+ HSK F63 Liquid cooling Electronically controlled from 1000 -24000 rpm Tool length 230 mm max Tool Ø: max 180 mm for milling tools 350 mm max for saw blade use Z-axis travel 750 mm Vibration sensor for monitoring the spindle during machining Tool changer by disc 18 stations D=130 milling tool HSK F63 Place pickup for saw blade 350 mm 25 spindles drilling unit (19 vertical, 2+4 horizontal, grooving saw) Laser projection for positioning of suction cup clamp to show the contour to be milled program in WOODWOP Chip transport belt Power and Motors Voltage: 400 V Pluging: Three-phased Overall dimensions Lenght: 9500 mm Width: 5000 mm Height: 3450 mm

Condition: used, machine/vehicle number: 007350, X axis working area: 4000 mm Y axis working area: 1400 mm Dcedpfx Acswcyd Iewen Working Table: Pod and Rail Main Electrospindle power: 15 KW Number of controlled axes: 4 axes Total number of drilling spindles: 30 Total number of tool changer positions: 28
