HOMAG KAL 310/7/A3

HOMAG KAL 310/7/A3

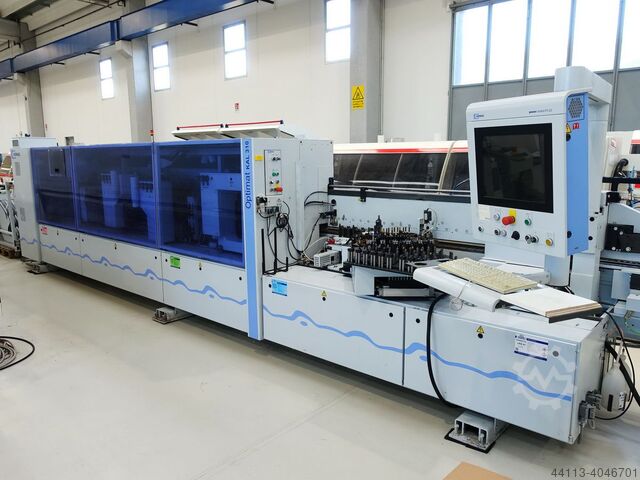

This HOMAG KAL 310/7/A3 was manufactured in 2010. A used single-sided edge banding machine featuring a 28-position ISAS edge magazine, PU gluing unit, and Boomerang return system. It includes a joint milling unit with two motors and a PU 34 gluing system with a capacity up to 6 kg/h. Ideal for precise edge banding applications. Contact us for more information about this machine.

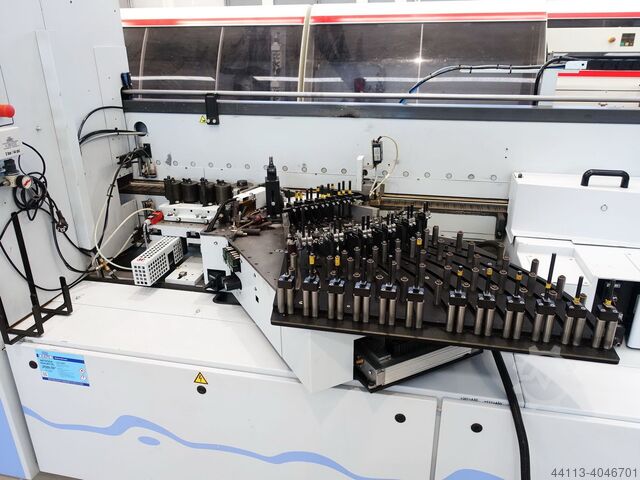

• ISAS edge magazine: 28 positions (selectable edges)

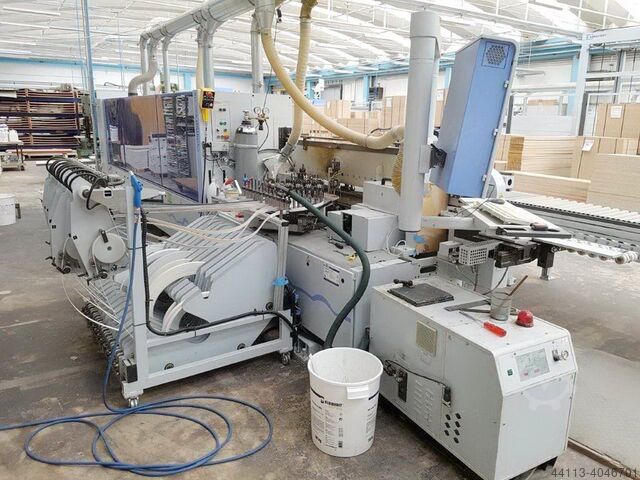

• Gluing unit: PU 34 system with PU melting unit (capacity up to 6 kg/h), 2 kg adhesive container, QA glue application unit
• Pressure section: 4 pressure rollers
• Separating agent spray unit: Top and bottom application
• Joint milling unit: 2 motors, each 3 kW, 150 Hz, 9,000 rpm; pneumatically controlled for infeed milling operation
• Pre-milling unit: 2 motors, each 0.55 kW, 200 Hz, 12,000 rpm; double roller tracing; electro-pneumatic retraction
• End trimming unit (WK 13 – chamfer/straight): 2 motors, each 0.4 kW, 200 Hz, 12,000 rpm; electro-pneumatic adjustment to 2 positions (flush and overhang)
• Profile unit FK 11 (manual): For processing edge overhangs top/bottom and trimming front/rear edges; 2 motors, each 0.4 kW, 200 Hz, 12,000 rpm
• Universal milling unit UF 11: 1 motor 4 kW, 150 Hz, 9,000 rpm; swiveling 90°, electro-pneumatically controlled; HSK 63 F tool holder with push-button release
• Profile scraper unit PN 10: Pneumatic adjustment for lateral retraction from the working area
• Finish unit FA 11 (top/bottom): Glue joint scraper; cleaning fluid application; buffing unit with 2 motors; height-adjustable with upper pressure beam

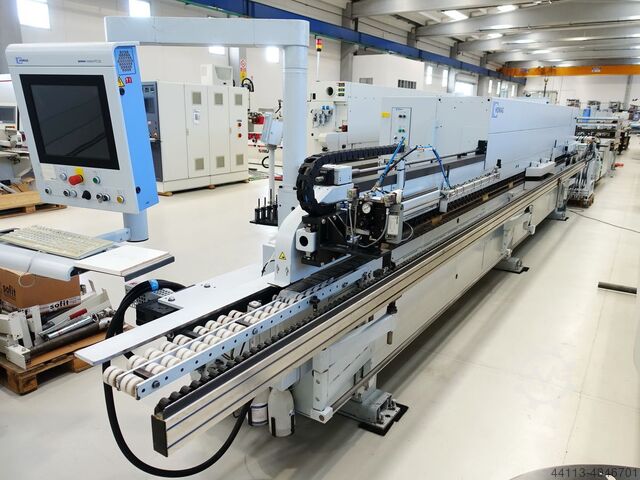

• Machine control: 19-inch touchscreen operation

Additional equipment

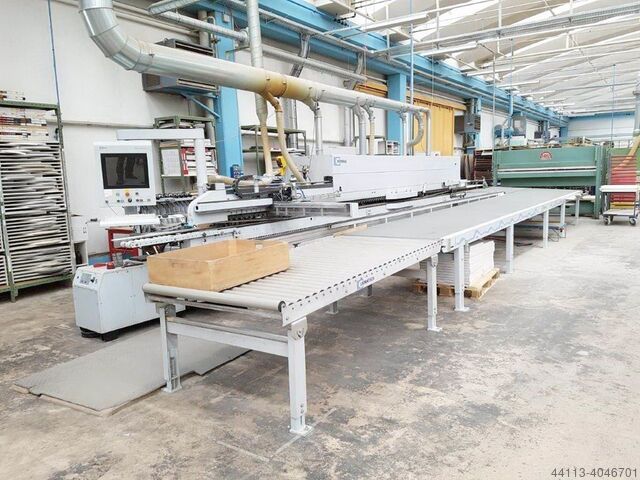

• Return conveyor system: BOOMERANG ZHR05
• Inclined air cushion table: length 2,000 mm, width 1,000 mm
• Conveyor belt width: 1,100 mm
Fgodpfx Ajx D Ra Tjptsd
• Workpiece parameters:
• Length: 300–2,500 mm
• Width: 60–1,100 mm, or length 300–800 mm with width >1,100–2,000 mm
• Thickness: 8–60 mm
• For four-sided processing: Min part 300 x 300 mm; Max part 2,000 x 800 mm
• Roller support rail for wide parts
