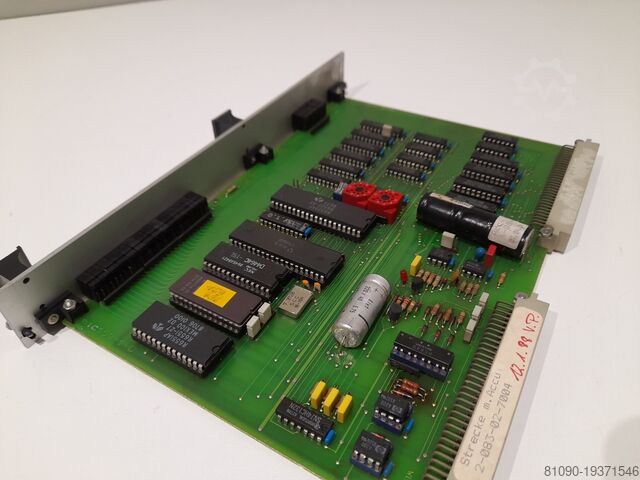

EEPROM for CPU board

homag

Year of construction: 2005, condition: ready for operation (used), functionality: fully functional, working width: 2,400 mm, working height: 32 mm, working length: 800 mm, TECHNICAL DETAILS Working width X-axis: 267 - 2,400 mm Working length Y-axis: 120 - 800 mm Working height Z-axis: 16 - 32 mm Djdpfxjydn A To Advekh 2 upper drilling heads + independent Y-axis grooving consisting of: Left head with 15 vertical spindles in X and Y-axis + one blade for grooving Right head with 15 vertical spindles in X and Y-axis + one automatic hinge installation unit 2 independent lower vertical drilling heads in Y-axis each with 5 + 5 independent spindles MACHINE DETAILS Control: Numerical control with WoodWop software EQUIPMENT Automatic loading system with motorized roller conveyor Tank with vibrator for hinge storage and automatic feeding Unloading system with automatic roller conveyor

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: 0-201-09-5124, travel distance X-axis: 6,000 mm, travel distance Y-axis: 1,650 mm, controller model: Homatic PC 85 Power Control, TECHNICAL DETAILS X-axis working range: 6,000 mm Y-axis working range: 1,650 mm – up to 1,750 mm for milling Max. travel height during edge banding: 60 mm Max. applicable edge height: 65 mm Minimum internal radius: 30 mm Automatic tool changer: 18 positions Drilling head: 27 spindles (4 kW) Max. unit saw blade diameter: 200 mm MACHINE DETAILS Control system: Homatic PC 85 Power Control Software: WoodWop Electrospindle C Vector: 11 kW, HSK F63 Edge specification: Rolls, PVC / ABS 0.4 - 3 mm EQUIPMENT 10 adjustable support rails for vacuum cups Loading and unloading aid with 8 pneumatic rods Vacuum cup positioning with laser system Edge banding unit with 360° rotation, glue pot, and preheater for granular EVA glue Rubber-coated pressure roller + Rubber-coated pressure roller Preheating lamp Edge trimmer and edge scraper Edge holder magazine Front and side safety system with carpets Protective cage around access area Chip extraction with motorized conveyor belt Air conditioning for machine control cabinet Dkjdpfx Ajydl Nwsdvjh Automatic lubrication system Vacuum pump

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 0-200-03-8334, feed rate X-axis: 24 m/min, workpiece height (max.): 60 mm, controller model: Power Control Pc 22, TECHNICAL DETAILS Panel height: 60 mm Solid wood: 20 mm PVC / ABS: 3 mm Feed speed: 24 m/min MACHINE DETAILS Control system: Power Control PC 22 Supply voltage: 480 V Frequency: 60 Hz Phases: 3~ + N Operating current: 51 A Fusing: 63 A Phase circuit: 3~ Control voltage: 24 V EQUIPMENT Electronically adjustable working height via CNC Powered, rubberized conveyor belt with increased pressure Panel support guide Dsdpfx Asydiymodvokh Lateral roller conveyor with idler rollers for panel support Sanding unit Infrared lamps for panel edge preheating Six-position coil holder magazine with automatic edge change via CNC EVA hot-melt gluing unit with premelter and glue pot Edge pressing unit for straight profiles with electronically adjustable pressure rollers via CNC End trimming unit with two motors and automatic tilt adjustment Overlapping cut-off / milling unit with two motors Glue / milling unit with two tiltable motors, electronically adjustable via CNC Multifunctional 4-motor corner rounding unit (smoothing + rounding) with CNC control, automatic adaptation Provision for integrating an additional working station Edge scraping unit Oscillating brush unit

Condition: not inspected (used), Year of construction: 2009, operating hours: 29,000 h, functionality: unexamined, feed rate X-axis: 25 m/min, total length: 7,755 mm, workpiece height (max.): 40 mm, working height: 950 mm, controller model: PowerControl PC22, TECHNICAL DETAILS Feed rate: 18 - 25 m/min Maximum feed rate with FK11: 20 m/min Working height: 950 mm Minimum workpiece width (for workpiece thickness 12-22 mm): 60 mm (depending on workpiece length) Minimum workpiece width (for workpiece thickness 23-40 mm): 105 mm (depending on workpiece length) Workpiece protrusion: 30 mm Workpiece thickness: 12 - 40 mm Edging material (coil): 0.3 - 3 mm Maximum edge cross-section (PVC): 135 mm² Maximum edge cross-section (veneer): 100 mm² Maximum coil diameter: 830 mm Edging material (strips): 0.4 - 20 mm Maximum edge cross-section (strips): 900 mm² MACHINE DETAILS Control system: PowerControl PC22 Pneumatic connection: 7 - 8 bar Total length: 7,755 mm Operating hours: approx. 29,000 h EQUIPMENT Workpiece support with scissor-design and roller support, extendable to 1000 mm Automatic infeed guide adjustment Fixed stops on left side Pneumatically controlled infeed lock Top pressure via driven composite V-belt Dedpfx Adsyc S Hasvekh Electrical height adjustment Workpiece transport unit via transport chain with rubber coating Separating agent spray unit, top/bottom Joint trimming unit 2 x 3 kW Gluing unit A20 with 2 rollers, comprising workpiece preheating, Quickmelt application unit with quick-clamping system, 2-roller magazine, pressure zone C (automatically adjustable with 1 pre-press roller and 6 post-press rollers) Trimming unit HL84 0.8 kW, with automatic chamfer/straight adjustment and pneumatic flush/excess trimming adjustment Pre-milling unit 1.5 kW, pneumatic adjustment between flush and excess milling Contour milling unit FK11 with automatic adjustment from chamfer to radius milling Profile scraper PN10 (with pneumatic side retraction) Finishing unit (with pneumatic side retraction), consisting of glue joint scraper and buffing unit Remote control Workpiece guide for FK device Note: Container loading and seaworthy packaging by the seller is not possible.

Condition: not inspected (used), Year of construction: 2008, operating hours: 33,000 h, functionality: unexamined, feed rate X-axis: 25 m/min, workpiece height (max.): 60 mm, working height: 950 mm, controller model: Power Control PC22, TECHNICAL DETAILS Feed rate: 18 - 25 m/min Working height: 950 mm Minimum working width at workpiece thickness of 22 mm: 55 mm Minimum working width at workpiece thickness of 60 mm: 100 mm Workpiece overhang: 30 mm Workpiece thickness: 8 (12) - 60 mm Edging material, strip max.: 0.4 - 20 mm Edge cross-section, strip max.: 900 mm² Edging material, coil: 0.3 - 3 mm Max. edge cross-section for PVC: 135 mm² Max. edge cross-section for veneer: 100 mm² Max. roll diameter: 830 mm MACHINE DETAILS Control system: Power Control PC22 Pneumatic connection: 7 - 8 bar Operating hours: approx. 33,000 h EQUIPMENT Continuous machine frame for mounting processing units Workpiece support with roller rail, extendable approx. 800 mm Glue roller drive on feed stop Glue pot lift-off at feed stop Glue pot clamping, workpiece actuated Infeed fence automatically adjustable Infeed lock pneumatically controlled Infeed device with 2 rollers Infeed extension 500 mm Automatic pressure zone adjustment Sliding carriage Pre-installed for Boomerang ZHR05 return system Workpiece support in extended scissor design Operating data collection Electric height adjustment Fixed stop on left side Workpiece transport system Top pressure Separating agent spray unit Jointing cutter unit, 2 x 3 kW Gluing station A20 Basic for coil material up to 3 mm and strip material up to 20 mm, with melting unit with granulate tank and quick-change system Cross-cutting unit, 2 x 0.8 kW, with pneumatic adjustment Slip agent spray unit Pre-milling unit 1.5 kW, pneumatically adjustable Profile trimming unit FK13, 2 x 0.4 kW Universal milling unit 4 kW, controlled, with stepless axis Multi-finishing unit MN21 automatic Finishing unit FA11, with finishing station, cleaning agent application, and buffing unit, pneumatically adjustable Noise protection Spare position for additional processing units Dkedpfsyc Sr Asx Advsh Note: The machine is sold without consumable tools. Container loading and seaworthy packaging by the seller is not possible.

Condition: used, machine/vehicle number: 008365, Position 1: Single Edgebanders BRANDT - HOMAG-AMBITION 1650 - TFU 140/R/20 Position 2: Panel Return Systems BRANDT - HOMAG-AMBITION 1650 - TFU 140/R/20 Dedpox Swf Uofx Advokh

Condition: ready for operation (used), Year of construction: 2009, Edgebander manufactured in 2009. This HOMAG PROFI KAR310/11/A20/S2 features a work piece return system BARBARIC. Consider the opportunity to buy this HOMAG PROFI KAR310/11/A20/S2 edgebander. Contact us for further details. • Condition: Used Dodpfsyhqi Dex Advekh Additional equipment • BARBARIC workpiece return system

Condition: ready for operation (used), Year of construction: 2006, number of axes: 3, This 3s HOMAG OPTIMAT BAZ 211 VENTURE 20 was manufactured in 2006. It features a reconditioned AC motor with a holding brake and a timing belt for enhanced performance. With approximately 32,572 operating hours, this CNC Wood Machining Centre represents a valuable opportunity for high-quality woodworking capabilities. Consider the opportunity to buy this HOMAG OPTIMAT BAZ 211 VENTURE 20 CNC Wood Machining Centre. Contact us for further details. Dkedpfeyhqc Rox Advsh • Operating hours: approx. 32,572 h • Condition: Reconditioned (factory reconditioned) • Replaced/repaired components: • AC motor 8.00 Nm digital with holding brake • Timing belt HTD 800-8M-30 • Adapter OMLAT–Homag spindle

Condition: used, Year of construction: 2008, Used machine Year of manufacture: 2008 Condition: well-maintained, serviced regularly (last service by Homag in 11/2024) Features and technical specifications: Minimum workpiece thickness: 12 mm Maximum workpiece thickness: 60 mm Minimum workpiece size (L×W): 240 × 55 mm (with 22 mm thickness) / 100 mm (with 60 mm thickness) Minimum edge thickness: 0.3 mm (roll material) / 0.4 mm (strip material) Maximum edge thickness: 3 mm (roll material) / 20 mm (strip material) Feed speed: infinitely variable, 18–25 m/min (frequency-controlled) Type of glue: EVA hot-melt adhesive Glue application (pot / cartridge / nozzle): melting unit with granulate hopper Glue volume / cartridge size: granulate hopper, melting capacity 18–35 kg/h, level-controlled Heat-up time: approx. 8–10 min Edge magazine (slots): 2 rolls (automatic roll change) Automatic edge change: yes (automatic via PC22, can be switched manually) Pre-milling: 2 × 1.5 kW, 200 Hz, 12,000 rpm, pneumatically adjustable Pressure zone: 1 pre-press roller Ø 150 mm + 6 post-press rollers Ø 70 mm, automatic adjustment End trimming: HL84 trimming unit, 2 × 0.8 kW, pneumatically adjustable (bevel / straight) Flush milling: via pre-milling unit, pneumatically adjustable Radius milling: FK13 contour routing unit, automatic 8-position tool changer (R = 2 mm) Bevel/profile milling: yes, via FK13, pneumatically adjustable Scraper: integrated in multi-finishing unit MN21 Polishing: buffing unit in finishing module FA11 Jointing unit: jointing milling unit KAL310/A20/S2, 2 × 3 kW Workpiece pre-heating: available Release agent spraying device: top / bottom, type 2929 (F.01) Dodpfx Adowx Aaqevokh Extraction ports: multiple Ø 100 mm (individual extraction per unit) Control: power control PC22 (industrial PC, woodCommander on Win XP embedded) Operating voltage: 400 V, 50 / 60 Hz CE / Standards: CE-compliant according to EU Directive 98/37/EC Dimensions / required space: approx. 8,000 × 1,400 × 1,600 mm Weight: approx. 3,000 kg The return conveyor system visible in the pictures is not included in the scope of supply! Availability: short-term Location: 63934 Röllbach

Condition: excellent (used), Year of construction: 2017, HOMAG CNC throughfeed drilling machine BHT500 Portal machining center for processing workpieces made of wood or wood-based materials. - Powercontrol System WoodWOP - 17" TFT display - Vertical drilling units with up to 38 drilling spindles - Horizontal drilling units with up to 21 drilling spindles, individually selectable - 2 grooving saw units in X axis - Workpiece dimensions: length 250-2500mm / width 100-1400mm (or 2x 600mm) / thickness 12-60mm Djdsx Rt Atspfx Advekh - Five-sided machining possible - Barcode reading system - Year of manufacture: 2017 - Immediately available
